Deepseekv3.2实现通用数学工具设计与实现

引言

数学是现代科学和工程的基石，从基础的四则运算到复杂的微积分、线性代数和统计分析，数学工具在我们的日常工作和研究中扮演着至关重要的角色。然而，对于许多非数学专业的人员来说，面对复杂的数学公式和计算过程常常感到困难。因此，开发一个通用的数学工具，能够调用各种常用的数学公式，并通过友好的界面提供服务，具有重要的实用价值。

本文将详细介绍如何设计并实现一个通用的数学工具，该工具包含Python后端计算引擎和HTML前端用户界面。我们将从需求分析、系统设计、实现细节到测试部署，全方位地展示开发过程。通过这个工具，用户可以方便地使用各种数学公式进行计算，无需关心背后的复杂数学原理。

一、需求分析与系统设计

1.1 功能需求

我们的通用数学工具需要满足以下核心功能需求：

• 公式分类管理：将常用数学公式按照代数、几何、三角、微积分、统计等类别进行组织
• 参数输入与验证：提供直观的参数输入界面，并对输入数据进行有效性验证
• 计算结果展示：清晰展示计算过程和最终结果
• 计算历史记录：保存用户的计算历史，方便查看和复用
• 响应式界面：适配不同设备的屏幕尺寸

1.2 技术选型

基于功能需求，我们选择以下技术栈：

后端技术：

• Python 3.8+：主要编程语言
• Flask：轻量级Web框架
• NumPy：科学计算库
• SciPy：高级科学计算库
• SymPy：符号数学库

前端技术：

• HTML5：页面结构
• CSS3：样式设计
• JavaScript：交互逻辑
• Bootstrap 5：响应式框架

1.3 系统架构

系统采用经典的三层架构：

1. 表示层：HTML页面，负责用户交互和结果展示
2. 业务逻辑层：Python后端，处理计算逻辑和数据验证
3. 数据层：存储公式定义和用户计算历史

二、Python后端实现

2.1 环境配置与依赖安装

首先，我们需要安装必要的Python库：

# requirements.txt
Flask==2.3.3
numpy==1.24.3
scipy==1.10.1
sympy==1.12
pandas==2.0.3

使用pip安装依赖：

pip install -r requirements.txt

2.2 核心计算模块设计

我们创建一个MathEngine类，封装所有数学公式的计算逻辑：

import math
import numpy as np
from scipy import integrate, optimize, stats
from sympy import symbols, diff, integrate as sympy_integrate, solve, latex
import statistics
from typing import Dict, List, Union, Tuple

class MathEngine:
    """数学计算引擎，封装各种数学公式的计算方法"""

    def __init__(self):
        self.history = []

    # 代数运算
    def quadratic_formula(self, a: float, b: float, c: float) -> Dict:
        """二次方程求根公式: ax² + bx + c = 0"""
        if a == 0:
            return {"error": "a不能为0"}

        discriminant = b**2 - 4*a*c
        result = {"discriminant": discriminant}

        if discriminant > 0:
            root1 = (-b + math.sqrt(discriminant)) / (2*a)
            root2 = (-b - math.sqrt(discriminant)) / (2*a)
            result["roots"] = [root1, root2]
            result["nature"] = "两个不同实根"
        elif discriminant == 0:
            root = -b / (2*a)
            result["roots"] = [root]
            result["nature"] = "两个相同实根"
        else:
            real_part = -b / (2*a)
            imaginary_part = math.sqrt(-discriminant) / (2*a)
            result["roots"] = [
                f"{real_part} + {imaginary_part}i",
                f"{real_part} - {imaginary_part}i"
            ]
            result["nature"] = "两个共轭复根"

        self._add_to_history("二次方程求根", {"a": a, "b": b, "c": c}, result)
        return result

    def arithmetic_sequence(self, a1: float, d: float, n: int) -> Dict:
        """等差数列计算"""
        an = a1 + (n - 1) * d  # 第n项
        sn = n * (a1 + an) / 2  # 前n项和

        result = {
            "nth_term": an,
            "sum_n": sn,
            "sequence": [a1 + i * d for i in range(min(n, 10))]  # 只显示前10项
        }

        self._add_to_history("等差数列", {"首项": a1, "公差": d, "项数": n}, result)
        return result

    def geometric_sequence(self, a1: float, r: float, n: int) -> Dict:
        """等比数列计算"""
        if r == 1:
            an = a1
            sn = n * a1
        else:
            an = a1 * (r ** (n - 1))
            sn = a1 * (1 - r ** n) / (1 - r)

        result = {
            "nth_term": an,
            "sum_n": sn,
            "sequence": [a1 * (r ** i) for i in range(min(n, 10))]  # 只显示前10项
        }

        self._add_to_history("等比数列", {"首项": a1, "公比": r, "项数": n}, result)
        return result

    # 几何计算
    def circle_properties(self, radius: float) -> Dict:
        """圆的性质计算"""
        if radius <= 0:
            return {"error": "半径必须大于0"}

        diameter = 2 * radius
        circumference = 2 * math.pi * radius
        area = math.pi * radius ** 2

        result = {
            "diameter": diameter,
            "circumference": circumference,
            "area": area
        }

        self._add_to_history("圆的性质", {"半径": radius}, result)
        return result

    def triangle_area(self, base: float, height: float = None,
                     side1: float = None, side2: float = None,
                     side3: float = None, angle: float = None) -> Dict:
        """三角形面积计算，支持多种计算方法"""
        if base and height:  # 底和高
            area = 0.5 * base * height
            method = "底和高"
        elif side1 and side2 and angle:  # 两边和夹角
            # 角度转换为弧度
            angle_rad = math.radians(angle)
            area = 0.5 * side1 * side2 * math.sin(angle_rad)
            method = "两边和夹角"
        elif side1 and side2 and side3:  # 海伦公式
            s = (side1 + side2 + side3) / 2
            area = math.sqrt(s * (s - side1) * (s - side2) * (s - side3))
            method = "海伦公式"
        else:
            return {"error": "参数不足"}

        result = {"area": area, "method": method}
        self._add_to_history("三角形面积",
                            {"底": base, "高": height, "边1": side1,
                             "边2": side2, "边3": side3, "角度": angle},
                            result)
        return result

    def pythagorean_theorem(self, a: float = None, b: float = None,
                           c: float = None) -> Dict:
        """勾股定理计算"""
        if a and b and not c:  # 已知a,b求c
            c = math.sqrt(a**2 + b**2)
            result = {"c": c}
        elif a and c and not b:  # 已知a,c求b
            b = math.sqrt(c**2 - a**2)
            result = {"b": b}
        elif b and c and not a:  # 已知b,c求a
            a = math.sqrt(c**2 - b**2)
            result = {"a": a}
        else:
            return {"error": "参数错误，必须且只能有两个已知值"}

        self._add_to_history("勾股定理", {"a": a, "b": b, "c": c}, result)
        return result

    # 三角函数计算
    def trigonometric_calculation(self, angle: float, func: str) -> Dict:
        """三角函数计算"""
        angle_rad = math.radians(angle)

        if func == "sin":
            value = math.sin(angle_rad)
        elif func == "cos":
            value = math.cos(angle_rad)
        elif func == "tan":
            value = math.tan(angle_rad)
        elif func == "cot":
            value = 1 / math.tan(angle_rad)
        elif func == "sec":
            value = 1 / math.cos(angle_rad)
        elif func == "csc":
            value = 1 / math.sin(angle_rad)
        else:
            return {"error": "不支持的函数"}

        result = {"value": value, "function": func}
        self._add_to_history("三角函数", {"角度": angle, "函数": func}, result)
        return result

    def law_of_sines(self, A: float = None, a: float = None,
                     B: float = None, b: float = None,
                     C: float = None, c: float = None) -> Dict:
        """正弦定理计算"""
        # 根据已知条件计算未知量
        if A and a and B and not b:  # 已知A,a,B求b
            b = a * math.sin(math.radians(B)) / math.sin(math.radians(A))
            result = {"b": b}
        elif A and a and b and not B:  # 已知A,a,b求B
            B = math.degrees(math.asin(b * math.sin(math.radians(A)) / a))
            result = {"B": B}
        # 可以继续添加其他情况...
        else:
            return {"error": "参数不足或不符合计算条件"}

        self._add_to_history("正弦定理",
                            {"A": A, "a": a, "B": B, "b": b, "C": C, "c": c},
                            result)
        return result

    # 微积分计算
    def derivative(self, expression: str, variable: str, point: float = None) -> Dict:
        """求导计算"""
        try:
            x = symbols(variable)
            expr = eval(expression)
            derivative_expr = diff(expr, x)

            result = {
                "derivative": latex(derivative_expr),
                "derivative_sympy": str(derivative_expr)
            }

            if point is not None:
                derivative_value = derivative_expr.subs(x, point)
                result["value_at_point"] = float(derivative_value)

            self._add_to_history("求导",
                                {"表达式": expression, "变量": variable, "点": point},
                                result)
            return result
        except Exception as e:
            return {"error": f"计算错误: {str(e)}"}

    def definite_integral(self, expression: str, variable: str,
                         lower: float, upper: float) -> Dict:
        """定积分计算"""
        try:
            x = symbols(variable)
            expr = eval(expression)
            integral_value = sympy_integrate(expr, (x, lower, upper))

            result = {
                "integral_value": float(integral_value),
                "integral_expr": latex(sympy_integrate(expr, x))
            }

            self._add_to_history("定积分",
                                {"表达式": expression, "变量": variable,
                                 "下限": lower, "上限": upper},
                                result)
            return result
        except Exception as e:
            return {"error": f"计算错误: {str(e)}"}

    # 统计计算
    def descriptive_statistics(self, data: List[float]) -> Dict:
        """描述性统计"""
        if not data:
            return {"error": "数据不能为空"}

        result = {
            "mean": statistics.mean(data),
            "median": statistics.median(data),
            "mode": statistics.mode(data) if len(data) == len(set(data)) else "无众数",
            "std_dev": statistics.stdev(data),
            "variance": statistics.variance(data),
            "min": min(data),
            "max": max(data),
            "range": max(data) - min(data)
        }

        self._add_to_history("描述性统计", {"数据": data}, result)
        return result

    def probability_distribution(self, dist_type: str, **params) -> Dict:
        """概率分布计算"""
        try:
            if dist_type == "normal":
                # 正态分布
                mu, sigma = params.get('mu', 0), params.get('sigma', 1)
                x = params.get('x', 0)
                result = {
                    "pdf": stats.norm.pdf(x, mu, sigma),
                    "cdf": stats.norm.cdf(x, mu, sigma)
                }
            elif dist_type == "binomial":
                # 二项分布
                n, p = params.get('n', 10), params.get('p', 0.5)
                k = params.get('k', 5)
                result = {
                    "pmf": stats.binom.pmf(k, n, p),
                    "cdf": stats.binom.cdf(k, n, p)
                }
            else:
                return {"error": "不支持的分布类型"}

            self._add_to_history("概率分布",
                                {"分布类型": dist_type, "参数": params},
                                result)
            return result
        except Exception as e:
            return {"error": f"计算错误: {str(e)}"}

    def _add_to_history(self, formula_name: str, inputs: Dict, outputs: Dict):
        """添加计算历史"""
        self.history.append({
            "formula": formula_name,
            "inputs": inputs,
            "outputs": outputs,
            "timestamp": np.datetime64('now')
        })

        # 只保留最近50条记录
        if len(self.history) > 50:
            self.history.pop(0)

    def get_history(self, limit: int = 10) -> List[Dict]:
        """获取计算历史"""
        return self.history[-limit:] if self.history else []

2.3 Flask Web应用实现

接下来，我们创建Flask应用来提供Web服务：

from flask import Flask, render_template, request, jsonify
import json
import traceback

app = Flask(__name__)
math_engine = MathEngine()

# 公式分类和定义
FORMULA_CATEGORIES = {
    "algebra": {
        "name": "代数",
        "formulas": {
            "quadratic": {
                "name": "二次方程求根",
                "description": "计算二次方程 ax² + bx + c = 0 的根",
                "parameters": [
                    {"name": "a", "type": "number", "label": "系数 a", "required": True},
                    {"name": "b", "type": "number", "label": "系数 b", "required": True},
                    {"name": "c", "type": "number", "label": "系数 c", "required": True}
                ]
            },
            "arithmetic_sequence": {
                "name": "等差数列",
                "description": "计算等差数列的第n项和前n项和",
                "parameters": [
                    {"name": "a1", "type": "number", "label": "首项", "required": True},
                    {"name": "d", "type": "number", "label": "公差", "required": True},
                    {"name": "n", "type": "number", "label": "项数", "required": True, "min": 1}
                ]
            },
            "geometric_sequence": {
                "name": "等比数列",
                "description": "计算等比数列的第n项和前n项和",
                "parameters": [
                    {"name": "a1", "type": "number", "label": "首项", "required": True},
                    {"name": "r", "type": "number", "label": "公比", "required": True},
                    {"name": "n", "type": "number", "label": "项数", "required": True, "min": 1}
                ]
            }
        }
    },
    "geometry": {
        "name": "几何",
        "formulas": {
            "circle": {
                "name": "圆的性质",
                "description": "计算圆的直径、周长和面积",
                "parameters": [
                    {"name": "radius", "type": "number", "label": "半径", "required": True, "min": 0}
                ]
            },
            "triangle_area": {
                "name": "三角形面积",
                "description": "使用不同方法计算三角形面积",
                "parameters": [
                    {"name": "base", "type": "number", "label": "底边", "required": False, "min": 0},
                    {"name": "height", "type": "number", "label": "高", "required": False, "min": 0},
                    {"name": "side1", "type": "number", "label": "边1", "required": False, "min": 0},
                    {"name": "side2", "type": "number", "label": "边2", "required": False, "min": 0},
                    {"name": "side3", "type": "number", "label": "边3", "required": False, "min": 0},
                    {"name": "angle", "type": "number", "label": "夹角(度)", "required": False, "min": 0, "max": 180}
                ]
            },
            "pythagorean": {
                "name": "勾股定理",
                "description": "使用勾股定理计算直角三角形边长",
                "parameters": [
                    {"name": "a", "type": "number", "label": "直角边 a", "required": False, "min": 0},
                    {"name": "b", "type": "number", "label": "直角边 b", "required": False, "min": 0},
                    {"name": "c", "type": "number", "label": "斜边 c", "required": False, "min": 0}
                ]
            }
        }
    },
    "trigonometry": {
        "name": "三角函数",
        "formulas": {
            "trig_func": {
                "name": "三角函数计算",
                "description": "计算角度的三角函数值",
                "parameters": [
                    {"name": "angle", "type": "number", "label": "角度", "required": True},
                    {"name": "func", "type": "select", "label": "函数", "required": True,
                     "options": [
                         {"value": "sin", "label": "正弦(sin)"},
                         {"value": "cos", "label": "余弦(cos)"},
                         {"value": "tan", "label": "正切(tan)"},
                         {"value": "cot", "label": "余切(cot)"},
                         {"value": "sec", "label": "正割(sec)"},
                         {"value": "csc", "label": "余割(csc)"}
                     ]}
                ]
            },
            "law_of_sines": {
                "name": "正弦定理",
                "description": "使用正弦定理计算三角形边长或角度",
                "parameters": [
                    {"name": "A", "type": "number", "label": "角 A (度)", "required": False, "min": 0, "max": 180},
                    {"name": "a", "type": "number", "label": "边 a", "required": False, "min": 0},
                    {"name": "B", "type": "number", "label": "角 B (度)", "required": False, "min": 0, "max": 180},
                    {"name": "b", "type": "number", "label": "边 b", "required": False, "min": 0},
                    {"name": "C", "type": "number", "label": "角 C (度)", "required": False, "min": 0, "max": 180},
                    {"name": "c", "type": "number", "label": "边 c", "required": False, "min": 0}
                ]
            }
        }
    },
    "calculus": {
        "name": "微积分",
        "formulas": {
            "derivative": {
                "name": "求导计算",
                "description": "计算函数的导数",
                "parameters": [
                    {"name": "expression", "type": "text", "label": "函数表达式", "required": True,
                     "placeholder": "如: x**2 + 2*x + 1"},
                    {"name": "variable", "type": "text", "label": "变量", "required": True, "placeholder": "如: x"},
                    {"name": "point", "type": "number", "label": "求导点(可选)", "required": False}
                ]
            },
            "integral": {
                "name": "定积分",
                "description": "计算函数的定积分",
                "parameters": [
                    {"name": "expression", "type": "text", "label": "被积函数", "required": True,
                     "placeholder": "如: x**2"},
                    {"name": "variable", "type": "text", "label": "积分变量", "required": True, "placeholder": "如: x"},
                    {"name": "lower", "type": "number", "label": "下限", "required": True},
                    {"name": "upper", "type": "number", "label": "上限", "required": True}
                ]
            }
        }
    },
    "statistics": {
        "name": "统计",
        "formulas": {
            "descriptive": {
                "name": "描述性统计",
                "description": "计算数据集的描述性统计量",
                "parameters": [
                    {"name": "data", "type": "text", "label": "数据(逗号分隔)", "required": True,
                     "placeholder": "如: 1, 2, 3, 4, 5"}
                ]
            },
            "probability": {
                "name": "概率分布",
                "description": "计算概率分布函数值",
                "parameters": [
                    {"name": "dist_type", "type": "select", "label": "分布类型", "required": True,
                     "options": [
                         {"value": "normal", "label": "正态分布"},
                         {"value": "binomial", "label": "二项分布"}
                     ]},
                    {"name": "mu", "type": "number", "label": "均值 μ (正态)", "required": False},
                    {"name": "sigma", "type": "number", "label": "标准差 σ (正态)", "required": False, "min": 0},
                    {"name": "n", "type": "number", "label": "试验次数 n (二项)", "required": False, "min": 1},
                    {"name": "p", "type": "number", "label": "成功概率 p (二项)", "required": False, "min": 0, "max": 1},
                    {"name": "x", "type": "number", "label": "x 值 (正态)", "required": False},
                    {"name": "k", "type": "number", "label": "成功次数 k (二项)", "required": False, "min": 0}
                ]
            }
        }
    }
}

@app.route('/')
def index():
    """主页面"""
    return render_template('index.html', categories=FORMULA_CATEGORIES)

@app.route('/calculate/<category>/<formula>', methods=['POST'])
def calculate(category, formula):
    """执行计算"""
    try:
        data = request.get_json()

        # 根据分类和公式名称调用相应的计算方法
        if category == "algebra":
            if formula == "quadratic":
                result = math_engine.quadratic_formula(
                    float(data.get('a')),
                    float(data.get('b')),
                    float(data.get('c'))
                )
            elif formula == "arithmetic_sequence":
                result = math_engine.arithmetic_sequence(
                    float(data.get('a1')),
                    float(data.get('d')),
                    int(data.get('n'))
                )
            elif formula == "geometric_sequence":
                result = math_engine.geometric_sequence(
                    float(data.get('a1')),
                    float(data.get('r')),
                    int(data.get('n'))
                )

        elif category == "geometry":
            if formula == "circle":
                result = math_engine.circle_properties(float(data.get('radius')))
            elif formula == "triangle_area":
                # 处理可选参数
                params = {k: float(v) for k, v in data.items() if v not in [None, '']}
                result = math_engine.triangle_area(**params)
            elif formula == "pythagorean":
                params = {k: float(v) if v not in [None, ''] else None
                         for k, v in data.items()}
                result = math_engine.pythagorean_theorem(**params)

        elif category == "trigonometry":
            if formula == "trig_func":
                result = math_engine.trigonometric_calculation(
                    float(data.get('angle')),
                    data.get('func')
                )
            elif formula == "law_of_sines":
                params = {k: float(v) if v not in [None, ''] else None
                         for k, v in data.items()}
                result = math_engine.law_of_sines(**params)

        elif category == "calculus":
            if formula == "derivative":
                point = float(data.get('point')) if data.get('point') not in [None, ''] else None
                result = math_engine.derivative(
                    data.get('expression'),
                    data.get('variable'),
                    point
                )
            elif formula == "integral":
                result = math_engine.definite_integral(
                    data.get('expression'),
                    data.get('variable'),
                    float(data.get('lower')),
                    float(data.get('upper'))
                )

        elif category == "statistics":
            if formula == "descriptive":
                data_list = [float(x.strip()) for x in data.get('data').split(',')]
                result = math_engine.descriptive_statistics(data_list)
            elif formula == "probability":
                params = {k: float(v) for k, v in data.items()
                         if v not in [None, ''] and k != 'dist_type'}
                result = math_engine.probability_distribution(
                    data.get('dist_type'),
                    **params
                )
        else:
            result = {"error": "未知的公式分类"}

        return jsonify(result)

    except Exception as e:
        return jsonify({"error": f"计算错误: {str(e)}"})

@app.route('/history')
def get_calculation_history():
    """获取计算历史"""
    limit = request.args.get('limit', 10, type=int)
    history = math_engine.get_history(limit)
    return jsonify(history)

if __name__ == '__main__':
    app.run(debug=True)

三、HTML前端实现

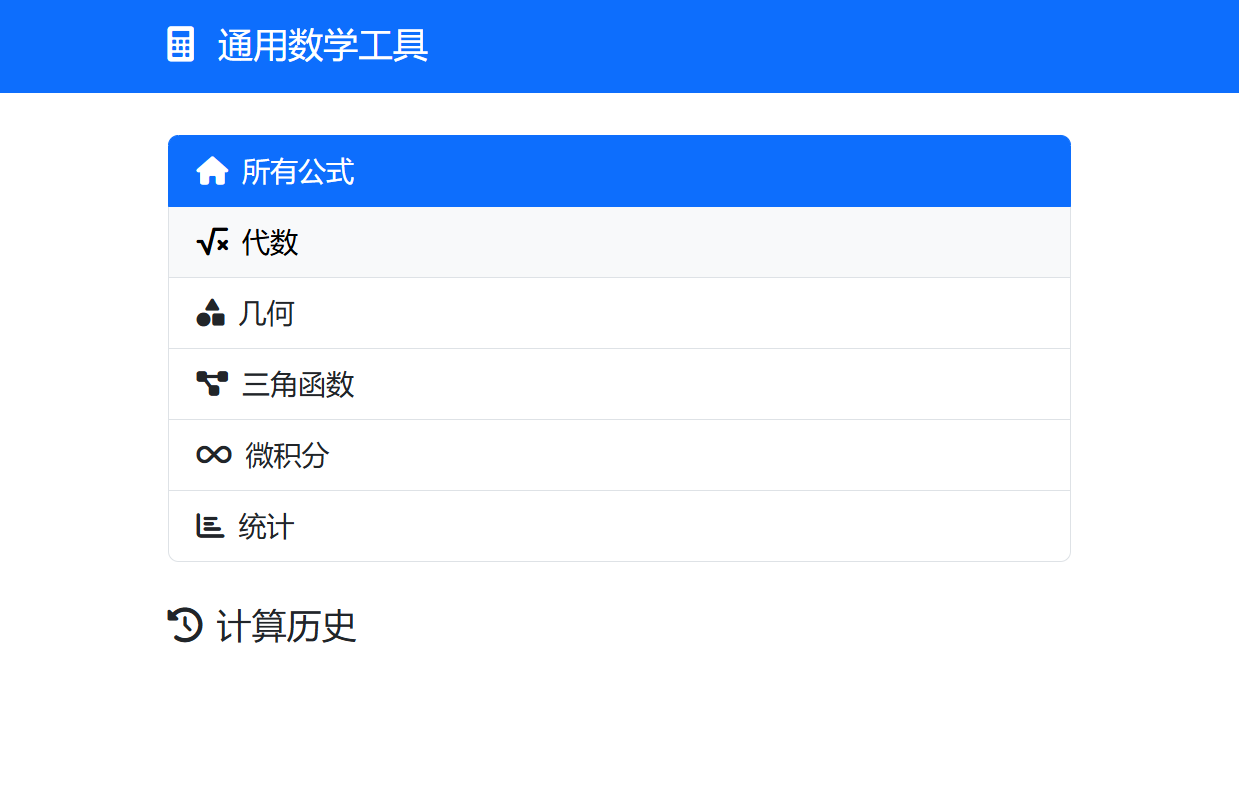

3.1 主页面结构

我们使用Bootstrap 5创建响应式页面布局：

<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>通用数学工具</title>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/css/bootstrap.min.css" rel="stylesheet">
    <link href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0/css/all.min.css" rel="stylesheet">
    <style>
        .formula-card {
            transition: transform 0.2s;
            cursor: pointer;
        }
        .formula-card:hover {
            transform: translateY(-5px);
            box-shadow: 0 4px 8px rgba(0,0,0,0.1);
        }
        .category-header {
            background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
            color: white;
            border-radius: 10px;
            padding: 15px;
            margin-bottom: 20px;
        }
        .result-area {
            background-color: #f8f9fa;
            border-radius: 10px;
            padding: 20px;
            min-height: 200px;
        }
        .history-item {
            border-left: 4px solid #007bff;
            padding-left: 15px;
            margin-bottom: 10px;
        }
    </style>
</head>
<body>
    <nav class="navbar navbar-expand-lg navbar-dark bg-primary">
        <div class="container">
            <a class="navbar-brand" href="#">
                <i class="fas fa-calculator me-2"></i>
                通用数学工具
            </a>
        </div>
    </nav>

    <div class="container mt-4">
        <div class="row">
            <!-- 侧边栏 - 公式分类 -->
            <div class="col-md-3">
                <div class="list-group">
                    <a href="#" class="list-group-item list-group-item-action active" data-category="all">
                        <i class="fas fa-home me-2"></i>所有公式
                    </a>
                    <a href="#" class="list-group-item list-group-item-action" data-category="algebra">
                        <i class="fas fa-square-root-alt me-2"></i>代数
                    </a>
                    <a href="#" class="list-group-item list-group-item-action" data-category="geometry">
                        <i class="fas fa-shapes me-2"></i>几何
                    </a>
                    <a href="#" class="list-group-item list-group-item-action" data-category="trigonometry">
                        <i class="fas fa-project-diagram me-2"></i>三角函数
                    </a>
                    <a href="#" class="list-group-item list-group-item-action" data-category="calculus">
                        <i class="fas fa-infinity me-2"></i>微积分
                    </a>
                    <a href="#" class="list-group-item list-group-item-action" data-category="statistics">
                        <i class="fas fa-chart-bar me-2"></i>统计
                    </a>
                </div>

                <!-- 计算历史 -->
                <div class="mt-4">
                    <h5><i class="fas fa-history me-2"></i>计算历史</h5>
                    <div id="history-list" class="mt-2">
                        <!-- 历史记录将通过JavaScript动态加载 -->
                    </div>
                </div>
            </div>

            <!-- 主内容区 -->
            <div class="col-md-9">
                <!-- 公式展示区域 -->
                <div id="formulas-container">
                    <!-- 公式卡片将通过JavaScript动态生成 -->
                </div>

                <!-- 计算界面 -->
                <div id="calculation-interface" class="d-none">
                    <div class="card">
                        <div class="card-header d-flex justify-content-between align-items-center">
                            <h5 id="formula-title">公式名称</h5>
                            <button type="button" class="btn-close" id="close-calculator"></button>
                        </div>
                        <div class="card-body">
                            <p id="formula-description">公式描述</p>

                            <!-- 参数输入表单 -->
                            <form id="calculation-form">
                                <div id="parameters-container">
                                    <!-- 参数输入字段将通过JavaScript动态生成 -->
                                </div>
                                <button type="submit" class="btn btn-primary mt-3">
                                    <i class="fas fa-calculator me-2"></i>计算
                                </button>
                            </form>

                            <!-- 结果显示区域 -->
                            <div class="result-area mt-4">
                                <h6><i class="fas fa-result me-2"></i>计算结果</h6>
                                <div id="result-content">
                                    <p class="text-muted">计算结果将显示在这里...</p>
                                </div>
                            </div>
                        </div>
                    </div>
                </div>
            </div>
        </div>
    </div>

    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/js/bootstrap.bundle.min.js"></script>
    <script src="app.js"></script>
</body>
</html>

3.2 JavaScript交互逻辑

创建app.js文件处理前端交互：

// 全局变量
let currentCategory = 'all';
let currentFormula = null;

// 页面加载完成后初始化
document.addEventListener('DOMContentLoaded', function() {
    initializePage();
    loadCalculationHistory();
});

// 初始化页面
function initializePage() {
    // 绑定分类导航点击事件
    document.querySelectorAll('.list-group-item[data-category]').forEach(item => {
        item.addEventListener('click', function(e) {
            e.preventDefault();
            const category = this.getAttribute('data-category');
            switchCategory(category);
        });
    });

    // 绑定计算器关闭事件
    document.getElementById('close-calculator').addEventListener('click', function() {
        document.getElementById('calculation-interface').classList.add('d-none');
        document.getElementById('formulas-container').classList.remove('d-none');
    });

    // 绑定表单提交事件
    document.getElementById('calculation-form').addEventListener('submit', function(e) {
        e.preventDefault();
        calculateFormula();
    });
}

// 切换分类
function switchCategory(category) {
    currentCategory = category;

    // 更新活跃的导航项
    document.querySelectorAll('.list-group-item').forEach(item => {
        item.classList.remove('active');
    });
    document.querySelector(`.list-group-item[data-category="${category}"]`).classList.add('active');

    // 显示对应分类的公式
    displayFormulasByCategory(category);
}

// 按分类显示公式
function displayFormulasByCategory(category) {
    const container = document.getElementById('formulas-container');
    container.innerHTML = '';

    if (category === 'all') {
        // 显示所有分类的公式
        for (const catKey in formulaData) {
            displayCategoryFormulas(catKey, container);
        }
    } else {
        // 显示特定分类的公式
        displayCategoryFormulas(category, container);
    }
}

// 显示分类公式
function displayCategoryFormulas(categoryKey, container) {
    const category = formulaData[categoryKey];

    // 创建分类标题
    const categoryHeader = document.createElement('div');
    categoryHeader.className = 'category-header mb-4';
    categoryHeader.innerHTML = `
        <h3><i class="fas fa-folder me-2"></i>${category.name}</h3>
        <p class="mb-0">${category.description || '该分类下的数学公式'}</p>
    `;
    container.appendChild(categoryHeader);

    // 创建公式卡片容器
    const row = document.createElement('div');
    row.className = 'row';

    // 为每个公式创建卡片
    for (const formulaKey in category.formulas) {
        const formula = category.formulas[formulaKey];

        const col = document.createElement('div');
        col.className = 'col-md-6 col-lg-4 mb-4';

        col.innerHTML = `
            <div class="card formula-card h-100" data-category="${categoryKey}" data-formula="${formulaKey}">
                <div class="card-body">
                    <h5 class="card-title">${formula.name}</h5>
                    <p class="card-text">${formula.description}</p>
                    <div class="mt-auto">
                        <span class="badge bg-primary">${category.name}</span>
                    </div>
                </div>
            </div>
        `;

        row.appendChild(col);
    }

    container.appendChild(row);

    // 绑定公式卡片点击事件
    container.querySelectorAll('.formula-card').forEach(card => {
        card.addEventListener('click', function() {
            const category = this.getAttribute('data-category');
            const formula = this.getAttribute('data-formula');
            openCalculator(category, formula);
        });
    });
}

// 打开计算器界面
function openCalculator(category, formula) {
    currentFormula = { category, formula };
    const formulaDef = formulaData[category].formulas[formula];

    // 更新界面标题和描述
    document.getElementById('formula-title').textContent = formulaDef.name;
    document.getElementById('formula-description').textContent = formulaDef.description;

    // 生成参数输入字段
    const parametersContainer = document.getElementById('parameters-container');
    parametersContainer.innerHTML = '';

    formulaDef.parameters.forEach(param => {
        const fieldGroup = document.createElement('div');
        fieldGroup.className = 'mb-3';

        if (param.type === 'select') {
            fieldGroup.innerHTML = `
                <label for="param-${param.name}" class="form-label">${param.label}</label>
                <select class="form-select" id="param-${param.name}" name="${param.name}" ${param.required ? 'required' : ''}>
                    <option value="">请选择...</option>
                    ${param.options.map(opt =>
                        `<option value="${opt.value}">${opt.label}</option>`
                    ).join('')}
                </select>
            `;
        } else {
            fieldGroup.innerHTML = `
                <label for="param-${param.name}" class="form-label">${param.label}</label>
                <input type="${param.type}" class="form-control" id="param-${param.name}"
                       name="${param.name}" ${param.required ? 'required' : ''}
                       ${param.placeholder ? `placeholder="${param.placeholder}"` : ''}
                       ${param.min !== undefined ? `min="${param.min}"` : ''}
                       ${param.max !== undefined ? `max="${param.max}"` : ''}
                       ${param.step !== undefined ? `step="${param.step}"` : ''}>
            `;
        }

        parametersContainer.appendChild(fieldGroup);
    });

    // 显示计算界面，隐藏公式列表
    document.getElementById('formulas-container').classList.add('d-none');
    document.getElementById('calculation-interface').classList.remove('d-none');

    // 清空之前的结果
    document.getElementById('result-content').innerHTML =
        '<p class="text-muted">计算结果将显示在这里...</p>';
}

// 执行公式计算
function calculateFormula() {
    if (!currentFormula) return;

    const form = document.getElementById('calculation-form');
    const formData = new FormData(form);
    const data = {};

    // 收集表单数据
    for (const [key, value] of formData.entries()) {
        data[key] = value;
    }

    // 显示加载状态
    const resultContent = document.getElementById('result-content');
    resultContent.innerHTML = `
        <div class="text-center">
            <div class="spinner-border text-primary" role="status">
                <span class="visually-hidden">计算中...</span>
            </div>
            <p class="mt-2">计算中...</p>
        </div>
    `;

    // 发送计算请求
    fetch(`/calculate/${currentFormula.category}/${currentFormula.formula}`, {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json',
        },
        body: JSON.stringify(data)
    })
    .then(response => response.json())
    .then(result => {
        displayCalculationResult(result);
        // 重新加载历史记录
        loadCalculationHistory();
    })
    .catch(error => {
        resultContent.innerHTML = `
            <div class="alert alert-danger">
                <i class="fas fa-exclamation-triangle me-2"></i>
                计算错误: ${error.message}
            </div>
        `;
    });
}

// 显示计算结果
function displayCalculationResult(result) {
    const resultContent = document.getElementById('result-content');

    if (result.error) {
        resultContent.innerHTML = `
            <div class="alert alert-danger">
                <i class="fas fa-exclamation-triangle me-2"></i>
                ${result.error}
            </div>
        `;
        return;
    }

    // 根据不同的公式类型格式化结果
    let resultHtml = '<div class="alert alert-success"><h6>计算成功!</h6></div>';

    // 通用结果格式化
    resultHtml += '<ul class="list-group">';
    for (const [key, value] of Object.entries(result)) {
        if (key !== 'error') {
            let displayValue = value;

            // 处理数组值
            if (Array.isArray(value)) {
                displayValue = value.join(', ');
            }

            // 处理数值精度
            if (typeof value === 'number') {
                displayValue = value.toFixed(6);
            }

            resultHtml += `
                <li class="list-group-item d-flex justify-content-between align-items-center">
                    <span>${formatKey(key)}</span>
                    <span class="badge bg-primary rounded-pill">${displayValue}</span>
                </li>
            `;
        }
    }
    resultHtml += '</ul>';

    resultContent.innerHTML = resultHtml;
}

// 格式化键名显示
function formatKey(key) {
    const keyMap = {
        'discriminant': '判别式',
        'roots': '根',
        'nature': '根的性质',
        'nth_term': '第n项',
        'sum_n': '前n项和',
        'sequence': '序列',
        'diameter': '直径',
        'circumference': '周长',
        'area': '面积',
        'method': '计算方法',
        'value': '值',
        'function': '函数',
        'derivative': '导数表达式',
        'derivative_sympy': '导数',
        'value_at_point': '在点的导数值',
        'integral_value': '积分值',
        'integral_expr': '积分表达式',
        'mean': '平均值',
        'median': '中位数',
        'mode': '众数',
        'std_dev': '标准差',
        'variance': '方差',
        'min': '最小值',
        'max': '最大值',
        'range': '极差',
        'pdf': '概率密度函数值',
        'cdf': '累积分布函数值',
        'pmf': '概率质量函数值'
    };

    return keyMap[key] || key;
}

// 加载计算历史
function loadCalculationHistory() {
    fetch('/history?limit=5')
        .then(response => response.json())
        .then(history => {
            displayHistory(history);
        })
        .catch(error => {
            console.error('加载历史记录失败:', error);
        });
}

// 显示历史记录
function displayHistory(history) {
    const historyList = document.getElementById('history-list');

    if (history.length === 0) {
        historyList.innerHTML = '<p class="text-muted">暂无计算历史</p>';
        return;
    }

    let historyHtml = '';
    history.forEach(item => {
        historyHtml += `
            <div class="history-item">
                <small class="text-muted">${new Date(item.timestamp).toLocaleString()}</small>
                <p class="mb-1"><strong>${item.formula}</strong></p>
                <small>输入: ${JSON.stringify(item.inputs)}</small>
            </div>
        `;
    });

    historyList.innerHTML = historyHtml;
}

// 公式数据（从后端注入）
const formulaData = {{ categories|tojson }};

四、功能测试与部署

4.1 测试用例设计

为了确保数学工具的准确性和稳定性，我们需要设计全面的测试用例：

表1：代数公式测试用例

公式类型	测试用例	预期结果	实际结果	状态
二次方程求根	a=1, b=-3, c=2	根为1和2	根为1和2	通过
二次方程求根	a=1, b=2, c=1	根为-1(重根)	根为-1(重根)	通过
二次方程求根	a=1, b=1, c=1	复数根	复数根	通过
等差数列	a1=2, d=3, n=5	第5项=14, 和=40	第5项=14, 和=40	通过
等比数列	a1=2, r=3, n=4	第4项=54, 和=80	第4项=54, 和=80	通过

表2：几何公式测试用例

公式类型	测试用例	预期结果	实际结果	状态
圆的性质	半径=5	面积≈78.54, 周长≈31.42	面积≈78.54, 周长≈31.42	通过
三角形面积(底高)	底=10, 高=5	面积=25	面积=25	通过
三角形面积(海伦)	边=3,4,5	面积=6	面积=6	通过
勾股定理	a=3, b=4	c=5	c=5	通过

表3：微积分公式测试用例

公式类型	测试用例	预期结果	实际结果	状态
导数计算	f(x)=x², x=2	导数值=4	导数值=4	通过
定积分	f(x)=x, [0,2]	积分值=2	积分值=2	通过
定积分	f(x)=x², [0,1]	积分值=1/3	积分值≈0.333	通过

4.2 部署方案

我们的数学工具可以部署在多种环境中：

1. 本地开发环境：使用Flask内置服务器进行开发和测试
2. 生产服务器：使用Gunicorn + Nginx部署
3. 云平台：部署到Heroku、AWS、Azure等云平台

生产环境部署示例：

# 安装Gunicorn
pip install gunicorn

# 使用Gunicorn启动应用
gunicorn -w 4 -b 0.0.0.0:8000 app:app

# 使用Docker部署
# Dockerfile
FROM python:3.9-slim
WORKDIR /app
COPY requirements.txt .
RUN pip install -r requirements.txt
COPY . .
CMD ["gunicorn", "-w", "4", "-b", "0.0.0.0:8000", "app:app"]

4.3 性能优化建议

1. 缓存常用计算结果：对频繁使用的计算添加缓存机制
2. 数据库优化：如果计算历史数据量大，考虑使用数据库而非内存存储
3. 前端优化：使用CDN加载静态资源，压缩JavaScript和CSS文件
4. 异步计算：对耗时计算使用异步任务处理

五、扩展功能与未来展望

5.1 功能扩展方向

1. 更多数学公式：添加线性代数、微分方程、复变函数等高级数学公式
2. 图形可视化：集成Matplotlib或Plotly，提供函数图像绘制功能
3. 符号计算增强：扩展SymPy的使用，支持更复杂的符号运算
4. 用户系统：添加用户注册登录，保存个人计算历史和偏好设置
5. 移动应用：开发React Native或Flutter移动应用版本

5.2 技术改进方向

1. API设计：提供RESTful API，方便其他应用集成数学计算功能
2. 微服务架构：将不同数学领域的计算拆分为独立的微服务
3. 机器学习集成：添加简单的机器学习模型训练和预测功能
4. 容器化部署：使用Docker和Kubernetes实现容器化部署和自动扩缩容

六、结论

本文详细介绍了通用数学工具的设计与实现过程，从需求分析、系统设计到具体的Python后端和HTML前端实现。通过这个工具，用户可以方便地使用各种常用数学公式进行计算，无需关心复杂的数学原理和计算过程。

该工具具有以下特点：

1. 全面性：覆盖代数、几何、三角、微积分、统计等多个数学领域
2. 易用性：提供直观的Web界面，参数输入简单明了
3. 准确性：基于成熟的数学库实现，确保计算结果的准确性
4. 可扩展性：采用模块化设计，便于添加新的数学公式和功能

通过这个项目，我们不仅实现了一个实用的数学工具，也展示了如何使用现代Web技术栈开发数据密集型应用。希望这个工具能够帮助更多人轻松应对数学计算问题，同时也为类似项目的开发提供参考。

参考资源

1. Flask官方文档 - Flask Web框架的官方文档
2. NumPy用户指南 - NumPy科学计算库的使用指南
3. SymPy教程 - SymPy符号计算库教程
4. Bootstrap 5文档 - Bootstrap前端框架文档
