一文搞懂LangChain及背后原理,大模型入门到精通,收藏这篇就足够了!
本文会探讨LangChain的基础核心功能,以及我自己对框架使用的思考。
LangChain正是在这样的背景下诞生的,它提供了一个辅助实现这些功能的框架和工具集,从而帮助开发者构建更加强大,可落地的商业Agent应用程序。本文会探讨LangChain的基础核心功能,以及我自己对框架使用的思考。
pip install -U langchain==1.0# Requires Python 3.10+
- 使用deepseek-chat作为后端大模型
llm = init_chat_model("deepseek-chat", api_key="<API KEY>", temperature=0.5, timeout=20, max_tokens=1000, http_client=httpx.Client(verify=False),)
- 打印agent和大模型通信的request,response,为了理解langchain背后的原理,查看通信内容会有很大帮助。
def log_request(request):
print("============ Outgoing Request ============")
print(f"Method: {request.method}")
print(f"URL: {request.url}")
# 记录请求体
if hasattr(request, 'content'):
try:
if isinstance(request.content, (bytes, bytearray)):
body = request.content.decode('utf-8')
else:
body = str(request.content)
try:
body_json = json.loads(body)
print("Body (JSON):")
print(json.dumps(body_json, indent=2, ensure_ascii=False))
except:
print(f"Body: {body}")
except Exception as e:
print(f"Body: [Unable to read: {e}]")
print("===============================")
def log_response(response):
print("=========== Incoming Response ===========")
print(f"Status: {response.status_code}")
# 读取响应内容
try:
response.read() # 这步很重要!
content = response.text
# 尝试美化JSON输出
try:
content_json = json.loads(content)
print("Content (JSON):")
print(json.dumps(content_json, indent=2, ensure_ascii=False))
except:
# 限制输出长度
if len(content) > 1000:
print(f"Content: {content[:1000]}...")
else:
print(f"Content: {content}")
except Exception as e:
print(f"Error reading response content: {e}")
print("==============================")
# 创建自定义 HTTP client
http_client = httpx.Client(
verify=False,
event_hooks={
'request': [log_request],
'response': [log_response],
}
)
llm = init_chat_model(
"deepseek-chat",
api_key="<API KEY>",
temperature=0.5,
timeout=20,
max_tokens=1000,
http_client=http_client,
)
agent = create_agent(
model=llm,
system_prompt="You are a helpful assistant",
)
Messages是LangChain里最基础的概念,代表了对模型的输入和输出。一个典型的使用如下:
from langchain.messages import SystemMessage, HumanMessage, AIMessagemessages = [ SystemMessage("You are a poetry expert"), HumanMessage("Write a haiku about spring"), AIMessage("Cherry blossoms bloom...")]response = llm.invoke(messages)
实际上这些不同的Messages类型就对应System、User、Assistant这三个role,不用对象封装,手搓的话,与下面的效果等价
messages = [ {"role": "system", "content": "You are a poetry expert"}, {"role": "user", "content": "Write a haiku about spring"}, {"role": "assistant", "content": "Cherry blossoms bloom..."}]response = llm.invoke(messages)
使用工具是Agent的基本能力,在langchain的封装下,我们不再需要自己写使用工具的prompt,而是用如下的方式:
from langchain.agents import create_agent
from langchain.tools import tool, ToolRuntime
from deepseek_model import llm, log_before_model
# Access the current conversation state
@tool
def summarize_conversation(
runtime: ToolRuntime
) -> str:
"""Summarize the conversation so far."""
messages = runtime.state["messages"]
human_msgs = sum(1 for m in messages if m.__class__.__name__ == "HumanMessage")
ai_msgs = sum(1 for m in messages if m.__class__.__name__ == "AIMessage")
return f"Conversation has {human_msgs} user messages, {ai_msgs} AI responses"
agent = create_agent(
model=llm,
system_prompt="You are a helpful assistant",
tools=[summarize_conversation],
middleware=[log_before_model],
)
messages = {"messages": [
{"role": "system", "content": "when the number of messages is asked, you can call summarize_conversation tool"},
{"role": "user", "content": "Nice to meet you"},
{"role": "assistant", "content": "Nice to meet you too"},
{"role": "user", "content": "tell me how many user and assistant messages are in this conversation"}
]}
response = agent.invoke(messages, print_mode="values")
for m in response["messages"]:
if m.__class__.__name__ == "AIMessage":
print(m.content)
其背后,langchain是把通过@tool标识的工具类,用tools=[summarize_conversation]注册到agent。原理就是通过python的Decorator把函数变成StructuredTool类:
class StructuredTool(BaseTool):
"""Tool that can operate on any number of inputs."""
description: str = ""
args_schema: Annotated[ArgsSchema, SkipValidation()] = Field(
..., description="The tool schema."
)
"""The input arguments' schema."""
func: Callable[..., Any] | None = None
"""The function to run when the tool is called."""
coroutine: Callable[..., Awaitable[Any]] | None = None
"""The asynchronous version of the function."""
这个类的主要目的是方便agent把函数信息转化为llm可以理解的工具使用的Prompt,这些内容包括函数的name、description,以及args_schema(参数信息)。通过打印给发送给llm的request内容,可以发现,生成的关于tool使用的prompt如下所示:
"tools": [
{
"type": "function",
"function": {
"name": "summarize_conversation",
"description": "Summarize the conversation so far.",
"parameters": {
"properties": {},
"type": "object"
}
}
}
]
llm返回给agent的response内容如下,这是在告诉agent要去执行tool call:
"message": {
"role": "assistant",
"content": "I'll check how many messages are in this conversation for you.",
"tool_calls": [
{
"index": 0,
"id": "call_00_GhtKT5QA8SmSLq9GcsNpDlbq",
"type": "function",
"function": {
"name": "summarize_conversation",
"arguments": "{}"
}
}
]
},
"logprobs": null,
"finish_reason": "tool_calls"
}
对比一文弄懂Agent从手搓Claude开始中我们实现Function Calling的方式,不同点只是使用的格式(或者说我们和LLM之间的协定)不一样,但原理都是一样的。
记忆(Memory)是一个能够记录以往交互信息的系统。对于智能体而言,记忆能力至关重要——它不仅能保存历史交互记录,更能从反馈中学习进化,逐步适应不同用户的个性化需求。随着智能体需要处理愈发复杂的任务和海量用户交互,这种记忆能力已成为提升运行效率和用户体验的核心要素。
我们以long-term memory为例,演示一下其使用情况,假设这些信息要存入postgres数据库。
from dataclasses import dataclass
from langchain.agents import create_agent
from langchain.tools import tool, ToolRuntime
from langgraph.store.postgres import PostgresStore # 改为 PostgreSQL 存储
from typing_extensions import TypedDict
from deepseek_model import llm
DB_URI = "postgresql://postgres:1314520@localhost:5432/Test?sslmode=disable"
with PostgresStore.from_conn_string(
conn_string=DB_URI,
pipeline=False,
pool_config=None,
index=None,
ttl=None
) as store:
store.setup()
@dataclass
class Context:
user_id: str
# TypedDict defines the structure of user information for the LLM
class UserInfo(TypedDict):
name: str
age: int
address: str
# Tool that allows agent to update user information (useful for chat applications)
@tool
def save_user_info(user_info: UserInfo, runtime: ToolRuntime[Context, dict]) -> str:
"""Save user info."""
# Access the store - same as that provided to `create_agent`
store = runtime.store
user_id = runtime.context.user_id
# Store data in the store (namespace, key, data)
store.put(("users",), user_id, user_info)
return "Successfully saved user info."
agent = create_agent(
model=llm,
tools=[save_user_info],
store=store,
context_schema=Context
)
# Run the agent
result = agent.invoke(
{"messages": [{"role": "user", "content": "My name is Frank Smith, 48 years old, live at 1024 Hamilton Ave. in San Jose, California. please save it using save_user_info function"}]},
# user_id passed in context to identify whose information is being updated
context=Context(user_id="user_123")
)
for m in result["messages"]:
if m.__class__.__name__ == "AIMessage":
print(m.content)
# You can access the store directly to get the value
user_info = store.get(("users",), "user_123")
print(user_info)

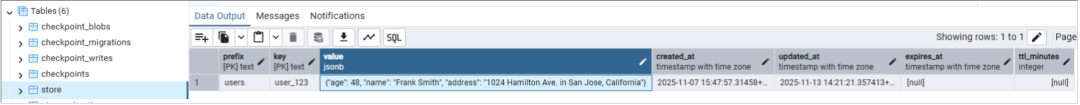

运行完以上程序,我们会发现在数据库中的store表中,多出了一条记录,且这条记录可以随时从db中取出。通过数据库的持久化,我们就可以长时间保留用户信息。在商业应用中,我们的Agent服务肯定都是多实例的,这种持久化也能实现服务的stateless,从而让用户的request可以在不同的Agent实例间迁移。

Structured output使Agent能够以特定、可预测的格式返回数据。LangChain的create_agent可自动处理结构化输出:用户设定所需的结构化输出schema后,当模型生成结构化数据时,系统会自动捕获并验证这些数据,最终通过dict的’structured_response’键返回处理结果。
以下是个简单的示例:
from typing import Literal
from langchain.agents import create_agent
from pydantic import BaseModel, Field
from deepseek_model import llm, print_dict_structured
class ProductReview(BaseModel):
"""Analysis of a product review."""
rating: int | None = Field(description="The rating of the product", ge=1, le=5)
sentiment: Literal["positive", "negative"] = Field(description="The sentiment of the review")
key_points: list[str] = Field(description="The key points of the review. Lowercase, 1-3 words each.")
agent = create_agent(
model=llm,
response_format=ProductReview
)
result = agent.invoke({
"messages": [{"role": "user",
"content": "Analyze this review: 'bad product: 2 out of 5 stars. Fast shipping, but too expensive'"}]
})
review = result["structured_response"]
print(review)
执行上面的程序,会得到以下结果:
'structured_response': ProductReview(rating=2, sentiment='negative', key_points=['fast shipping', 'too expensive']
其背后原理,也是通过Function Calling实现的,观察agent发送给llm的request日志,会看到以下的内容,就是一个典型的Function Calling 的prompt
"tools": [
{
"type": "function",
"function": {
"name": "ProductReview",
"description": "Analysis of a product review.",
"parameters": {
"properties": {
"rating": {
"anyOf": [
{
"maximum": 5,
"minimum": 1,
"type": "integer"
},
{
"type": "null"
}
],
"description": "The rating of the product"
},
"sentiment": {
"description": "The sentiment of the review",
"enum": [
"positive",
"negative"
],
"type": "string"
},
"key_points": {
"description": "The key points of the review. Lowercase, 1-3 words each.",
"items": {
"type": "string"
},
"type": "array"
}
},
"required": [
"rating",
"sentiment",
"key_points"
],
"type": "object"
}
}
}
]
LCEL(LangChain Expression Language)也是Chain这个名字的来历,LCEL语法利用了 Python 的 运算符重载 特性,具体来说是 or 方法重载。从而使得运算符|有了类似于管道的功能,可以串联一系列Agent需要的操作,比如基本示例:提示 + 模型 + 输出解析器:
prompt = ChatPromptTemplate.from_template("请用中文回答:{question}")
output_parser = StrOutputParser()
chain = prompt | llm | output_parser
print("begin invoke")
try:
result = chain.invoke({"question": "杭州今天的天气怎么样?"})
print(result)
except Exception as e:
print(f"调用失败: {e}")
其背后的原理,就是运算符重载,以下是一个模拟LangChain的LCEL语法实现:
class Runnable:
def __init__(self, name):
self.name = name
def __or__(self, other):
# 模拟 LCEL 的链式连接
return Chain([self, other])
def run(self, input_data):
return f"{self.name}处理({input_data})"
def __str__(self):
return self.name
class Chain:
def __init__(self, steps):
self.steps = steps
def run(self, input_data):
result = input_data
for step in self.steps:
result = step.run(result)
return result
def __or__(self, other):
return Chain(self.steps + [other])
# 使用 | 操作符构建处理链
step1 = Runnable("加载数据")
step2 = Runnable("清洗数据")
step3 = Runnable("分析数据")
pipeline = step1 | step2 | step3
result = pipeline.run("原始数据")
print(result) # 分析数据处理(清洗数据处理(加载数据处理(原始数据)))
但是在LangChain1.0之后,对于更加复杂的场景,比如复杂的状态管理、多分支逻辑、循环或涉及多个代理协作时,更加推荐使用LangGraph来处理。
作为一个软件老登,在关注LangChain的功能的同时,一定也会关注它是怎么设计和实现的。我发现有两个典型的设计:一个是上下文设计,另一个是可扩展设计。在langchain中也有用到
7.1 上下文设计
Context在框架中之所以重要,是因为我们在处理信息的时候,往往要借助上下文信息。比如在java的web框架中有ServletContext,在Spring框架中有ApplicationContext。Context进一步可以分为Procedure Context(过程上下文)和Global Context(全局上下文):

在langchain中,上下文主要是通过ToolRuntime实现的:
@dataclass
class ToolRuntime
state: StateT
context: ContextT
config: RunnableConfig
stream_writer: StreamWriter
tool_call_id: str | None
store: BaseStore | None
结合Memory的内容,我们可以将langchain中的context分为以下三类:
| 类别 | 别称 | 作用范围 | 示例 |
|---|---|---|---|
| Context | 静态配置 | 会话范围 | 用户ID、API密钥、数据库连接、权限、环境设置 |
| State | 短期记忆 | 会话范围 | 当前消息、上传文件、认证状态、工具执行结果 |
| Store | 长期记忆 | 跨会话 | 用户偏好、提取的洞察、记忆信息、历史数据 |

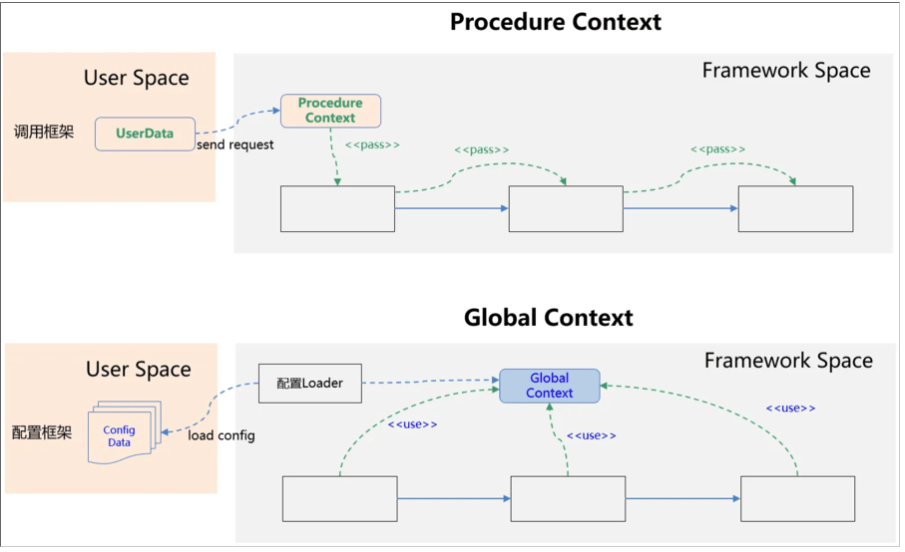

其中,Context是静态信息,属于Global Context。Sate、Store是Procedure Context。准确的说Store不仅仅是single procedure的,也可以是cross-procedure的。
7.2 可扩展设计
-
Middleware扩展
Middleware在python的语境下,是一种常用的设计模式,和过滤器、管道模式类似。通过Middleware我们可以在横切面添加额外的功能。
客户端请求 → Middleware1 → Middleware2 → ... → 业务处理 → Middleware2 → Middleware1 → 客户端响应

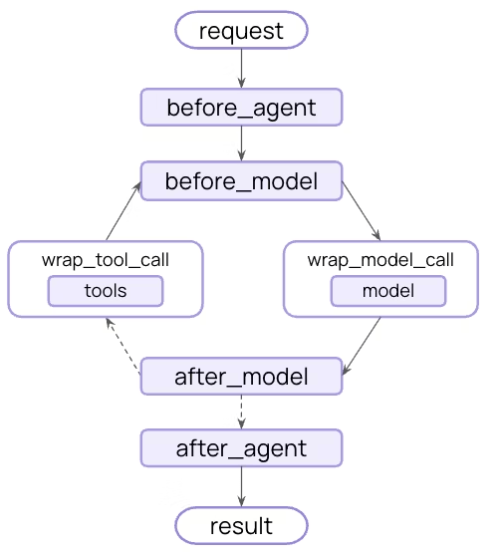

Langchain除了大量的build-in的middleware,用户可以在以下的扩展点(hook点)自定义middleware,从而极大的提升了框架的可扩展性,基本上,所有的框架都有类似的设计。

-
依赖倒置
langchain中的Store是抽象的,这个设计和我在cola-job中的设计是一模一样的,通过依赖倒置,磨平具体实现InMemoryStore,DBStore,RedisStore之间的差异。有时候,我们也把这个模式叫面向接口编程。
-
泛型
Python在3.5之后引入了泛型。(我个人更喜欢强类型的语言,这样很多类型问题编译时就能提示)在上面的例子中,我们已经看到了用户自定义State、Context的方法。实际上都是因为StateT和ContextT泛型的使用,从而在保证扩展性的同时,同时兼顾了类型安全。
从上文的原理解释中,你应该也发现了,使用LangChain构建Agent和手搓Agent的最大区别是,LangChain通过抽象、封装的方式,帮我们生成了本来需要我们自己写的Prompt,以及和LLM的交互细节也被屏蔽了,比如Function Calling的过程。在带来了一定便利性的同时,也给像我这样的初学者带来了不少困惑,很多事情没有像手搓Agent时那么直观,要通过看日志、看它的源码,才能理解其背后的原理。
这是一个典型的使用框架带来的问题,即框架作为一个“黑盒”,会增加学习成本,性能成本,debug成本,维护成本等。使用不当,还会额外引入复杂度,我曾经猛烈的抨击过流程引擎,在我经历过的项目中,但凡引入流程引擎框架的,无一例外都被搞得乌烟瘴气,得不偿失。本来简单直接的业务逻辑,在流程引擎的编排下,变得支离破碎,上下文不连续,晦涩难懂,更加复杂。
所以对于LangChain,特别是LangGraph(本质上就是一个workflow工作流编排工具),请各位一定要谨慎选择,不要轻易趟这个浑水。如果觉得我是危言耸听的,可以看看这篇文章《为什么我们不再使用 LangChain 来构建我们的 AI 智能体》
因为篇幅关系,我会在下一篇介绍LangChain的其它三个扩展模块,LangGraph,DeepAgents 和 LangSmith
想入门 AI 大模型却找不到清晰方向?备考大厂 AI 岗还在四处搜集零散资料?别再浪费时间啦!2025 年 AI 大模型全套学习资料已整理完毕,从学习路线到面试真题,从工具教程到行业报告,一站式覆盖你的所有需求,现在全部免费分享!
👇👇扫码免费领取全部内容👇👇

一、学习必备:100+本大模型电子书+26 份行业报告 + 600+ 套技术PPT,帮你看透 AI 趋势
想了解大模型的行业动态、商业落地案例?大模型电子书?这份资料帮你站在 “行业高度” 学 AI:
1. 100+本大模型方向电子书

2. 26 份行业研究报告:覆盖多领域实践与趋势
报告包含阿里、DeepSeek 等权威机构发布的核心内容,涵盖:
- 职业趋势:《AI + 职业趋势报告》《中国 AI 人才粮仓模型解析》;
- 商业落地:《生成式 AI 商业落地白皮书》《AI Agent 应用落地技术白皮书》;
- 领域细分:《AGI 在金融领域的应用报告》《AI GC 实践案例集》;
- 行业监测:《2024 年中国大模型季度监测报告》《2025 年中国技术市场发展趋势》。
3. 600+套技术大会 PPT:听行业大咖讲实战
PPT 整理自 2024-2025 年热门技术大会,包含百度、腾讯、字节等企业的一线实践:

- 安全方向:《端侧大模型的安全建设》《大模型驱动安全升级(腾讯代码安全实践)》;
- 产品与创新:《大模型产品如何创新与创收》《AI 时代的新范式:构建 AI 产品》;
- 多模态与 Agent:《Step-Video 开源模型(视频生成进展)》《Agentic RAG 的现在与未来》;
- 工程落地:《从原型到生产:AgentOps 加速字节 AI 应用落地》《智能代码助手 CodeFuse 的架构设计》。
二、求职必看:大厂 AI 岗面试 “弹药库”,300 + 真题 + 107 道面经直接抱走
想冲字节、腾讯、阿里、蔚来等大厂 AI 岗?这份面试资料帮你提前 “押题”,拒绝临场慌!

1. 107 道大厂面经:覆盖 Prompt、RAG、大模型应用工程师等热门岗位
面经整理自 2021-2025 年真实面试场景,包含 TPlink、字节、腾讯、蔚来、虾皮、中兴、科大讯飞、京东等企业的高频考题,每道题都附带思路解析:

2. 102 道 AI 大模型真题:直击大模型核心考点
针对大模型专属考题,从概念到实践全面覆盖,帮你理清底层逻辑:

3. 97 道 LLMs 真题:聚焦大型语言模型高频问题
专门拆解 LLMs 的核心痛点与解决方案,比如让很多人头疼的 “复读机问题”:

三、路线必明: AI 大模型学习路线图,1 张图理清核心内容
刚接触 AI 大模型,不知道该从哪学起?这份「AI大模型 学习路线图」直接帮你划重点,不用再盲目摸索!

路线图涵盖 5 大核心板块,从基础到进阶层层递进:一步步带你从入门到进阶,从理论到实战。

L1阶段:启航篇丨极速破界AI新时代
L1阶段:了解大模型的基础知识,以及大模型在各个行业的应用和分析,学习理解大模型的核心原理、关键技术以及大模型应用场景。

L2阶段:攻坚篇丨RAG开发实战工坊
L2阶段:AI大模型RAG应用开发工程,主要学习RAG检索增强生成:包括Naive RAG、Advanced-RAG以及RAG性能评估,还有GraphRAG在内的多个RAG热门项目的分析。

L3阶段:跃迁篇丨Agent智能体架构设计
L3阶段:大模型Agent应用架构进阶实现,主要学习LangChain、 LIamaIndex框架,也会学习到AutoGPT、 MetaGPT等多Agent系统,打造Agent智能体。

L4阶段:精进篇丨模型微调与私有化部署
L4阶段:大模型的微调和私有化部署,更加深入的探讨Transformer架构,学习大模型的微调技术,利用DeepSpeed、Lamam Factory等工具快速进行模型微调,并通过Ollama、vLLM等推理部署框架,实现模型的快速部署。

L5阶段:专题集丨特训篇 【录播课】

四、资料领取:全套内容免费抱走,学 AI 不用再找第二份
不管你是 0 基础想入门 AI 大模型,还是有基础想冲刺大厂、了解行业趋势,这份资料都能满足你!
现在只需按照提示操作,就能免费领取:
👇👇扫码免费领取全部内容👇👇

2025 年想抓住 AI 大模型的风口?别犹豫,这份免费资料就是你的 “起跑线”!
火山引擎开发者社区是火山引擎打造的AI技术生态平台,聚焦Agent与大模型开发,提供豆包系列模型(图像/视频/视觉)、智能分析与会话工具,并配套评测集、动手实验室及行业案例库。社区通过技术沙龙、挑战赛等活动促进开发者成长,新用户可领50万Tokens权益,助力构建智能应用。
更多推荐
所有评论(0)
