金属有机框架（MOFs）、共价有机框架（COFs）和氢键有机框架（HOFs）统称为框架材料（FMs），以其独特的晶体结构和高度可调性引起了广泛关注。这些材料在结构多样性、可控孔隙率和功能改性方面具有难以估量的发展潜力，广泛应用于发光、传感、气体储存、分离、催化、质子导电和药物传递等领域。然而，FMs领域尚未建立起全面的知识图谱（KG），限制了信息的系统化和利用。

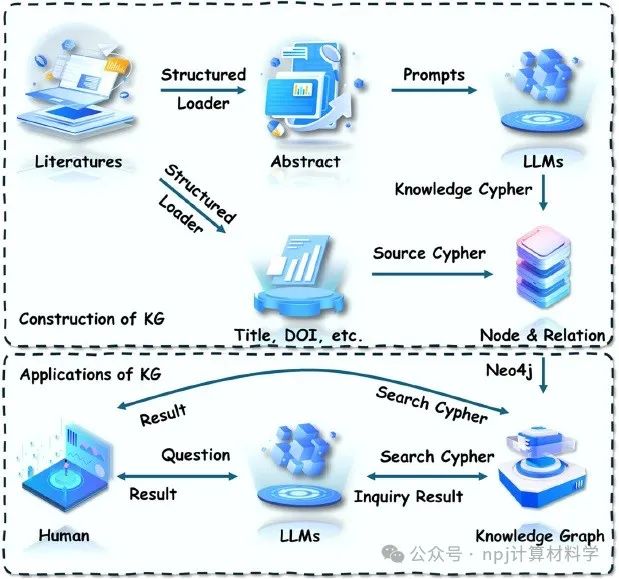

Fig. 1 | Flowchart for constructing a knowledge graph from the literature and using it for knowledge querying and enhanced LLMs retrieval and application of knowledge graph.

来自北京工业大学的李建荣教授和华东理工大学的杜文莉教授团队，提出了利用大语言模型构建框架材料知识图谱的方法，从而构建了该领域第一个框架材料知识图谱。并将知识图谱与大语言模型相结合构建了准确率达91.67%的智能问答系统。

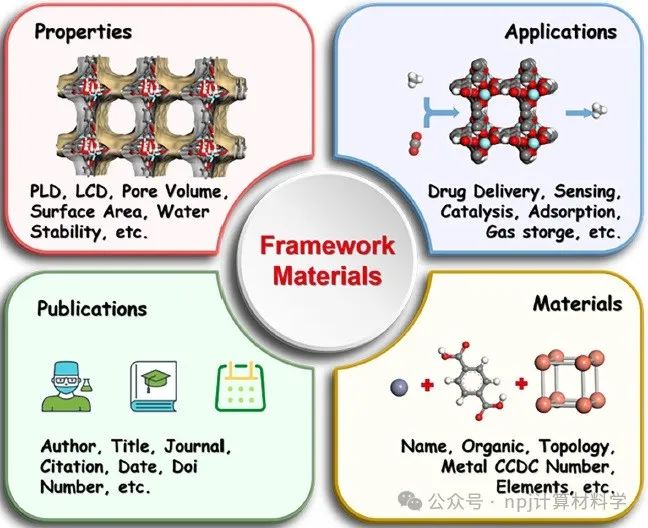

Fig. 2 | The main types of information in the knowledge graph include the application, properties, intrinsic information of the material, and related information from journal publications.

他们使用大语言模型的自然语言处理能力，创建了专门针对框架材料领域的综合知识图谱（KG-FM），解决了这一领域系统性知识整理不足的问题。通过分析超过10万篇关于金属有机框架、共价有机框架和氢键有机框架的论文，构建了一个包含253万个节点和401万条关系的知识网络。

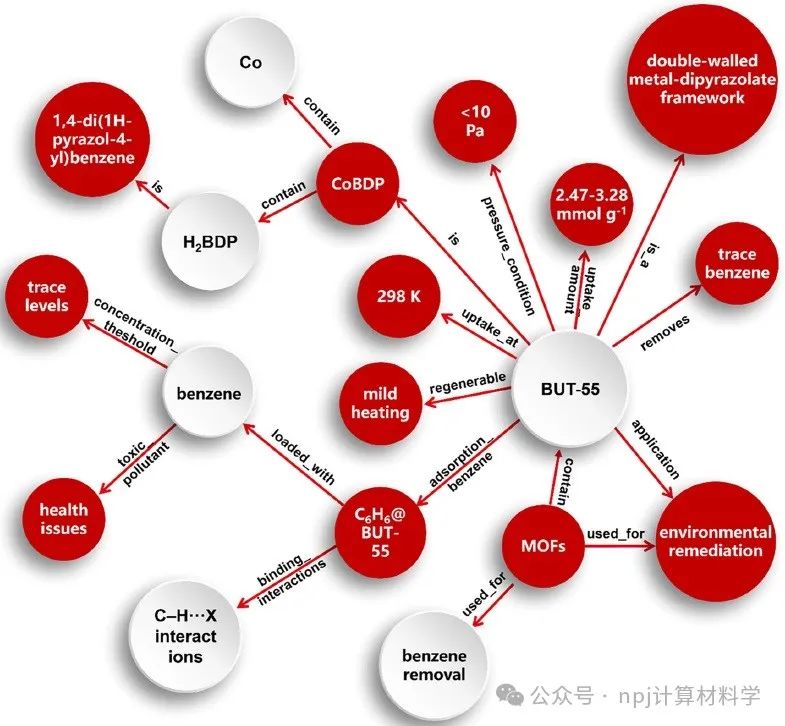

Fig. 3 | The result by using a knowledge graph to query the literature titled “Trace removal of benzene vapor using double-walled metal–dipyrazolate frameworks”.

在这个过程中，大语言模型自动从文献中提取关键信息，并进行语义分析和逻辑推理，将原本分散且无序的信息转换为结构化的知识图谱。这种方法不仅提高了效率，减少了手工劳动，还实现了对框架材料领域知识的整合。此外，他们还将这个知识图谱与大语言模型结合，开发了一个名为Qwen2-KG的问答系统。

Fig. 4 | Analyzing knowledge using KGs.

在回答框架材料领域问题时，该系统的准确率高达91.67%，高于其他现有模型（如GPT-4的33.33%），并且能够提供具体的信息来源。这表明，知识图谱在增强大语言模型的问答能力方面具有巨大潜力。

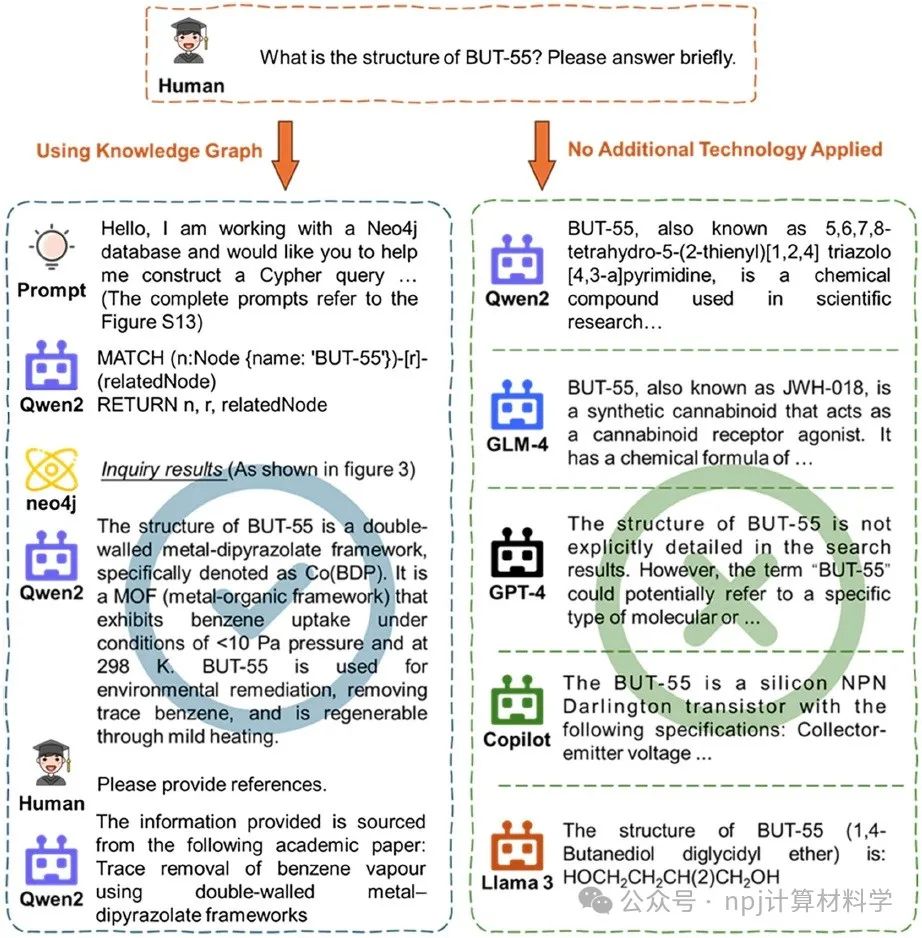

Fig. 5 | A comparison of the use of a knowledge graph to enhance the LLM question answering and the use of no techniques, taking the structure of BUT-55 as an example.

不难看出，作者的这项研究为框架材料领域的科研和教育提供了一个有力的工具，有助于研究人员更高效地检索和分析信息。相关论文近期发布于npj Computational Materials 11: 51 (2025)。手机阅读原文，请点击本文底部左下角“阅读原文”，进入后亦可下载全文PDF文件。

Fig. 6 | The CoT thinking process that enhances LLMs without and with knowledge graphs is used for industrial SO2 adsorbent design.

Editorial Summary

Knowledge Graph × Large Model: The "Ultimate Brain" in Framework Materials Research

Metal-organic frameworks (MOFs), covalent organic frameworks (COFs), and hydrogen-bonded organic frameworks (HOFs), collectively known as framework materials (FMs), have attracted widespread attention due to their unique crystalline structures and porosity. These materials hold rich potential in structural diversity, controllable porosity, and functional modification, and are widely applied in fields such as luminescence, sensing, gas storage, separation, catalysis, proton conduction, and drug delivery. However, a comprehensive knowledge graph (KG) has not yet been established in the field of FMs, limiting the systematization and utilization of information.

Professor Jianrong Li from Beijing University of Technology and Professor Wenli Du from East China University of Science and Technology have proposed a method for constructing a knowledge graph for framework materials using large language models (LLMs). This approach led to the development of a framework materials knowledge graph, which was further integrated with an LLM to build an intelligent question-answering system with an accuracy of 91.67%.

They leveraged the natural language processing capabilities of large language models (LLMs) to create a comprehensive knowledge graph specifically for the field of framework materials (KG-FM), addressing the lack of systematic knowledge organization in this domain. By analyzing over 100,000 articles on metal-organic frameworks (MOFs), covalent organic frameworks (COFs), and hydrogen-bonded organic frameworks (HOFs), they constructed a knowledge network comprising 2.53 million nodes and 4.01 million relationships. During this process, the LLM autonomously extracted key information from the literature, performed semantic analysis and logical reasoning, and transformed scattered and unstructured information into a structured knowledge graph. This method not only improved efficiency and reduced manual labor but also enabled the integration of knowledge in the field of framework materials. Furthermore, they combined this knowledge graph with an LLM to develop a question-answering system named Qwen2-KG. When answering questions related to framework materials, the system achieved an accuracy of 91.67%, surpassing other existing models, such as GPT-4, which only achieved 33.33%. Additionally, Qwen2-KG provides specific sources of information, demonstrating the immense potential of knowledge graphs in enhancing the question-answering capabilities of LLMs. This research provides a powerful tool for scientific research and education in the field of framework materials, helping researchers retrieve and analyze information more efficiently. This article was recently published in npj Computational Materials 11: 51 (2025).

原文Abstract及其翻译

Construction of a knowledge graph for framework material enabled by large language models and its application (基于大语言模型的框架材料知识图谱的构建及其应用)

Xuefeng Bai, Song He, Yi Li, Yabo Xie, Xin Zhang, Wenli Du* & Jian-Rong Li*

Abstract Framework materials (FMs) have been extensively investigated with a plethora of literature documenting their unique properties and potential applications. Despite this, a comprehensive knowledge graph for this emerging field has not yet been constructed. In this study, by utilizing the natural language processing capabilities of large language models (LLMs), we have established a comprehensive knowledge graph (KG-FM). It covers synthesis, properties, applications, and other aspects of FMs including metal-organic frameworks (MOFs), covalent-organic frameworks (COFs), and hydrogen-bonded organic frameworks (HOFs). The knowledge graph was constructed through the analysis of over 100,000 articles, resulting in 2.53 million nodes and 4.01 million relationships. Subsequently, its application has been explored for enhancing data retrieval, mining, and the development of sophisticated question-answering systems. Especially when integrating the KGs with LLMs, resulted Qwen2-KG not only achieves a higher accuracy rate of 91.67% in question-answering than existing models but also provides precise information sources.

摘要 框架材料（FMs）已被广泛研究，并有大量文献记录了其独特的性质和潜在应用。然而，该新兴领域尚未构建完整的知识图谱。在本研究中，我们利用大语言模型（LLMs）的自然语言处理能力，建立了一个全面的知识图谱（KG-FM）。该知识图谱涵盖了金属有机框架（MOFs）、共价有机框架（COFs）和氢键有机框架（HOFs）材料的合成、性质、应用等方面。该知识图谱通过对10万多篇文章的分析，梳理出253万个节点和401万条关系。随后，我们探讨了其在数据检索、数据挖掘以及构建高级问答系统中的应用。特别是当知识图谱与LLMs结合后，所得到的Qwen2-KG在问答任务中不仅能比现有模型实现更高的91.67%准确率，还能提供精确的信息来源。
