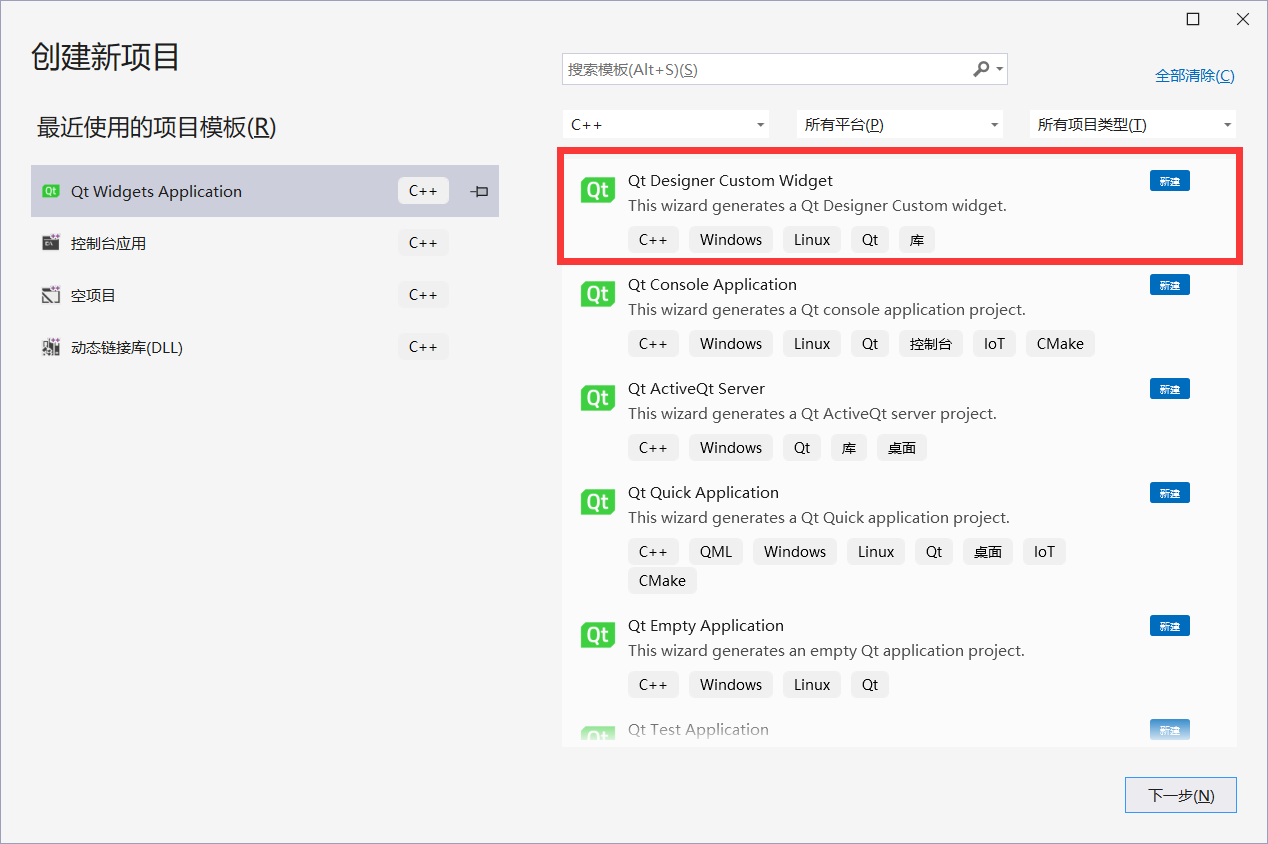

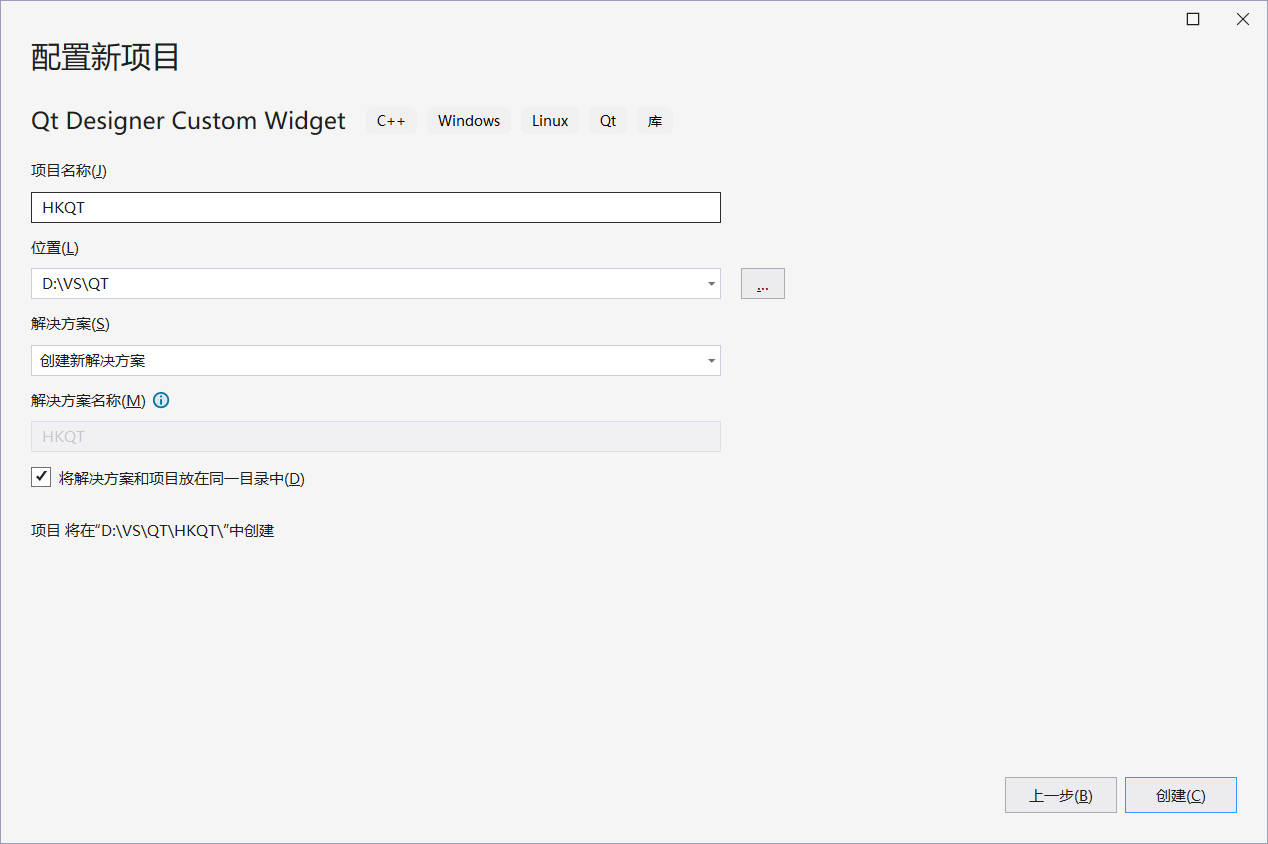

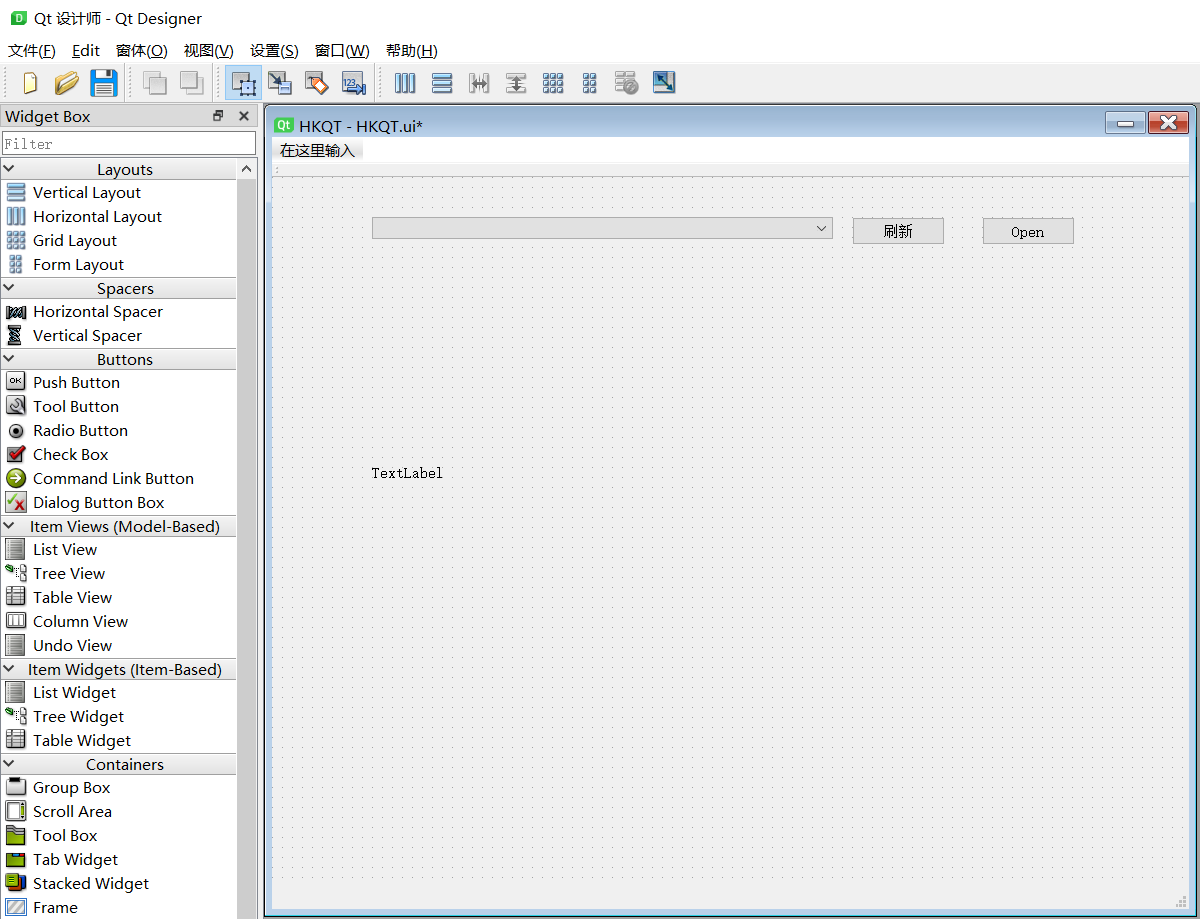

1、打开VS2022，新建qt项目

2、配置opencv环境：

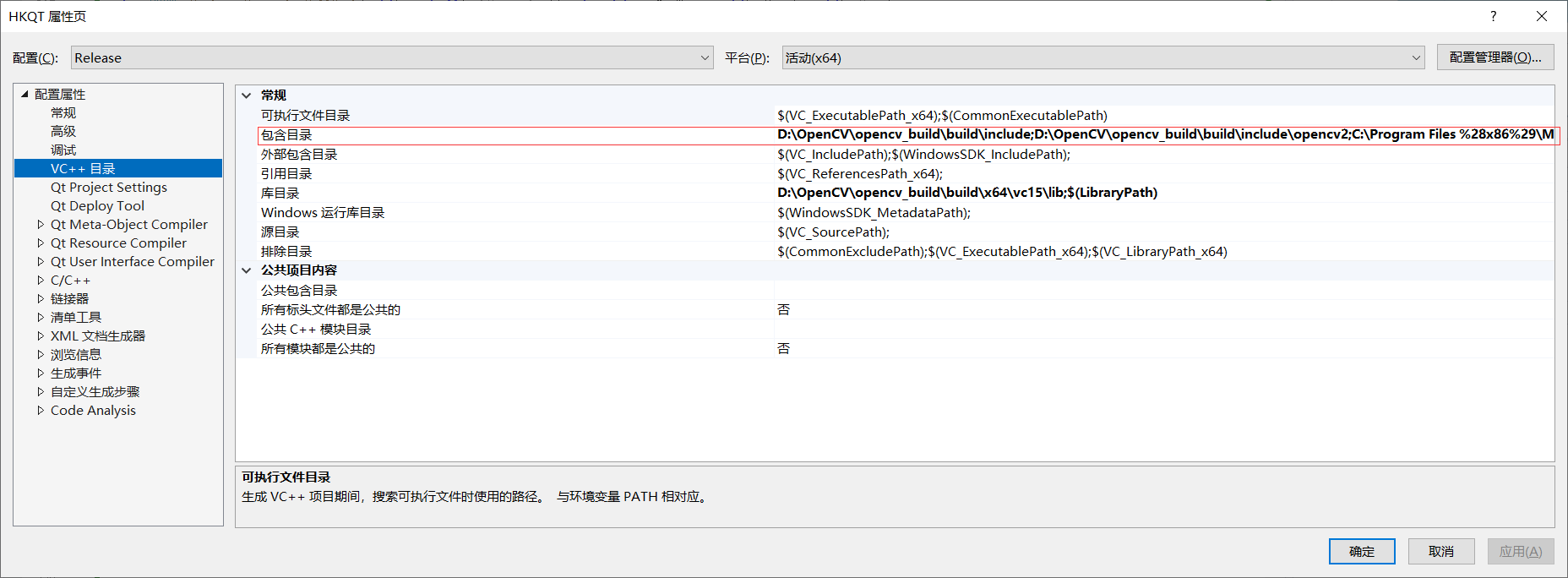

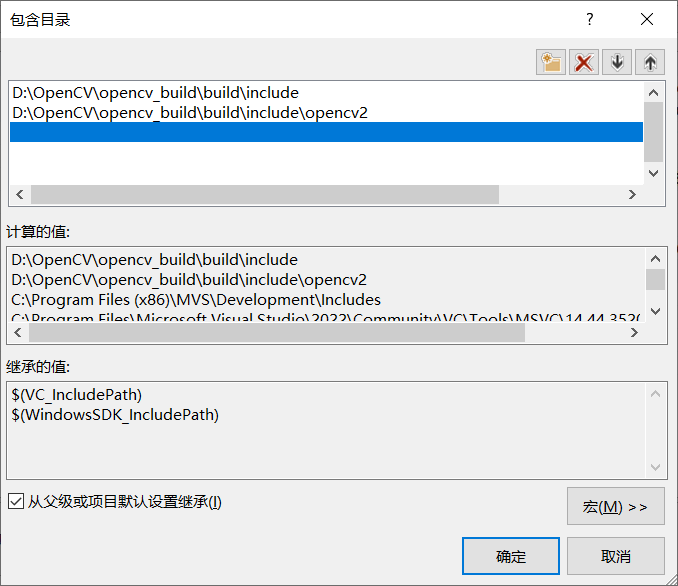

添加头文件目录：

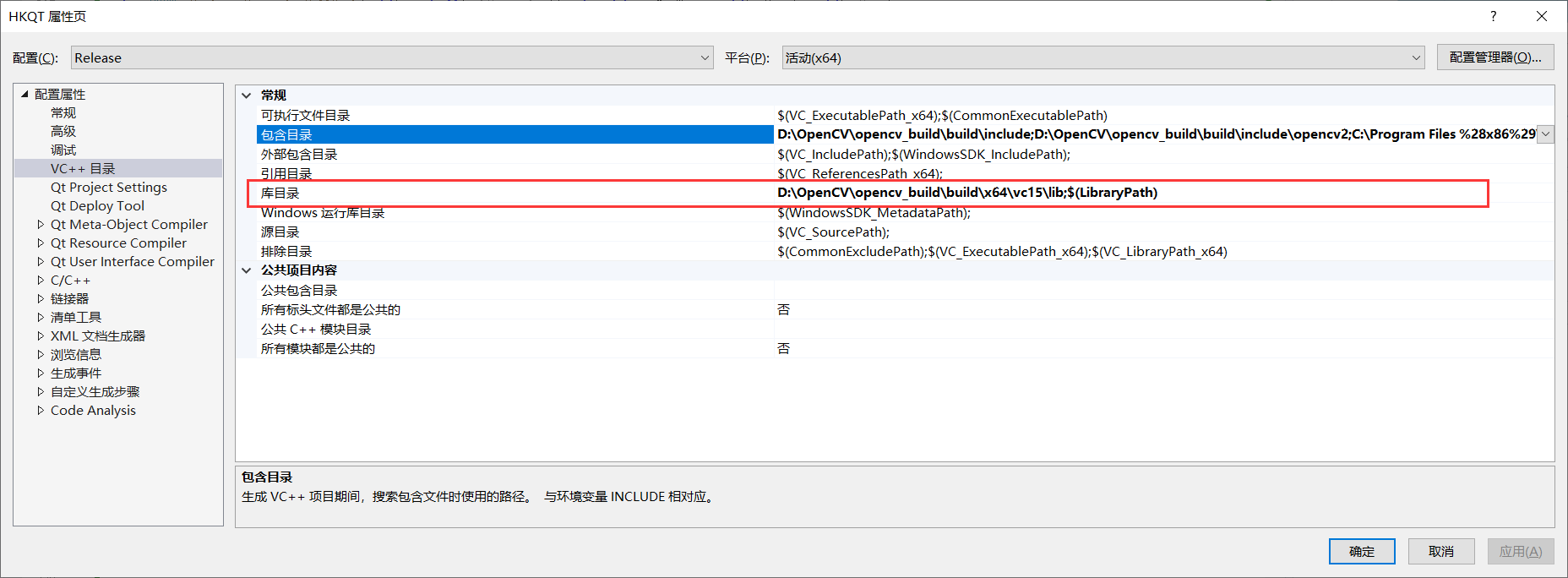

添加库目录：

添加库文件：

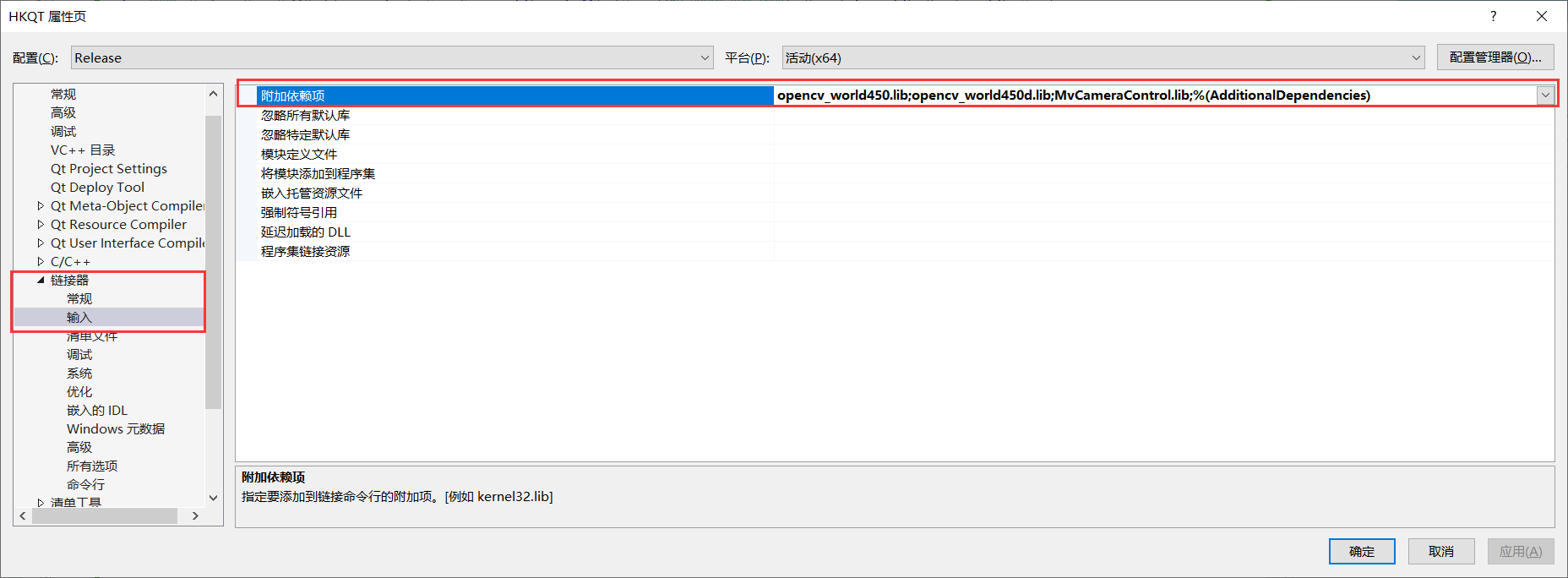

链接器->输入->附加依赖项->添加opencv_world450.lib

3、配置海康环境：

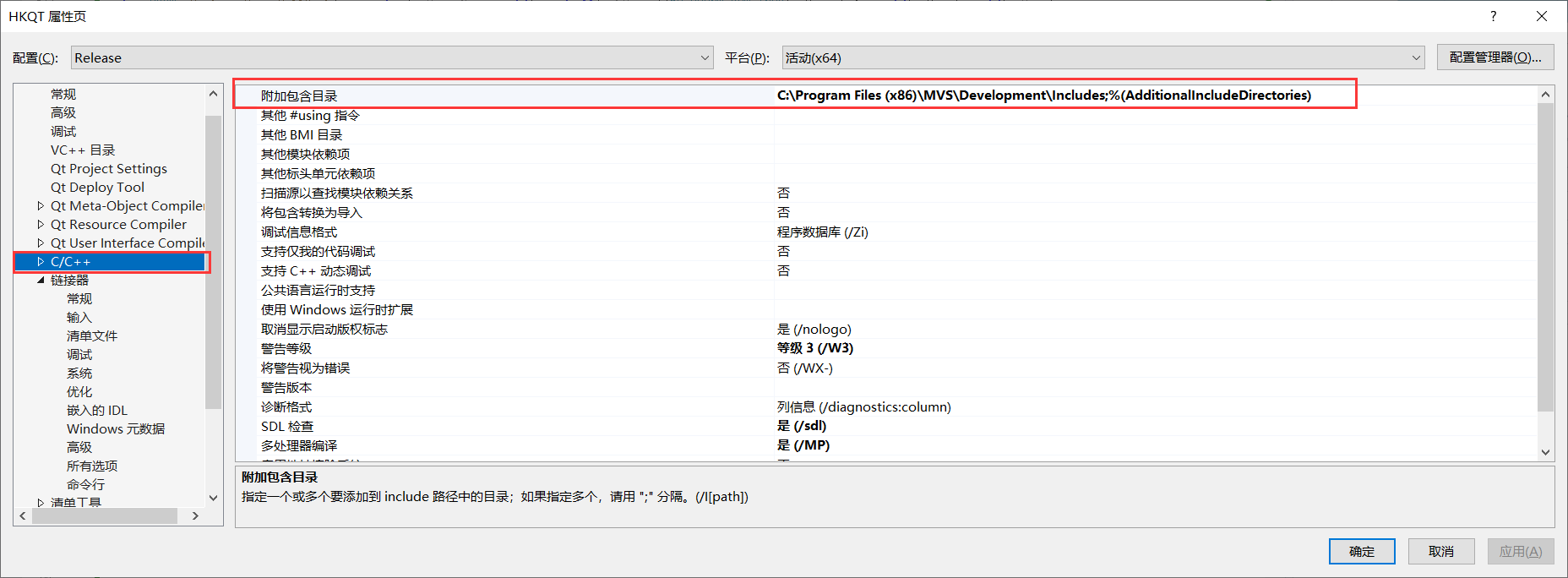

C/C++ ->附加包含目录->添加海康头文件

添加库目录：

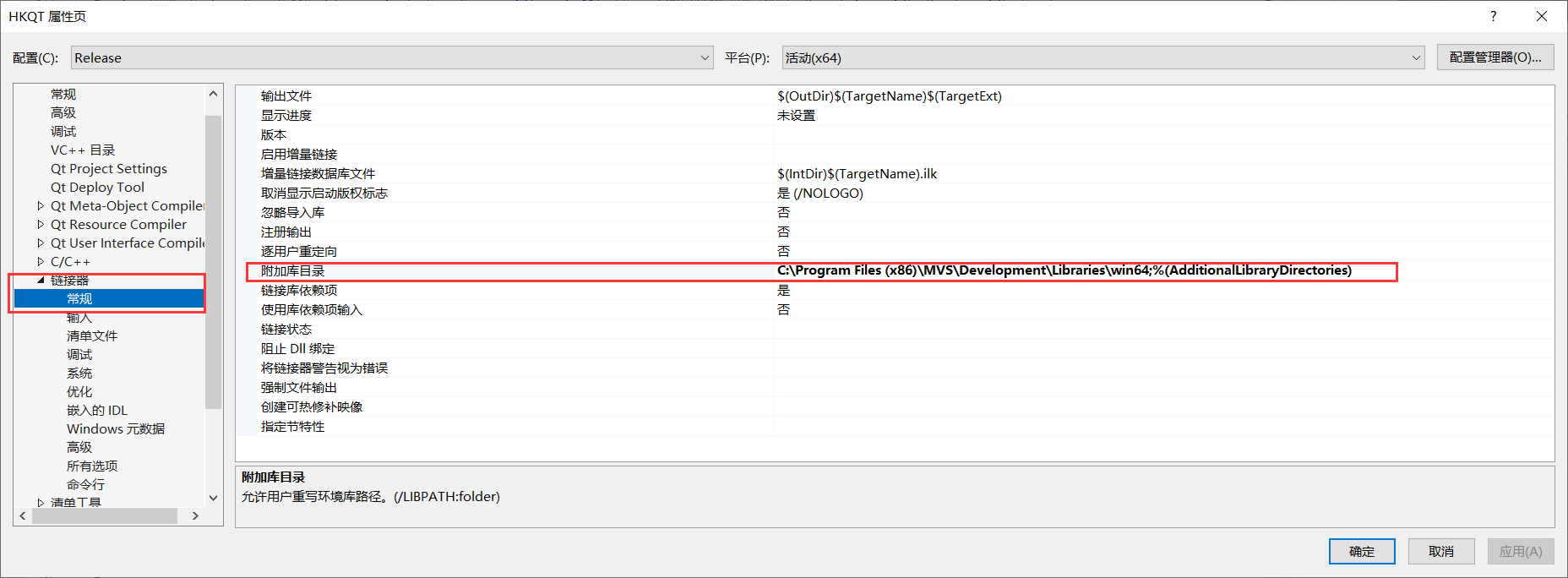

链接器->常规->附加库目录：

添加库文件：

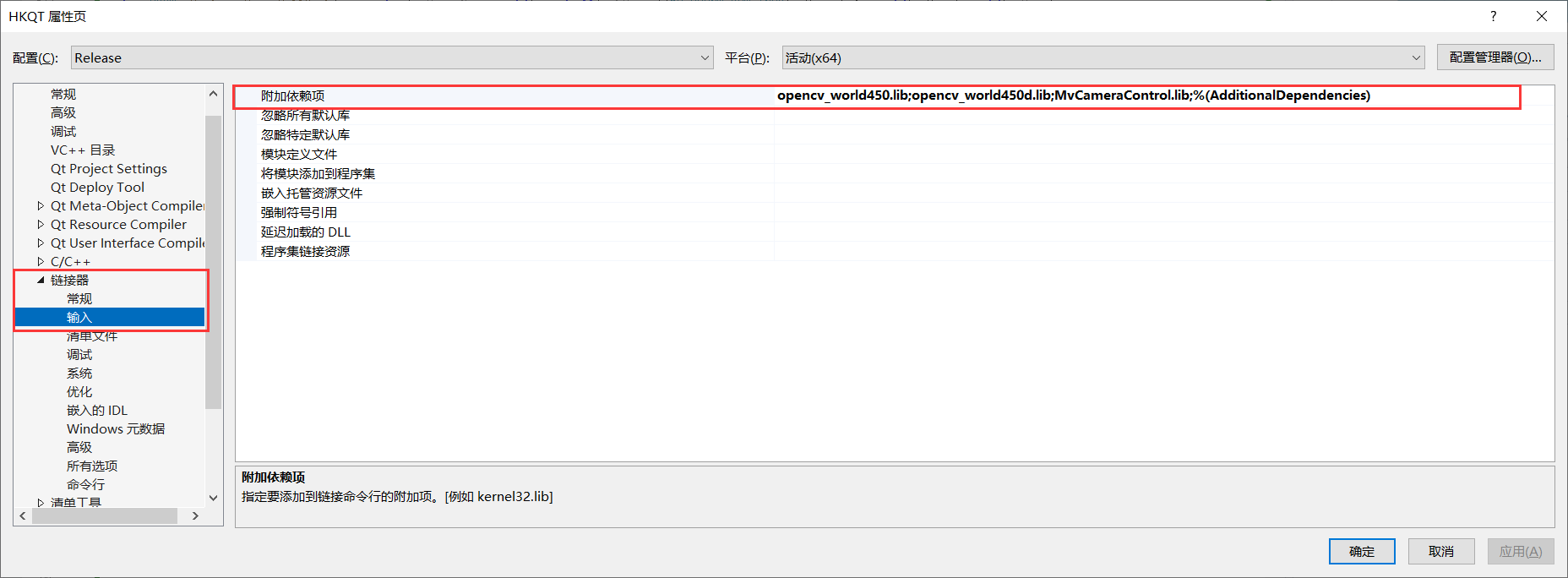

链接器->输入->附加依赖项：

至此，环境配置完成，可以进行测试。

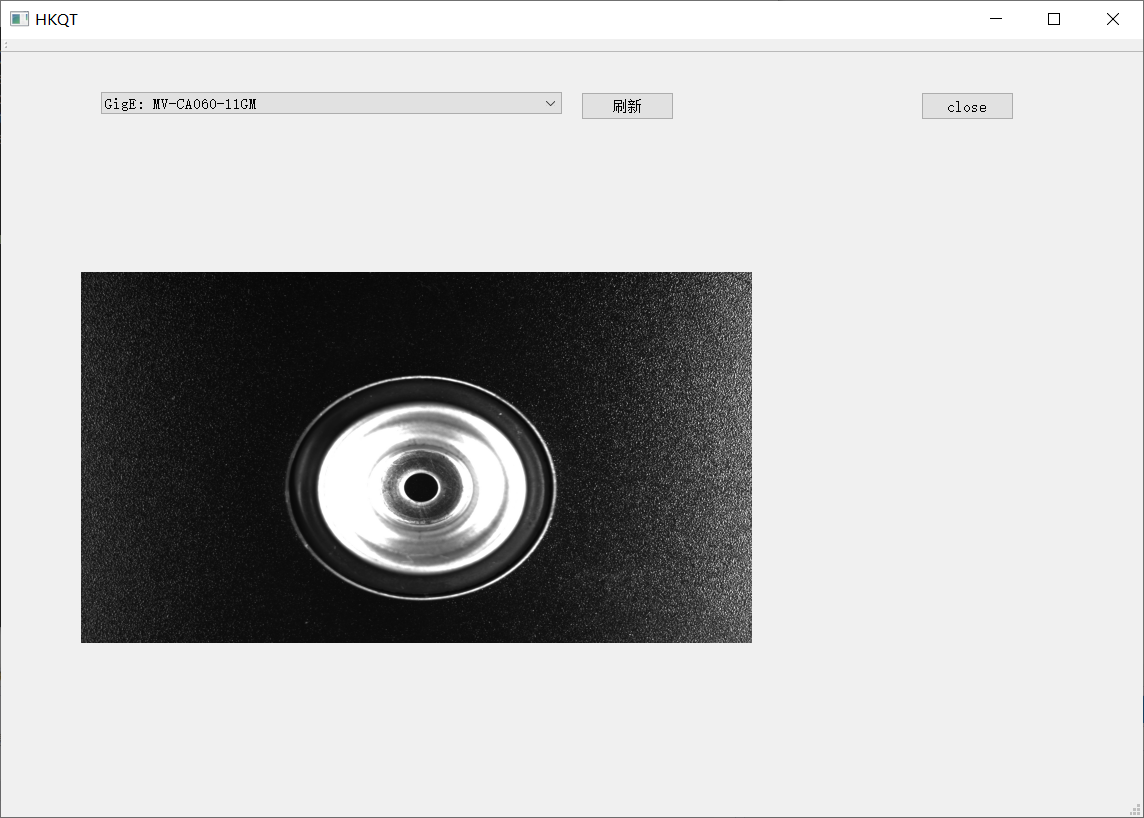

4、测试：

HKQT.h：

#pragma once

#include <QtWidgets/QMainWindow>
#include "ui_HKQT.h"
#include"MvCameraControl.h"
#include<string.h>

#ifndef MV_NULL
#define MV_NULL    0
#endif

//class 子类 : public 父类 {}
//使用virtua来修饰的，虚函数就是用在类的继承上的，父类的函数可以被子类来修改掉。

class HKQT : public QMainWindow
{
    Q_OBJECT

public:
    HKQT(QWidget *parent = nullptr);
    ~HKQT();



     // ch:获取SDK版本号 | en:Get SDK Version
     static int GetSDKVersion();

     // ch:枚举设备 | en:Enumerate Device
     static int EnumDevices(unsigned int nTLayerType, MV_CC_DEVICE_INFO_LIST* pstDevList);

     // ch:判断设备是否可达 | en:Is the device accessible
     static bool IsDeviceAccessible(MV_CC_DEVICE_INFO* pstDevInfo, unsigned int nAccessMode);

     // ch:打开设备 | en:Open Device
     int Open(MV_CC_DEVICE_INFO* pstDeviceInfo);

     // ch:关闭设备 | en:Close Device
     int Close();

     // ch:判断相机是否处于连接状态 | en:Is The Device Connected
     bool IsDeviceConnected();

     // ch:注册图像数据回调 | en:Register Image Data CallBack
     int RegisterImageCallBack(void(__stdcall* cbOutput)(unsigned char* pData, MV_FRAME_OUT_INFO_EX* pFrameInfo, void* pUser), void* pUser);

     // ch:开启抓图 | en:Start Grabbing
     int StartGrabbing();

     // ch:停止抓图 | en:Stop Grabbing
     int StopGrabbing();

     // ch:主动获取一帧图像数据 | en:Get one frame initiatively
     int GetImageBuffer(MV_FRAME_OUT* pFrame, int nMsec);

     // ch:释放图像缓存 | en:Free image buffer
     int FreeImageBuffer(MV_FRAME_OUT* pFrame);

     // ch:显示一帧图像 | en:Display one frame image
     int DisplayOneFrame(MV_DISPLAY_FRAME_INFO* pDisplayInfo);

     // ch:设置SDK内部图像缓存节点个数 | en:Set the number of the internal image cache nodes in SDK
     int SetImageNodeNum(unsigned int nNum);

     // ch:获取设备信息 | en:Get device information
     int GetDeviceInfo(MV_CC_DEVICE_INFO* pstDevInfo);

     // ch:获取GEV相机的统计信息 | en:Get detect info of GEV camera
     int GetGevAllMatchInfo(MV_MATCH_INFO_NET_DETECT* pMatchInfoNetDetect);

     // ch:获取U3V相机的统计信息 | en:Get detect info of U3V camera
     int GetU3VAllMatchInfo(MV_MATCH_INFO_USB_DETECT* pMatchInfoUSBDetect);

     // ch:获取和设置Int型参数，如 Width和Height，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
     // en:Get Int type parameters, such as Width and Height, for details please refer to MvCameraNode.xlsx file under SDK installation directory
     int GetIntValue(IN const char* strKey, OUT MVCC_INTVALUE_EX* pIntValue);
     int SetIntValue(IN const char* strKey, IN int64_t nValue);

     // ch:获取和设置Enum型参数，如 PixelFormat，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
     // en:Get Enum type parameters, such as PixelFormat, for details please refer to MvCameraNode.xlsx file under SDK installation directory
     int GetEnumValue(IN const char* strKey, OUT MVCC_ENUMVALUE* pEnumValue);
     int SetEnumValue(IN const char* strKey, IN unsigned int nValue);
     int SetEnumValueByString(IN const char* strKey, IN const char* sValue);
     int GetEnumEntrySymbolic(IN const char* strKey, IN MVCC_ENUMENTRY* pstEnumEntry);

     // ch:获取和设置Float型参数，如 ExposureTime和Gain，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
     // en:Get Float type parameters, such as ExposureTime and Gain, for details please refer to MvCameraNode.xlsx file under SDK installation directory
     int GetFloatValue(IN const char* strKey, OUT MVCC_FLOATVALUE* pFloatValue);
     int SetFloatValue(IN const char* strKey, IN float fValue);

     // ch:获取和设置Bool型参数，如 ReverseX，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
     // en:Get Bool type parameters, such as ReverseX, for details please refer to MvCameraNode.xlsx file under SDK installation directory
     int GetBoolValue(IN const char* strKey, OUT bool* pbValue);
     int SetBoolValue(IN const char* strKey, IN bool bValue);

     // ch:获取和设置String型参数，如 DeviceUserID，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件UserSetSave
     // en:Get String type parameters, such as DeviceUserID, for details please refer to MvCameraNode.xlsx file under SDK installation directory
     int GetStringValue(IN const char* strKey, MVCC_STRINGVALUE* pStringValue);
     int SetStringValue(IN const char* strKey, IN const char* strValue);

     // ch:执行一次Command型命令，如 UserSetSave，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
     // en:Execute Command once, such as UserSetSave, for details please refer to MvCameraNode.xlsx file under SDK installation directory
     int CommandExecute(IN const char* strKey);

     // ch:探测网络最佳包大小(只对GigE相机有效) | en:Detection network optimal package size(It only works for the GigE camera)
     int GetOptimalPacketSize(unsigned int* pOptimalPacketSize);

     // ch:注册消息异常回调 | en:Register Message Exception CallBack
     int RegisterExceptionCallBack(void(__stdcall* cbException)(unsigned int nMsgType, void* pUser), void* pUser);

     // ch:注册单个事件回调 | en:Register Event CallBack
     int RegisterEventCallBack(const char* pEventName, void(__stdcall* cbEvent)(MV_EVENT_OUT_INFO* pEventInfo, void* pUser), void* pUser);

     // ch:强制IP | en:Force IP
     int ForceIp(unsigned int nIP, unsigned int nSubNetMask, unsigned int nDefaultGateWay);

     // ch:配置IP方式 | en:IP configuration method
     int SetIpConfig(unsigned int nType);

     // ch:设置网络传输模式 | en:Set Net Transfer Mode
     int SetNetTransMode(unsigned int nType);

     // ch:像素格式转换 | en:Pixel format conversion
     int ConvertPixelType(MV_CC_PIXEL_CONVERT_PARAM* pstCvtParam);

     // ch:保存图片 | en:save image
     int SaveImage(MV_SAVE_IMAGE_PARAM_EX* pstParam);

     // ch:保存图片为文件 | en:Save the image as a file
     int SaveImageToFile(MV_SAVE_IMG_TO_FILE_PARAM* pstParam);

     // ch:绘制圆形辅助线 | en:Draw circle auxiliary line
     int DrawCircle(MVCC_CIRCLE_INFO* pCircleInfo);

     // ch:绘制线形辅助线 | en:Draw lines auxiliary line
     int DrawLines(MVCC_LINES_INFO* pLinesInfo);


private slots:



public slots:

    void on_OpenBtn_clicked();

    void on_refreshBtn_clicked();
private:
    Ui::HKQTClass ui;

    void* m_hDevHandle;


};

HKQT.cpp

#include "HKQT.h"
#include<opencv2/opencv.hpp>
#include<opencv2/core/core.hpp>
#include<opencv2/imgproc.hpp>
#include<opencv2/highgui/highgui.hpp>
#include<iostream>
#include<QDebug>
#include<qimage.h>
#include<qmessagebox.h>
#include<qfiledialog.h>


using namespace cv;
using namespace std;

unsigned int g_nPayloadSize = 0; //海康相机用的变量


HKQT::HKQT(QWidget *parent)
    : QMainWindow(parent)
{

    if (m_hDevHandle)
    {
        MV_CC_DestroyHandle(m_hDevHandle);
        m_hDevHandle = MV_NULL;
    }


    ui.setupUi(this);
}
//析构函数，对象删除的时候调用
HKQT::~HKQT()
{

   //delete ui;

}


// ch:获取SDK版本号 | en:Get SDK Version
int HKQT::GetSDKVersion()
{
    return MV_CC_GetSDKVersion();
}

// ch:枚举设备 | en:Enumerate Device
int HKQT::EnumDevices(unsigned int nTLayerType, MV_CC_DEVICE_INFO_LIST* pstDevList)
{
    return MV_CC_EnumDevices(nTLayerType, pstDevList);
}

// ch:判断设备是否可达 | en:Is the device accessible
bool HKQT::IsDeviceAccessible(MV_CC_DEVICE_INFO* pstDevInfo, unsigned int nAccessMode)
{
    return MV_CC_IsDeviceAccessible(pstDevInfo, nAccessMode);
}

// ch:打开设备 | en:Open Device
int HKQT::Open(MV_CC_DEVICE_INFO* pstDeviceInfo)
{
    if (MV_NULL == pstDeviceInfo)
    {
        return MV_E_PARAMETER;
    }

    if (m_hDevHandle)
    {
        return MV_E_CALLORDER;
    }

    int nRet = MV_CC_CreateHandle(&m_hDevHandle, pstDeviceInfo);
    if (MV_OK != nRet)
    {
        return nRet;
    }

    nRet = MV_CC_OpenDevice(m_hDevHandle);
    if (MV_OK != nRet)
    {
        MV_CC_DestroyHandle(m_hDevHandle);
        m_hDevHandle = MV_NULL;
    }

    return nRet;
}

// ch:关闭设备 | en:Close Device
int HKQT::Close()
{
    if (MV_NULL == m_hDevHandle)
    {
        return MV_E_HANDLE;
    }

    MV_CC_CloseDevice(m_hDevHandle);

    int nRet = MV_CC_DestroyHandle(m_hDevHandle);
    m_hDevHandle = MV_NULL;

    return nRet;
}

// ch:判断相机是否处于连接状态 | en:Is The Device Connected
bool HKQT::IsDeviceConnected()
{
    return MV_CC_IsDeviceConnected(m_hDevHandle);
}

// ch:注册图像数据回调 | en:Register Image Data CallBack
int HKQT::RegisterImageCallBack(void(__stdcall* cbOutput)(unsigned char* pData, MV_FRAME_OUT_INFO_EX* pFrameInfo, void* pUser), void* pUser)
{
    return MV_CC_RegisterImageCallBackEx(m_hDevHandle, cbOutput, pUser);
}

// ch:开启抓图 | en:Start Grabbing
int HKQT::StartGrabbing()
{
    return MV_CC_StartGrabbing(m_hDevHandle);
}

// ch:停止抓图 | en:Stop Grabbing
int HKQT::StopGrabbing()
{
    return MV_CC_StopGrabbing(m_hDevHandle);
}

// ch:主动获取一帧图像数据 | en:Get one frame initiatively
int HKQT::GetImageBuffer(MV_FRAME_OUT* pFrame, int nMsec)
{
    return MV_CC_GetImageBuffer(m_hDevHandle, pFrame, nMsec);
}

// ch:释放图像缓存 | en:Free image buffer
int HKQT::FreeImageBuffer(MV_FRAME_OUT* pFrame)
{
    return MV_CC_FreeImageBuffer(m_hDevHandle, pFrame);
}

// ch:设置显示窗口句柄 | en:Set Display Window Handle
int HKQT::DisplayOneFrame(MV_DISPLAY_FRAME_INFO* pDisplayInfo)
{
    return MV_CC_DisplayOneFrame(m_hDevHandle, pDisplayInfo);
}

// ch:设置SDK内部图像缓存节点个数 | en:Set the number of the internal image cache nodes in SDK
int HKQT::SetImageNodeNum(unsigned int nNum)
{
    return MV_CC_SetImageNodeNum(m_hDevHandle, nNum);
}

// ch:获取设备信息 | en:Get device information
int HKQT::GetDeviceInfo(MV_CC_DEVICE_INFO* pstDevInfo)
{
    return MV_CC_GetDeviceInfo(m_hDevHandle, pstDevInfo);
}

// ch:获取GEV相机的统计信息 | en:Get detect info of GEV camera
int HKQT::GetGevAllMatchInfo(MV_MATCH_INFO_NET_DETECT* pMatchInfoNetDetect)
{
    if (MV_NULL == pMatchInfoNetDetect)
    {
        return MV_E_PARAMETER;
    }

    MV_CC_DEVICE_INFO stDevInfo = { 0 };
    GetDeviceInfo(&stDevInfo);
    if (stDevInfo.nTLayerType != MV_GIGE_DEVICE)
    {
        return MV_E_SUPPORT;
    }

    MV_ALL_MATCH_INFO struMatchInfo = { 0 };

    struMatchInfo.nType = MV_MATCH_TYPE_NET_DETECT;
    struMatchInfo.pInfo = pMatchInfoNetDetect;
    struMatchInfo.nInfoSize = sizeof(MV_MATCH_INFO_NET_DETECT);
    memset(struMatchInfo.pInfo, 0, sizeof(MV_MATCH_INFO_NET_DETECT));

    return MV_CC_GetAllMatchInfo(m_hDevHandle, &struMatchInfo);
}

// ch:获取U3V相机的统计信息 | en:Get detect info of U3V camera
int HKQT::GetU3VAllMatchInfo(MV_MATCH_INFO_USB_DETECT* pMatchInfoUSBDetect)
{
    if (MV_NULL == pMatchInfoUSBDetect)
    {
        return MV_E_PARAMETER;
    }

    MV_CC_DEVICE_INFO stDevInfo = { 0 };
    GetDeviceInfo(&stDevInfo);
    if (stDevInfo.nTLayerType != MV_USB_DEVICE)
    {
        return MV_E_SUPPORT;
    }

    MV_ALL_MATCH_INFO struMatchInfo = { 0 };

    struMatchInfo.nType = MV_MATCH_TYPE_USB_DETECT;
    struMatchInfo.pInfo = pMatchInfoUSBDetect;
    struMatchInfo.nInfoSize = sizeof(MV_MATCH_INFO_USB_DETECT);
    memset(struMatchInfo.pInfo, 0, sizeof(MV_MATCH_INFO_USB_DETECT));

    return MV_CC_GetAllMatchInfo(m_hDevHandle, &struMatchInfo);
}

// ch:获取和设置Int型参数，如 Width和Height，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
// en:Get Int type parameters, such as Width and Height, for details please refer to MvCameraNode.xlsx file under SDK installation directory
int HKQT::GetIntValue(IN const char* strKey, OUT MVCC_INTVALUE_EX* pIntValue)
{
    return MV_CC_GetIntValueEx(m_hDevHandle, strKey, pIntValue);
}

int HKQT::SetIntValue(IN const char* strKey, IN int64_t nValue)
{
    return MV_CC_SetIntValueEx(m_hDevHandle, strKey, nValue);
}

// ch:获取和设置Enum型参数，如 PixelFormat，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
// en:Get Enum type parameters, such as PixelFormat, for details please refer to MvCameraNode.xlsx file under SDK installation directory
int HKQT::GetEnumValue(IN const char* strKey, OUT MVCC_ENUMVALUE* pEnumValue)
{
    return MV_CC_GetEnumValue(m_hDevHandle, strKey, pEnumValue);
}

int HKQT::SetEnumValue(IN const char* strKey, IN unsigned int nValue)
{
    return MV_CC_SetEnumValue(m_hDevHandle, strKey, nValue);
}

int HKQT::SetEnumValueByString(IN const char* strKey, IN const char* sValue)
{
    return MV_CC_SetEnumValueByString(m_hDevHandle, strKey, sValue);
}

int HKQT::GetEnumEntrySymbolic(IN const char* strKey, IN MVCC_ENUMENTRY* pstEnumEntry)
{
    return MV_CC_GetEnumEntrySymbolic(m_hDevHandle, strKey, pstEnumEntry);
}

// ch:获取和设置Float型参数，如 ExposureTime和Gain，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
// en:Get Float type parameters, such as ExposureTime and Gain, for details please refer to MvCameraNode.xlsx file under SDK installation directory
int HKQT::GetFloatValue(IN const char* strKey, OUT MVCC_FLOATVALUE* pFloatValue)
{
    return MV_CC_GetFloatValue(m_hDevHandle, strKey, pFloatValue);
}

int HKQT::SetFloatValue(IN const char* strKey, IN float fValue)
{
    return MV_CC_SetFloatValue(m_hDevHandle, strKey, fValue);
}

// ch:获取和设置Bool型参数，如 ReverseX，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
// en:Get Bool type parameters, such as ReverseX, for details please refer to MvCameraNode.xlsx file under SDK installation directory
int HKQT::GetBoolValue(IN const char* strKey, OUT bool* pbValue)
{
    return MV_CC_GetBoolValue(m_hDevHandle, strKey, pbValue);
}

int HKQT::SetBoolValue(IN const char* strKey, IN bool bValue)
{
    return MV_CC_SetBoolValue(m_hDevHandle, strKey, bValue);
}

// ch:获取和设置String型参数，如 DeviceUserID，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件UserSetSave
// en:Get String type parameters, such as DeviceUserID, for details please refer to MvCameraNode.xlsx file under SDK installation directory
int HKQT::GetStringValue(IN const char* strKey, MVCC_STRINGVALUE* pStringValue)
{
    return MV_CC_GetStringValue(m_hDevHandle, strKey, pStringValue);
}

int HKQT::SetStringValue(IN const char* strKey, IN const char* strValue)
{
    return MV_CC_SetStringValue(m_hDevHandle, strKey, strValue);
}

// ch:执行一次Command型命令，如 UserSetSave，详细内容参考SDK安装目录下的 MvCameraNode.xlsx 文件
// en:Execute Command once, such as UserSetSave, for details please refer to MvCameraNode.xlsx file under SDK installation directory
int HKQT::CommandExecute(IN const char* strKey)
{
    return MV_CC_SetCommandValue(m_hDevHandle, strKey);
}

// ch:探测网络最佳包大小(只对GigE相机有效) | en:Detection network optimal package size(It only works for the GigE camera)
int HKQT::GetOptimalPacketSize(unsigned int* pOptimalPacketSize)
{
    if (MV_NULL == pOptimalPacketSize)
    {
        return MV_E_PARAMETER;
    }

    int nRet = MV_CC_GetOptimalPacketSize(m_hDevHandle);
    if (nRet < MV_OK)
    {
        return nRet;
    }

    *pOptimalPacketSize = (unsigned int)nRet;

    return MV_OK;
}

// ch:注册消息异常回调 | en:Register Message Exception CallBack
int HKQT::RegisterExceptionCallBack(void(__stdcall* cbException)(unsigned int nMsgType, void* pUser), void* pUser)
{
    return MV_CC_RegisterExceptionCallBack(m_hDevHandle, cbException, pUser);
}

// ch:注册单个事件回调 | en:Register Event CallBack
int HKQT::RegisterEventCallBack(const char* pEventName, void(__stdcall* cbEvent)(MV_EVENT_OUT_INFO* pEventInfo, void* pUser), void* pUser)
{
    return MV_CC_RegisterEventCallBackEx(m_hDevHandle, pEventName, cbEvent, pUser);
}

// ch:强制IP | en:Force IP
int HKQT::ForceIp(unsigned int nIP, unsigned int nSubNetMask, unsigned int nDefaultGateWay)
{
    return MV_GIGE_ForceIpEx(m_hDevHandle, nIP, nSubNetMask, nDefaultGateWay);
}

// ch:配置IP方式 | en:IP configuration method
int HKQT::SetIpConfig(unsigned int nType)
{
    return MV_GIGE_SetIpConfig(m_hDevHandle, nType);
}

// ch:设置网络传输模式 | en:Set Net Transfer Mode
int HKQT::SetNetTransMode(unsigned int nType)
{
    return MV_GIGE_SetNetTransMode(m_hDevHandle, nType);
}

// ch:像素格式转换 | en:Pixel format conversion
int HKQT::ConvertPixelType(MV_CC_PIXEL_CONVERT_PARAM* pstCvtParam)
{
    return MV_CC_ConvertPixelType(m_hDevHandle, pstCvtParam);
}

// ch:保存图片 | en:save image
int HKQT::SaveImage(MV_SAVE_IMAGE_PARAM_EX* pstParam)
{
    return MV_CC_SaveImageEx2(m_hDevHandle, pstParam);
}

// ch:保存图片为文件 | en:Save the image as a file
int HKQT::SaveImageToFile(MV_SAVE_IMG_TO_FILE_PARAM* pstSaveFileParam)
{
    return MV_CC_SaveImageToFile(m_hDevHandle, pstSaveFileParam);
}

// ch:绘制圆形辅助线 | en:Draw circle auxiliary line
int HKQT::DrawCircle(MVCC_CIRCLE_INFO* pCircleInfo)
{
    return MV_CC_DrawCircle(m_hDevHandle, pCircleInfo);
}

// ch:绘制线形辅助线 | en:Draw lines auxiliary line
int HKQT::DrawLines(MVCC_LINES_INFO* pLinesInfo)
{
    return MV_CC_DrawLines(m_hDevHandle, pLinesInfo);
}



bool PrintDeviceInfo(MV_CC_DEVICE_INFO* pstMVDevInfo)
{
	if (NULL == pstMVDevInfo)
	{
		printf("The Pointer of pstMVDevInfo is NULL!\n");
		return false;
	}
	if (pstMVDevInfo->nTLayerType == MV_GIGE_DEVICE)
	{
		int nIp1 = ((pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0xff000000) >> 24);
		int nIp2 = ((pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0x00ff0000) >> 16);
		int nIp3 = ((pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0x0000ff00) >> 8);
		int nIp4 = (pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0x000000ff);

		// print current ip and user defined name
		printf("CurrentIp: %d.%d.%d.%d\n", nIp1, nIp2, nIp3, nIp4);
		printf("UserDefinedName: %s\n\n", pstMVDevInfo->SpecialInfo.stGigEInfo.chUserDefinedName);
	}
	else if (pstMVDevInfo->nTLayerType == MV_USB_DEVICE)
	{
		printf("UserDefinedName: %s\n", pstMVDevInfo->SpecialInfo.stUsb3VInfo.chUserDefinedName);
		printf("Serial Number: %s\n", pstMVDevInfo->SpecialInfo.stUsb3VInfo.chSerialNumber);
		printf("Device Number: %d\n\n", pstMVDevInfo->SpecialInfo.stUsb3VInfo.nDeviceNumber);
	}
	else
	{
		printf("Not support.\n");
	}

	return true;
}

int RGB2BGR(unsigned char* pRgbData, unsigned int nWidth, unsigned int nHeight)
{
	if (NULL == pRgbData)
	{
		return MV_E_PARAMETER;
	}

	for (unsigned int j = 0; j < nHeight; j++)
	{
		for (unsigned int i = 0; i < nWidth; i++)
		{
			unsigned char red = pRgbData[j * (nWidth * 3) + i * 3];
			pRgbData[j * (nWidth * 3) + i * 3] = pRgbData[j * (nWidth * 3) + i * 3 + 2];
			pRgbData[j * (nWidth * 3) + i * 3 + 2] = red;
		}
	}

	return MV_OK;
}


// convert data stream in Mat format
bool Convert2Mat(MV_FRAME_OUT_INFO_EX* pstImageInfo, unsigned char* pData)
{
	cv::Mat srcImage;
	if (pstImageInfo->enPixelType == PixelType_Gvsp_Mono8)
	{
		srcImage = cv::Mat(pstImageInfo->nHeight, pstImageInfo->nWidth, CV_8UC1, pData);
	}
	else if (pstImageInfo->enPixelType == PixelType_Gvsp_RGB8_Packed)
	{
		RGB2BGR(pData, pstImageInfo->nWidth, pstImageInfo->nHeight);
		srcImage = cv::Mat(pstImageInfo->nHeight, pstImageInfo->nWidth, CV_8UC3, pData);
	}
	else
	{
		printf("unsupported pixel format\n");
		return false;
	}

	if (NULL == srcImage.data)
	{
		return false;
	}

	//save converted image in a local file
	try {
#if defined (VC9_COMPILE)
		cvSaveImage("MatImage.bmp", &(IplImage(srcImage)));
#else
		cv::imwrite("MatImage.jpg", srcImage);  //存储到工程所在的文件夹内
#endif
	}
	catch (cv::Exception& ex) {
		fprintf(stderr, "Exception saving image to bmp format: %s\n", ex.what());
	}

	srcImage.release();

	return true;
}











void HKQT::on_OpenBtn_clicked(){



    //QString filePath = QFileDialog::getOpenFileName(
    //    this, "选择图片", "", "图像文件 (*.png *.jpg *.jpeg *.bmp)");
    //if (filePath.isEmpty())
    //    return;
    //
    //qDebug() << filePath;
    //Mat img = imread(filePath.toStdString());
    ////imshow("test", img);
    //Mat imshow;
    //if (img.empty()) {
    //    QMessageBox::critical(this, "错误", "无法加载图像！");
    //    return;
    //}
    //cvtColor(img, imshow, COLOR_BGR2RGB);
    //// 创建QImage对象
    //
    //QImage qImage(
    //    imshow.data,
    //    imshow.cols,
    //    imshow.rows,
    //    imshow.step,
    //    QImage::Format_RGB888
    //);
    //// 在QLabel中显示图像
    //ui.imageLabel->setPixmap(QPixmap::fromImage(qImage));
    //
    //ui.imageLabel->setScaledContents(true); // 图像自动适应标签大小
    //ui.OpenBtn->setText("close");
    //qDebug() << "hello";
}

void HKQT::on_refreshBtn_clicked()
{
    int nRet = MV_OK;
    void* handle = NULL;
	QString cameraName;

	do
	{
		// Enum device
		MV_CC_DEVICE_INFO_LIST stDeviceList;
		memset(&stDeviceList, 0, sizeof(MV_CC_DEVICE_INFO_LIST));
		nRet = MV_CC_EnumDevices(MV_GIGE_DEVICE | MV_USB_DEVICE, &stDeviceList);
		if (MV_OK != nRet)
		{
			printf("Enum Devices fail! nRet [0x%x]\n", nRet);
			break;
		}

		if (stDeviceList.nDeviceNum > 0)
		{
			for (unsigned int i = 0; i < stDeviceList.nDeviceNum; i++)
			{
				printf("[device %d]:\n", i);
				MV_CC_DEVICE_INFO* pDeviceInfo = stDeviceList.pDeviceInfo[i];
				if (NULL == pDeviceInfo)
				{
					break;
				}
				PrintDeviceInfo(pDeviceInfo);


				if (pDeviceInfo->nTLayerType == MV_GIGE_DEVICE) {
					MV_GIGE_DEVICE_INFO* pGigEDeviceInfo = &pDeviceInfo->SpecialInfo.stGigEInfo;

					// 转换unsigned char[]为QString
					QString modelName = QString::fromUtf8(reinterpret_cast<const char*>(pGigEDeviceInfo->chModelName));
					//QString ipAddress = QString::fromUtf8(reinterpret_cast<const char*>(pGigEDeviceInfo->chIPAddress));

					cameraName = QString("GigE: %1").arg(modelName);
				}
				else if (pDeviceInfo->nTLayerType == MV_USB_DEVICE) {
					MV_USB3_DEVICE_INFO* pUsb3DeviceInfo = &pDeviceInfo->SpecialInfo.stUsb3VInfo;

					// 转换unsigned char[]为QString
					QString modelName = QString::fromUtf8(reinterpret_cast<const char*>(pUsb3DeviceInfo->chModelName));
					QString serialNumber = QString::fromUtf8(reinterpret_cast<const char*>(pUsb3DeviceInfo->chSerialNumber));

					cameraName = QString("USB: %1 (%2)").arg(modelName).arg(serialNumber);
				}

				// 添加到ComboBox，并关联设备索引
				ui.DeciceListcombo->addItem(cameraName, QVariant(i));


			}
		}
		else
		{
			printf("Find No Devices!\n");
			break;
		}





		// input the format to convert

		unsigned int nFormat = 0; //[0] OpenCV_Mat\n,[1] OpenCV_IplImage\n，此处等于0，将海康图像转换为OpenCV4.5中的Mat格式，IplImage格式为OpenCV2用的

		// select device to connect

		unsigned int nIndex = 0;  //nIndex=0为枚举到的第一个摄像头，多个摄像头一次加1

		if (nIndex >= stDeviceList.nDeviceNum)
		{
			printf("Input CameraIndex error!\n");
			break;
		}

		// Select device and create handle
		nRet = MV_CC_CreateHandle(&handle, stDeviceList.pDeviceInfo[nIndex]);
		if (MV_OK != nRet)
		{
			printf("Create Handle fail! nRet [0x%x]\n", nRet);
			break;
		}

		// open device
		nRet = MV_CC_OpenDevice(handle);
		if (MV_OK != nRet)
		{
			printf("Open Device fail! nRet [0x%x]\n", nRet);
			break;
		}

		// Detection network optimal package size(It only works for the GigE camera)
		if (stDeviceList.pDeviceInfo[nIndex]->nTLayerType == MV_GIGE_DEVICE)
		{
			int nPacketSize = MV_CC_GetOptimalPacketSize(handle);
			if (nPacketSize > 0)
			{
				nRet = MV_CC_SetIntValue(handle, "GevSCPSPacketSize", nPacketSize);
				if (nRet != MV_OK)
				{
					printf("Warning: Set Packet Size fail nRet [0x%x]!", nRet);
				}
			}
			else
			{
				printf("Warning: Get Packet Size fail nRet [0x%x]!", nPacketSize);
			}
		}

		// Set trigger mode as off
		nRet = MV_CC_SetEnumValue(handle, "TriggerMode", 0);
		if (MV_OK != nRet)
		{
			printf("Set Trigger Mode fail! nRet [0x%x]\n", nRet);
			break;
		}

		// Get payload size
		MVCC_INTVALUE stParam;
		memset(&stParam, 0, sizeof(MVCC_INTVALUE));
		nRet = MV_CC_GetIntValue(handle, "PayloadSize", &stParam);
		if (MV_OK != nRet)
		{
			printf("Get PayloadSize fail! nRet [0x%x]\n", nRet);
			break;
		}
		g_nPayloadSize = stParam.nCurValue;

		// Start grab image
		nRet = MV_CC_StartGrabbing(handle);
		if (MV_OK != nRet)
		{
			printf("Start Grabbing fail! nRet [0x%x]\n", nRet);
			break;
		}

		MV_FRAME_OUT_INFO_EX stImageInfo = { 0 };
		memset(&stImageInfo, 0, sizeof(MV_FRAME_OUT_INFO_EX));
		unsigned char* pData = (unsigned char*)malloc(sizeof(unsigned char) * (g_nPayloadSize));
		if (pData == NULL)
		{
			printf("Allocate memory failed.\n");
			break;
		}

		// get one frame from camera with timeout=1000ms
		nRet = MV_CC_GetOneFrameTimeout(handle, pData, g_nPayloadSize, &stImageInfo, 1000);
		if (nRet == MV_OK)
		{
			printf("Get One Frame: Width[%d], Height[%d], nFrameNum[%d]\n",
				stImageInfo.nWidth, stImageInfo.nHeight, stImageInfo.nFrameNum);
		}
		else
		{
			printf("No data[0x%x]\n", nRet);
			free(pData);
			pData = NULL;
			break;
		}

		// 数据去转换
		bool bConvertRet = false;
		if (0 == nFormat)
		{
			bConvertRet = Convert2Mat(&stImageInfo, pData);
		}
		else
		{
			//bConvertRet = Convert2Ipl(&stImageInfo, pData);
		}
		// print result
		if (bConvertRet)
		{
			printf("OpenCV format convert finished.\n");
			free(pData);
			pData = NULL;
		}
		else
		{
			printf("OpenCV format convert failed.\n");
			free(pData);
			pData = NULL;
			break;
		}

		// Stop grab image
		nRet = MV_CC_StopGrabbing(handle);
		if (MV_OK != nRet)
		{
			printf("Stop Grabbing fail! nRet [0x%x]\n", nRet);
			break;
		}

		// Close device
		nRet = MV_CC_CloseDevice(handle);
		if (MV_OK != nRet)
		{
			printf("ClosDevice fail! nRet [0x%x]\n", nRet);
			break;
		}

		// Destroy handle
		nRet = MV_CC_DestroyHandle(handle);
		if (MV_OK != nRet)
		{
			printf("Destroy Handle fail! nRet [0x%x]\n", nRet);
			break;
		}


		//cv::Mat img = cv::imread("MatImage.jpg");   //从工程所在的文件夹内读取图片
		//cv::Mat hsv;
		//cv::Mat gray;
		//cv::Mat hsvsplit[3];


		Mat imshow;
		imshow = imread("MatImage.jpg");
			 //创建QImage对象

		if (imshow.empty()) {
		    QMessageBox::critical(this, "错误", "无法加载图像！");
		    return;
		}
	//
		QImage qImage(
			imshow.data,
			imshow.cols,
			imshow.rows,
			imshow.step,
			QImage::Format_RGB888);

		// 在QLabel中显示图像
			ui.imageLabel->setPixmap(QPixmap::fromImage(qImage));

			ui.imageLabel->setScaledContents(true); // 图像自动适应标签大小
			ui.OpenBtn->setText("close");
			qDebug() << "hello";


	} while (0);


}

main.cpp

#include "HKQT.h"
#include <QtWidgets/QApplication>

int main(int argc, char *argv[])
{
    QApplication app(argc, argv);
    HKQT window;
    window.show();
    return app.exec();
}

ui文件：

运行效果：

火山引擎 ADG 社区

火山引擎开发者社区是火山引擎打造的AI技术生态平台，聚焦Agent与大模型开发，提供豆包系列模型（图像/视频/视觉）、智能分析与会话工具，并配套评测集、动手实验室及行业案例库。社区通过技术沙龙、挑战赛等活动促进开发者成长，新用户可领50万Tokens权益，助力构建智能应用。

更多推荐

OpenClaw 本地部署完整指南（Windows + Ollama）

本文档基于实际部署经验编写，旨在帮助你在 Windows 系统上从零开始搭建 OpenClaw，并连接本地 Ollama 模型（如 Qwen2.5 或 Qwen3），使其具备完整的智能体能力。文档包含了所有关键步骤以及常见问题的解决方案。

火山引擎 ADG 社区

OpenClaw 小白安装指南（Windows版）

（类似一个能自动执行任务的AI机器人），不是游戏。API Key只保存在你本地电脑的加密文件里，不会上传到任何地方。访问：https://github.com/miaoxworld/openclaw-manager/releases。: 一键安装脚本会自动安装Node.js 22+，如果失败，手动下载安装：https://nodejs.org/：在PowerShell中，鼠标右键就是粘贴，不需要按

火山引擎 ADG 社区

飞书 × OpenClaw 接入指南：不用服务器，用长连接把机器人跑起来

这个项目存在的意义，就是把“飞书接 OpenClaw”这件事，整理成一套的配置入口，并把官方文档没覆盖到的坑集中写成排查清单。先说清楚它的角色：OpenClaw 现在已经内置官方飞书插件 @openclaw/feishu，功能更完整、维护也更及时。，说明飞书 + AI 的接入已经走通。另外，仓库也推荐了一个新项目：把 OpenClaw 变成“多 Agent 团队”，用多个 Agent 分工，Sla
