前言

子流程的功能与优势

子流程通过将复杂流程拆分为多个独立阶段，帮助用户更清晰地管理和控制整体流程。这种模块化设计提升了流程的可维护性和可操作性。

多实例的应用场景

在实际业务中，多实例需求不仅限于单个活动，更常见的是对一组活动进行多实例化。例如多部门联合处置流程中，领导分派任务后需多个部门并行处置，所有部门完成处理后才能进入下一环节。这种场景下，多实例子流程能高效实现并行协作的需求。

实际案例

1、环境

前端：BPMN2.0.js

后端：flowable:6.8.0

2、流程信息

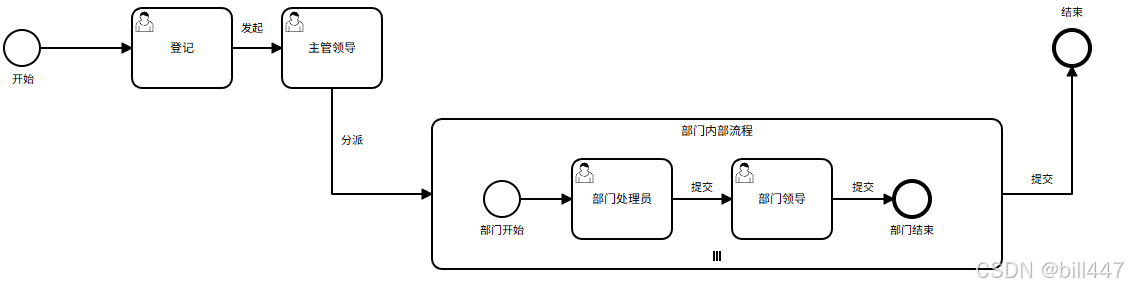

流程图（7、流程文件在文章最后）：

各节点信息：

节点名称         节点类型 节点id
开始 开始事件（StartEvent） ks
登记 用户任务（UserTask） dj
主管领导 用户任务（UserTask） zgld
部门内部流程 子流程（SubProcess） ldsp
部门开始 开始事件（StartEvent） bmks

部门处理员

 用户任务（UserTask） bmcly
部门领导 用户任务（UserTask） bmld
部门结束 结束事件（EndEvent） bmjs
结束 结束事件（EndEvent） js

3、需求

【主管领导】分派任务给多个【部门内部流程】子流程后，所有【部门内部流程】处理完后才会进入到【结束】节点。

4、实现

1.【部门内部流程】子流程配置

【部门内部流程】子流程xml配置

    <bpmn2:subProcess id="bmnblc" name="部门内部流程">
      <bpmn2:extensionElements />
      <bpmn2:incoming>ld</bpmn2:incoming>
      <bpmn2:outgoing>bmjs</bpmn2:outgoing>
      <bpmn2:multiInstanceLoopCharacteristics flowable:collection="${deptInsideMultiInstanceHandler.getUserNames(execution)}" flowable:elementVariable="assignee">
        <bpmn2:completionCondition xsi:type="bpmn2:tFormalExpression">${nrOfCompletedInstances &gt;= nrOfInstances}</bpmn2:completionCondition>
      </bpmn2:multiInstanceLoopCharacteristics isSequential="false">
      <bpmn2:startEvent id="bmks" name="部门开始">
        <bpmn2:outgoing>Flow_1ely17h</bpmn2:outgoing>
      </bpmn2:startEvent>
      <bpmn2:userTask id="bmcly" name="部门处理员" flowable:dataType="SUBPROCESSFIRST" flowable:assignee="${assignee}" flowable:text="实际处理人">
        <bpmn2:incoming>Flow_1ely17h</bpmn2:incoming>
        <bpmn2:outgoing>Flow_00zbmka</bpmn2:outgoing>
      </bpmn2:userTask>
      <bpmn2:sequenceFlow id="Flow_1ely17h" sourceRef="bmks" targetRef="bmcly" />
      <bpmn2:userTask id="bmld" name="部门领导">
        <bpmn2:incoming>Flow_00zbmka</bpmn2:incoming>
        <bpmn2:outgoing>Flow_151ru34</bpmn2:outgoing>
      </bpmn2:userTask>
      <bpmn2:sequenceFlow id="Flow_00zbmka" name="提交" sourceRef="bmcly" targetRef="bmld" />
      <bpmn2:endEvent id="Event_1thya8l" name="部门结束">
        <bpmn2:incoming>Flow_151ru34</bpmn2:incoming>
      </bpmn2:endEvent>
      <bpmn2:sequenceFlow id="Flow_151ru34" name="提交" sourceRef="bmld" targetRef="Event_1thya8l" />
    </bpmn2:subProcess>

说明：

  • flowable:assignee="${assignee}"：子流程中除了【开始】节点后的第一个节点需要配置，表示实际处理人指定的变量名为assignee，跟flowable:elementVariable="assignee"搭配使用。【flowable:assignee】也可以修改为【flowable:candidateGroups】，表示候选组。
  • flowable:elementVariable="assignee"：assignee要跟flowable:assignee占位符里面的值一致。
  • isSequential="false"：true表示顺序执行，false表示并行执行。
  • ${nrOfCompletedInstances &gt;= nrOfInstances}：表示完成条件为全部实例完成。
  • flowable:collection="${deptInsideMultiInstanceHandler.getUserNames(execution)}"：表示处理人的集合，这里调用了java代码（deptInsideMultiInstanceHandler.getUserNames方法）返回具体的处理人。下面会贴上代码。在上面的配置基础上，再加上【执行监听器】，配置如下
2.代码实现

multiInstanceHandler.getUserNames代码：

@Component("deptInsideMultiInstanceHandler")
public class DeptInsideMultiInstanceHandler {

    public Set<String> getUserNames(DelegateExecution execution) {
        Set<String> candidateUserNames = new LinkedHashSet<>();
        // 设置三个实例，三个实例的实际处理人分别为"技术部处理员001", "产品部处理员001", "售前处理员001"
        candidateUserNames.addAll(Arrays.asList("技术部处理员001", "产品部处理员001", "售前处理员001"));
        //如果流程xml配置文件【flowable:assignee】修改为【flowable:candidateGroups】，则使用以下设置候选组
        // 设置三个实例，三个实例的候选组分别为"ROLE123456", "ROLE456789", "DEPT456123"
        //candidateUserNames.addAll(Arrays.asList("ROLE123456", "ROLE456789", "DEPT456123"));
        return candidateUserNames;
    }
}

以上代码设置了三个账号，表示三个实例的【部门处理员】节点处理人分别为这三个账号

3.流程文件

flowable.xml:

<?xml version="1.0" encoding="UTF-8"?>
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:flowable="http://flowable.org/bpmn" id="diagram_Process_1761616908502" targetNamespace="http://flowable.org/bpmn" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd">
  <bpmn2:process id="Process_1761616908502" name="分派流程" isExecutable="true">
    <bpmn2:startEvent id="ks" name="开始">
      <bpmn2:outgoing>Flow_0zttbj2</bpmn2:outgoing>
    </bpmn2:startEvent>
    <bpmn2:userTask id="zgld" name="主管领导" flowable:dataType="INITIATOR" flowable:assignee="${initiator}" flowable:text="流程发起人">
      <bpmn2:incoming>fq</bpmn2:incoming>
      <bpmn2:outgoing>ld</bpmn2:outgoing>
    </bpmn2:userTask>
    <bpmn2:endEvent id="js" name="结束">
      <bpmn2:incoming>bmjs</bpmn2:incoming>
    </bpmn2:endEvent>
    <bpmn2:sequenceFlow id="bmjs" name="提交" sourceRef="bmnblc" targetRef="js" />
    <bpmn2:sequenceFlow id="fq" name="发起" sourceRef="dj" targetRef="zgld" />
    <bpmn2:sequenceFlow id="ld" name="分派" sourceRef="zgld" targetRef="bmnblc" />
    <bpmn2:userTask id="dj" name="登记" flowable:dataType="INITIATOR" flowable:assignee="${initiator}" flowable:text="流程发起人">
      <bpmn2:incoming>Flow_0zttbj2</bpmn2:incoming>
      <bpmn2:outgoing>fq</bpmn2:outgoing>
    </bpmn2:userTask>
    <bpmn2:sequenceFlow id="Flow_0zttbj2" sourceRef="ks" targetRef="dj" />
    <bpmn2:subProcess id="bmnblc" name="部门内部流程">
      <bpmn2:extensionElements />
      <bpmn2:incoming>ld</bpmn2:incoming>
      <bpmn2:outgoing>bmjs</bpmn2:outgoing>
      <bpmn2:multiInstanceLoopCharacteristics flowable:collection="${deptInsideMultiInstanceHandler.getUserNames(execution)}" flowable:elementVariable="assignee">
        <bpmn2:completionCondition xsi:type="bpmn2:tFormalExpression">${nrOfCompletedInstances &gt;= nrOfInstances}</bpmn2:completionCondition>
      </bpmn2:multiInstanceLoopCharacteristics>
      <bpmn2:startEvent id="bmks" name="部门开始">
        <bpmn2:outgoing>Flow_1ely17h</bpmn2:outgoing>
      </bpmn2:startEvent>
      <bpmn2:userTask id="bmcly" name="部门处理员" flowable:dataType="SUBPROCESSFIRST" flowable:assignee="${assignee}" flowable:text="实际处理人">
        <bpmn2:incoming>Flow_1ely17h</bpmn2:incoming>
        <bpmn2:outgoing>Flow_00zbmka</bpmn2:outgoing>
      </bpmn2:userTask>
      <bpmn2:sequenceFlow id="Flow_1ely17h" sourceRef="bmks" targetRef="bmcly" />
      <bpmn2:userTask id="bmld" name="部门领导">
        <bpmn2:incoming>Flow_00zbmka</bpmn2:incoming>
        <bpmn2:outgoing>Flow_151ru34</bpmn2:outgoing>
      </bpmn2:userTask>
      <bpmn2:sequenceFlow id="Flow_00zbmka" name="提交" sourceRef="bmcly" targetRef="bmld" />
      <bpmn2:endEvent id="Event_1thya8l" name="部门结束">
        <bpmn2:incoming>Flow_151ru34</bpmn2:incoming>
      </bpmn2:endEvent>
      <bpmn2:sequenceFlow id="Flow_151ru34" name="提交" sourceRef="bmld" targetRef="Event_1thya8l" />
    </bpmn2:subProcess>
  </bpmn2:process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_1761616908502">
      <bpmndi:BPMNEdge id="Flow_0zttbj2_di" bpmnElement="Flow_0zttbj2">
        <di:waypoint x="-32" y="239" />
        <di:waypoint x="60" y="239" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="ld_di" bpmnElement="ld">
        <di:waypoint x="260" y="279" />
        <di:waypoint x="260" y="385" />
        <di:waypoint x="360" y="385" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="269" y="325" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="fq_di" bpmnElement="fq">
        <di:waypoint x="160" y="239" />
        <di:waypoint x="210" y="239" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="169" y="213" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="bmjs_di" bpmnElement="bmjs">
        <di:waypoint x="930" y="385" />
        <di:waypoint x="1000" y="385" />
        <di:waypoint x="1000" y="257" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="959" y="364" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNShape id="ks_di" bpmnElement="ks">
        <dc:Bounds x="-68" y="221" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="-60" y="264" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="zgld_di" bpmnElement="zgld">
        <dc:Bounds x="210" y="199" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="js_di" bpmnElement="js">
        <dc:Bounds x="982" y="221" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="989" y="197" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="dj_di" bpmnElement="dj">
        <dc:Bounds x="60" y="199" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="bmnblc_di" bpmnElement="bmnblc" isExpanded="true">
        <dc:Bounds x="360" y="310" width="570" height="150" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="Flow_151ru34_di" bpmnElement="Flow_151ru34">
        <di:waypoint x="760" y="390" />
        <di:waypoint x="822" y="390" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="780" y="372" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_00zbmka_di" bpmnElement="Flow_00zbmka">
        <di:waypoint x="600" y="390" />
        <di:waypoint x="660" y="390" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="619" y="372" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1ely17h_di" bpmnElement="Flow_1ely17h">
        <di:waypoint x="448" y="390" />
        <di:waypoint x="500" y="390" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNShape id="bmks_di" bpmnElement="bmks">
        <dc:Bounds x="411.66666666666674" y="372" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="408" y="415" width="44" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="bmcly_di" bpmnElement="bmcly">
        <dc:Bounds x="500" y="350" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="bmld_di" bpmnElement="bmld">
        <dc:Bounds x="660" y="350" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Event_1thya8l_di" bpmnElement="Event_1thya8l">
        <dc:Bounds x="822" y="372" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="818" y="415" width="44" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn2:definitions>

5、动态设置每个子流程实例的处理人

如果每个实例中第一个节点还有比较复杂的判断，可以在flowable:collection配置的接口中简单地返回每个实例特定的人员，然后在子流程第一个节点中配置【任务监听器】来设置每个实例的处理人员。

实际需求：

  1. 如果实际处理人是【技术部处理员001】，则设置当前实例的【部门处理员】节点的实际处理人为【技术部处理员002】
  2. 如果实际处理人是【产品部处理员001】，则设置当前实例的【部门处理员】节点的候选组为角色【ROLE123456】
  3. 如果实际处理人是【售前处理员001】，则设置当前实例的【部门处理员】节点的候选人为角色【售前处理员001】和【售前处理员002】
1.【部门处理员】节点配置

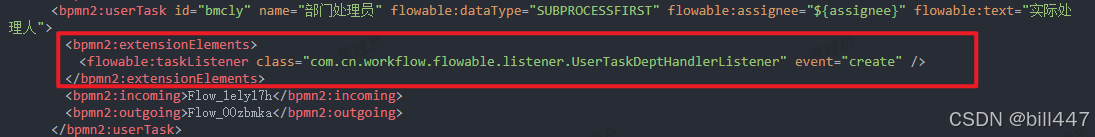

其他配置跟上面的一样，【部门处理员】节点只需要添加一个【任务监听器】即可。

2.代码实现

UserTaskDeptHandlerListener代码：

public class UserTaskDeptHandlerListener implements TaskListener {
    private static final long serialVersionUID = 1L;
    private TaskService taskService = SpringUtil.getBean(TaskService.class);
    @Override
    public void notify(DelegateTask delegateTask) {
        System.out.println("执行部门内部流程-部门处理员任务监听器...start");
        //获取任务ID
        String taskId = delegateTask.getId();
        //获取变量
        Map<String, Object> variables = delegateTask.getVariables();
        String assignee = delegateTask.getAssignee();//实际处理人
        Set<IdentityLink> candidates = delegateTask.getCandidates();//候选组/候选人
        //以下可以根据处理人判断，也可以根据候选组/候选人做判断
        if(assignee != null){
            switch (assignee){
                case "技术部处理员001":
                    //如果实际处理人是【技术部处理员001】，则设置当前实例的【部门处理员】节点的实际处理人为【技术部处理员002】
                    taskService.setAssignee(taskId, "技术部处理员002");//设置下一个节点的处理人
                    break;
                case "产品部处理员001":
                    //如果实际处理人是【产品部处理员001】，则设置当前实例的【部门处理员】节点的候选组为角色【ROLE123456】
                    taskService.addGroupIdentityLink(taskId, "ROLE123456", IdentityLinkType.CANDIDATE);//设置下一个节点的候选人为【ROLE123456】角色
                    break;
                case "售前处理员001":
                    //如果实际处理人是【售前处理员001】，则设置当前实例的【部门处理员】节点的候选人为角色【售前处理员001】和【售前处理员002】
                    taskService.deleteUserIdentityLink(taskId,"售前处理员001", IdentityLinkType.ASSIGNEE);//先删除当前节点的处理人
                    //设置下一个节点的候选人为【售前处理员001】和【售前处理员002】
                    taskService.addUserIdentityLink(taskId,"售前处理员001",IdentityLinkType.CANDIDATE);
                    taskService.addUserIdentityLink(taskId,"售前处理员002",IdentityLinkType.CANDIDATE);
                    break;
            }
        }
        System.out.println("执行部门内部流程-部门处理员任务监听器...end");
    }
}
3.流程文件

flowable.xml:

<?xml version="1.0" encoding="UTF-8"?>
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:flowable="http://flowable.org/bpmn" id="diagram_Process_1761616908502" targetNamespace="http://flowable.org/bpmn" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd">
  <bpmn2:process id="Process_1761616908502" name="分派流程" isExecutable="true">
    <bpmn2:startEvent id="ks" name="开始">
      <bpmn2:outgoing>Flow_0zttbj2</bpmn2:outgoing>
    </bpmn2:startEvent>
    <bpmn2:userTask id="zgld" name="主管领导" flowable:dataType="INITIATOR" flowable:assignee="${initiator}" flowable:text="流程发起人">
      <bpmn2:incoming>fq</bpmn2:incoming>
      <bpmn2:outgoing>ld</bpmn2:outgoing>
    </bpmn2:userTask>
    <bpmn2:endEvent id="js" name="结束">
      <bpmn2:incoming>bmjs</bpmn2:incoming>
    </bpmn2:endEvent>
    <bpmn2:sequenceFlow id="bmjs" name="提交" sourceRef="bmnblc" targetRef="js" />
    <bpmn2:sequenceFlow id="fq" name="发起" sourceRef="dj" targetRef="zgld" />
    <bpmn2:sequenceFlow id="ld" name="分派" sourceRef="zgld" targetRef="bmnblc" />
    <bpmn2:userTask id="dj" name="登记" flowable:dataType="INITIATOR" flowable:assignee="${initiator}" flowable:text="流程发起人">
      <bpmn2:incoming>Flow_0zttbj2</bpmn2:incoming>
      <bpmn2:outgoing>fq</bpmn2:outgoing>
    </bpmn2:userTask>
    <bpmn2:sequenceFlow id="Flow_0zttbj2" sourceRef="ks" targetRef="dj" />
    <bpmn2:subProcess id="bmnblc" name="部门内部流程">
      <bpmn2:extensionElements />
      <bpmn2:incoming>ld</bpmn2:incoming>
      <bpmn2:outgoing>bmjs</bpmn2:outgoing>
      <bpmn2:multiInstanceLoopCharacteristics flowable:collection="${deptInsideMultiInstanceHandler.getUserNames(execution)}" flowable:elementVariable="assignee">
        <bpmn2:completionCondition xsi:type="bpmn2:tFormalExpression">${nrOfCompletedInstances &gt;= nrOfInstances}</bpmn2:completionCondition>
      </bpmn2:multiInstanceLoopCharacteristics>
      <bpmn2:startEvent id="bmks" name="部门开始">
        <bpmn2:outgoing>Flow_1ely17h</bpmn2:outgoing>
      </bpmn2:startEvent>
      <bpmn2:userTask id="bmcly" name="部门处理员" flowable:dataType="SUBPROCESSFIRST" flowable:assignee="${assignee}" flowable:text="实际处理人">
        <bpmn2:extensionElements>
          <flowable:taskListener class="com.cn.workflow.flowable.listener.UserTaskDeptHandlerListener" event="create" />
        </bpmn2:extensionElements>
        <bpmn2:incoming>Flow_1ely17h</bpmn2:incoming>
        <bpmn2:outgoing>Flow_00zbmka</bpmn2:outgoing>
      </bpmn2:userTask>
      <bpmn2:sequenceFlow id="Flow_1ely17h" sourceRef="bmks" targetRef="bmcly" />
      <bpmn2:userTask id="bmld" name="部门领导">
        <bpmn2:incoming>Flow_00zbmka</bpmn2:incoming>
        <bpmn2:outgoing>Flow_151ru34</bpmn2:outgoing>
      </bpmn2:userTask>
      <bpmn2:sequenceFlow id="Flow_00zbmka" name="提交" sourceRef="bmcly" targetRef="bmld" />
      <bpmn2:endEvent id="Event_1thya8l" name="部门结束">
        <bpmn2:incoming>Flow_151ru34</bpmn2:incoming>
      </bpmn2:endEvent>
      <bpmn2:sequenceFlow id="Flow_151ru34" name="提交" sourceRef="bmld" targetRef="Event_1thya8l" />
    </bpmn2:subProcess>
  </bpmn2:process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_1761616908502">
      <bpmndi:BPMNEdge id="Flow_0zttbj2_di" bpmnElement="Flow_0zttbj2">
        <di:waypoint x="-32" y="239" />
        <di:waypoint x="60" y="239" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="ld_di" bpmnElement="ld">
        <di:waypoint x="260" y="279" />
        <di:waypoint x="260" y="385" />
        <di:waypoint x="360" y="385" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="269" y="325" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="fq_di" bpmnElement="fq">
        <di:waypoint x="160" y="239" />
        <di:waypoint x="210" y="239" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="169" y="213" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="bmjs_di" bpmnElement="bmjs">
        <di:waypoint x="930" y="385" />
        <di:waypoint x="1000" y="385" />
        <di:waypoint x="1000" y="257" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="959" y="364" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNShape id="ks_di" bpmnElement="ks">
        <dc:Bounds x="-68" y="221" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="-60" y="264" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="zgld_di" bpmnElement="zgld">
        <dc:Bounds x="210" y="199" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="js_di" bpmnElement="js">
        <dc:Bounds x="982" y="221" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="989" y="197" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="dj_di" bpmnElement="dj">
        <dc:Bounds x="60" y="199" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="bmnblc_di" bpmnElement="bmnblc" isExpanded="true">
        <dc:Bounds x="360" y="310" width="570" height="150" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="Flow_151ru34_di" bpmnElement="Flow_151ru34">
        <di:waypoint x="760" y="390" />
        <di:waypoint x="822" y="390" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="780" y="372" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_00zbmka_di" bpmnElement="Flow_00zbmka">
        <di:waypoint x="600" y="390" />
        <di:waypoint x="660" y="390" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="619" y="372" width="22" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1ely17h_di" bpmnElement="Flow_1ely17h">
        <di:waypoint x="448" y="390" />
        <di:waypoint x="500" y="390" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNShape id="bmks_di" bpmnElement="bmks">
        <dc:Bounds x="411.66666666666674" y="372" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="408" y="415" width="44" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="bmcly_di" bpmnElement="bmcly">
        <dc:Bounds x="500" y="350" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="bmld_di" bpmnElement="bmld">
        <dc:Bounds x="660" y="350" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Event_1thya8l_di" bpmnElement="Event_1thya8l">
        <dc:Bounds x="822" y="372" width="36" height="36" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="818" y="415" width="44" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn2:definitions>

# java
Logo
火山引擎 ADG 社区

火山引擎开发者社区是火山引擎打造的AI技术生态平台，聚焦Agent与大模型开发，提供豆包系列模型（图像/视频/视觉）、智能分析与会话工具，并配套评测集、动手实验室及行业案例库。社区通过技术沙龙、挑战赛等活动促进开发者成长，新用户可领50万Tokens权益，助力构建智能应用。

更多推荐

OpenClaw 本地部署完整指南（Windows + Ollama）

本文档基于实际部署经验编写，旨在帮助你在 Windows 系统上从零开始搭建 OpenClaw，并连接本地 Ollama 模型（如 Qwen2.5 或 Qwen3），使其具备完整的智能体能力。文档包含了所有关键步骤以及常见问题的解决方案。

avatar 火山引擎 ADG 社区

OpenClaw 小白安装指南（Windows版）

（类似一个能自动执行任务的AI机器人），不是游戏。API Key只保存在你本地电脑的加密文件里，不会上传到任何地方。访问：https://github.com/miaoxworld/openclaw-manager/releases。: 一键安装脚本会自动安装Node.js 22+，如果失败，手动下载安装：https://nodejs.org/：在PowerShell中，鼠标右键就是粘贴，不需要按

avatar 火山引擎 ADG 社区

飞书 × OpenClaw 接入指南：不用服务器，用长连接把机器人跑起来

这个项目存在的意义，就是把“飞书接 OpenClaw”这件事，整理成一套的配置入口，并把官方文档没覆盖到的坑集中写成排查清单。先说清楚它的角色：OpenClaw 现在已经内置官方飞书插件 @openclaw/feishu，功能更完整、维护也更及时。，说明飞书 + AI 的接入已经走通。另外，仓库也推荐了一个新项目：把 OpenClaw 变成“多 Agent 团队”，用多个 Agent 分工，Sla

avatar 火山引擎 ADG 社区
