cv::cuda::GpuMat 使用cuda库nvJPEG编码成jpg
博文解决问题：1，此篇博文旨在解决使用nvjpeg的库把GpuMat编码成jpg。
·
博文解决问题：
1，此篇博文旨在解决使用nvjpeg的库把GpuMat编码成jpg。我的项目是使用opencv硬解码出GpuMat之后把GpuMat转成jpg在转成base64进行数据传输
2，解决jpg图片解码成mat对象
运行环境：
1，cuda+cudnn+opencv（cuda）
环境搭建请参考刘老师的：
OpenCV4.7.0、FFmpeg5.1 Nvidia GPU视频硬解码_opengl硬解码-CSDN博客
1，参考链接：
1）官方cuda的api链接：
2）官方github编码解码的demo参考链接：
CUDALibrarySamples/nvJPEG/Image-Resize/imageResize.cpp at master · NVIDIA/CUDALibrarySamples · GitHub3）opencv的GpuMat对象的参考链接：
OpenCV: cv::cuda::GpuMat 类参考 - OpenCV 计算机视觉库
2，编码流程
在编码流程上cpu和gpu并无本质不同，他俩的区别在于gpu可以直接使用GpuMat的gpu内存不用像cpu一样使用cudaMalloc去申请内存和cudaMemcpy进行拷贝数据，至此一点不同。
1）GpuMat =>填充=>nvjpegImage_t

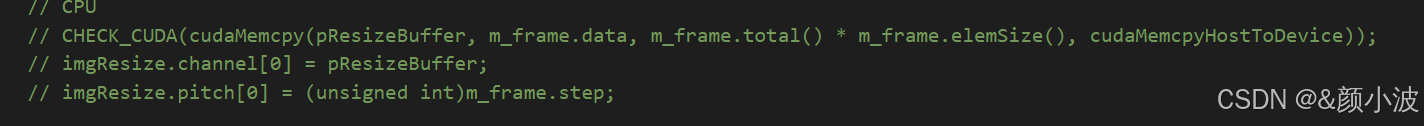

cpu：

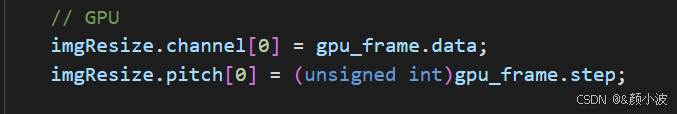

gpu：
这里有一个坑请注意：
编码的时候存在参数
nvjpegInputFormat_t 这个枚举定义如下
BGR和BGRI是有区别的类似yuv420和yuv420sp的区别
BGR的内存排布是BGR三个通道分开排序 如 3 h w这样
BGRI的内存排布是BGR三个通道在一起排序 如 h w 3这样（我要是讲的不懂请自行百度）
由于opencv是hw3这种内存排列我们用NVJPEG_INPUT_BGRI这个参数
在这里还有一个坑：
cpu和gpu的mat对象在内存排布存在差异，cpu的跨度是step等于3倍宽度，然而gpu是跨度存在padding操作目的是为了加速运算setp不等于3倍宽度。这里三倍是3个通道rgb。

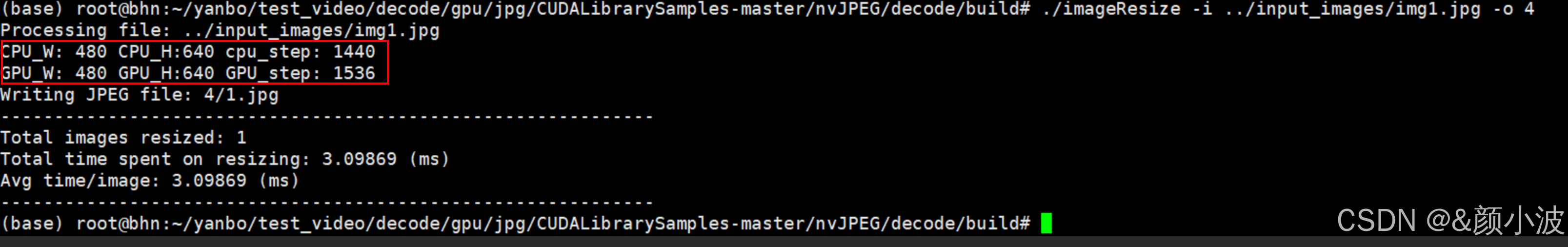

从打印可以看出cpu跨度等于3倍的宽度 ，而gpu是大于的。我们在填充nvjpegImage_t需要注意。
2）=>设置参数

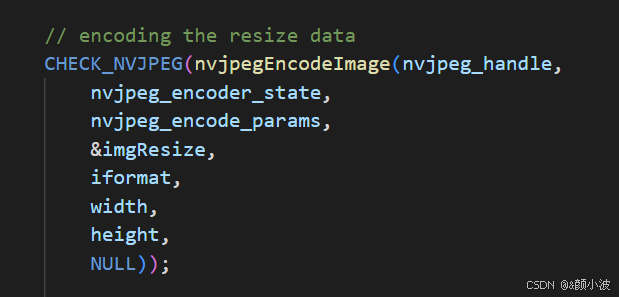

3）=>编码jpg=>nvjpegEncodeImage
4）=>获取编码结果=>nvjpegEncodeRetrieveBitstream
不理解没关系代码说话，实际跑跑就可以
#include <opencv2/opencv.hpp>
#include <iostream>
#include <fstream>
#include <sstream>
#include <string>
#include <vector>
#include <algorithm>
#include <string.h> // strcmpi
#include <dirent.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <cuda_runtime_api.h>
#include <nvjpeg.h>
#define CHECK_CUDA(call) \
{ \
cudaError_t _e = (call); \
if (_e != cudaSuccess) \
{ \
std::cout << "CUDA Runtime failure: '#" << _e << "' at " << __FILE__ << ":" << __LINE__ << std::endl;\
exit(1); \
} \
}
#define CHECK_NVJPEG(call) \
{ \
nvjpegStatus_t _e = (call); \
if (_e != NVJPEG_STATUS_SUCCESS) \
{ \
std::cout << "NVJPEG failure: '#" << _e << "' at " << __FILE__ << ":" << __LINE__ << std::endl;\
exit(1); \
} \
}
// *****************************************************************************
// reading input directory to file list
// -----------------------------------------------------------------------------
int readInput(const std::string &sInputPath, std::vector<std::string> &filelist)
{
int error_code = 1;
struct stat s;
if( stat(sInputPath.c_str(), &s) == 0 )
{
if( s.st_mode & S_IFREG )
{
filelist.push_back(sInputPath);
}
else if( s.st_mode & S_IFDIR )
{
// processing each file in directory
DIR *dir_handle;
struct dirent *dir;
dir_handle = opendir(sInputPath.c_str());
std::vector<std::string> filenames;
if (dir_handle)
{
error_code = 0;
while ((dir = readdir(dir_handle)) != NULL)
{
if (dir->d_type == DT_REG)
{
std::string sFileName = sInputPath + dir->d_name;
filelist.push_back(sFileName);
}
else if (dir->d_type == DT_DIR)
{
std::string sname = dir->d_name;
if (sname != "." && sname != "..")
{
readInput(sInputPath + sname + "/", filelist);
}
}
}
closedir(dir_handle);
}
else
{
std::cout << "Cannot open input directory: " << sInputPath << std::endl;
return error_code;
}
}
else
{
std::cout << "Cannot open input: " << sInputPath << std::endl;
return error_code;
}
}
else
{
std::cout << "Cannot find input path " << sInputPath << std::endl;
return error_code;
}
return 0;
}
using namespace cv;
using namespace std;
nvjpegHandle_t nvjpeg_handle;
nvjpegJpegStream_t nvjpeg_jpeg_stream;
nvjpegJpegState_t nvjpeg_decoder_state;
nvjpegEncoderParams_t nvjpeg_encode_params;
nvjpegEncoderState_t nvjpeg_encoder_state;
int decodeResizeEncodeOneImage(std::string sImagePath, std::string sOutputPath, double &time, int resize_quality)
{
nvjpegInputFormat_t iformat = NVJPEG_INPUT_BGRI;
// timing for resize
time = 0.;
float resize_time = 0.;
cudaEvent_t start, stop;
CHECK_CUDA(cudaEventCreate(&start));
CHECK_CUDA(cudaEventCreate(&stop));
cv::Mat m_frame = imread(sImagePath);
cv::cuda::GpuMat gpu_frame;
gpu_frame.upload(m_frame);
//uchar* gpu_data = gpu_frame.ptr<uchar>();
int width = m_frame.cols; // 宽度
int height = m_frame.rows; // 高度
int width_gpu = gpu_frame.cols; // 宽度
int height_gpu = gpu_frame.rows; // 高度
cout << "CPU_W: " << width << " CPU_H:" << height << " cpu_step: " << m_frame.step << endl;
cout << "GPU_W: " << width_gpu << " GPU_H:" << height_gpu << " GPU_step: " << gpu_frame.step << endl;
nvjpegImage_t imgResize;
//cpu需要申请内存 GPU不需要
unsigned char * pResizeBuffer = NULL;
cudaError_t eCopy1 = cudaMalloc(&pResizeBuffer, gpu_frame.step * height);
// CPU
// CHECK_CUDA(cudaMemcpy(pResizeBuffer, m_frame.data, m_frame.total() * m_frame.elemSize(), cudaMemcpyHostToDevice));
// imgResize.channel[0] = pResizeBuffer;
// imgResize.pitch[0] = (unsigned int)m_frame.step;
// GPU
imgResize.channel[0] = gpu_frame.data;
imgResize.pitch[0] = (unsigned int)gpu_frame.step;
// nvJPEG encoder parameter setting
CHECK_NVJPEG(nvjpegEncoderParamsSetQuality(nvjpeg_encode_params, resize_quality, NULL));
// CHECK_NVJPEG(nvjpegEncoderParamsSetOptimizedHuffman(nvjpeg_encode_params, 1, NULL));
CHECK_NVJPEG(nvjpegEncoderParamsSetSamplingFactors(nvjpeg_encode_params, NVJPEG_CSS_444, NULL));
// Timing start
CHECK_CUDA(cudaEventRecord(start, 0));
// encoding the resize data
CHECK_NVJPEG(nvjpegEncodeImage(nvjpeg_handle,
nvjpeg_encoder_state,
nvjpeg_encode_params,
&imgResize,
iformat,
width,
height,
NULL));
// retrive the encoded bitstream for file writing
std::vector<unsigned char> obuffer;
size_t length;
CHECK_NVJPEG(nvjpegEncodeRetrieveBitstream(
nvjpeg_handle,
nvjpeg_encoder_state,
NULL,
&length,
NULL));
obuffer.resize(length);
CHECK_NVJPEG(nvjpegEncodeRetrieveBitstream(
nvjpeg_handle,
nvjpeg_encoder_state,
obuffer.data(),
&length,
NULL));
// Timing stop
CHECK_CUDA(cudaEventRecord(stop, 0));
CHECK_CUDA(cudaEventSynchronize(stop));
// file writing
// std::cout << "Resize-width: " << dstSize.width << " Resize-height: " << dstSize.height << std::endl;
std::string output_filename = sOutputPath + "/" + "1" + ".jpg";
char directory[120];
char mkdir_cmd[256];
std::string folder = sOutputPath;
output_filename = folder + "/"+ "1" +".jpg";
#if !defined(_WIN32)
sprintf(directory, "%s", folder.c_str());
sprintf(mkdir_cmd, "mkdir -p %s 2> /dev/null", directory);
#else
sprintf(directory, "%s", folder.c_str());
sprintf(mkdir_cmd, "mkdir %s 2> nul", directory);
#endif
int ret = system(mkdir_cmd);
std::cout << "Writing JPEG file: " << output_filename << std::endl;
std::ofstream outputFile(output_filename.c_str(), std::ios::out | std::ios::binary);
outputFile.write(reinterpret_cast<const char *>(obuffer.data()), static_cast<int>(length));
// Free memory
// CHECK_CUDA(cudaFree(pBuffer));
CHECK_CUDA(cudaFree(pResizeBuffer));
// get timing
CHECK_CUDA(cudaEventElapsedTime(&resize_time, start, stop));
time = (double)resize_time;
return EXIT_SUCCESS;
}
// *****************************************************************************
// main image resize function
// -----------------------------------------------------------------------------
int main(int argc, const char *argv[])
{
CHECK_NVJPEG(nvjpegCreateSimple(&nvjpeg_handle));
CHECK_NVJPEG(nvjpegJpegStateCreate(nvjpeg_handle, &nvjpeg_decoder_state));
// create bitstream object
CHECK_NVJPEG(nvjpegJpegStreamCreate(nvjpeg_handle, &nvjpeg_jpeg_stream));
CHECK_NVJPEG(nvjpegEncoderStateCreate(nvjpeg_handle, &nvjpeg_encoder_state, NULL));
CHECK_NVJPEG(nvjpegEncoderParamsCreate(nvjpeg_handle, &nvjpeg_encode_params, NULL));
std::string sInputPath("../input_images/img1.jpg");
std::string sOutputPath("4");
int resize_quality = 85;
int error_code = 1;
double total_time = 0., decode_time = 0.;
int total_images = 0;
std::vector<std::string> inputFiles;
if (readInput(sInputPath, inputFiles))
{
return error_code;
}
for (unsigned int i = 0; i < inputFiles.size(); i++)
{
std::string &sFileName = inputFiles[i];
std::cout << "Processing file: " << sFileName << std::endl;
int image_error_code = decodeResizeEncodeOneImage(sFileName, sOutputPath, decode_time, resize_quality);
if (image_error_code)
{
std::cerr << "Error processing file: " << sFileName << std::endl;
return image_error_code;
}
else
{
total_images++;
total_time += decode_time;
}
}
std::cout << "------------------------------------------------------------- " << std::endl;
std::cout << "Total images resized: " << total_images << std::endl;
std::cout << "Total time spent on resizing: " << total_time << " (ms)" << std::endl;
std::cout << "Avg time/image: " << total_time/total_images << " (ms)" << std::endl;
std::cout << "------------------------------------------------------------- " << std::endl;
CHECK_NVJPEG(nvjpegEncoderParamsDestroy(nvjpeg_encode_params));
CHECK_NVJPEG(nvjpegEncoderStateDestroy(nvjpeg_encoder_state));
CHECK_NVJPEG(nvjpegJpegStateDestroy(nvjpeg_decoder_state));
CHECK_NVJPEG(nvjpegDestroy(nvjpeg_handle));
return 0;
}CMakeLists.txt
#
# Copyright (c) 2019, NVIDIA CORPORATION. All rights reserved.
#
# NVIDIA CORPORATION and its licensors retain all intellectual property
# and proprietary rights in and to this software, related documentation
# and any modifications thereto. Any use, reproduction, disclosure or
# distribution of this software and related documentation without an express
# license agreement from NVIDIA CORPORATION is strictly prohibited.
#
# ---[ Check cmake version.
CMAKE_MINIMUM_REQUIRED(VERSION 3.10.0 FATAL_ERROR)
add_definitions(-g)
INCLUDE(GNUInstallDirs)
# ---[ Project specIFication.
SET(PROJECT_NAME imageResize)
PROJECT(${PROJECT_NAME} LANGUAGES CUDA CXX)
find_package(OpenCV REQUIRED)
include_directories(${OpenCV_INCLUDE_DIRS})
if(NOT DEFINED CMAKE_CUDA_STANDARD)
set(CMAKE_CUDA_STANDARD 11)
set(CMAKE_CUDA_STANDARD_REQUIRED ON)
endif()
include_directories(${CMAKE_CUDA_TOOLKIT_INCLUDE_DIRECTORIES})
link_directories(${CMAKE_CUDA_INCLUDE_DIRS})
if (UNIX)
find_library(CUDART_LIBRARY cudart ${CMAKE_CUDA_IMPLICIT_LINK_DIRECTORIES})
find_library(NVJPEG_LIBRARY nvjpeg ${CMAKE_CUDA_IMPLICIT_LINK_DIRECTORIES})
find_library(NPPIG_LIBRARY nppig ${CMAKE_CUDA_IMPLICIT_LINK_DIRECTORIES})
find_library(NPPC_LIBRARY nppc ${CMAKE_CUDA_IMPLICIT_LINK_DIRECTORIES})
find_library(CULIBOS culibos ${CMAKE_CUDA_IMPLICIT_LINK_DIRECTORIES})
endif (UNIX)
if (MSVC OR WIN32 OR MSYS)
MESSAGE( STATUS "CMAKE_CUDA_COMPILER: " ${CMAKE_CUDA_COMPILER} )
set(CUDA_LIBRARY_PATH "C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v10.1/lib/x64")
set(CUDART_LIBRARY ${CUDA_LIBRARY_PATH}/cudart.lib)
set(NVJPEG_LIBRARY ${CUDA_LIBRARY_PATH}/nvjpeg.lib)
set(NPPIG_LIBRARY ${CUDA_LIBRARY_PATH}/nppig.lib)
set(NPPC_LIBRARY ${CUDA_LIBRARY_PATH}/nppc.lib)
endif()
# ---[ Use the default installation path if not set.
IF(CMAKE_INSTALL_PREFIX_INITIALIZED_TO_DEFAULT)
SET(CMAKE_INSTALL_PREFIX ${CMAKE_BINARY_DIR} CACHE PATH "" FORCE)
ENDIF(CMAKE_INSTALL_PREFIX_INITIALIZED_TO_DEFAULT)
# ---[ Build type
IF(NOT CMAKE_BUILD_TYPE)
SET(CMAKE_BUILD_TYPE Develop)
ENDIF(NOT CMAKE_BUILD_TYPE)
SET(EXAMPLES_DESCRIPTOR_SOURCES "imageResize.cpp")
ADD_EXECUTABLE(${PROJECT_NAME} ${EXAMPLES_DESCRIPTOR_SOURCES})
SET_SOURCE_FILES_PROPERTIES(${EXAMPLES_DESCRIPTOR_SOURCES} PROPERTIES LANGUAGE CUDA)
TARGET_COMPILE_FEATURES(${PROJECT_NAME} PUBLIC cxx_std_11)
SET_TARGET_PROPERTIES(${PROJECT_NAME} PROPERTIES POSITION_INDEPENDENT_CODE ON)
SET_TARGET_PROPERTIES(${PROJECT_NAME} PROPERTIES CUDA_SEPERABLE_COMPILATION ON)
TARGET_INCLUDE_DIRECTORIES(${PROJECT_NAME} PRIVATE ${CMAKE_CUDA_TOOLKIT_INCLUDE_DIRECTORIES})
if (UNIX)
TARGET_LINK_LIBRARIES(${PROJECT_NAME} PUBLIC ${CUDART_LIBRARY} ${NVJPEG_LIBRARY} ${NPPIG_LIBRARY} ${NPPC_LIBRARY} ${CULIBOS} ${OpenCV_LIBS})
endif (UNIX)
if(MSVC OR WIN32 OR MSYS)
TARGET_LINK_LIBRARIES(${PROJECT_NAME} PUBLIC ${CUDART_LIBRARY} ${NVJPEG_LIBRARY} ${NPPIG_LIBRARY} ${NPPC_LIBRARY})
endif(MSVC OR WIN32 OR MSYS)
if(APPLE)
# We need to add the path to the driver (libcuda.dylib) as an rpath,
# so that the static cuda runtime can find it at runtime.
set_property(TARGET ${PROJECT_NAME}
PROPERTY
BUILD_RPATH ${CMAKE_CUDA_IMPLICIT_LINK_DIRECTORIES})
endif(APPLE)
INSTALL(TARGETS ${PROJECT_NAME} DESTINATION bin)
3，解码流程
解码和编码流程大体相近 只是反过来而已这里不在赘述请直接参考代码
#include <iostream>
#include <fstream>
#include "opencv2/opencv.hpp"
#include <cuda_runtime_api.h>
#include <nvjpeg.h>
#define CHECK_CUDA(call) \
{ \
cudaError_t _e = (call); \
if (_e != cudaSuccess) \
{ \
std::cout << "CUDA Runtime failure: '#" << _e << "' at " << __FILE__ << ":" << __LINE__ << std::endl;\
exit(1); \
} \
}
#define CHECK_NVJPEG(call) \
{ \
nvjpegStatus_t _e = (call); \
if (_e != NVJPEG_STATUS_SUCCESS) \
{ \
std::cout << "NVJPEG failure: '#" << _e << "' at " << __FILE__ << ":" << __LINE__ << std::endl;\
exit(1); \
} \
}
int main()
{
printf("he!");
// step1 ceate nvJpeg handle
/*
struct nvjpegHandle;
typedef struct nvjpegHandle* nvjpegHandle_t;
两者通用 ，上述宏定义是官方文档
*/
nvjpegHandle* nvjpegHandle = nullptr;
CHECK_NVJPEG(nvjpegCreateSimple(&nvjpegHandle));
// step2 Create JPEG state with the helper function
nvjpegJpegState* nvjpegJpegState = nullptr;
CHECK_NVJPEG(nvjpegJpegStateCreate(nvjpegHandle, &nvjpegJpegState));
std::string strFileName = "/root/yanbo/test_video/decode/gpu/jpg/CUDALibrarySamples-master/nvJPEG/decode/1.jpg";
// Read an image from disk.
std::ifstream input(strFileName.c_str(),
std::ios::in | std::ios::binary | std::ios::ate);
if (!(input.is_open())) {
std::cerr << "Cannot open image: " << strFileName
<< ", removing it from image list" << std::endl;
}
// Get the size
std::streamsize file_size = input.tellg();
input.seekg(0, std::ios::beg);
char* pchData = (char*)malloc(file_size);
if (1)
{
if (!input.read(pchData, file_size)) {
std::cerr << "Cannot read from file: " << strFileName
<< ", removing it from image list" << std::endl;
}
}
int channels[NVJPEG_MAX_COMPONENT] = { 0 };
int height[NVJPEG_MAX_COMPONENT] = { 0 };
int width[NVJPEG_MAX_COMPONENT] = { 0 };
nvjpegChromaSubsampling_t subsampling;
CHECK_NVJPEG(nvjpegGetImageInfo(nvjpegHandle, (const unsigned char*)pchData, file_size, channels, &subsampling, width, height));
cudaStream_t stream;
printf("hello");
CHECK_CUDA(cudaStreamCreate(&stream));
nvjpegImage_t dstImage;
memset(&dstImage, 0, sizeof(nvjpegImage_t));
// realloc output buffer if required
int mul = 3;
for (int c = 0; c < 1; c++) {
int aw = mul * width[0];
int ah = height[0];
int sz = aw * ah;
dstImage.pitch[c] = aw;
//if (sz > dstImage.pitch[c]) {
/* if (dstImage.channel[c]) {
CHECK_CUDA(cudaFree(dstImage.channel[c]));
}*/
CHECK_CUDA(cudaMalloc((void**)&dstImage.channel[c], sz));
//dstImage.pitch[c] = sz;
//}
}
if (1)
{
auto t_start = std::chrono::high_resolution_clock::now();
nvjpegOutputFormat_t outFormat = nvjpegOutputFormat_t::NVJPEG_OUTPUT_BGRI;
nvjpegDecode(nvjpegHandle, nvjpegJpegState, (const unsigned char*)pchData, file_size,
outFormat, &dstImage, stream);
/*CHECK_NVJPEG(nvjpegDecode(nvjpegHandle, nvjpegJpegState, (const unsigned char*)pchData, file_size,
outFormat, &dstImage, stream));*/
auto t_end = std::chrono::high_resolution_clock::now();
auto ms = std::chrono::duration<float, std::milli>(t_end - t_start).count();
std::cout << "[ " << " " << " ] " << ms << " ms." << std::endl;
}
//CHECK_CUDA(cudaStreamSynchronize(stream));
int sz = height[0] * width[0] * sizeof(unsigned char);
unsigned char* pvB = (unsigned char*)malloc(sz *3);
/*unsigned char* pvG = (unsigned char*)malloc(sz);
unsigned char* pvR = (unsigned char*)malloc(sz);*/
CHECK_CUDA(cudaMemcpy(pvB, dstImage.channel[0], sz*3, cudaMemcpyDeviceToHost));
//CHECK_CUDA(cudaMemcpy(pvG, dstImage.channel[1], sz, cudaMemcpyDeviceToHost));
//CHECK_CUDA(cudaMemcpy(pvR, dstImage.channel[2], sz, cudaMemcpyDeviceToHost));
cv::Mat B = cv::Mat(cv::Size(width[0], height[0]), CV_8UC3, pvB);
//cv::Mat G = cv::Mat(cv::Size(width, height), CV_8UC1, pvG);
//cv::Mat R = cv::Mat(cv::Size(width, height), CV_8UC1, pvR);
cv::imwrite("./rgb_2_debug.bmp", B);
//cv::imwrite("H:/temp/g.bmp", G);
//cv::imwrite("H:/temp/b.bmp", B);
if (pvB)
{
free(pvB);
pvB = nullptr;
}
printf("hello world！");
return 0;
}
CMakeLists.txt
cmake_minimum_required(VERSION 3.10)
project(nvjpeg_example)
find_package(OpenCV REQUIRED)
find_package(CUDA REQUIRED)
include_directories(${OpenCV_INCLUDE_DIRS} ${CUDA_INCLUDE_DIRS})
link_directories(${CUDA_LIBRARY_DIRS})
add_executable(nvjpeg_example main.cpp)
target_link_libraries(nvjpeg_example ${OpenCV_LIBS} nvjpeg cudart)
代码我是调过的问题不大
4，视频编码jpg
上述操作仅限图片编码jpg和解码jpg的时候若是视频需要略作修改
这里存在一个坑是：
cv::cuda::GpuMat gpu_frame;
reader->nextFrame(gpu_frame);这里视频解码器解码出来的gpu mat对象是channel 4我们上诉的代码是channel 3需要修改增加：
cv::cuda::cvtColor(gpu_frame, gpu_frame, cv::COLOR_BGRA2BGR);完整代码如下：
主函数：
#include "encodejpg.h"
#include <opencv2/opencv.hpp>
#include <opencv2/cudacodec.hpp>
#include <opencv2/cudaimgproc.hpp>
using namespace cv;
using namespace std;
int main(int argc, const char *argv[])
{
encodejpg encoder;
std::vector<unsigned char> obuffer;
// std::string sInputPath("../2.jpg");
// std::string sOutputPath("4");
int resize_quality = 95;
// cv::Mat m_frame = imread(sInputPath);
// std::vector<uchar> vec = (m_frame.isContinuous() ? m_frame : m_frame.clone()).reshape(1, 1); // data copy here
// cout << "mat: " << vec.size() << endl;
// std::vector<uchar> encodedImg;
// // 设置 JPEG 编码参数（质量为95）
// std::vector<int> params = {cv::IMWRITE_JPEG_QUALITY, 95};
// // 将图像编码为 JPG 格式
// bool success = cv::imencode(".jpg", m_frame, encodedImg, params);
// if (!success) {
// std::cerr << "图像编码失败！" << std::endl;
// return -1;
// }
// cout << "cpu: " << encodedImg.size() << endl;
const std::string filename = "/root/yanbo/test_video/decode/gpu/11932615_3840_2160_30fps.mp4";
cv::Ptr<cv::cudacodec::VideoReader> reader = cv::cudacodec::createVideoReader(filename);
cv::cuda::GpuMat gpu_frame;
reader->nextFrame(gpu_frame);
cv::Mat cpu_frame;
gpu_frame.download(cpu_frame);
std::cout<< cpu_frame.channels() << std::endl;
std::cout<< "cpu elemSize: " << cpu_frame.elemSize() << std::endl;
// std::cout<< "elemSize1: " << gpu_frame.elemSize1() << std::endl;
std::cout<< "cpu step: " << cpu_frame.step << std::endl;
std::cout<< gpu_frame.channels() << std::endl;
std::cout<< gpu_frame.depth() << std::endl;
std::cout<< "elemSize: " << gpu_frame.elemSize() << std::endl;
std::cout<< "elemSize1: " << gpu_frame.elemSize1() << std::endl;
std::cout<< "step1: " << gpu_frame.step1() << std::endl;
std::cout<< "step: " << gpu_frame.step << std::endl;
std::cout<< "size: " << gpu_frame.size() << std::endl;
cv::cuda::cvtColor(gpu_frame, gpu_frame, cv::COLOR_BGRA2BGR);
// gpu_frame.upload(m_frame);
auto start = std::chrono::high_resolution_clock::now();
encoder.EncodeOneImageFromGpu(gpu_frame, resize_quality, obuffer);
// cv:: Mat frame;
// gpu_frame.download(frame);
// encoder.EncodeOneImageFromCpu(frame, resize_quality, obuffer);
auto end = std::chrono::high_resolution_clock::now(); // 记录结束时间
auto elapsed = std::chrono::duration_cast<std::chrono::milliseconds>(end - start); // 计算毫秒
std::cout << "Elapsed time: " << elapsed.count() << " ms" << std::endl;
cout << "gpu: " << obuffer.size() << endl;
std::ofstream outputFile("1.jpg", std::ios::out | std::ios::binary);
outputFile.write(reinterpret_cast<const char *>(obuffer.data()), static_cast<int>(obuffer.size()));
cv::Mat decodedImg = cv::imdecode(obuffer, cv::IMREAD_COLOR);
if (decodedImg.empty()) {
std::cerr << "图像解码失败！" << std::endl;
return -1;
}
imwrite("2.jpg", decodedImg);
return 0;
}封装的接口类：
#include "encodejpg.h"
encodejpg::encodejpg()
{
CHECK_NVJPEG(nvjpegCreateSimple(&m_nvjpeg_handle));
CHECK_NVJPEG(nvjpegJpegStateCreate(m_nvjpeg_handle, &m_nvjpeg_decoder_state));
// create bitstream object
CHECK_NVJPEG(nvjpegJpegStreamCreate(m_nvjpeg_handle, &m_nvjpeg_jpeg_stream));
CHECK_NVJPEG(nvjpegEncoderStateCreate(m_nvjpeg_handle, &m_nvjpeg_encoder_state, NULL));
CHECK_NVJPEG(nvjpegEncoderParamsCreate(m_nvjpeg_handle, &m_nvjpeg_encode_params, NULL));
}
encodejpg::~encodejpg()
{
CHECK_NVJPEG(nvjpegEncoderParamsDestroy(m_nvjpeg_encode_params));
CHECK_NVJPEG(nvjpegEncoderStateDestroy(m_nvjpeg_encoder_state));
CHECK_NVJPEG(nvjpegJpegStateDestroy(m_nvjpeg_decoder_state));
CHECK_NVJPEG(nvjpegDestroy(m_nvjpeg_handle));
}
bool encodejpg::EncodeOneImageFromCpu(cv::Mat &cpu_frame, int encode_quality, std::vector<unsigned char> &obuffer)
{
// cv::cuda::GpuMat gpu_frame;
// gpu_frame.upload(cpu_frame);
int width = cpu_frame.cols; // 宽度
int height = cpu_frame.rows; // 高度
nvjpegImage_t imgEncode;
//cpu需要申请内存 GPU不需要
unsigned char * pResizeBuffer = NULL;
cudaError_t eCopy1 = cudaMalloc((void**)&pResizeBuffer, cpu_frame.step * height);
// CPU
CHECK_CUDA(cudaMemcpy(pResizeBuffer, cpu_frame.data, cpu_frame.total() * cpu_frame.elemSize(), cudaMemcpyHostToDevice));
imgEncode.channel[0] = pResizeBuffer;
imgEncode.pitch[0] = (unsigned int)cpu_frame.step;
// nvJPEG encoder parameter setting
CHECK_NVJPEG(nvjpegEncoderParamsSetQuality(m_nvjpeg_encode_params, encode_quality, NULL));
// CHECK_NVJPEG(nvjpegEncoderParamsSetOptimizedHuffman(nvjpeg_encode_params, 1, NULL));
CHECK_NVJPEG(nvjpegEncoderParamsSetSamplingFactors(m_nvjpeg_encode_params, NVJPEG_CSS_444, NULL));
// encoding the resize data
CHECK_NVJPEG(nvjpegEncodeImage(m_nvjpeg_handle,
m_nvjpeg_encoder_state,
m_nvjpeg_encode_params,
&imgEncode,
m_iformat,
width,
height,
NULL));
size_t length;
CHECK_NVJPEG(nvjpegEncodeRetrieveBitstream(
m_nvjpeg_handle,
m_nvjpeg_encoder_state,
NULL,
&length,
NULL));
obuffer.resize(length);
// std::cout << length << std::endl;
// std::cout << obuffer.size() << std::endl;
CHECK_NVJPEG(nvjpegEncodeRetrieveBitstream(
m_nvjpeg_handle,
m_nvjpeg_encoder_state,
obuffer.data(),
&length,
NULL));
// Free memory
CHECK_CUDA(cudaFree(pResizeBuffer));
return true;
}
bool encodejpg::EncodeOneImageFromGpu(cv::cuda::GpuMat &gpu_frame, int encode_quality, std::vector<unsigned char> &obuffer)
{
int width_gpu = gpu_frame.cols; // 宽度
int height_gpu = gpu_frame.rows; // 高度
std::cout << "GPU_W: " << width_gpu << " GPU_H:" << height_gpu << " GPU_step: " << gpu_frame.step << std::endl;
// std::cout<< gpu_frame.channels() << std::endl;
// std::cout<< gpu_frame.depth() << std::endl;
// std::cout<< "elemSize: " << gpu_frame.elemSize() << std::endl;
// std::cout<< "elemSize1: " << gpu_frame.elemSize1() << std::endl;
nvjpegImage_t imgEncode;
// GPU
imgEncode.channel[0] = gpu_frame.data;
// imgEncode.pitch[0] = (unsigned int)gpu_frame.step;
imgEncode.pitch[0] = (unsigned int)gpu_frame.step;
// nvJPEG encoder parameter setting
CHECK_NVJPEG(nvjpegEncoderParamsSetQuality(m_nvjpeg_encode_params, encode_quality, NULL));
// CHECK_NVJPEG(nvjpegEncoderParamsSetOptimizedHuffman(nvjpeg_encode_params, 1, NULL));
CHECK_NVJPEG(nvjpegEncoderParamsSetSamplingFactors(m_nvjpeg_encode_params, NVJPEG_CSS_444, NULL));
// encoding the resize data
CHECK_NVJPEG(nvjpegEncodeImage(m_nvjpeg_handle,
m_nvjpeg_encoder_state,
m_nvjpeg_encode_params,
&imgEncode,
m_iformat,
width_gpu,
height_gpu,
NULL));
// retrive the encoded bitstream for file writing
size_t length;
CHECK_NVJPEG(nvjpegEncodeRetrieveBitstream(
m_nvjpeg_handle,
m_nvjpeg_encoder_state,
NULL,
&length,
NULL));
obuffer.resize(length);
// std::cout << length << std::endl;
// std::cout << obuffer.size() << std::endl;
CHECK_NVJPEG(nvjpegEncodeRetrieveBitstream(
m_nvjpeg_handle,
m_nvjpeg_encoder_state,
obuffer.data(),
&length,
NULL));
return true;
}#pragma once
#include <opencv2/opencv.hpp>
#include <iostream>
#include <fstream>
#include <sstream>
#include <string>
#include <vector>
#include <algorithm>
#include <string.h> // strcmpi
#include <dirent.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <cuda_runtime_api.h>
#include <nvjpeg.h>
#define CHECK_CUDA(call) \
{ \
cudaError_t _e = (call); \
if (_e != cudaSuccess) \
{ \
std::cout << "CUDA Runtime failure: '#" << _e << "' at " << __FILE__ << ":" << __LINE__ << std::endl;\
exit(1); \
} \
}
#define CHECK_NVJPEG(call) \
{ \
nvjpegStatus_t _e = (call); \
if (_e != NVJPEG_STATUS_SUCCESS) \
{ \
std::cout << "NVJPEG failure: '#" << _e << "' at " << __FILE__ << ":" << __LINE__ << std::endl;\
exit(1); \
} \
}
class encodejpg
{
public:
encodejpg();
~encodejpg();
bool EncodeOneImageFromCpu(cv::Mat &cpu_frame, int encode_quality, std::vector<unsigned char> &obuffer);
bool EncodeOneImageFromGpu(cv::cuda::GpuMat &gpu_frame, int encode_quality, std::vector<unsigned char> &obuffer);
private:
nvjpegHandle_t m_nvjpeg_handle;
nvjpegJpegStream_t m_nvjpeg_jpeg_stream;
nvjpegJpegState_t m_nvjpeg_decoder_state;
nvjpegEncoderParams_t m_nvjpeg_encode_params;
nvjpegEncoderState_t m_nvjpeg_encoder_state;
nvjpegInputFormat_t m_iformat = NVJPEG_INPUT_BGRI;
};
感谢：
在这里特别感谢这个博文的博主看了他的博文少走不少弯路：
火山引擎开发者社区是火山引擎打造的AI技术生态平台，聚焦Agent与大模型开发，提供豆包系列模型（图像/视频/视觉）、智能分析与会话工具，并配套评测集、动手实验室及行业案例库。社区通过技术沙龙、挑战赛等活动促进开发者成长，新用户可领50万Tokens权益，助力构建智能应用。
更多推荐
18
0- 0
已为社区贡献1条内容
所有评论(0)
