1. 简介

项目	内容
模型	DenseNet-121（growth_rate=32, block_config=(6,12,24,16)）
任务	三分类图像分类（Normal / Mild / Severe）
数据集	1661 张图像，80/20 划分
最优性能	测试准确率 94.3%，测试损失 0.162

2. 环境

• 语言环境：Python 3.14.6
• 编译器：Jupyter Notebook
• 深度学习环境：PyTorch ( torch 2.12.1 + torchvision 0.27.1 )

3. 代码实现

3.1 前期准备

3.1.1 设置GPU & 导入库

导入 PyTorch、torchvision 等深度学习库，配置 matplotlib 中文字体，自动选择 GPU/CPU 设备.

import torch
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
from torchvision import transforms, datasets
import warnings
import copy
import matplotlib.pyplot as plt
from datetime import datetime
from torchsummary import summary

warnings.filterwarnings("ignore")
plt.rcParams["figure.dpi"] = 100
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
device

3.1.2 数据加载

data_dir = './Data/data/'

train_transforms = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])

total_data = datasets.ImageFolder(data_dir, transform=train_transforms)

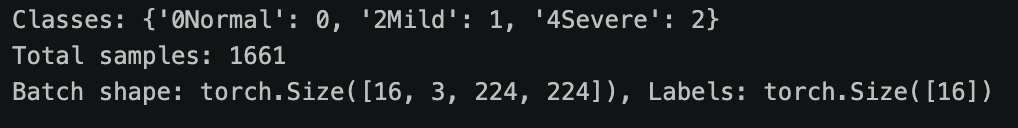

print(f"Classes: {total_data.class_to_idx}")
print(f"Total samples: {len(total_data)}")

train_size = int(0.8 * len(total_data))
test_size = len(total_data) - train_size
train_dataset, test_dataset = torch.utils.data.random_split(total_data, [train_size, test_size])

batch_size = 16
train_dl = torch.utils.data.DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
test_dl = torch.utils.data.DataLoader(test_dataset, batch_size=batch_size)

for X, y in test_dl:
    print(f"Batch shape: {X.shape}, Labels: {y.shape}")
    break

3.2 模型建立与训练

3.2.1 定义 DenseNet 网络模型

实现经典的 DenseNet（Densely Connected Convolutional Network） 架构，其核心思想是密集连接——每一层都接收前面所有层的特征图作为输入。

四个核心组件：

组件	作用
Bottleneck	瓶颈层：BN→ReLU→1×1Conv（压缩通道至 4×growth_rate）→BN→ReLU→3×3Conv，输出与输入在通道维度拼接（torch.cat），实现密集连接
DenseBlock	密集块：由多个 Bottleneck 层堆叠而成，每层输入通道数随层数线性增长（in_channels + i × growth_rate）
Transition	过渡层：位于两个 DenseBlock 之间，通过 1×1 卷积压缩通道数至一半，再用 2×2 平均池化缩小特征图尺寸
DenseNet	整体网络：7×7Conv → MaxPool → 4个DenseBlock（中间穿插Transition）→ BN → GlobalAvgPool → FC

本实验中 num_classes=3，对应三分类任务（Normal / Mild / Severe）。

class Bottleneck(nn.Module):
    def __init__(self, in_channels, growth_rate):
        super(Bottleneck, self).__init__()
        self.bn1 = nn.BatchNorm2d(in_channels)
        self.conv1 = nn.Conv2d(in_channels, 4*growth_rate, kernel_size=1, bias=False)
        self.bn2 = nn.BatchNorm2d(4*growth_rate)
        self.conv2 = nn.Conv2d(4*growth_rate, growth_rate, kernel_size=3, padding=1, bias=False)

    def forward(self, x):
        out = self.conv1(F.relu(self.bn1(x)))
        out = self.conv2(F.relu(self.bn2(out)))
        out = torch.cat([out, x], 1)
        return out

class DenseBlock(nn.Module):
    def __init__(self, in_channels, num_Layers, growth_rate):
        super(DenseBlock, self).__init__()
        self.layers = nn.ModuleList([Bottleneck(in_channels + i*growth_rate, growth_rate) for i in range(num_Layers)])

    def forward(self, x):
        for layer in self.layers:
            x = layer(x)
        return x

class Transition(nn.Module):
    def __init__(self, in_channels, out_channels):
        super(Transition, self).__init__()
        self.bn = nn.BatchNorm2d(in_channels)
        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size=1, bias=False)
        self.avg_pool = nn.AvgPool2d(kernel_size=2, stride=2)

    def forward(self, x):
        out = self.conv(F.relu(self.bn(x)))
        out = self.avg_pool(out)
        return out

class DenseNet(nn.Module):
    def __init__(self, growth_rate=32, block_config=(6, 12, 24, 16), num_classes=1000):
        super(DenseNet, self).__init__()
        self.conv1 = nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3, bias=False)
        self.bn1 = nn.BatchNorm2d(64)
        self.max_pool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
        num_features = 64
        self.blocks = nn.ModuleList([])
        for i, num_Layers in enumerate(block_config):
            block = DenseBlock(num_features, num_Layers, growth_rate)
            self.blocks.append(block)
            num_features = num_features + num_Layers * growth_rate
            if i != len(block_config) - 1:
                trans = Transition(num_features, num_features // 2)
                self.blocks.append(trans)
                num_features = num_features // 2

        self.bn_final = nn.BatchNorm2d(num_features)
        self.avg_pool = nn.AdaptiveAvgPool2d((1, 1))
        self.fc = nn.Linear(num_features, num_classes)

    def forward(self, x):
        out = self.conv1(x)
        out = self.bn1(out)
        out = F.relu(out)
        out = self.max_pool(out)
        for block in self.blocks:
            out = block(out)
        out = self.bn_final(out)
        out = F.relu(out)
        out = self.avg_pool(out)
        out = out.view(out.size(0), -1)
        out = self.fc(out)
        return out

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = DenseNet(num_classes=3).to(device)

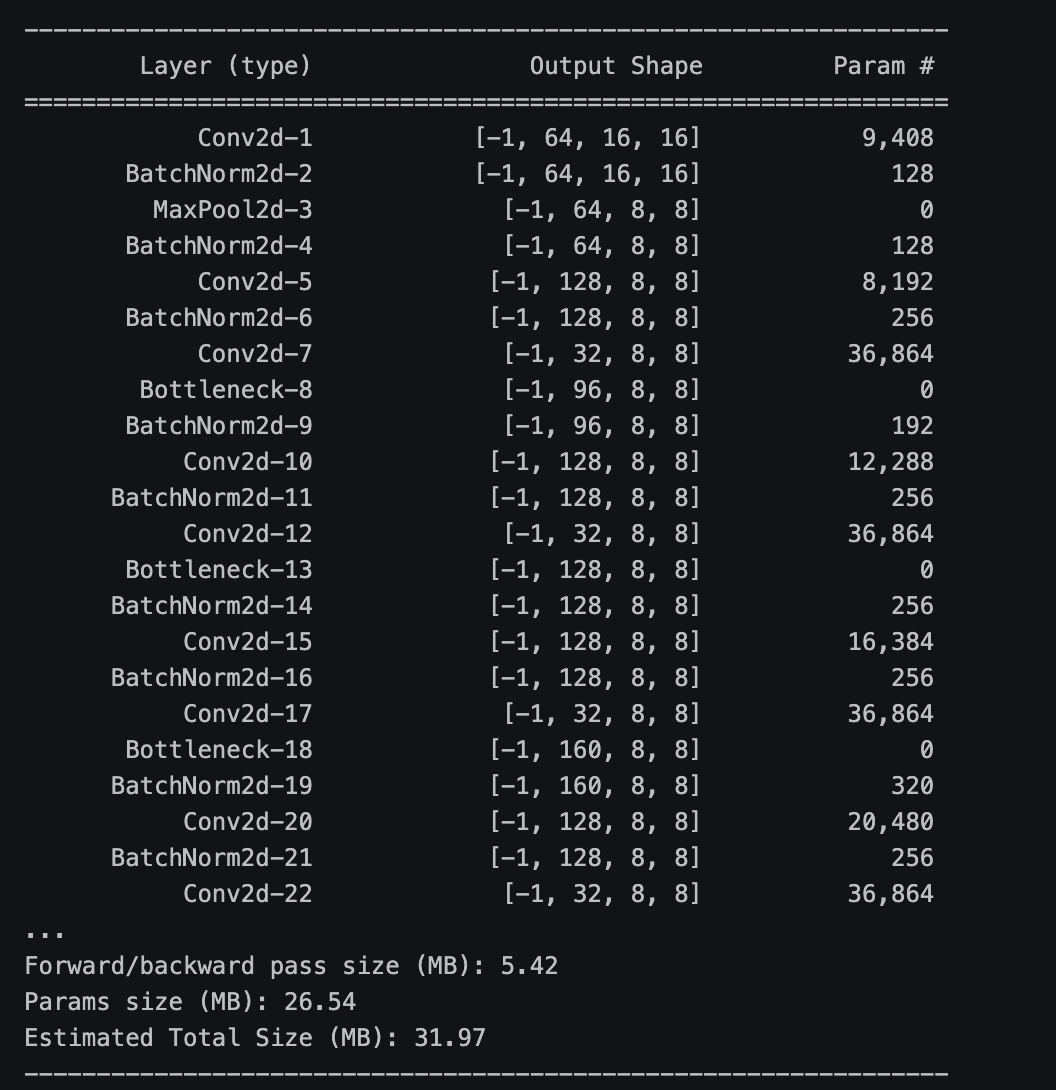

summary(model, input_size=(3, 32, 32))

3.2.2 模型结构概览

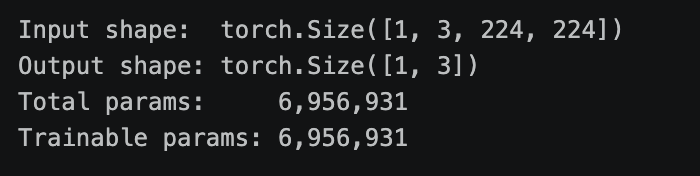

通过随机输入验证模型的前向传播是否正常工作：

• 输入：(1, 3, 224, 224) — 1张 224×224 的 RGB 图像
• 输出：(1, 3) — 3个类别的预测分数（logits）

参数量统计：模型共有 6,956,931 个参数，且全部可训练（未使用预训练权重冻结）。相比 ResNet-50（约 2500 万参数），DenseNet-121 的参数效率更高，这得益于 1×1 卷积的通道压缩和特征复用机制。

# 测试前向传播
x = torch.randn(1, 3, 224, 224).to(device)
out = model(x)
print(f"Input shape:  {x.shape}")
print(f"Output shape: {out.shape}")

# 参数量统计
total_params = sum(p.numel() for p in model.parameters())
trainable_params = sum(p.numel() for p in model.parameters() if p.requires_grad)
print(f"Total params:     {total_params:,}")
print(f"Trainable params: {trainable_params:,}")

3.2.3 定义训练和测试函数

• train() 函数 — 训练阶段：
  对每个 mini-batch 执行标准的前向传播→计算损失→反向传播→参数更新流程：

• 累加每个 batch 的损失和正确预测数

• 返回平均损失和整体准确率（总正确数 / 总样本数）

• test() 函数 — 测试/验证阶段：

• 使用 torch.no_grad() 禁用梯度计算，减少内存开销并加速推理

• 不进行参数更新，仅评估模型在测试集上的泛化性能

• 同样返回平均损失和整体准确率

def train(dataloader, model, loss_fn, optimizer):
    size = len(dataloader.dataset)
    num_batches = len(dataloader)
    train_loss, train_acc = 0, 0

    for X, y in dataloader:
        X, y = X.to(device), y.to(device)
        pred = model(X)
        loss = loss_fn(pred, y)

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        train_loss += loss.item()
        train_acc += (pred.argmax(1) == y).type(torch.float).sum().item()

    return train_loss / num_batches, train_acc / size


def test(dataloader, model, loss_fn):
    size = len(dataloader.dataset)
    num_batches = len(dataloader)
    test_loss, test_acc = 0, 0

    with torch.no_grad():
        for imgs, target in dataloader:
            imgs, target = imgs.to(device), target.to(device)
            target_pred = model(imgs)
            loss = loss_fn(target_pred, target)

            test_acc += (target_pred.argmax(1) == target).type(torch.float).sum().item()
            test_loss += loss.item()

    return test_loss / num_batches, test_acc / size

3.2.4 训练模型

训练配置：

• 优化器：AdamW（带动量的自适应学习率优化器，含权重衰减正则化），学习率 lr=1e-4
• 损失函数：CrossEntropyLoss（交叉熵损失），适用于多分类任务
• 训练轮次：10 个 Epoch

训练策略：

• 每个 Epoch 结束后在测试集上评估，记录训练/测试的损失和准确率
• Best Model 保存：当测试准确率超过历史最佳时，深拷贝当前模型权重
• 训练结束后将最优模型保存至 ./best_resnet50v2.pth

最优模型出现在第 9 个 Epoch，测试准确率达 94.3%。

optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)
loss_fn = nn.CrossEntropyLoss()

epochs = 10
train_loss, train_acc = [], []
test_loss, test_acc = [], []
best_acc = 0

for epoch in range(epochs):
    model.train()
    train_epoch_loss, train_epoch_acc = train(train_dl, model, loss_fn, optimizer)

    model.eval()
    epoch_test_loss, epoch_test_acc = test(test_dl, model, loss_fn)

    if epoch_test_acc > best_acc:
        best_acc = epoch_test_acc
        best_model_wts = copy.deepcopy(model)

    train_acc.append(train_epoch_acc)
    train_loss.append(train_epoch_loss)
    test_acc.append(epoch_test_acc)
    test_loss.append(epoch_test_loss)

    lr = optimizer.param_groups[0]['lr']
    print(f"Epoch: {epoch+1:2d}, Train_acc: {train_epoch_acc*100:.1f}%, Train_loss: {train_epoch_loss:.3f}, "
          f"Test_acc: {epoch_test_acc*100:.1f}%, Test_loss: {epoch_test_loss:.3f}, Lr: {lr:.2E}")

PATH = './best_resnet50v2.pth'
torch.save(best_model_wts.state_dict(), PATH)
print('Done.')

Epoch:  1, Train_acc: 71.5%, Train_loss: 0.752, Test_acc: 74.2%, Test_loss: 0.649, Lr: 1.00E-04
Epoch:  2, Train_acc: 78.7%, Train_loss: 0.568, Test_acc: 83.8%, Test_loss: 0.425, Lr: 1.00E-04
Epoch:  3, Train_acc: 81.6%, Train_loss: 0.482, Test_acc: 76.3%, Test_loss: 0.546, Lr: 1.00E-04
Epoch:  4, Train_acc: 83.3%, Train_loss: 0.432, Test_acc: 79.3%, Test_loss: 0.596, Lr: 1.00E-04
Epoch:  5, Train_acc: 85.5%, Train_loss: 0.399, Test_acc: 80.2%, Test_loss: 0.438, Lr: 1.00E-04
Epoch:  6, Train_acc: 87.3%, Train_loss: 0.348, Test_acc: 83.8%, Test_loss: 0.375, Lr: 1.00E-04
Epoch:  7, Train_acc: 89.6%, Train_loss: 0.284, Test_acc: 86.5%, Test_loss: 0.312, Lr: 1.00E-04
Epoch:  8, Train_acc: 91.4%, Train_loss: 0.255, Test_acc: 85.9%, Test_loss: 0.389, Lr: 1.00E-04
Epoch:  9, Train_acc: 92.2%, Train_loss: 0.221, Test_acc: 94.3%, Test_loss: 0.162, Lr: 1.00E-04
Epoch: 10, Train_acc: 91.7%, Train_loss: 0.225, Test_acc: 93.1%, Test_loss: 0.203, Lr: 1.00E-04
Done.

4. 模型评估

4.1 可视化训练过程

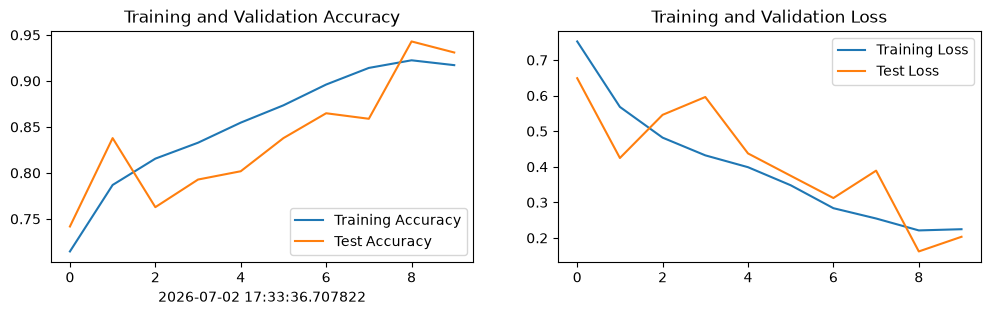

绘制训练和测试的准确率、损失曲线，并使用 Matplotlib 将训练集与验证集的准确率（Accuracy）和损失值（Loss）随时间变化的趋势绘制成了两幅直观的折线图。

current_time = datetime.now()

epochs_range = range(epochs)

plt.figure(figsize=(12, 3))
plt.subplot(1, 2, 1)
plt.plot(epochs_range, train_acc, label='Training Accuracy')
plt.plot(epochs_range, test_acc, label='Test Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')
plt.xlabel(current_time)

plt.subplot(1, 2, 2)
plt.plot(epochs_range, train_loss, label='Training Loss')
plt.plot(epochs_range, test_loss, label='Test Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()

4.2 加载最优模型并评估

加载训练过程中保存的最优模型权重，在测试集上进行最终评估，输出测试准确率和损失值。

best_model_wts.load_state_dict(torch.load(PATH, map_location=device))
test_epoch_loss, test_epoch_acc = test(test_dl, best_model_wts, loss_fn)
print(f"Best model - Test Acc: {test_epoch_acc*100:.1f}%, Test Loss: {test_epoch_loss:.3f}")

Best model - Test Acc: 94.3%, Test Loss: 0.162

5.总结

1. DenseNet 表现优异：在仅 10 个 Epoch 的训练后，测试准确率达到 94.3%，说明密集连接机制能有效提取图像特征，即使在较小的数据集上也能取得良好效果。

2. 参数效率高：模型仅约 695 万参数（远少于 ResNet-50 的 2500 万），却达到了较高的分类精度，体现了 DenseNet 通过特征复用减少冗余参数的优势。

3. 收敛速度快：模型从第 1 个 Epoch 的 74.2% 快速提升，第 9 个 Epoch 即达到最优，说明 AdamW 优化器配合合理的学习率（1e-4）能有效加速收敛。

4. 存在轻微过拟合迹象：训练损失持续下降而测试损失有波动（如第 8→9 Epoch 测试损失从 0.389 降至 0.162，第 10 Epoch 又回升至 0.203），建议后续可通过以下方式改善：

   • 增加数据增强（随机翻转、旋转、色彩抖动等）
   • 引入学习率调度策略（如 Cosine Annealing）
   • 增加 Dropout 或权重衰减
   • 使用交叉验证替代单次随机划分

5. 数据规模的影响：1661 张图像的数据集相对较小，测试集仅约 333 张，测试准确率的波动可能与样本量不足有关。增加数据量或使用预训练权重微调有望进一步提升性能。
