kubernetes部署3节点高可用elasticsearch v8.14.3

kubernetes部署3节点eslasticsearch，分带证书和不带证书。

nangonghen

469人浏览 · 2025-06-28 23:28:47

nangonghen · 2025-06-28 23:28:47 发布

1 概述

一个yaml部署3节点的elasticsearch v8.14.3，修改storageclass名称后就能直接用。

2 环境准备

2.1 在华为云准备一个kubernetes集群

在这里插入图片描述

2.2 在华为云准备一个NAS作为PV底层存储

在这里插入图片描述
必须是NAS存储，不能是块存储，因为后续多个跨不同节点的pod会同时挂载到同一个PV。

2.3 创建kubernetes存储类

k8s storageclass的yaml如下，提交到k8s中即可，这个sc的名称叫做nfs，这个sc的名称叫做nfs，这个sc的名称叫做nfs，重要的事情重复三遍，这个名称会被后续的elasticsearch yaml引用。

apiVersion: storage.k8s.io/v1
allowVolumeExpansion: true
kind: StorageClass
metadata:
  name: nfs
mountOptions:
- lock
parameters:
  csi.storage.k8s.io/csi-driver-name: sfsturbo.csi.everest.io
  csi.storage.k8s.io/fstype: nfs
  everest.io/archive-on-delete: "true"
  everest.io/share-access-to: fc1f5584-4423-4************   # VPC ID
  everest.io/share-expand-type: bandwidth
  everest.io/share-export-location: b134a******.sfsturbo.internal:/mydir   # sfs turbo实例的共享路径:自定义子目录
  everest.io/share-source: sfs-turbo
  everest.io/share-volume-type: STANDARD
  everest.io/volume-as: subpath
  everest.io/volume-id: b134a******   # sfs turbo实例的ID
provisioner: everest-csi-provisioner
reclaimPolicy: Retain
volumeBindingMode: Immediate

3 部署不带证书的ES

elasticsearch的yaml如下，提交到k8s中即可：

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: elasticsearch
spec:
  serviceName: elasticsearch
  podManagementPolicy: Parallel
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
  template:
    metadata:
      labels:
        app: elasticsearch
    spec:
      initContainers:
        - name: configure-sysctl
          image: swr.cn-south-1.myhuaweicloud.com/migrator/busybox:1.36
          command: ["sysctl", "-w", "vm.max_map_count=262144"]
          securityContext:
            privileged: true
      containers:
      - name: elasticsearch
        image: swr.cn-south-1.myhuaweicloud.com/migrator/elasticsearch:8.14.3
        resources:
          limits:
            cpu: "4"
            memory: "8Gi"
          requests:
            cpu: "0.5"
            memory: "1Gi"
        ports:
        - containerPort: 9200
          name: http
        - containerPort: 9300
          name: transport
        env:
        - name: ES_JAVA_OPTS
          value: "-Xms2g -Xmx2g"
        volumeMounts:
        - name: elasticsearch-data
          mountPath: /usr/share/elasticsearch/data
        - name: config
          mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
          subPath: elasticsearch.yml
        - name: elasticsearch-logs
          mountPath: /usr/share/elasticsearch/logs
        livenessProbe:
          httpGet:
            path: /_cluster/health?local=true
            port: 9200
            scheme: HTTP
            httpHeaders:
            - name: Authorization
              value: "Basic ZWxhc3RpYzpkaWZ5YWkxMjM0NTY="
          initialDelaySeconds: 30
          timeoutSeconds: 5
          periodSeconds: 30
          successThreshold: 1
          failureThreshold: 3
        readinessProbe:
          httpGet:
            path: /_cluster/health?local=true
            port: 9200
            scheme: HTTP
            httpHeaders:
            - name: Authorization
              value: "Basic ZWxhc3RpYzpkaWZ5YWkxMjM0NTY="
          initialDelaySeconds: 30
          timeoutSeconds: 5
          periodSeconds: 30
          successThreshold: 1
          failureThreshold: 3
      volumes:
      - name: config
        configMap:
          name: elasticsearch-config
  volumeClaimTemplates:
  - metadata:
      name: elasticsearch-data
      labels:
        app: elasticsearch
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: nfs
      resources:
        requests:
          storage: 50Gi

  - metadata:
      name: elasticsearch-logs
      labels:
        app: elasticsearch
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: nfs
      resources:
        requests:
          storage: 4Gi

---
apiVersion: v1
kind: Service
metadata:
  name: elasticsearch
  labels:
    app: elasticsearch
spec:
  ports:
  - port: 9200
    name: http
  - port: 9300
    name: transport
  clusterIP: None
  selector:
    app: elasticsearch
---


apiVersion: v1
kind: ConfigMap
metadata:
  name: elasticsearch-config
data:
  elasticsearch.yml: |
    cluster.name: es-cluster
    node.name: ${HOSTNAME}
    network.host: 0.0.0.0
    discovery.seed_hosts: ["elasticsearch-0.elasticsearch", "elasticsearch-1.elasticsearch", "elasticsearch-2.elasticsearch"]
    cluster.initial_master_nodes: ["elasticsearch-0", "elasticsearch-1", "elasticsearch-2"]
    xpack.security.enrollment.enabled: true
    xpack.security.http.ssl.enabled: false
    bootstrap.memory_lock: false
    indices.memory.index_buffer_size: 10%
    indices.queries.cache.size: 5%
    action.destructive_requires_name: true
    xpack.security.transport.ssl.enabled: false
    xpack.security.enabled: false
    node.roles: ["master", "data", "ingest"]

部署结果如下：
在这里插入图片描述

4 部署带证书的ES

transport开启SSL，HTTP不开启SSL，整个yaml如下：

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: elasticsearch
spec:
  serviceName: elasticsearch
  podManagementPolicy: Parallel
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
  template:
    metadata:
      labels:
        app: elasticsearch
    spec:
      initContainers:
      - name: configure-sysctl
        image: swr.cn-south-1.myhuaweicloud.com/migrator/busybox:1.36
        command: ["sysctl", "-w", "vm.max_map_count=262144"]
        securityContext:
          privileged: true
      - name: init-cert
        image: swr.cn-south-1.myhuaweicloud.com/migrator/elasticsearch:8.14.3
        command:
        - sh
        - -c
        - 'ls /opt/certs/ca.p12 && bin/elasticsearch-certutil cert --days 3650 --silent --ca /opt/certs/ca.p12 --ca-pass "" --name $HOSTNAME -dns $HOSTNAME.elasticsearch,localhost --ip $POD_IP,127.0.0.1 --out /certs/$HOSTNAME.p12 --pass ""'
        env:
        - name: POD_IP
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: status.podIP
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        volumeMounts:
        - name: certs
          mountPath: /certs
        - name: secret-certs
          mountPath: /opt/certs/ca.p12
          subPath: ca.p12
          readOnly: true
      containers:
      - name: elasticsearch
        image: swr.cn-south-1.myhuaweicloud.com/migrator/elasticsearch:8.14.3
        resources:
          limits:
            cpu: "4"
            memory: "8Gi"
          requests:
            cpu: "0.5"
            memory: "1Gi"
        ports:
        - containerPort: 9200
          name: http
        - containerPort: 9300
          name: transport
        env:
        - name: ES_JAVA_OPTS
          value: "-Xms2g -Xmx2g"
        - name: POD_IP
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: status.podIP
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: ELASTIC_PASSWORD
          value: difyai123456
        volumeMounts:
        - name: elasticsearch-data
          mountPath: /usr/share/elasticsearch/data
        - name: config
          mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
          subPath: elasticsearch.yml
        - name: elasticsearch-logs
          mountPath: /usr/share/elasticsearch/logs
        - name: certs
          mountPath: /usr/share/elasticsearch/config/certs
        - name: secret-certs
          mountPath: /usr/share/elasticsearch/config/certs/ca.p12
          subPath: ca.p12
          readOnly: true
        livenessProbe:
          httpGet:
            path: /_cluster/health?local=true
            port: 9200
            scheme: HTTP
            httpHeaders:
            - name: Authorization
              value: "Basic ZWxhc3RpYzpkaWZ5YWkxMjM0NTY="
          initialDelaySeconds: 50
          timeoutSeconds: 5
          periodSeconds: 30
          successThreshold: 1
          failureThreshold: 3
        readinessProbe:
          httpGet:
            path: /_cluster/health?local=true
            port: 9200
            scheme: HTTP
            httpHeaders:
            - name: Authorization
              value: "Basic ZWxhc3RpYzpkaWZ5YWkxMjM0NTY="
          initialDelaySeconds: 50
          timeoutSeconds: 5
          periodSeconds: 30
          successThreshold: 1
          failureThreshold: 3
      volumes:
      - name: config
        configMap:
          name: elasticsearch-config
      - name: certs
        emptyDir: {}
      - name: secret-certs
        secret:
          secretName: elasticsearch-certs
          defaultMode: 0777
  volumeClaimTemplates:
  - metadata:
      name: elasticsearch-data
      labels:
        app: elasticsearch
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: nfs
      resources:
        requests:
          storage: 50Gi

  - metadata:
      name: elasticsearch-logs
      labels:
        app: elasticsearch
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: nfs
      resources:
        requests:
          storage: 4Gi

---
apiVersion: v1
kind: Service
metadata:
  name: elasticsearch
  labels:
    app: elasticsearch
spec:
  ports:
  - port: 9200
    name: http
  - port: 9300
    name: transport
  clusterIP: None
  selector:
    app: elasticsearch
---


apiVersion: v1
kind: ConfigMap
metadata:
  name: elasticsearch-config
data:
  elasticsearch.yml: |
    cluster.name: es-cluster
    node.name: ${HOSTNAME}
    network.host: 0.0.0.0
    node.roles: ["master", "data", "ingest"]
    discovery.seed_hosts: ["elasticsearch-0.elasticsearch", "elasticsearch-1.elasticsearch", "elasticsearch-2.elasticsearch"]
    cluster.initial_master_nodes: ["elasticsearch-0", "elasticsearch-1", "elasticsearch-2"]
    indices.memory.index_buffer_size: 10%
    indices.queries.cache.size: 5%

    xpack.security.enabled: true
    xpack.security.enrollment.enabled: true
    xpack.security.http.ssl.enabled: false
    bootstrap.memory_lock: false
    action.destructive_requires_name: true
    xpack.security.transport.ssl.enabled: true
    xpack.security.transport.ssl.keystore.path: /usr/share/elasticsearch/config/certs/${HOSTNAME}.p12
    xpack.security.transport.ssl.truststore.path: /usr/share/elasticsearch/config/certs/${HOSTNAME}.p12


---

apiVersion: v1
data:
  ca.p12: MIIKbAIBAzCCChYGCSqGSIb3DQEHAaCCCgcEggoDMIIJ/zCCBaYGCSqGSIb3DQEHAaCCBZcEggWTMIIFjzCCBYsGCyqGSIb3DQEMCgECoIIFQDCCBTwwZgYJKoZIhvcNAQUNMFkwOAYJKoZIhvcNAQUMMCsEFMbZw4STPXyTSNmpN6mHdWLzfxKFAgInEAIBIDAMBggqhkiG9w0CCQUAMB0GCWCGSAFlAwQBKgQQZokL1Tf2AwuBZRIkPhVyEASCBNCvnCeiurBk+Hr1NXShsKIfwM+5MfivvDDjAwbnlCNfKII4an4mBq2l7095wo3bwVPb9JYtFrsjFrTrFPG/eg2AFOqG0fXdrt4f1p9x2NwYN1a/orVl0XGO7G5rHDybbL6aR4eCZOCLZOR4GarnMNk7C1l9W9J46TiF0Bssa0bYDyiP8EmLLLb+oRaobvXdfKPv4PtEL5yG4sG9bljtrQdnniC14s2wxUISFI+srVkVdU3Yp8vJ1W1fvokHeWrhj5JqX775Rm2MuTrqA1PC1EoG6J2eCnPGQEDpX/BGQChiQRi3tE/GJazD++urloDiGMiib8YXQLb8Q4Czs23OE53m99hb2e9zgS93APltNtimoHBLf09uI7MymWF60u1FVrgNAUqsNUamk1MtlpSW5kYgJpJeBKAWgE4E3PjQfzC2mOT1DSsdRl4sXiU/kYdY9ujIjLjJYENdy7rm5y4IHbh9gIsG/C7UZKUksBJrAE+YinoUDXB1/412kvrnEK6jiEQ1SODlZ4oW7nP3lJTyNOQaJXLGujyKp04ADeTOZ1saFs76ECXkprdFGHCizUjZowq2pA5Hg35s/lFws4Hi/q5vyq9/l9rLUK44d7bQD3xYm6HNeU+1PQIhhWAOa7ixXHEyLwnN0PFe5vne84M/k4OJ2D2MQUrcYidFT9czDy5A5txfjWrCAIiv7ZI+fIW4+z0df9sFVBQkir0Ggz8YtcTbset/hQBTSRAMMB6J1K6ZV3leXbSk2IcyTZn/S+gRjjrf13HRvFtjZuvVbmkMaDaAxoau5O35Jfvd6w7CMejnIl0ffSosTxTEUVI+2B+HvtUs3DcxKV9W8YGefR/7QHBc0yht8WinZz4qCbnkvlTsGTz1QIjgcRZzv3kDyf52mtkGoSa4kpaPCHy24/BUnW/ZkuonDr0l84tqIahEp6yy52dI3yafRBJzEe7lHQNWlRWnAcmcUE+7DK4US6jBKyr5dDgtiwSMSYZu3Xe9HnX4tms4FeaJ+kMcD1BnWNUbe//plQMHQF6eZcXqjY+FxC7Nehf4vh8VvBnnd/4K/C9KBz4+ztgdtgalvh0lelEvGXXTNUY/wb2ZCPSUsBosXQJLS0QSwcybARgh9PxRg/gTXDMHTSGtirZVpQrMfHpqLgQH+YR3UCnYOj8pKwd5sifNYVIhYNKDRL70a6L1YjfT+F+NqJcWf8BtR62Pvb+yu0aX0pjkmPxPGEkQ+qaPuc3V5rNUkQHziu7XcfxjkQ0Lg0oFy1iq65FZsGaNTe0FgXaSb8zmdoDxRREq5pSgjSOv/+IZiBnqm7IrI7PkwzzdCWoq+KbUrVqup9o7slm1oIkIudotGBb+jv+b8Xgrptvsg1TMECkcK9XKGc3qiBUp+LflFZ8jgbTkoWKhXYyjtxwwZzun5/mb/gI0r14W3LUWHekGuX6H6lJMoyfQqb1BVuK+nwQm4Q+Hdl0Ywwlmgn1keCaxG39TN9TXKBg21OvfbnjoP+3BzQJrsfq7bCCFCg1A1h/Mjlx2TJfzn4oVdz6aL15OCrU1Xc7sEeBgMrBKFTjSyjU7iSX0E711t3rcZFqXCH416dusIhH1v9Cv+PMkESaAxcpBsw62au7oJMkAaA02lc7Qq/xMiXH6COlpKzE4MBMGCSqGSIb3DQEJFDEGHgQAYwBhMCEGCSqGSIb3DQEJFTEUBBJUaW1lIDE3NTEyMDc0MTA1NjUwggRRBgkqhkiG9w0BBwagggRCMIIEPgIBADCCBDcGCSqGSIb3DQEHATBmBgkqhkiG9w0BBQ0wWTA4BgkqhkiG9w0BBQwwKwQUyw6q2CYa2Ljqr6W/N1zi5ujhKiICAicQAgEgMAwGCCqGSIb3DQIJBQAwHQYJYIZIAWUDBAEqBBAqgAPaC4Tfvcwei2HKXUE0gIIDwNATK2rpBvr+X/KPZ7n27YuXS2shMyL39A0e/FemSndCnDuMqRbwWegU/Bw9CR7hI2Xt5MIjiZymsnbMeULiyepJoj2C2NzGOjyBVv1N4JS04dGW+opYdmWIMyWvv+bw3XjEVvEdxBbbV7W4Y+mOJMMD2xQJwK8P00U+15XwZ7mujBwjL15HocVSg1K+hc/AIP5GKJSaFPiIv4x9pFaaifz0nL4u5GklFLzSV8KJWAUoLV+5y8mcXcryfUv4aVtP/CqRHD+Lz2iIJvwQlGSggtLNCcGnKE0JxrjuhulIcaXadnUxhTup6Ckkv9iM7Bgf1tnky2k8biiAfqrjogLHYlDQSS5w+m7k4rbh8fd7sXIQlSlFrmyMPgRfM+59zOb1aDMUCOHVALVomce4pUf6d1W8BuMQm0/eh1UH7ZhmFqTvEGD2NMvuyLlRbz9R5B71Af8wecmHZojhJUZoWVBvPjeieLGIqTLK/oBe9aeIoN1FJcsta48aIFv2vnXb51yjafVtlMRTdpk45xKua152YFhuea+p+u0ojKs9WKlj8rd5RVyFC133ij3/bM5YcSAzsDIX839tZa+sio87q1gNdfL7TnxAf2SY3alDmut1zk9oh5922p680gA3lwKKgfnExrEDshtxwL7+RDuXcJ6KS9wSsr+6QBkeeQRP/YTwrFGkgJBqeegWE2Xmm+c9dPL9RZQrZcPoWQFv3wy2BCCUW3TWWf3n6ZKNahnFOQ4MaMshNNUWT1GFbQppBsQm5hT04TozsFIdYP891kitf0souCEWVYfkG8YB1WedB0/g5EsdDP6u2oF+oW+YSM2wcKxQNyzUe9HY7/5pnkjwsc6qLtDBN6G0PR6wLEBRnUNY7ISjMu1JiWeEca9VpYn2eEIumwtCLkq6TXhBiueU/8S0bo4hd+1AT0yQlYzUjSYVooN3ceRPhZymq4uGAaA/H/SJ7WTgIRploBoPVlYTP1ECoAvbOc3SePcoa83TBaWqGGJdKbfGxQ7GHCnP/AA86cck1SJjD0FNolOALL97/NgkwLlGxW2BwpuPv9i4cFCDqz7v+fbZ/6Ft4U0/CRZugevlsYa/8IY3IN1E7Gs/71XvEJRmygUIx23LliymBZw7hFGIXYMfDGWCFvW8kNucmuzd3Vkz5fEmQHDl50RZ65YBpyReBRoRlbiQQumtfPYQvJsJiP4Q4vJzl+wtOHc8vwH9iaSkWM6JitHNeCY8h6j0XX57VRR1U7+imOcbZsXjWuMstJ9VyxzsF5kj3ekQWBkImjBNMDEwDQYJYIZIAWUDBAIBBQAEIBvKQ1QlXTu+i+09C75cSPmcsFldGhGHfFhVHDmvhbPvBBT7GslIQCYKcAmYQIHFzaendImCogICJxA=
kind: Secret
metadata:
  name: elasticsearch-certs
type: Opaque

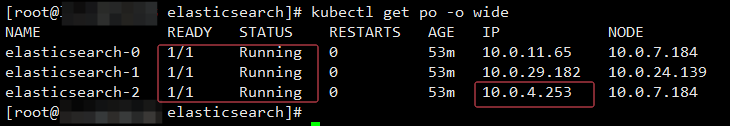

在这里插入图片描述

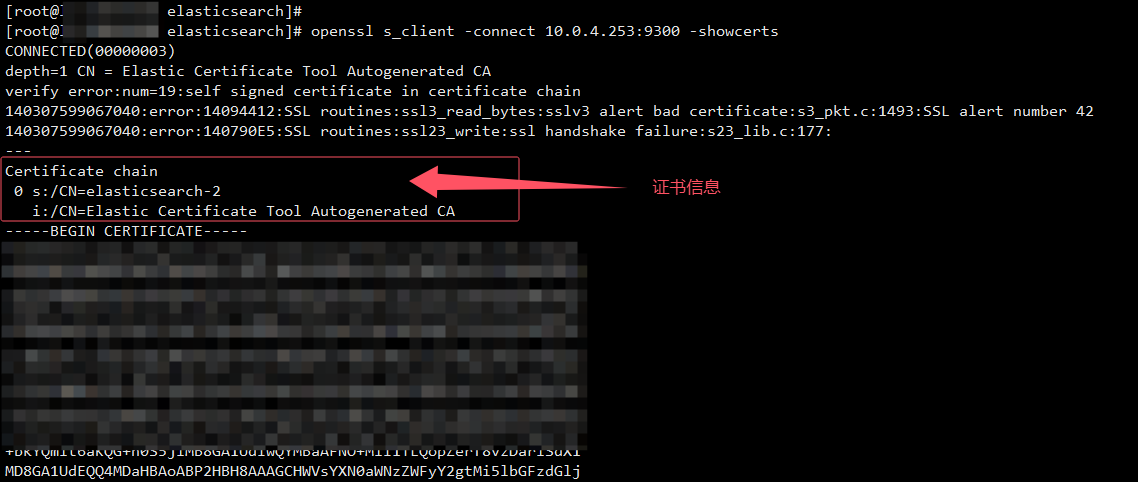

选择其中一个IP为10.0.4.253的ES实例，用openssl工具查看其证书信息，结果如下：

在这里插入图片描述
