一、海康威视rtsp取流

1、 "rtsp://admin:szdl2025@192.168.1.64/streaming/channels/101"

即rtsp://用户名:密码@IP地址/streaming（流模式）//channels/101（主码流）

（不常用，通过该方式取流延时较大比直接网页登陆看预览延时还大）

2、示例代码

"""
摄像头取流方式
"""

import cv2
import json


def getConfig():
    fd = open("config.json", "r")
    config = fd.read()
    fd.close()
    return json.loads(config)


# config = getConfig()
# rtsp_url = config['rtsp_url']
# rtsp_url = "rtsp://username:password@192.168.1.100/stream"  # 示例 RTSP URL
# rtsp://admin:szdl2025@192.168.1.64/streaming/channels/101
rtsp_url = "rtsp://admin:szdl2025@192.168.1.64:554/Streaming/Channels/101"

# 创建 VideoCapture 对象
cap = cv2.VideoCapture(rtsp_url)

if not cap.isOpened():
    print("无法打开摄像头")
    exit()

while True:
    # 逐帧捕获
    ret, frame = cap.read()
    if not ret:
        print("无法读取视频流")
        break

    # 显示帧
    cv2.imshow("RTSP Stream", frame)

    # 按 'q' 键退出
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

# 释放资源
cap.release()
cv2.destroyAllWindows()

二摄像头SDK取流

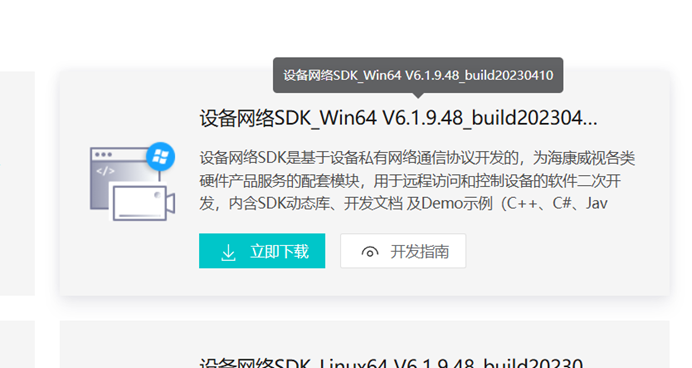

1、SDK下载https://open.hikvision.com/download/5cda567cf47ae80dd41a54b3

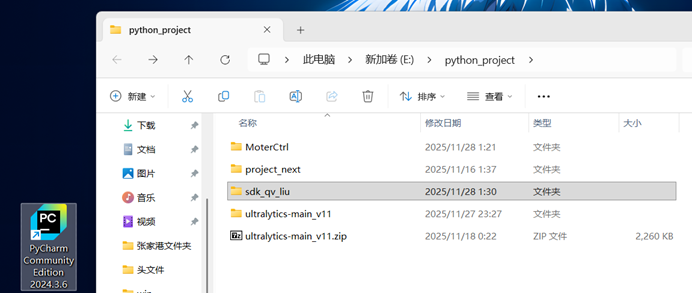

2、创建Python项目并用pycharm打开（环境我用的conda管理的）

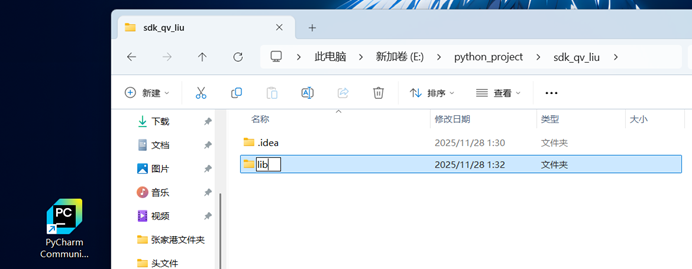

3、新建lib文件夹

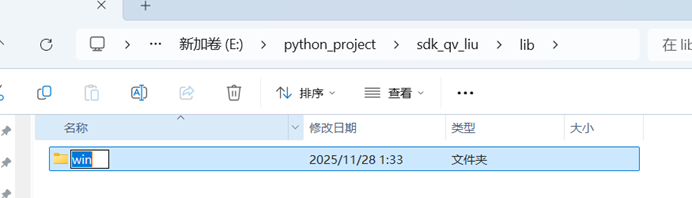

4、lib文件夹打开后新建win文件夹

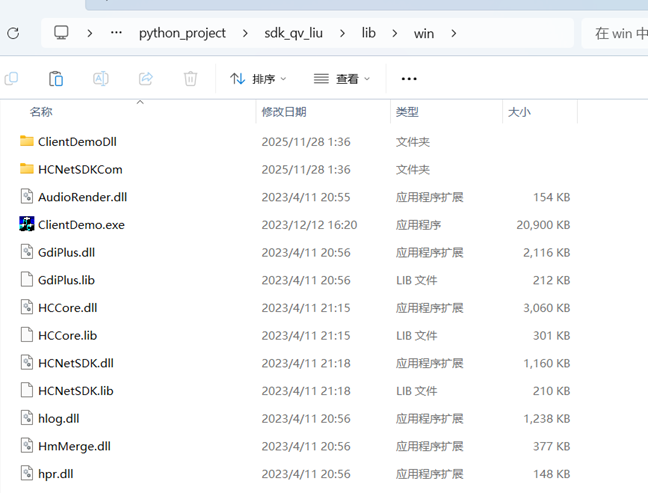

5、下载解压后的SDK头文件中的内容复制无脑粘贴到win中（其实只粘贴必要的就行）

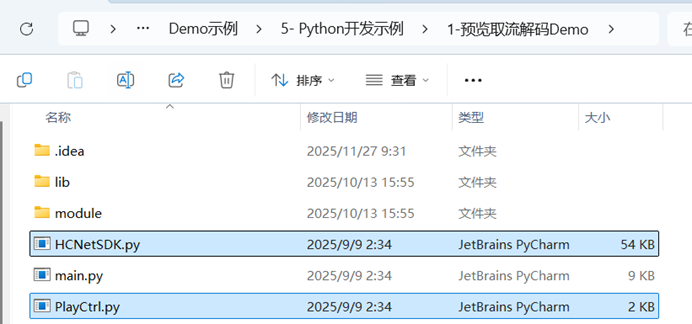

6、将HCNetSDK与PlayCtrl粘贴到项目根目录（去下载的SDK Python示例的第一个demo里找）

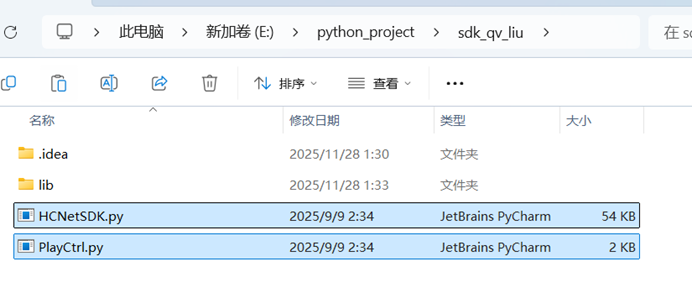

之后就是这样

7、用pycharm打开项目根目录下新建一个.py文件，复制如下代码运行即可

# coding=utf-8
import os
import platform
from HCNetSDK import *
from PlayCtrl import *
import numpy as np
import time
import ctypes
import cv2

"""
这是一个取流并将流转换成图片，再一帧一帧播放的程序
"""


class HKCam(object):
    def __init__(self, camIP, username, password, devport=8000):
        # 登录的设备信息
        self.DEV_IP = create_string_buffer(camIP.encode())
        self.DEV_PORT = devport
        self.DEV_USER_NAME = create_string_buffer(username.encode())
        self.DEV_PASSWORD = create_string_buffer(password.encode())
        self.WINDOWS_FLAG = False if platform.system() != "Windows" else True
        self.funcRealDataCallBack_V30 = None
        self.recent_img = None  # 最新帧
        self.n_stamp = None  # 帧时间戳
        self.last_stamp = None  # 上次时间戳

        # 加载库
        if self.WINDOWS_FLAG:
            os.chdir(r'./lib/win')
            self.Objdll = ctypes.CDLL(r'./HCNetSDK.dll')
            self.Playctrldll = ctypes.CDLL(r'./PlayCtrl.dll')
        else:
            os.chdir(r'./lib/linux')
            self.Objdll = cdll.LoadLibrary(r'./libhcnetsdk.so')
            self.Playctrldll = cdll.LoadLibrary(r'./libPlayCtrl.so')

        # 设置组件库和SSL库加载路径
        self.SetSDKInitCfg()

        # 初始化DLL
        self.Objdll.NET_DVR_Init()

        # 启用SDK写日志
        self.Objdll.NET_DVR_SetLogToFile(3, bytes('./SdkLog_Python/', encoding="utf-8"), False)
        os.chdir(r'../../')

        # 登录
        (self.lUserId, self.device_info) = self.LoginDev()

        if self.lUserId < 0:
            print('Login device fail, error code is: %d' % self.Objdll.NET_DVR_GetLastError())
            self.Objdll.NET_DVR_Cleanup()
            exit()
        else:
            print(f'摄像头[{camIP}]登录成功!!')

        self.start_play()
        time.sleep(1)

    def start_play(self):
        self.PlayCtrl_Port = c_long(-1)

        # 获取一个播放句柄
        if not self.Playctrldll.PlayM4_GetPort(byref(self.PlayCtrl_Port)):
            print(u'获取播放库句柄失败')

        # 定义码流回调函数
        self.funcRealDataCallBack_V30 = REALDATACALLBACK(self.RealDataCallBack_V30)

        # 开启预览
        self.preview_info = NET_DVR_PREVIEWINFO()
        self.preview_info.hPlayWnd = 0
        self.preview_info.lChannel = 1
        self.preview_info.dwStreamType = 0
        self.preview_info.dwLinkMode = 0
        self.preview_info.bBlocked = 1

        # 开始预览并且设置回调函数回调获取实时流数据
        self.lRealPlayHandle = self.Objdll.NET_DVR_RealPlay_V40(self.lUserId, byref(self.preview_info),
                                                                self.funcRealDataCallBack_V30, None)
        if self.lRealPlayHandle < 0:
            print('Open preview fail, error code is: %d' % self.Objdll.NET_DVR_GetLastError())
            self.Objdll.NET_DVR_Logout(self.lUserId)
            self.Objdll.NET_DVR_Cleanup()
            exit()

    def SetSDKInitCfg(self):
        if self.WINDOWS_FLAG:
            strPath = os.getcwd().encode('gbk')
            sdk_ComPath = NET_DVR_LOCAL_SDK_PATH()
            sdk_ComPath.sPath = strPath
            self.Objdll.NET_DVR_SetSDKInitCfg(2, byref(sdk_ComPath))
            self.Objdll.NET_DVR_SetSDKInitCfg(3, create_string_buffer(strPath + b'\libcrypto-1_1-x64.dll'))
            self.Objdll.NET_DVR_SetSDKInitCfg(4, create_string_buffer(strPath + b'\libssl-1_1-x64.dll'))
        else:
            strPath = os.getcwd().encode('utf-8')
            sdk_ComPath = NET_DVR_LOCAL_SDK_PATH()
            sdk_ComPath.sPath = strPath
            self.Objdll.NET_DVR_SetSDKInitCfg(2, byref(sdk_ComPath))
            self.Objdll.NET_DVR_SetSDKInitCfg(3, create_string_buffer(strPath + b'/libcrypto.so.1.1'))
            self.Objdll.NET_DVR_SetSDKInitCfg(4, create_string_buffer(strPath + b'/libssl.so.1.1'))

    def LoginDev(self):
        device_info = NET_DVR_DEVICEINFO_V30()
        lUserId = self.Objdll.NET_DVR_Login_V30(self.DEV_IP, self.DEV_PORT, self.DEV_USER_NAME, self.DEV_PASSWORD,
                                                byref(device_info))
        return (lUserId, device_info)

    def read(self):
        # 等待新帧
        while self.n_stamp == self.last_stamp:
            time.sleep(0.001)  # 添加小延迟避免CPU占用过高
            continue
        self.last_stamp = self.n_stamp
        return self.n_stamp, self.recent_img

    def DecCBFun(self, nPort, pBuf, nSize, pFrameInfo, nUser, nReserved2):
        if pFrameInfo.contents.nType == 3:  # 视频帧
            nWidth = pFrameInfo.contents.nWidth
            nHeight = pFrameInfo.contents.nHeight
            nStamp = pFrameInfo.contents.nStamp

            YUV = np.frombuffer(pBuf[:nSize], dtype=np.uint8)
            YUV = np.reshape(YUV, [nHeight + nHeight // 2, nWidth])
            img_rgb = cv2.cvtColor(YUV, cv2.COLOR_YUV2BGR_YV12)
            self.recent_img, self.n_stamp = img_rgb, nStamp

    def RealDataCallBack_V30(self, lPlayHandle, dwDataType, pBuffer, dwBufSize, pUser):
        if dwDataType == NET_DVR_SYSHEAD:
            # 设置流播放模式
            self.Playctrldll.PlayM4_SetStreamOpenMode(self.PlayCtrl_Port, 0)

            # 打开码流，送入系统头数据
            if self.Playctrldll.PlayM4_OpenStream(self.PlayCtrl_Port, pBuffer, dwBufSize, 1024 * 1024):
                # 设置解码回调
                self.FuncDecCB = DECCBFUNWIN(self.DecCBFun)
                self.Playctrldll.PlayM4_SetDecCallBackExMend(self.PlayCtrl_Port, self.FuncDecCB, None, 0, None)

                # 开始解码播放
                if self.Playctrldll.PlayM4_Play(self.PlayCtrl_Port, None):
                    print(u'播放库播放成功')
                else:
                    print(u'播放库播放失败')
            else:
                print(u'播放库打开流失败')
        elif dwDataType == NET_DVR_STREAMDATA:
            # 输入流数据
            self.Playctrldll.PlayM4_InputData(self.PlayCtrl_Port, pBuffer, dwBufSize)

    def release(self):
        # 停止预览
        self.Objdll.NET_DVR_StopRealPlay(self.lRealPlayHandle)

        # 释放播放资源
        if self.PlayCtrl_Port.value > -1:
            self.Playctrldll.PlayM4_Stop(self.PlayCtrl_Port)
            self.Playctrldll.PlayM4_CloseStream(self.PlayCtrl_Port)
            self.Playctrldll.PlayM4_FreePort(self.PlayCtrl_Port)

        # 登出设备
        self.Objdll.NET_DVR_Logout(self.lUserId)

        # 清理SDK
        self.Objdll.NET_DVR_Cleanup()
        print('释放资源结束')


def main():
    # 摄像头配置
    camIP = '192.168.1.64'
    DEV_PORT = 8000
    username = 'admin'
    password = 'szdl2025'

    # 创建摄像头对象
    HIK = HKCam(camIP, username, password,devport=8000)

    # 创建窗口
    window_name = "q = quit;s = save"
    cv2.namedWindow(window_name, cv2.WINDOW_NORMAL)
    cv2.resizeWindow(window_name, 1920, 1080)

    print("按 'q' 键退出程序")
    print("按 's' 键保存当前帧")

    frame_count = 0
    start_time = time.time()

    try:
        while True:
            # 读取一帧
            n_stamp, img = HIK.read()

            if img is not None:
                # 显示帧率
                frame_count += 1
                elapsed_time = time.time() - start_time
                fps = frame_count / elapsed_time if elapsed_time > 0 else 0

                # 在图像上显示帧率
                fps_text = f"FPS: {fps:.2f}"
                cv2.putText(img, fps_text, (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 0, 255), 2)

                # 显示图像
                cv2.imshow(window_name, img)

            # 检查按键
            key = cv2.waitKey(1) & 0xFF

            if key == ord('q'):  # 按 'q' 退出
                print("用户请求退出程序")
                break
            elif key == ord('s'):  # 按 's' 保存当前帧
                timestamp = time.strftime("%Y%m%d_%H%M%S")
                filename = f"capture_{timestamp}.jpg"
                cv2.imwrite(filename, img)
                print(f"已保存图像: {filename}")
            elif key == 27:  # ESC键
                print("ESC键退出程序")
                break

            # 检查窗口是否被关闭
            try:
                if cv2.getWindowProperty(window_name, cv2.WND_PROP_VISIBLE) < 1:
                    print("窗口已关闭，退出程序")
                    break
            except:
                print("窗口异常，退出程序")
                break

    except KeyboardInterrupt:
        print("\n程序被用户中断")
    except Exception as e:
        print(f"程序运行出错: {e}")
    finally:
        # 释放资源
        HIK.release()
        cv2.destroyAllWindows()
        print("程序结束")


if __name__ == "__main__":
    main()

三、海康威视SDK云台控制

1、环境和上面sdk取流类似搭建好环境项目根目录下新建.py文件然后输入以下代码运行即可

"""
需要海康威视的HCNetSDK和PlayCtrl库文件

放置在lib/win或lib/linux目录下

确保网络可达摄像头设备
"""



# coding=utf-8
import os
import platform
import tkinter as tk
from tkinter import ttk
import ctypes
from ctypes import *
from HCNetSDK import *
from PlayCtrl import *
from time import sleep

"""
这是一个云台控制GUI界面 可以缩小放大旋转
"""
class PTZCameraController:
    def __init__(self):
        # 设备配置
        self.DEV_IP = create_string_buffer(b'192.168.1.64')
        self.DEV_PORT = 8000
        self.DEV_USER_NAME = create_string_buffer(b'admin')
        self.DEV_PASSWORD = create_string_buffer(b'szdl2025')

        # 系统标志
        self.WINDOWS_FLAG = platform.system() == "Windows"

        # SDK相关变量
        self.Objdll = None
        self.Playctrldll = None
        self.PlayCtrl_Port = c_long(-1)
        self.lUserId = None
        self.lRealPlayHandle = None

        # 回调函数
        self.funcRealDataCallBack_V30 = None
        self.FuncDecCB = None

        # GUI相关
        self.win = None
        self.cv = None
        self.current_command = None  # 当前控制命令

        # 云台状态跟踪
        self.ptz_limits = {
            TILT_DOWN: False,  # 跟踪下极限状态
            TILT_UP: False,  # 跟踪上极限状态
            PAN_LEFT: False,  # 跟踪左极限状态
            PAN_RIGHT: False  # 跟踪右极限状态
        }

        # 初始化
        self.initialize_sdk()
        self.setup_gui()

    def setup_gui(self):
        """设置GUI界面"""
        self.win = tk.Tk()
        self.win.title("PTZ摄像头控制系统")

        # 设置窗口大小 - 适应1920x1080屏幕
        self.win.geometry("1000x700")
        self.win.minsize(800, 600)

        # 创建主框架
        main_frame = ttk.Frame(self.win, padding="10")
        main_frame.pack(fill=tk.BOTH, expand=True)

        # 视频显示区域 - 使用16:9比例
        video_frame = ttk.LabelFrame(main_frame, text="视频预览", padding="5")
        video_frame.pack(fill=tk.BOTH, expand=True, pady=(0, 10))

        # 设置视频显示区域为16:9比例 (854x480)
        video_width = 854
        video_height = 480
        self.cv = tk.Canvas(video_frame, bg='black', width=video_width, height=video_height)
        self.cv.pack(fill=tk.BOTH, expand=True)

        # 控制按钮区域
        control_frame = ttk.LabelFrame(main_frame, text="云台控制", padding="10")
        control_frame.pack(fill=tk.X, pady=5)

        # 云台控制按钮布局
        self.create_control_buttons(control_frame)

        # 状态栏
        status_frame = ttk.Frame(main_frame)
        status_frame.pack(fill=tk.X, pady=5)

        self.status_label = ttk.Label(status_frame, text="系统就绪", foreground="green")
        self.status_label.pack(side=tk.LEFT)

        ttk.Button(status_frame, text="退出", command=self.cleanup).pack(side=tk.RIGHT)

    def create_control_buttons(self, parent):
        """创建云台控制按钮 - 简化布局确保显示"""
        # 使用Frame来组织按钮布局
        button_frame = ttk.Frame(parent)
        button_frame.pack(fill=tk.X, pady=10)

        # 按钮配置
        button_config = {
            'width': 8,
            'padding': (5, 3)
        }

        # 创建所有按钮并放在同一行
        buttons = [
            ("上", TILT_UP),
            ("下", TILT_DOWN),
            ("左", PAN_LEFT),
            ("右", PAN_RIGHT),
            ("放大", ZOOM_IN),
            ("缩小", ZOOM_OUT)
        ]

        self.control_buttons = {}  # 存储按钮引用

        # 添加一个居中的容器来确保按钮居中显示
        center_frame = ttk.Frame(button_frame)
        center_frame.pack(expand=True)

        for text, command in buttons:
            btn = ttk.Button(center_frame, text=text, **button_config)
            btn.pack(side=tk.LEFT, padx=5)

            # 绑定事件
            btn.bind('<ButtonPress-1>', lambda e, cmd=command: self.ptz_control_start(cmd))
            btn.bind('<ButtonRelease-1>', lambda e, cmd=command: self.ptz_control_stop(cmd))

            # 存储按钮引用
            self.control_buttons[command] = btn

    def ptz_control_start(self, command):
        """开始云台控制"""
        # 检查极限状态
        if self.ptz_limits.get(command, False):
            direction_names = {
                PAN_LEFT: "向左", PAN_RIGHT: "向右",
                TILT_UP: "向上", TILT_DOWN: "向下",
                ZOOM_IN: "放大", ZOOM_OUT: "缩小"
            }
            direction = direction_names.get(command, "未知")
            self.status_label.config(text=f"云台已到达{direction}极限，无法继续移动", foreground="orange")
            return

        speed = 7  # 默认速度
        self.current_command = command

        # 开始控制
        lRet = self.Objdll.NET_DVR_PTZControlWithSpeed(self.lRealPlayHandle, command, 0, speed)

        if lRet == 0:
            error_code = self.Objdll.NET_DVR_GetLastError()
            self.status_label.config(text=f"控制失败，错误码: {error_code}", foreground="red")
            print(f'PTZ control fail, error code is: {error_code}')

            # 如果控制失败，可能是到达极限，更新状态
            if error_code in [7, 8]:  # 常见的极限错误码，具体根据SDK文档调整
                self.ptz_limits[command] = True
                direction_names = {
                    PAN_LEFT: "向左", PAN_RIGHT: "向右",
                    TILT_UP: "向上", TILT_DOWN: "向下",
                    ZOOM_IN: "放大", ZOOM_OUT: "缩小"
                }
                direction = direction_names.get(command, "未知")
                self.status_label.config(text=f"云台已到达{direction}极限", foreground="orange")
        else:
            direction_names = {
                PAN_LEFT: "向左", PAN_RIGHT: "向右",
                TILT_UP: "向上", TILT_DOWN: "向下",
                ZOOM_IN: "放大", ZOOM_OUT: "缩小"
            }
            direction = direction_names.get(command, "未知")
            self.status_label.config(text=f"云台{direction}转动中...", foreground="blue")
            print(f'PTZ control started: {direction}')

            # 重置相反方向的极限状态
            opposite_commands = {
                TILT_UP: TILT_DOWN,
                TILT_DOWN: TILT_UP,
                PAN_LEFT: PAN_RIGHT,
                PAN_RIGHT: PAN_LEFT,
                ZOOM_IN: ZOOM_OUT,
                ZOOM_OUT: ZOOM_IN
            }
            if command in opposite_commands:
                self.ptz_limits[opposite_commands[command]] = False

    def ptz_control_stop(self, command):
        """停止云台控制"""
        speed = 7

        # 如果已经到达极限，直接返回
        if self.ptz_limits.get(command, False):
            return

        lRet = self.Objdll.NET_DVR_PTZControlWithSpeed(self.lRealPlayHandle, command, 1, speed)

        if lRet:
            direction_names = {
                PAN_LEFT: "向左", PAN_RIGHT: "向右",
                TILT_UP: "向上", TILT_DOWN: "向下",
                ZOOM_IN: "放大", ZOOM_OUT: "缩小"
            }
            direction = direction_names.get(command, "未知")
            self.status_label.config(text=f"云台停止{direction}转动", foreground="green")
            print(f'PTZ control stopped: {direction}')
        else:
            error_code = self.Objdll.NET_DVR_GetLastError()
            self.status_label.config(text=f"停止控制失败，错误码: {error_code}", foreground="red")

        self.current_command = None

    def initialize_sdk(self):
        """初始化SDK"""
        # 加载库
        if self.WINDOWS_FLAG:
            os.chdir(r'./lib/win')
            self.Objdll = ctypes.CDLL(r'./HCNetSDK.dll')
            self.Playctrldll = ctypes.CDLL(r'./PlayCtrl.dll')
        else:
            os.chdir(r'./lib/linux')
            self.Objdll = cdll.LoadLibrary(r'./libhcnetsdk.so')
            self.Playctrldll = cdll.LoadLibrary(r'./libPlayCtrl.so')

        # 设置SDK初始化配置
        self.set_sdk_init_cfg()

        # 初始化DLL
        self.Objdll.NET_DVR_Init()
        self.Objdll.NET_DVR_SetLogToFile(3, bytes('./SdkLog_Python/', encoding="utf-8"), False)

        # 获取播放句柄
        if not self.Playctrldll.PlayM4_GetPort(byref(self.PlayCtrl_Port)):
            print('获取播放库句柄失败')

        # 登录设备
        if not self.login_dev():
            print("设备登录失败")
            return False

        # 开始预览
        if not self.start_preview():
            print("开始预览失败")
            return False

        return True

    def set_sdk_init_cfg(self):
        """设置SDK初始化配置"""
        if self.WINDOWS_FLAG:
            strPath = os.getcwd().encode('gbk')
            sdk_ComPath = NET_DVR_LOCAL_SDK_PATH()
            sdk_ComPath.sPath = strPath
            self.Objdll.NET_DVR_SetSDKInitCfg(2, byref(sdk_ComPath))
            self.Objdll.NET_DVR_SetSDKInitCfg(3, create_string_buffer(strPath + b'\libcrypto-1_1-x64.dll'))
            self.Objdll.NET_DVR_SetSDKInitCfg(4, create_string_buffer(strPath + b'\libssl-1_1-x64.dll'))
        else:
            strPath = os.getcwd().encode('utf-8')
            sdk_ComPath = NET_DVR_LOCAL_SDK_PATH()
            sdk_ComPath.sPath = strPath
            self.Objdll.NET_DVR_SetSDKInitCfg(2, byref(sdk_ComPath))
            self.Objdll.NET_DVR_SetSDKInitCfg(3, create_string_buffer(strPath + b'/libcrypto.so.1.1'))
            self.Objdll.NET_DVR_SetSDKInitCfg(4, create_string_buffer(strPath + b'/libssl.so.1.1'))

    def login_dev(self):
        """登录设备"""
        device_info = NET_DVR_DEVICEINFO_V30()
        self.lUserId = self.Objdll.NET_DVR_Login_V30(
            self.DEV_IP, self.DEV_PORT, self.DEV_USER_NAME, self.DEV_PASSWORD, byref(device_info))

        if self.lUserId < 0:
            print('Login device fail, error code is: %d' % self.Objdll.NET_DVR_GetLastError())
            return False
        return True

    def start_preview(self):
        """开始预览"""
        preview_info = NET_DVR_PREVIEWINFO()
        preview_info.hPlayWnd = 0
        preview_info.lChannel = 1
        preview_info.dwStreamType = 0
        preview_info.dwLinkMode = 0
        preview_info.bBlocked = 1

        self.funcRealDataCallBack_V30 = REALDATACALLBACK(self.RealDataCallBack_V30)
        self.lRealPlayHandle = self.Objdll.NET_DVR_RealPlay_V40(
            self.lUserId, byref(preview_info), self.funcRealDataCallBack_V30, None)

        if self.lRealPlayHandle < 0:
            print('Open preview fail, error code is: %d' % self.Objdll.NET_DVR_GetLastError())
            return False
        return True

    def RealDataCallBack_V30(self, lPlayHandle, dwDataType, pBuffer, dwBufSize, pUser):
        """实时数据回调"""
        if dwDataType == NET_DVR_SYSHEAD:
            self.Playctrldll.PlayM4_SetStreamOpenMode(self.PlayCtrl_Port, 0)
            if self.Playctrldll.PlayM4_OpenStream(self.PlayCtrl_Port, pBuffer, dwBufSize, 1024 * 1024):
                self.FuncDecCB = DECCBFUNWIN(self.DecCBFun)
                self.Playctrldll.PlayM4_SetDecCallBackExMend(self.PlayCtrl_Port, self.FuncDecCB, None, 0, None)
                if self.Playctrldll.PlayM4_Play(self.PlayCtrl_Port, self.cv.winfo_id()):
                    print('播放库播放成功')
                    self.status_label.config(text="视频播放中", foreground="green")
                else:
                    print('播放库播放失败')
            else:
                print('播放库打开流失败')
        elif dwDataType == NET_DVR_STREAMDATA:
            self.Playctrldll.PlayM4_InputData(self.PlayCtrl_Port, pBuffer, dwBufSize)

    def DecCBFun(self, nPort, pBuf, nSize, pFrameInfo, nUser, nReserved2):
        """解码回调函数"""
        pass  # 可以在这里添加图像处理代码

    def cleanup(self):
        """清理资源"""
        self.status_label.config(text="正在关闭...", foreground="orange")

        # 确保停止所有云台控制
        if self.current_command is not None:
            self.ptz_control_stop(self.current_command)

        if self.lRealPlayHandle is not None:
            self.Objdll.NET_DVR_StopRealPlay(self.lRealPlayHandle)

        if self.PlayCtrl_Port.value > -1:
            self.Playctrldll.PlayM4_Stop(self.PlayCtrl_Port)
            self.Playctrldll.PlayM4_CloseStream(self.PlayCtrl_Port)
            self.Playctrldll.PlayM4_FreePort(self.PlayCtrl_Port)

        if self.lUserId is not None:
            self.Objdll.NET_DVR_Logout(self.lUserId)

        self.Objdll.NET_DVR_Cleanup()
        self.win.quit()

    def run(self):
        """运行应用程序"""
        try:
            self.win.mainloop()
        except Exception as e:
            print(f"运行错误: {e}")
        finally:
            self.cleanup()


if __name__ == '__main__':
    app = PTZCameraController()
    app.run()

火山引擎 ADG 社区

火山引擎开发者社区是火山引擎打造的AI技术生态平台，聚焦Agent与大模型开发，提供豆包系列模型（图像/视频/视觉）、智能分析与会话工具，并配套评测集、动手实验室及行业案例库。社区通过技术沙龙、挑战赛等活动促进开发者成长，新用户可领50万Tokens权益，助力构建智能应用。

更多推荐

Chess用户界面设计：Tailwind CSS样式系统和组件库

GitHub推荐项目精选中的ch/chess是一个类似chess.com的多人在线象棋平台，它采用现代化的前端技术栈构建，尤其在用户界面设计上通过Tailwind CSS样式系统和组件库实现了优雅且功能丰富的交互体验。本文将深入探讨该项目如何利用Tailwind CSS打造一致的设计语言和高效的组件系统，为象棋爱好者提供沉浸式的游戏界面。## 🎨 Tailwind CSS样式系统：构建统一视

火山引擎 ADG 社区

终极指南：GPT-Engineer如何通过AI自动发现代码问题并提升质量

GPT-Engineer是一款强大的AI驱动代码工具，它能帮助开发者自动检测潜在代码问题、优化代码质量，让编程效率提升3倍以上。无论是新手还是资深开发者，都能通过这款工具轻松发现代码中的隐藏缺陷，减少调试时间，释放更多精力在创造性工作上。## 一键发现代码问题：GPT-Engineer的AI审查魔力GPT-Engineer的核心能力在于其内置的智能代码分析系统。通过集成Python代码格式

火山引擎 ADG 社区

SatDump中的纠错编码技术：从RS码到Turbo码的完整实现指南

在卫星数据传输过程中，信号往往会受到各种干扰，导致数据错误。SatDump作为一款通用卫星数据处理软件，集成了多种先进的纠错编码技术，确保从卫星接收到的数据能够准确解码。本文将深入解析SatDump中从Reed-Solomon（RS）码到Turbo码的实现细节，帮助读者理解这些技术如何保障卫星通信的可靠性。## 为什么纠错编码对卫星数据至关重要？卫星与地面站之间的通信链路面临着空间辐射、大
