Unity 使用ScrollRect制作按钮翻页效果
本文介绍了在Unity中实现ScrollRect翻页效果的两种方法。第一种通过修改horizontalNormalizedPosition属性,根据页数n将页面位置均匀分布在0到1之间(位置计算公式为1/(n-1)),配合Lerp函数实现平滑滚动。第二种使用Dotween插件和IEndDragHandler接口,通过计算滑动距离和方向来确定目标页位置,实现更流畅的拖动翻页效果。两种方法都提供了完整
记录一下,主要是看别人讲的课程,实在不堪入目,数据都是模糊的,碰巧正确,就做了下面这个,也是清清白白。
通过修改scrollRect的horizontalNormalizedPosition来做出翻页效果。
首先需要找出每一页的位置规律:当有两页时:horizontalNormalizedPosition分别是0,1;当有三页时,horizontalNormalizedPosition分别是0,0.5,1;当有四页时,horizontalNormalizedPosition的值是0,0.33,066,1。由此可知 当有n页时,每一页所占的位置是1/(n-1)。那么有了规律之后就好办了。

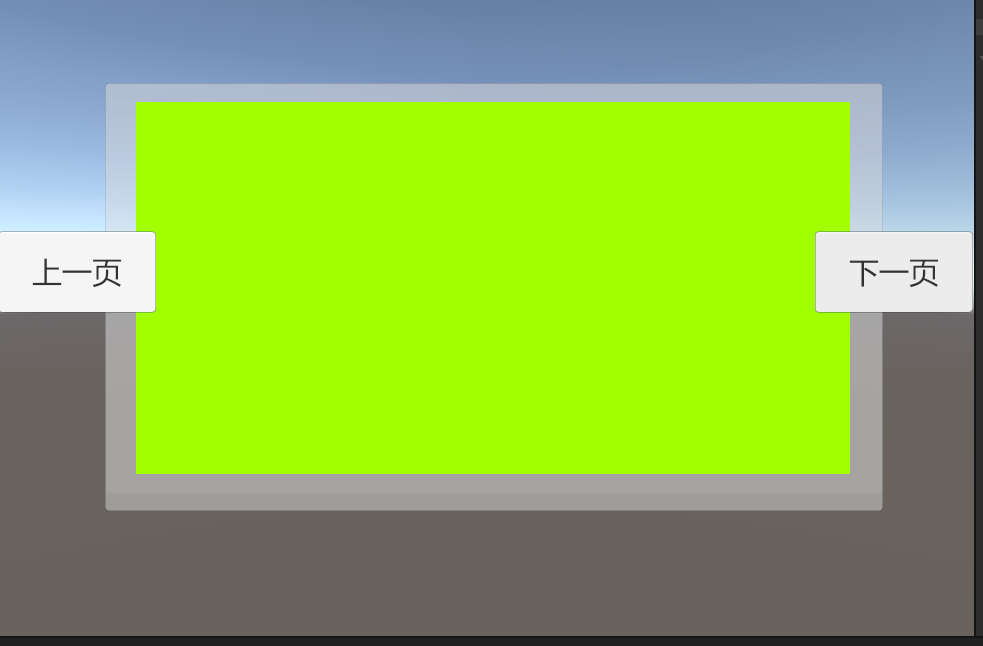

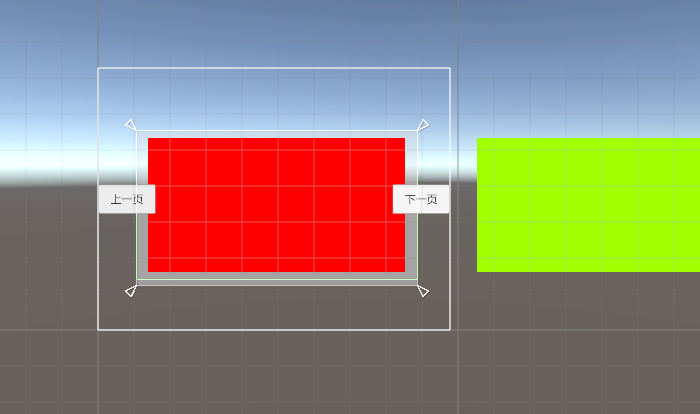

建一个简易scrollRect如下图。

贴上代码如下:
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
public class PageScrollView : MonoBehaviour
{
ScrollRect rect;
int pageCount;//页数
Transform content;
public float[] pages;//保存页面的位置
//public float moveTime = 0.3f;//可设置滚动时间
private int currentPage = 0;//当前页
private int perPageCount=2;//每一页的item个数
public Button nextBtn;
public Button lastBtn;
public float targePage;//目标页
private bool isRoll;//控制滚动
private void Start()
{
rect = GetComponent<ScrollRect>();
if (rect == null)
Debug.LogError("未查询到ScrollRect");
content = rect.transform.Find("Viewport/Content");
pageCount = Mathf.CeilToInt(content.childCount / perPageCount);
pages = new float[pageCount];
for (int i = 0; i < pages.Length; i++)
{
pages[i] = i * (1 / (float)(pageCount - 1));
}
nextBtn.onClick.AddListener(() =>
{
if (currentPage + 1 < pages.Length)
{
isRoll = true;
targePage = pages[currentPage + 1];
currentPage += 1;
if (targePage > 1)
targePage = 1;
}
});
//上一页
lastBtn.onClick.AddListener(delegate
{
if (currentPage - 1 >= 0)
{
isRoll = true;
targePage = pages[currentPage - 1];
currentPage -= 1;
if (targePage < 0)
targePage = 0;
}
});
}
private void Update()
{
//翻页
if (isRoll)
{
if (Mathf.Abs(rect.horizontalNormalizedPosition - targePage) < 0.01f)
{
rect.horizontalNormalizedPosition = targePage;
isRoll = false;
return;
}
//设置水平滚动位置
rect.horizontalNormalizedPosition = Mathf.Lerp(rect.horizontalNormalizedPosition, targePage, Time.timeScale * 0.1f);
}
}
}
手动设置上一页按钮及下一页按钮 测试能行。


另外除了原作者在Update中实现缓动效果 ,也可以使用Dotween来实现缓动效果,我是使用的IEndDragHandler接口实现,测试效果OK,调试和效果比Update好很多。
public void OnEndDrag(PointerEventData eventData)
{
float offSetX = 0;
endPositionX = eventData.position.x;
offSetX = endPositionX - beginPositionX;
if (offSetX > 0) //右滑
{
if (currentIndex <= 0)
{
return;
}
int moveCount = (int) (offSetX / oneItemLength);
currentIndex -= moveCount;
if (currentIndex <= 0)
{
currentIndex = 0;
}
// scrollRect.horizontalNormalizedPosition = (float) currentIndex / (totalItemNum - 1);
targetPage = (float) currentIndex / (totalItemNum - 1);
DOTween.To(()=>scrollRect.horizontalNormalizedPosition, x=> scrollRect.horizontalNormalizedPosition = x, targetPage, 0.5f);
// isRoll = true;
}
else//左滑
{
if (currentIndex >= totalItemNum - 1)
{
return;
}
int moveCount = (int) (offSetX / oneItemLength);
currentIndex += Mathf.Abs(moveCount);
if (currentIndex >= totalItemNum - 1)
{
currentIndex = totalItemNum - 1;
}
// scrollRect.horizontalNormalizedPosition = (float) currentIndex / (totalItemNum - 1);
targetPage = (float) currentIndex / (totalItemNum - 1);
DOTween.To(()=>scrollRect.horizontalNormalizedPosition, x=> scrollRect.horizontalNormalizedPosition = x, targetPage, 0.5f);
// isRoll = true;
}
