uniapp实现菜单拖拽排序drag
·
项目中拆分出来的静态模板，微信小程序没测试过，H5和APP是没问题的，有点小bug
代码为 vue2

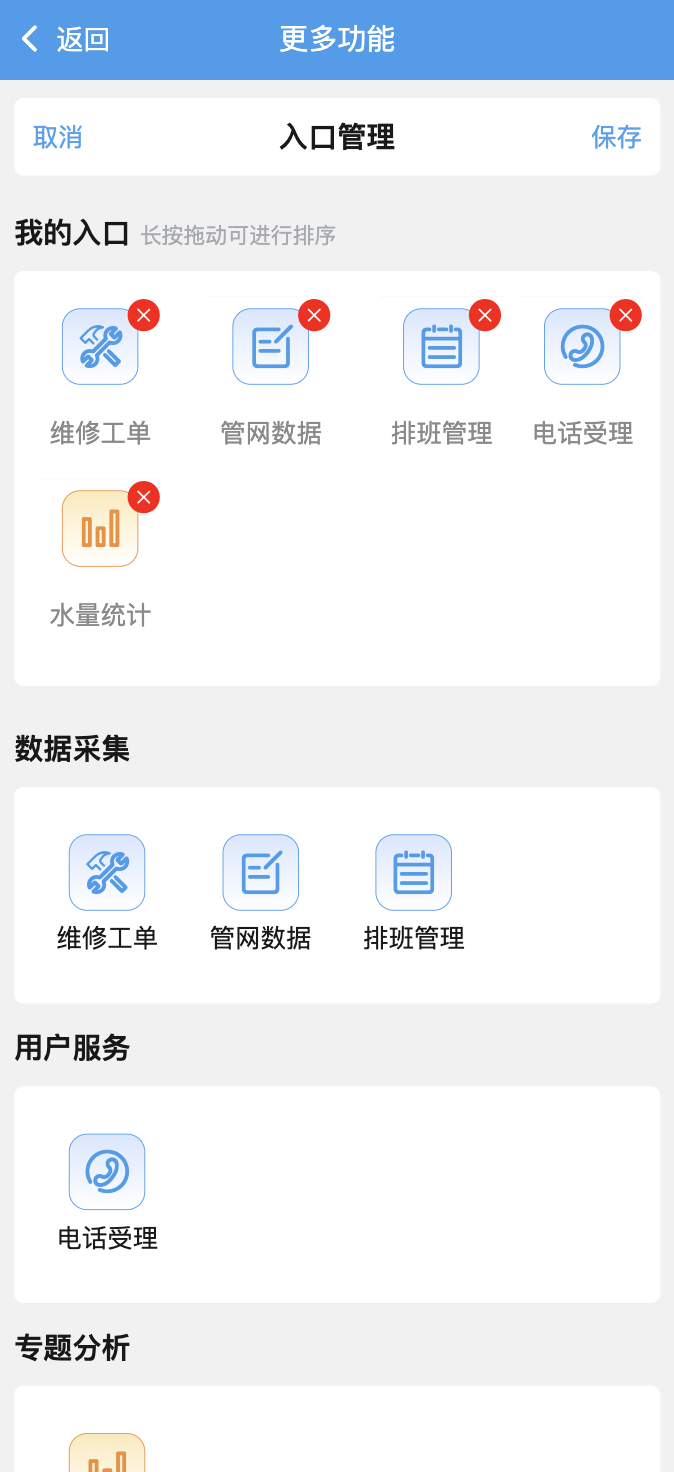

先上图

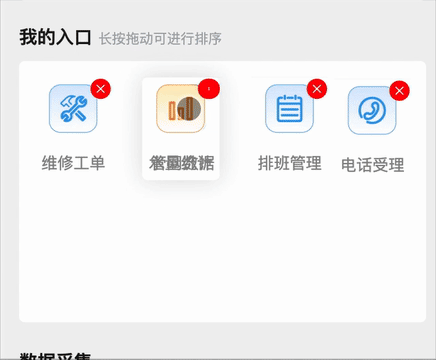

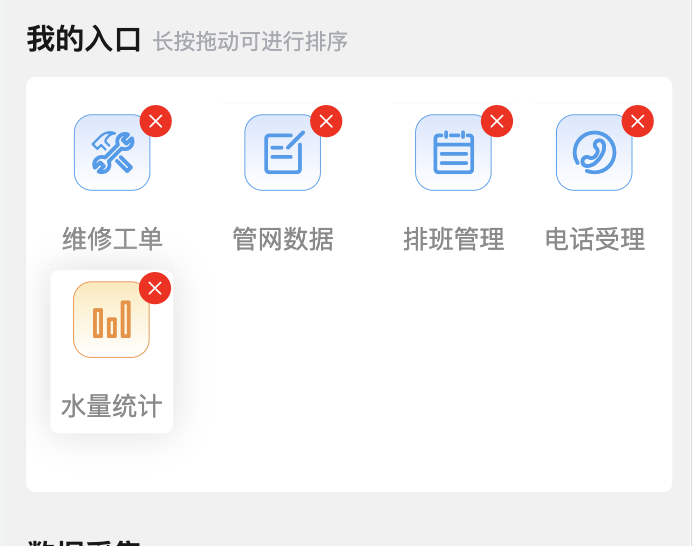

长按的效果可拖动菜单
git图生成的有些卡顿,实际效果不卡顿
废话不多说了,上代码
drag-sorts.vue
<template>
<view class="">
<view v-if="currentList.length > 0">
<movable-area class="drag-sort" :style="{ height: boxHeight }" id="drag">
<movable-view v-for="(item, index) in currentList" :key="index" :x="item.x" v-if="item.isShow === 1"
:data-index="index" @touchstart="touchstart" @touchmove.stop.prevent="touchmove"
@touchend="touchend" :y="item.y" :direction="direction" disabled damping="40"
:animation="item.animation" class="drag-sort-item"
:class="{ 'active': active == index, 'vh-1px-t': item.index > 0, width: gridItemHeight + 'rpx' }">
<view class="grid-item-box1" :style="{ width: gridItemHeight + 'rpx' }">
<view class="item-img">
<myIcon :iconName="item.iconName" :backgroundColor="item.backgroundColor"
:borderColor="item.borderColor" :iconImg="item.iconImg || ''"></myIcon>
</view>
<text class="text">{{ item.title }}</text>
<view class="closeBtn" @click="close(index)" style="width: 50rpx;height: 50rpx;">
<view class="cuIcon-roundclosefill" style="color: red; font-size: 40rpx;"></view>
</view>
</view>
</movable-view>
</movable-area>
</view>
<view v-else class="deag-empty-box">
<view class="drag-empty">
暂无内容
</view>
</view>
</view>
</template>
<script>
import myIcon from '@/components/my-icon/my-icon.vue'
export default {
name: 'drag-sort',
mixins: [],
components: {
myIcon
},
data () {
return {
direction: "all",
windowWidth: 100, //屏幕宽度
height: 100, // 高度
currentList: [],
active: -1, // 当前激活的item
index: 0, // 当前激活的item的原index
topY: 0, // 距离顶部的距离
topX: 0, // 距离左侧偏移位置
deviationX: 0,
deviationY: 0,// 偏移量
gridItemHeight: 710 / 4
}
},
computed: {
boxHeight () {
return (Math.ceil((Number(this.list.length) ) / 4)) * this.height + 'px'
}
},
props: {
list: {
type: Array,
default: () => {
return []
}
},
boxStyle: {
type: Object,
default: () => {
return {}
}
},
props: {
type: Object,
default: () => {
return {
label: 'label',
value: 'value'
}
}
}
},
watch: {
list: {
handler () {
this.onUpdateCurrentList()
},
deep: true
}
},
created () {
const res = uni.getSystemInfoSync();
this.windowWidth = res.windowWidth
this.onUpdateCurrentList()
},
mounted () { },
updated () { },
filters: {},
methods: {
onUpdateCurrentList (list = this.list) {
const windowWidth = this.windowWidth || 0;
const itemWidth = windowWidth / 4; // 每个图标的宽度（自动适应）
const paddingX = itemWidth * 0.05; // 内边距，控制左右留白
const usableWidth = itemWidth - paddingX * 2; // 可用宽度
let arr = [];
list.forEach((item, index) => {
const row = Math.floor(index / 4); // 行号
const col = index % 4; // 列号
const x = col * itemWidth + paddingX;
const y = row * this.height;
arr.push({
...item,
isShow: 1,
index,
SortNumber: index,
x,
y,
animation: true
});
});
this.currentList = arr;
},
// 根据排序进行重新计算位置
moveUpdateCurrentList (index) {
const COLUMN_COUNT = 4;
// 防止 currentList 不存在或为空
if (!Array.isArray(this.currentList) || this.currentList.length === 0) {
return;
}
this.currentList.forEach((item, i) => {
// 确保 SortNumber 合法
let sortNum = parseInt(item.SortNumber, 10);
if (isNaN(sortNum) || sortNum < 0) {
console.warn(`Invalid SortNumber: ${item.SortNumber}`);
sortNum = 0; // 默认值或根据业务设定
}
const row = Math.floor(sortNum / COLUMN_COUNT);
const col = sortNum % COLUMN_COUNT;
// 使用 $set 确保 Vue 正确响应 x/y 的变化（适用于 Vue 2）
this.$set(item, 'y', row * this.height);
this.$set(item, 'x', col * (this.windowWidth / COLUMN_COUNT) + (this.windowWidth / COLUMN_COUNT) * 0.05);
});
// 先序列化，便于后续扩展或调试
const serializedList = JSON.stringify(this.currentList);
this.$emit('change', serializedList, index);
},
touchstart (e) {
// 阻止事件冒泡到父级
e.stopPropagation();
// 计算 x y 轴点击位置
var query = uni.createSelectorQuery().in(this)
query.select('#drag').boundingClientRect()
query.exec((res) => {
this.topY = res[0].top
this.topX = res[0].left
let touchY = e.mp.touches[0].clientY - res[0].top
let touchX = e.mp.touches[0].clientX - res[0].left
this.deviationY = touchY % this.height
this.deviationX = touchX % (this.windowWidth * 0.2)
this.active = Number(e.currentTarget.dataset.index)
this.index = Number(e.currentTarget.dataset.index)
})
},
touchmove (e) {
if (this.active < 0) return
// 阻止事件冒泡到父级
e.stopPropagation();
let temY = e.mp.touches[0].clientY - this.topY
let temX = e.mp.touches[0].clientX - this.topX
let touchY = temY - 30
let touchX = temX - this.windowWidth * 0.1
this.currentList[this.active].y = touchY
this.currentList[this.active].x = touchX
this.currentList[this.active].animation = false
this.currentList.every((res, index) => {
let absX = Math.abs(touchX - res.x)
let absY = Math.abs(touchY - res.y)
// 设置元素定点距离多少进行重排
if (res.isShow == 0) {
return true
}
if (0 < absX && absX <= 20 && absY > 0 && absY <= 40 && this.active != index) {
// debugger
let temNumber = this.currentList[index].SortNumber
this.currentList.every((_res, _index) => {
// 判断从大像小移还是从小向大移
if (this.currentList[this.active].SortNumber < this.currentList[index].SortNumber) {
// 移动元素比目标元素所在位置小，之间元素排序--
if (this.currentList[_index].SortNumber > this.currentList[this.active].SortNumber && this.currentList[
_index].SortNumber <= this.currentList[index].SortNumber) {
_res.SortNumber--
}
} else {
// 反之++
if (this.currentList[_index].SortNumber < this.currentList[this.active].SortNumber && this.currentList[
_index].SortNumber >= this.currentList[index].SortNumber) {
_res.SortNumber++
}
}
return true
}, this)
this.currentList[this.active].SortNumber = temNumber
this.moveUpdateCurrentList(temNumber)
return false
} else {
return true
}
}, this)
},
touchend (e) {
if (this.currentList[this.active]) {
this.currentList[this.active].animation = true
}
this.moveUpdateCurrentList(-1)
this.active = -1
},
// 关闭按钮
close (index) {
// debugger
this.currentList.forEach((item, i) => {
if (this.currentList[i].SortNumber > this.currentList[index].SortNumber) {
item.SortNumber--
}
})
this.moveUpdateCurrentList(-1)
this.currentList[index].isShow = 0
// console.log(this.currentList)
this.$emit('delImgIdx', { index: index, list: JSON.stringify(this.currentList) });
}
}
}
</script>
<style lang='less' scoped>
@import "~./1px.less";
.drag-sort {
width: 100%;
}
.zy-grid {
width: 100%;
position: absolute;
top: 550rpx;
/* #ifndef APP-NVUE */
display: block;
/* #endif */
padding: 10rpx 20rpx;
}
.imgBox {
width: 100%;
height: 100%;
// background-color: #09BB07;
display: flex;
flex-direction: row;
flex-wrap: wrap;
padding: 10rpx 20rpx;
.imgItem {
position: relative;
image {
width: 60rpx;
height: 60rpx;
transition: all 0.5s;
vertical-align: top;
}
.closeBtn {
background-color: red;
border-radius: 50%;
text-align: center;
position: absolute;
top: 0;
right: 0;
line-height: 20px;
z-index: 3;
transform: translate(50%, -50%);
}
}
}
.grid-item-box1 {
padding: 20rpx 0rpx;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
position: relative;
.item-img {
display: flex;
flex-direction: row;
background-color: #FFFFFF;
border-radius: 50%;
width: 100rpx;
height: 100rpx;
align-items: center;
justify-content: center;
}
image {
width: 60rpx;
height: 60rpx;
}
text {
margin-top: 20rpx;
color: #8A8A8A;
font-size: 28rpx;
}
.closeBtn {
border-radius: 50%;
text-align: center;
position: absolute;
top: 36rpx;
right: 20rpx;
line-height: 20px;
z-index: 3;
transform: translate(50%, -50%);
}
}
.drag-sort-item {
position: absolute !important;
display: flex;
align-items: center;
height: 180rpx;
width: 20%;
text-align: center;
/* border-radius: 5px; */
box-sizing: border-box;
}
.touch {
height: 100%;
width: 50px;
}
.active {
box-shadow: 0 0 40rpx #DDDDDD;
z-index: 99;
border-radius: 10rpx;
}
.deag-empty-box {
width: 100%;
height: 200rpx;
display: flex;
justify-content: center;
align-items: center;
}
.drag-empty {
text-align: center;
font-size: 28rpx;
color: #999;
}
</style>
1px.less
.setLine(@c: #eee) {
content: " ";
position: absolute;
left: 0;
top: 0;
width: 200%;
border: 1rpx solid @c;
color: @c;
height: 200%;
transform-origin: left top;
transform: scale(0.5);
}
.vh-1px, .vh-1px-t, .vh-1px-b, .vh-1px-tb, .vh-1px-l, .vh-1px-r {
position: relative;
}
.vh-1px {
&:before {
.setLine();
}
}
.vh-1px-t {
&:before {
.setTopLine();
}
}
.vh-1px-b {
&:after {
.setBottomLine();
}
}
.vh-1px-tb {
&:before {
.setTopLine();
}
&:after {
.setBottomLine();
}
}
.vh-1px-l {
&:before {
.setLeftLine();
}
}
.vh-1px-r {
&:after {
.setRightLine();
}
}
.setTopLine(@c: #eee) {
content: " ";
position: absolute;
left: 0;
top: 0;
right: 0;
height: 1rpx;
border-top: 1rpx solid @c;
color: @c;
transform-origin: 0 0;
transform: scaleY(0.5);
}
.setBottomLine(@c: #eee) {
content: " ";
position: absolute;
left: 0;
bottom: 0;
right: 0;
height: 1rpx;
border-bottom: 1rpx solid @c;
color: @c;
transform-origin: 0 100%;
transform: scaleY(0.5);
}
.setLeftLine(@c: #eee) {
content: " ";
position: absolute;
left: 0;
top: 0;
width: 1rpx;
bottom: 0;
border-left: 1rpx solid @c;
color: @c;
transform-origin: 0 0;
transform: scaleX(0.5);
}
.setRightLine(@c: #eee) {
content: " ";
position: absolute;
right: 0;
top: 0;
width: 1rpx;
bottom: 0;
border-right: 1rpx solid @c;
color: @c;
transform-origin: 100% 0;
transform: scaleX(0.5);
}使用方法
<drag-sorts :list="dragMenuList" @change="onDragSortChange"
@delImgIdx="delMenuIdxHandle"></drag-sorts>菜单模版 (字段可自定义)
/**
* 数据采集
*/
export const menuList = [
{
auth: "home:repair",
iconName: "cuIcon-repair",
backgroundColor: "#d9e7fe",
borderColor: "#3E9BED",
title: "维修工单",
pagesPath: "/pages/eventReport/eventReportList?title=事件列表",
},
{
auth: "home:pipe",
iconName: "cuIcon-edit",
backgroundColor: "#d9e7fe",
borderColor: "#3E9BED",
title: "管网数据",
pagesPath: "/pages/lineMap/lineMarker",
},
{
auth: "home:scheduling",
iconName: "cuIcon-calendar",
backgroundColor: "#d9e7fe",
borderColor: "#3E9BED",
title: "排班管理",
pagesPath: "/pages/urws/urwsDutyScheduling",
},
];初始化菜单列表
computed: {
menuListWithAddedFlag () {
return this.menuList.map(item => ({
...item,
added: this.dragMenuList.some(dragItem => dragItem.title === item.title)
}));
},
menuListUHFWWithAddedFlag () {
return this.menuListUHFW.map(item => ({
...item,
added: this.dragMenuList.some(dragItem => dragItem.title === item.title)
}));
},
menuListTJFXWithAddedFlag () {
return this.menuListTJFX.map(item => ({
...item,
added: this.dragMenuList.some(dragItem => dragItem.title === item.title)
}));
}
},监听事件
// 拖拽菜单
onDragSortChange (list) {
let currentList = JSON.parse(list);
const sortedList = [...currentList].sort((a, b) => a.SortNumber - b.SortNumber);
this.sortDragMeenList = sortedList;
this.isDrag = true;
// console.log('排序后菜单===>', this.sortDragMeenList);
},
// 删除菜单
delMenuIdxHandle (data) {
// console.log('删除菜单===>', data.list);
let list = JSON.parse(data.list);
let menuItem = list[data.index];
menuItem.added = false;
this.dragMenuList = this.dragMenuList.filter(
item => item.title !== menuItem.title
);
// 还原状态
this.refreeshMenuAddedFlags(this.menuList, menuItem)
this.refreeshMenuAddedFlags(this.menuListUHFW, menuItem)
this.refreeshMenuAddedFlags(this.menuListTJFX, menuItem)
this.isDleMenu = true;
// console.log('菜单===>', this.dragMenuList);
},以上就是实现所有代码 测试 H5和App可用, 微信小程序没有测试
中国智能体开发者社区，聚焦智能体与大模型开发，提供前沿资讯、实用工具链、开源项目及行业案例。通过技术沙龙、开发者大赛等活动，促进经验交流与协作，助力开发者快速构建创新智能应用。
更多推荐
2
0- 0
已为社区贡献1条内容
所有评论(0)
