题目要求

服务器RouterSrv上的工作任务

OPENVPN

要求服务器日志记录客户端登录时间、用户名，格式如“2022-08-10: 08:10:30 Successful authentication: username="vpnuser1"”;

日志文件存放至/var/log/openvpn.log 中；

创建用户 vpnuser1,密码为 123456，使用用户名密码认证，要求只能与 InsideCli 客户端网段通信，允许访问 StorageSrv 主机上的 SAMBA 服务；

VPN 地址范围为 172.16.0.0/24，OPENVPN 使用 tcp 1194 端口号进行工作。

实验：

注意点：server和client必须是同步的时间

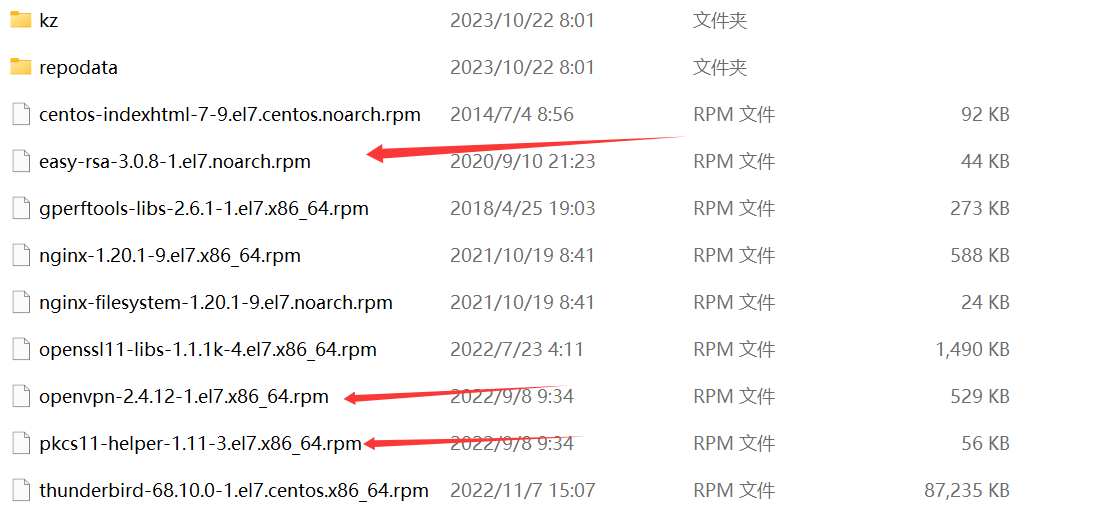

导包

下载服务

[root@routserv /]# yum install openvpn easy-rsa -y

将easyRsa（证书制作工具）复制到/etc/openvpn

[root@routesrv ~]# cp -rf /usr/share/easy-rsa/3/* /etc/openvpn/



创建证书文件（注意所有证书没有密码）

初始化，程序将自动创建pki目录:

[root@routesrv ~]# cd /etc/openvpn/

[root@routesrv openvpn]# ./easyrsa init-pki

init-pki complete; you may now create a CA or requests.

Your newly created PKI dir is: /etc/openvpn/pki



[root@routesrv openvpn]#

生成根证书 nopass表示不对ca加密:（直接回车）

[root@routesrv openvpn]# ./easyrsa build-ca nopass

Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017

Generating RSA private key, 2048 bit long modulus

............................................+++

 .....................+++

 e is 65537 (0x10001)

You are about to be asked to enter information that will be incorporated into your certificate request.

 What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

 For some fields there will be a default value,

If you enter '.', the field will be left blank.

----- Common Name (eg: your user, host, or server name) [Easy-RSA CA]:

 CA creation complete and you may now import and sign cert requests.

Your new CA certificate file for publishing is at:

/etc/openvpn/pki/ca.crt



服务器证书生成 Common Name直接回车使用默认名称：server

[root@routesrv openvpn]# ./easyrsa gen-req server nopass

 Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017 Generating a 2048 bit RSA private key

...............+++

.......................................+++

writing new private key to '/etc/openvpn/pki/easy-rsa-15746.IHk5zU/tmp.1tZRyT'

 -----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Common Name (eg: your user, host, or server name) [server]:



Keypair and certificate request completed. Your files are:

req: /etc/openvpn/pki/reqs/server.req

key: /etc/openvpn/pki/private/server.key

[root@routesrv openvpn]#

签署服务器证书：（输入yes）

[root@routesrv openvpn]# ./easyrsa sign-req server server

Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017

 You are about to sign the following certificate.

Please check over the details shown below for accuracy. Note that this request

 has not been cryptographically verified. Please be sure it came from a trusted

 source or that you have verified the request checksum with the sender.

Request subject, to be signed as a server certificate for 825 days:

subject= commonName                                 = server

Type the word 'yes' to continue, or any other input to abort.

  Confirm request details: yes

Using configuration from /etc/openvpn/pki/easy-rsa-15773.OwXZdU/tmp.K05m4j Check that the request matches the signature

Signature ok

The Subject's Distinguished Name is as follows
commonName            :ASN.1 12:'server'

Certificate is to be certified until Feb 13 06:07:59 2026 GMT (825 days)

 Write out databasewith 1 new entries

Data Base Updated

Certificate created at: /etc/openvpn/pki/issued/server.crt

 [root@routesrv openvpn]#

生成dh.pem：

[root@routesrv openvpn]# ./easyrsa gen-dh

Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017

Generating DH parameters, 2048 bit long safe prime, generator 2

this is going to take a long time

.........+............+....+.........................................................................................................................................+................++*++*

DH parameters of size 2048 created at /etc/openvpn/pki/dh.pem

 [root@routesrv openvpn]#

tls密钥生成：

[root@routesrv openvpn]# openvpn --genkey --secret ta.key

客户端证书生成：

[root@routesrv openvpn]# ./easyrsa gen-req client nopass

Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017

Generating a 2048 bit RSA private key

 .+++ ....................................................................+++

writing new private key to '/etc/openvpn/pki/easy-rsa-15860.KisxJN/tmp.UdLmjk'

-----

You are about to be asked to enter information that will be incorporated

 into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

 For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Common Name (eg: your user, host, or server name) [client]:

Keypair and certificate request completed. Your files are:

 req: /etc/openvpn/pki/reqs/client.req

key: /etc/openvpn/pki/private/client.key



[root@routesrv openvpn]#

配置服务器端（server）

复制模板文件：

[root@routesrv openvpn]# cp /usr/share/doc/openvpn-2.4.11/sample/sample-config-files/server.conf    /etc/openvpn/

[root@routesrv openvpn]# ll

总用量 104

drwxr-x---. 2 root openvpn     6 4月 21 2021 client

-rwxr-xr-x. 1 root root           76946 11月 11 14:04 easyrsa

-rw-r--r--. 1 root root            4616 11月 11 14:04 openssl-easyrsa.cnf

drwx------. 8 root root           4096 11月 11 14:10 pki

drwxr-x---. 2 root openvpn     6     4月 21 2021 server

-rw-r--r--. 1 root root            10784  11月 11 14:12 server.conf

-rw-------. 1 root root             636 11月 11 14:09 ta.key

drwxr-xr-x. 2 root root           122 11月 11 14:04 x509-types



[root@routesrv openvpn]#

编辑服务器文件：

[root@routesrv openvpn]# vim server.conf

 port 1194 # 32行

proto tcp # 35行

dev tun # 53行

ca pki/ca.crt # 78行

cert pki/issued/server.crt # 79行

key pki/private/server.key # 80行

dh pki/dh.pem # 85行

server 172.16.0.0 255.255.255.0 # 101行

#tls-auth ta.key 0 # This file is secret    # 244行进行注释

 #explicit-exit-notify 1                     # 315行进行注释

# 末尾添加

script-security 3

auth-user-pass-verify  /etc/openvpn/auth.sh via-env

username-as-common-name

client-cert-not-required

配置用户认证加日志：

[root@routesrv openvpn]# vim auth.sh

#!/bin/sh

PASSFILE="/etc/openvpn/user"

LOG_FILE="/var/log/openvpn.log"

TIME_STAMP=`date "+%Y-%m-%d %T"`

if [ ! -r "${PASSFILE}" ]; then

    echo "${TIME_STAMP}: Could not open password file \"${PASSFILE}\" for reading." >> ${LOG_FILE}

    exit 1

Fi

CORRECT_PASSWORD=`awk '!/^;/&&!/^#/&&$1=="'${username}'"{print $2;exit}' ${PASSFILE}`

if [ "${CORRECT_PASSWORD}" = "" ]; then

    echo "${TIME_STAMP}: User does not exist: username=\"${username}\", password=\"${password}\"." >> ${LOG_FILE}

    exit 1

fi

if [ "${password}" = "${CORRECT_PASSWORD}" ]; then

    echo "${TIME_STAMP}: Successful authentication: username=\"${username}\"." >> ${LOG_FILE}

    exit 0

fi

echo "${TIME_STAMP}: Incorrect password: username=\"${username}\", password=\"${password}\"." >> ${LOG_FILE}

exit 1

[root@routserv openvpn]# chmod +x /etc/openvpn/auth.sh

[root@routserv openvpn]# vim user

vpnuser1 123456

启动服务：

[root@routesrv openvpn]# systemctl restart openvpn@server

查看服务器状态：

[root@routesrv openvpn]# systemctl status openvpn@server
