mybatis-plus实现苍穹外卖项目，不定期更新-day1

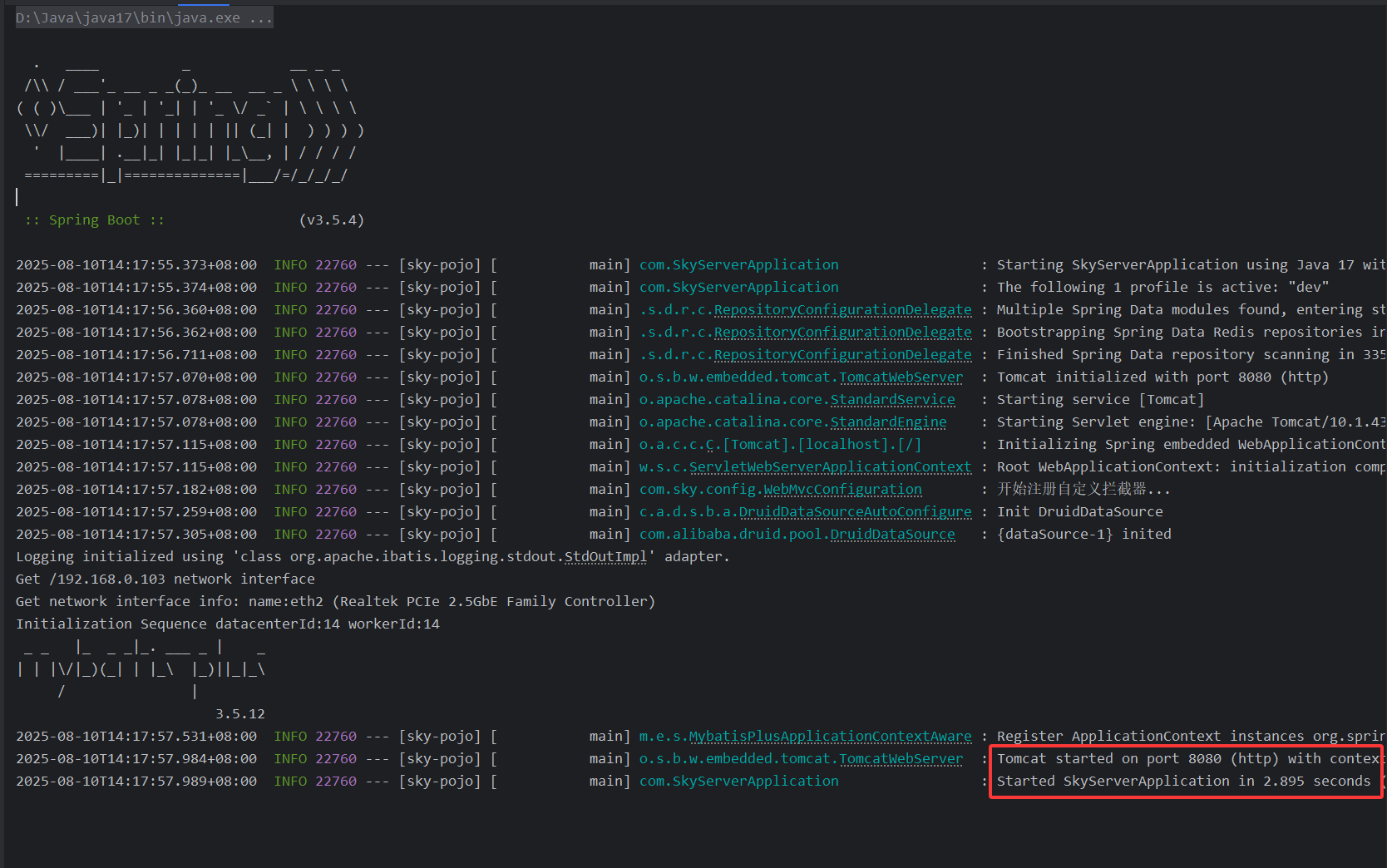

1、黑马培训班的《苍穹外卖项目》。第一天，用idea搭建出父工程和三个子工程，以及它们的pom文件；初始环境搭建成功验证。2、员工登录功能实现。
·
目录
1、修改后父工程（sky-take-out）的pom.xml
苍穹外卖mybatis-plus版
https://gitee.com/xxyzc/sky-take-out 后台初始代码，以此为标准，后续代码持续更新中。
一、苍穹外卖项目中我自己的想法
事前说明：原视频教程中使用的是mybaits，我想试试能不能通过mybatis-plus做一下这个项目。由于日常工作外加上我的私人生活，视频一天的课，我可能得一周甚至更多时间才能敲完。文章中插入的代码是实现上一个功能的基础上加上新的功能，所以想看这个模块的完整代码，直接看最后一个标题的内容或者通过我的gitee地址看就行。
能看到这个的，估计已经是看过视频了。所以，这篇笔记不会出现项目分析、介绍等东西，直接上代码，有些地方我可能会写上代码完成的功能。
二、项目使用环境
目前使用的是java17，MySQL8.0.28，maven3.8.0，spring-boot 3.5.4，nginx1.20.2。
1、application-dev.yml
sky:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
host: localhost
port: 3306
database: sky_take_out
username: root
password: 123456
type: com.alibaba.druid.pool.DruidDataSource2、application.yml
server:
port: 8080
spring:
profiles:
active: dev
main:
allow-circular-references: true
datasource:
druid:
driver-class-name: ${sky.datasource.driver-class-name}
url: jdbc:mysql://${sky.datasource.host}:${sky.datasource.port}/${sky.datasource.database}?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
username: ${sky.datasource.username}
password: ${sky.datasource.password}
db-type: ${sky.datasource.type}
mybatis-plus:
configuration:
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
mapper-locations: classpath*:mapper/*.xml
logging:
level:
com:
sky:
mapper: debug
service: info
controller: info
sky:
jwt:
# 设置jwt签名加密时使用的秘钥
admin-secret-key: 6abd54d390ff44e8ace5c9d85c11f3b3
# 设置jwt过期时间
admin-ttl: 7200000
# 设置前端传递过来的令牌名称
admin-token-name: token
knife4j: # knife4j的增强配置，不需要增强可以不配
enable: true # 开启knife4j,无需添加@EnableKnife4j注解
setting:
language: zh_cn #中文
swagger-model-name: 实体列表 #默认为: Swagger Models
springdoc:
api-docs:
path: /v3/api-docs
packages-to-scan:
group-configs:
- group: '权限管理'
paths-to-match:
- '/**'
packages-to-scan:
- com.atric.blog.controller.security
- group: '系统管理'
paths-to-match:
- '/**'
packages-to-scan:
- com.atric.blog.controller.system
3、创建SQL
CREATE DATABASE IF NOT EXISTS `sky_take_out` /*!40100 DEFAULT CHARACTER SET utf8 */ /*!80016 DEFAULT ENCRYPTION='N' */;
USE `sky_take_out`;
-- MySQL dump 10.13 Distrib 8.0.28, for Win64 (x86_64)
--
-- Host: localhost Database: sky_take_out
-- ------------------------------------------------------
-- Server version 8.0.28
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!50503 SET NAMES utf8 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
--
-- Table structure for table `address_book`
--
DROP TABLE IF EXISTS `address_book`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `address_book` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`user_id` bigint NOT NULL COMMENT '用户id',
`consignee` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT '收货人',
`sex` varchar(2) COLLATE utf8_bin DEFAULT NULL COMMENT '性别',
`phone` varchar(11) COLLATE utf8_bin NOT NULL COMMENT '手机号',
`province_code` varchar(12) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '省级区划编号',
`province_name` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '省级名称',
`city_code` varchar(12) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '市级区划编号',
`city_name` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '市级名称',
`district_code` varchar(12) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '区级区划编号',
`district_name` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '区级名称',
`detail` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '详细地址',
`label` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '标签',
`is_default` tinyint(1) NOT NULL DEFAULT '0' COMMENT '默认 0 否 1是',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='地址簿';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Table structure for table `category`
--
DROP TABLE IF EXISTS `category`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `category` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`type` int DEFAULT NULL COMMENT '类型 1 菜品分类 2 套餐分类',
`name` varchar(32) COLLATE utf8_bin NOT NULL COMMENT '分类名称',
`sort` int NOT NULL DEFAULT '0' COMMENT '顺序',
`status` int DEFAULT NULL COMMENT '分类状态 0:禁用，1:启用',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
`update_time` datetime DEFAULT NULL COMMENT '更新时间',
`create_user` bigint DEFAULT NULL COMMENT '创建人',
`update_user` bigint DEFAULT NULL COMMENT '修改人',
PRIMARY KEY (`id`),
UNIQUE KEY `idx_category_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=23 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='菜品及套餐分类';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `category`
--
/*!40000 ALTER TABLE `category` DISABLE KEYS */;
INSERT INTO `category` VALUES (11,1,'酒水饮料',10,1,'2022-06-09 22:09:18','2022-06-09 22:09:18',1,1);
INSERT INTO `category` VALUES (12,1,'传统主食',9,1,'2022-06-09 22:09:32','2022-06-09 22:18:53',1,1);
INSERT INTO `category` VALUES (13,2,'人气套餐',12,1,'2022-06-09 22:11:38','2022-06-10 11:04:40',1,1);
INSERT INTO `category` VALUES (15,2,'商务套餐',13,1,'2022-06-09 22:14:10','2022-06-10 11:04:48',1,1);
INSERT INTO `category` VALUES (16,1,'蜀味烤鱼',4,1,'2022-06-09 22:15:37','2022-08-31 14:27:25',1,1);
INSERT INTO `category` VALUES (17,1,'蜀味牛蛙',5,1,'2022-06-09 22:16:14','2022-08-31 14:39:44',1,1);
INSERT INTO `category` VALUES (18,1,'特色蒸菜',6,1,'2022-06-09 22:17:42','2022-06-09 22:17:42',1,1);
INSERT INTO `category` VALUES (19,1,'新鲜时蔬',7,1,'2022-06-09 22:18:12','2022-06-09 22:18:28',1,1);
INSERT INTO `category` VALUES (20,1,'水煮鱼',8,1,'2022-06-09 22:22:29','2022-06-09 22:23:45',1,1);
INSERT INTO `category` VALUES (21,1,'汤类',11,1,'2022-06-10 10:51:47','2022-06-10 10:51:47',1,1);
/*!40000 ALTER TABLE `category` ENABLE KEYS */;
--
-- Table structure for table `dish`
--
DROP TABLE IF EXISTS `dish`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `dish` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`name` varchar(32) COLLATE utf8_bin NOT NULL COMMENT '菜品名称',
`category_id` bigint NOT NULL COMMENT '菜品分类id',
`price` decimal(10,2) DEFAULT NULL COMMENT '菜品价格',
`image` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '图片',
`description` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '描述信息',
`status` int DEFAULT '1' COMMENT '0 停售 1 起售',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
`update_time` datetime DEFAULT NULL COMMENT '更新时间',
`create_user` bigint DEFAULT NULL COMMENT '创建人',
`update_user` bigint DEFAULT NULL COMMENT '修改人',
PRIMARY KEY (`id`),
UNIQUE KEY `idx_dish_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=70 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='菜品';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `dish`
--
/*!40000 ALTER TABLE `dish` DISABLE KEYS */;
INSERT INTO `dish` VALUES (46,'王老吉',11,6.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/41bfcacf-7ad4-4927-8b26-df366553a94c.png','',1,'2022-06-09 22:40:47','2022-06-09 22:40:47',1,1);
INSERT INTO `dish` VALUES (47,'北冰洋',11,4.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/4451d4be-89a2-4939-9c69-3a87151cb979.png','还是小时候的味道',1,'2022-06-10 09:18:49','2022-06-10 09:18:49',1,1);
INSERT INTO `dish` VALUES (48,'雪花啤酒',11,4.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/bf8cbfc1-04d2-40e8-9826-061ee41ab87c.png','',1,'2022-06-10 09:22:54','2022-06-10 09:22:54',1,1);
INSERT INTO `dish` VALUES (49,'米饭',12,2.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/76752350-2121-44d2-b477-10791c23a8ec.png','精选五常大米',1,'2022-06-10 09:30:17','2022-06-10 09:30:17',1,1);
INSERT INTO `dish` VALUES (50,'馒头',12,1.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/475cc599-8661-4899-8f9e-121dd8ef7d02.png','优质面粉',1,'2022-06-10 09:34:28','2022-06-10 09:34:28',1,1);
INSERT INTO `dish` VALUES (51,'老坛酸菜鱼',20,56.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/4a9cefba-6a74-467e-9fde-6e687ea725d7.png','原料：汤，草鱼，酸菜',1,'2022-06-10 09:40:51','2022-06-10 09:40:51',1,1);
INSERT INTO `dish` VALUES (52,'经典酸菜鮰鱼',20,66.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/5260ff39-986c-4a97-8850-2ec8c7583efc.png','原料：酸菜，江团，鮰鱼',1,'2022-06-10 09:46:02','2022-06-10 09:46:02',1,1);
INSERT INTO `dish` VALUES (53,'蜀味水煮草鱼',20,38.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/a6953d5a-4c18-4b30-9319-4926ee77261f.png','原料：草鱼，汤',1,'2022-06-10 09:48:37','2022-06-10 09:48:37',1,1);
INSERT INTO `dish` VALUES (54,'清炒小油菜',19,18.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/3613d38e-5614-41c2-90ed-ff175bf50716.png','原料：小油菜',1,'2022-06-10 09:51:46','2022-06-10 09:51:46',1,1);
INSERT INTO `dish` VALUES (55,'蒜蓉娃娃菜',19,18.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/4879ed66-3860-4b28-ba14-306ac025fdec.png','原料：蒜，娃娃菜',1,'2022-06-10 09:53:37','2022-06-10 09:53:37',1,1);
INSERT INTO `dish` VALUES (56,'清炒西兰花',19,18.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/e9ec4ba4-4b22-4fc8-9be0-4946e6aeb937.png','原料：西兰花',1,'2022-06-10 09:55:44','2022-06-10 09:55:44',1,1);
INSERT INTO `dish` VALUES (57,'炝炒圆白菜',19,18.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/22f59feb-0d44-430e-a6cd-6a49f27453ca.png','原料：圆白菜',1,'2022-06-10 09:58:35','2022-06-10 09:58:35',1,1);
INSERT INTO `dish` VALUES (58,'清蒸鲈鱼',18,98.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/c18b5c67-3b71-466c-a75a-e63c6449f21c.png','原料：鲈鱼',1,'2022-06-10 10:12:28','2022-06-10 10:12:28',1,1);
INSERT INTO `dish` VALUES (59,'东坡肘子',18,138.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/a80a4b8c-c93e-4f43-ac8a-856b0d5cc451.png','原料：猪肘棒',1,'2022-06-10 10:24:03','2022-06-10 10:24:03',1,1);
INSERT INTO `dish` VALUES (60,'梅菜扣肉',18,58.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/6080b118-e30a-4577-aab4-45042e3f88be.png','原料：猪肉，梅菜',1,'2022-06-10 10:26:03','2022-06-10 10:26:03',1,1);
INSERT INTO `dish` VALUES (61,'剁椒鱼头',18,66.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/13da832f-ef2c-484d-8370-5934a1045a06.png','原料：鲢鱼，剁椒',1,'2022-06-10 10:28:54','2022-06-10 10:28:54',1,1);
INSERT INTO `dish` VALUES (62,'金汤酸菜牛蛙',17,88.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/7694a5d8-7938-4e9d-8b9e-2075983a2e38.png','原料：鲜活牛蛙，酸菜',1,'2022-06-10 10:33:05','2022-06-10 10:33:05',1,1);
INSERT INTO `dish` VALUES (63,'香锅牛蛙',17,88.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/f5ac8455-4793-450c-97ba-173795c34626.png','配料：鲜活牛蛙，莲藕，青笋',1,'2022-06-10 10:35:40','2022-06-10 10:35:40',1,1);
INSERT INTO `dish` VALUES (64,'馋嘴牛蛙',17,88.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/7a55b845-1f2b-41fa-9486-76d187ee9ee1.png','配料：鲜活牛蛙，丝瓜，黄豆芽',1,'2022-06-10 10:37:52','2022-06-10 10:37:52',1,1);
INSERT INTO `dish` VALUES (65,'草鱼2斤',16,68.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/b544d3ba-a1ae-4d20-a860-81cb5dec9e03.png','原料：草鱼，黄豆芽，莲藕',1,'2022-06-10 10:41:08','2022-06-10 10:41:08',1,1);
INSERT INTO `dish` VALUES (66,'江团鱼2斤',16,119.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/a101a1e9-8f8b-47b2-afa4-1abd47ea0a87.png','配料：江团鱼，黄豆芽，莲藕',1,'2022-06-10 10:42:42','2022-06-10 10:42:42',1,1);
INSERT INTO `dish` VALUES (67,'鮰鱼2斤',16,72.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/8cfcc576-4b66-4a09-ac68-ad5b273c2590.png','原料：鮰鱼，黄豆芽，莲藕',1,'2022-06-10 10:43:56','2022-06-10 10:43:56',1,1);
INSERT INTO `dish` VALUES (68,'鸡蛋汤',21,4.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/c09a0ee8-9d19-428d-81b9-746221824113.png','配料：鸡蛋，紫菜',1,'2022-06-10 10:54:25','2022-06-10 10:54:25',1,1);
INSERT INTO `dish` VALUES (69,'平菇豆腐汤',21,6.00,'https://sky-itcast.oss-cn-beijing.aliyuncs.com/16d0a3d6-2253-4cfc-9b49-bf7bd9eb2ad2.png','配料：豆腐，平菇',1,'2022-06-10 10:55:02','2022-06-10 10:55:02',1,1);
/*!40000 ALTER TABLE `dish` ENABLE KEYS */;
--
-- Table structure for table `dish_flavor`
--
DROP TABLE IF EXISTS `dish_flavor`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `dish_flavor` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`dish_id` bigint NOT NULL COMMENT '菜品',
`name` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '口味名称',
`value` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '口味数据list',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=104 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='菜品口味关系表';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `dish_flavor`
--
/*!40000 ALTER TABLE `dish_flavor` DISABLE KEYS */;
INSERT INTO `dish_flavor` VALUES (40,10,'甜味','[\"无糖\",\"少糖\",\"半糖\",\"多糖\",\"全糖\"]');
INSERT INTO `dish_flavor` VALUES (41,7,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (42,7,'温度','[\"热饮\",\"常温\",\"去冰\",\"少冰\",\"多冰\"]');
INSERT INTO `dish_flavor` VALUES (45,6,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (46,6,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (47,5,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (48,5,'甜味','[\"无糖\",\"少糖\",\"半糖\",\"多糖\",\"全糖\"]');
INSERT INTO `dish_flavor` VALUES (49,2,'甜味','[\"无糖\",\"少糖\",\"半糖\",\"多糖\",\"全糖\"]');
INSERT INTO `dish_flavor` VALUES (50,4,'甜味','[\"无糖\",\"少糖\",\"半糖\",\"多糖\",\"全糖\"]');
INSERT INTO `dish_flavor` VALUES (51,3,'甜味','[\"无糖\",\"少糖\",\"半糖\",\"多糖\",\"全糖\"]');
INSERT INTO `dish_flavor` VALUES (52,3,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (86,52,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (87,52,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (88,51,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (89,51,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (92,53,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (93,53,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (94,54,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\"]');
INSERT INTO `dish_flavor` VALUES (95,56,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (96,57,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (97,60,'忌口','[\"不要葱\",\"不要蒜\",\"不要香菜\",\"不要辣\"]');
INSERT INTO `dish_flavor` VALUES (101,66,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (102,67,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
INSERT INTO `dish_flavor` VALUES (103,65,'辣度','[\"不辣\",\"微辣\",\"中辣\",\"重辣\"]');
/*!40000 ALTER TABLE `dish_flavor` ENABLE KEYS */;
--
-- Table structure for table `employee`
--
DROP TABLE IF EXISTS `employee`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `employee` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`name` varchar(32) COLLATE utf8_bin NOT NULL COMMENT '姓名',
`username` varchar(32) COLLATE utf8_bin NOT NULL COMMENT '用户名',
`password` varchar(64) COLLATE utf8_bin NOT NULL COMMENT '密码',
`phone` varchar(11) COLLATE utf8_bin NOT NULL COMMENT '手机号',
`sex` varchar(2) COLLATE utf8_bin NOT NULL COMMENT '性别',
`id_number` varchar(18) COLLATE utf8_bin NOT NULL COMMENT '身份证号',
`status` int NOT NULL DEFAULT '1' COMMENT '状态 0:禁用，1:启用',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
`update_time` datetime DEFAULT NULL COMMENT '更新时间',
`create_user` bigint DEFAULT NULL COMMENT '创建人',
`update_user` bigint DEFAULT NULL COMMENT '修改人',
PRIMARY KEY (`id`),
UNIQUE KEY `idx_username` (`username`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='员工信息';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `employee`
--
/*!40000 ALTER TABLE `employee` DISABLE KEYS */;
INSERT INTO `employee` VALUES (1,'管理员','admin','123456','13812312312','1','110101199001010047',1,'2022-02-15 15:51:20','2022-02-17 09:16:20',10,1);
/*!40000 ALTER TABLE `employee` ENABLE KEYS */;
--
-- Table structure for table `order_detail`
--
DROP TABLE IF EXISTS `order_detail`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `order_detail` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`name` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '名字',
`image` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '图片',
`order_id` bigint NOT NULL COMMENT '订单id',
`dish_id` bigint DEFAULT NULL COMMENT '菜品id',
`setmeal_id` bigint DEFAULT NULL COMMENT '套餐id',
`dish_flavor` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT '口味',
`number` int NOT NULL DEFAULT '1' COMMENT '数量',
`amount` decimal(10,2) NOT NULL COMMENT '金额',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='订单明细表';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Table structure for table `orders`
--
DROP TABLE IF EXISTS `orders`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `orders` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`number` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT '订单号',
`status` int NOT NULL DEFAULT '1' COMMENT '订单状态 1待付款 2待接单 3已接单 4派送中 5已完成 6已取消 7退款',
`user_id` bigint NOT NULL COMMENT '下单用户',
`address_book_id` bigint NOT NULL COMMENT '地址id',
`order_time` datetime NOT NULL COMMENT '下单时间',
`checkout_time` datetime DEFAULT NULL COMMENT '结账时间',
`pay_method` int NOT NULL DEFAULT '1' COMMENT '支付方式 1微信,2支付宝',
`pay_status` tinyint NOT NULL DEFAULT '0' COMMENT '支付状态 0未支付 1已支付 2退款',
`amount` decimal(10,2) NOT NULL COMMENT '实收金额',
`remark` varchar(100) COLLATE utf8_bin DEFAULT NULL COMMENT '备注',
`phone` varchar(11) COLLATE utf8_bin DEFAULT NULL COMMENT '手机号',
`address` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '地址',
`user_name` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '用户名称',
`consignee` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '收货人',
`cancel_reason` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '订单取消原因',
`rejection_reason` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '订单拒绝原因',
`cancel_time` datetime DEFAULT NULL COMMENT '订单取消时间',
`estimated_delivery_time` datetime DEFAULT NULL COMMENT '预计送达时间',
`delivery_status` tinyint(1) NOT NULL DEFAULT '1' COMMENT '配送状态 1立即送出 0选择具体时间',
`delivery_time` datetime DEFAULT NULL COMMENT '送达时间',
`pack_amount` int DEFAULT NULL COMMENT '打包费',
`tableware_number` int DEFAULT NULL COMMENT '餐具数量',
`tableware_status` tinyint(1) NOT NULL DEFAULT '1' COMMENT '餐具数量状态 1按餐量提供 0选择具体数量',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='订单表';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Table structure for table `setmeal`
--
DROP TABLE IF EXISTS `setmeal`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `setmeal` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`category_id` bigint NOT NULL COMMENT '菜品分类id',
`name` varchar(32) COLLATE utf8_bin NOT NULL COMMENT '套餐名称',
`price` decimal(10,2) NOT NULL COMMENT '套餐价格',
`status` int DEFAULT '1' COMMENT '售卖状态 0:停售 1:起售',
`description` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '描述信息',
`image` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '图片',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
`update_time` datetime DEFAULT NULL COMMENT '更新时间',
`create_user` bigint DEFAULT NULL COMMENT '创建人',
`update_user` bigint DEFAULT NULL COMMENT '修改人',
PRIMARY KEY (`id`),
UNIQUE KEY `idx_setmeal_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=32 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='套餐';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Table structure for table `setmeal_dish`
--
DROP TABLE IF EXISTS `setmeal_dish`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `setmeal_dish` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`setmeal_id` bigint DEFAULT NULL COMMENT '套餐id',
`dish_id` bigint DEFAULT NULL COMMENT '菜品id',
`name` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '菜品名称 （冗余字段）',
`price` decimal(10,2) DEFAULT NULL COMMENT '菜品单价（冗余字段）',
`copies` int DEFAULT NULL COMMENT '菜品份数',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=47 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='套餐菜品关系';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Table structure for table `shopping_cart`
--
DROP TABLE IF EXISTS `shopping_cart`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `shopping_cart` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`name` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '商品名称',
`image` varchar(255) COLLATE utf8_bin DEFAULT NULL COMMENT '图片',
`user_id` bigint NOT NULL COMMENT '主键',
`dish_id` bigint DEFAULT NULL COMMENT '菜品id',
`setmeal_id` bigint DEFAULT NULL COMMENT '套餐id',
`dish_flavor` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT '口味',
`number` int NOT NULL DEFAULT '1' COMMENT '数量',
`amount` decimal(10,2) NOT NULL COMMENT '金额',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=9 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='购物车';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Table structure for table `user`
--
DROP TABLE IF EXISTS `user`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `user` (
`id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键',
`openid` varchar(45) COLLATE utf8_bin DEFAULT NULL COMMENT '微信用户唯一标识',
`name` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT '姓名',
`phone` varchar(11) COLLATE utf8_bin DEFAULT NULL COMMENT '手机号',
`sex` varchar(2) COLLATE utf8_bin DEFAULT NULL COMMENT '性别',
`id_number` varchar(18) COLLATE utf8_bin DEFAULT NULL COMMENT '身份证号',
`avatar` varchar(500) COLLATE utf8_bin DEFAULT NULL COMMENT '头像',
`create_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8mb3 COLLATE=utf8_bin COMMENT='用户信息';
/*!40101 SET character_set_client = @saved_cs_client */;
/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
-- Dump completed on 2022-09-06 15:07:08
三、修改项目所用到的pom.xml
1、修改后父工程（sky-take-out）的pom.xml
创建项目的过程略过，在IDEA中创建maven工程是基础技能。
maven父工程，统一管理依赖版本，聚合其他子模块。
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.5.4</version>
<relativePath/>
</parent>
<groupId>com.yzc</groupId>
<artifactId>sky-take-out</artifactId>
<version>1.0.0-SNAPSHOT</version>
<name>sky-take-out</name>
<description>sky-take-out</description>
<packaging>pom</packaging>
<url/>
<licenses>
<license/>
</licenses>
<developers>
<developer/>
</developers>
<scm>
<connection/>
<developerConnection/>
<tag/>
<url/>
</scm>
<modules>
<module>sky-common</module>
<module>sky-pojo</module>
<module>sky-server</module>
</modules>
<properties>
<java.version>17</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>17</maven.compiler.source>
<maven.compiler.target>17</maven.compiler.target>
<maven.compiler.parameters>true</maven.compiler.parameters>
<lombok>1.18.38</lombok>
<fastjson>2.0.57</fastjson>
<commons-lang3>3.18.0</commons-lang3>
<druid>1.2.25</druid>
<knife4j>4.5.0</knife4j>
<springfox>3.0.0</springfox>
<aspectjrt>1.9.24</aspectjrt>
<aspectjweaver>1.9.24</aspectjweaver>
<jjwt-api>0.12.6</jjwt-api>
<aliyun-sdk-oss>3.18.3</aliyun-sdk-oss>
<poi>5.4.1</poi>
<websocket>3.5.4</websocket>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
<exclusions>
<exclusion>
<artifactId>commons-logging</artifactId>
<groupId>commons-logging</groupId>
</exclusion>
</exclusions>
<version>3.5.4</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>3.5.4</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<version>3.5.4</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
<version>3.5.4</version>
</dependency>
<dependency>
<groupId>com.alibaba.fastjson2</groupId>
<artifactId>fastjson2</artifactId>
<version>${fastjson}</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>${commons-lang3}</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>${lombok}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>${druid}</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-boot-starter</artifactId>
<version>3.0.0</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjrt</artifactId>
<version>${aspectjrt}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>${aspectjweaver}</version>
<scope>runtime</scope>
</dependency>
<!-- 制作token -->
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-api</artifactId>
<version>${jjwt-api}</version>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<version>${jjwt-api}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<version>${jjwt-api}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<version>${jjwt-api}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<version>${jjwt-api}</version>
<scope>runtime</scope>
</dependency>
<!-- 云存储服务 -->
<dependency>
<groupId>com.aliyun.oss</groupId>
<artifactId>aliyun-sdk-oss</artifactId>
<version>${aliyun-sdk-oss}</version>
</dependency>
<!-- 用于处理office文档 -->
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>${poi}</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>${poi}</version>
</dependency>
<!--微信支付-->
<dependency>
<groupId>com.github.wechatpay-apiv3</groupId>
<artifactId>wechatpay-apache-httpclient</artifactId>
<version>0.6.0</version>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<version>3.5.4</version>
</plugin>
</plugins>
</build>
</project>
2、修改后子工程sky-pojo的pom.xml
子模块，存放实体类、VO、DTO等。
|
Entity |
实体，通常和数据库中的表对应 |
|
DTO |
数据传输对象，通常用于程序中各层之间传递数据 |
|
VO |
视图对象，为前端展示数据提供的对象 |
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<artifactId>sky-take-out</artifactId>
<groupId>com.yzc</groupId>
<version>1.0.0-SNAPSHOT</version>
<relativePath>../pom.xml</relativePath> <!--lookup parent from repository -->
</parent>
<groupId>com.yzc</groupId>
<artifactId>sky-pojo</artifactId>
<version>1.0.0-SNAPSHOT</version>
<name>sky-pojo</name>
<description>sky-pojo</description>
<url/>
<licenses>
<license/>
</licenses>
<developers>
<developer/>
</developers>
<scm>
<connection/>
<developerConnection/>
<tag/>
<url/>
</scm>
<properties>
<java.version>17</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>17</maven.compiler.source>
<maven.compiler.target>17</maven.compiler.target>
<maven.compiler.parameters>true</maven.compiler.parameters>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.19.2</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-annotation</artifactId>
<version>3.5.12</version>
<scope>compile</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
3、修改后子工程sky-commom的pom.xml
子模块，存放公共类，例如：工具类、常量类、异常类等。
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.yzc</groupId>
<artifactId>sky-take-out</artifactId>
<version>1.0.0-SNAPSHOT</version>
<relativePath>../pom.xml</relativePath>
</parent>
<groupId>com.yzc</groupId>
<artifactId>sky-common</artifactId>
<version>1.0.0-SNAPSHOT</version>
<name>sky-common</name>
<description>sky-common</description>
<url/>
<licenses>
<license/>
</licenses>
<developers>
<developer/>
</developers>
<scm>
<connection/>
<developerConnection/>
<tag/>
<url/>
</scm>
<properties>
<java.version>17</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>17</maven.compiler.source>
<maven.compiler.target>17</maven.compiler.target>
<maven.compiler.parameters>true</maven.compiler.parameters>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.fastjson2</groupId>
<artifactId>fastjson2</artifactId>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-json</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-api</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<scope>runtime</scope>
</dependency>
<!--支持配置属性类，yml文件中可以提示配置项-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>com.aliyun.oss</groupId>
<artifactId>aliyun-sdk-oss</artifactId>
</dependency>
<!-- https://mvnrepository.com/artifact/javax.xml.bind/jaxb-api -->
<dependency>
<groupId>javax.xml.bind</groupId>
<artifactId>jaxb-api</artifactId>
<version>2.3.1</version>
</dependency>
<!-- https://mvnrepository.com/artifact/jakarta.xml.bind/jakarta.xml.bind-api -->
<dependency>
<groupId>jakarta.xml.bind</groupId>
<artifactId>jakarta.xml.bind-api</artifactId>
<version>4.0.2</version>
</dependency>
<!--微信支付-->
<dependency>
<groupId>com.github.wechatpay-apiv3</groupId>
<artifactId>wechatpay-apache-httpclient</artifactId>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-boot-starter</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
4、修改后子工程sky-server的pom.xml
子模块，后端服务，存放配置文件、Controller、Service、Mapper等。
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<artifactId>sky-take-out</artifactId>
<groupId>com.yzc</groupId>
<version>1.0.0-SNAPSHOT</version>
<relativePath>../pom.xml</relativePath> <!-- lookup parent from repository -->
</parent>
<groupId>com.yzc</groupId>
<artifactId>sky-server</artifactId>
<version>1.0.0-SNAPSHOT</version>
<name>sky-server</name>
<description>sky-server</description>
<url/>
<licenses>
<license/>
</licenses>
<developers>
<developer/>
</developers>
<scm>
<connection/>
<developerConnection/>
<tag/>
<url/>
</scm>
<properties>
<java.version>17</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>17</maven.compiler.source>
<maven.compiler.target>17</maven.compiler.target>
<maven.compiler.parameters>true</maven.compiler.parameters>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>com.yzc</groupId>
<artifactId>sky-pojo</artifactId>
<version>1.0.0-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>com.yzc</groupId>
<artifactId>sky-common</artifactId>
<version>1.0.0-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>com.mysql</groupId>
<artifactId>mysql-connector-j</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter-test</artifactId>
<version>3.5.12</version>
<exclusions>
<exclusion>
<artifactId>mybatis-spring</artifactId>
<groupId>org.mybatis</groupId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-jsqlparser</artifactId>
<version>3.5.12</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>3.0.3</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.fastjson2</groupId>
<artifactId>fastjson2</artifactId>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjrt</artifactId>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-cache</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
</dependency>
<dependency>
<groupId>javax.xml.bind</groupId>
<artifactId>jaxb-api</artifactId>
<version>2.3.1</version>
</dependency>
<!-- https://mvnrepository.com/artifact/jakarta.xml.bind/jakarta.xml.bind-api -->
<dependency>
<groupId>jakarta.xml.bind</groupId>
<artifactId>jakarta.xml.bind-api</artifactId>
<version>4.0.2</version>
</dependency>
<!-- poi -->
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
</dependency>
</dependencies>
</project>
四、application-dev.yml
sky:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
host: localhost
port: 3306
database: sky_take_out
username: root
password: 123456
type: com.alibaba.druid.pool.DruidDataSource五、application.yml
server:
port: 8080
spring:
profiles:
active: dev
main:
allow-circular-references: true
datasource:
druid:
driver-class-name: ${sky.datasource.driver-class-name}
url: jdbc:mysql://${sky.datasource.host}:${sky.datasource.port}/${sky.datasource.database}?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
username: ${sky.datasource.username}
password: ${sky.datasource.password}
db-type: ${sky.datasource.type}
mybatis-plus:
configuration:
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
mapper-locations: classpath*:mapper/*.xml
logging:
level:
com:
sky:
mapper: info
service: info
controller: info
sky:
jwt:
# 设置jwt签名加密时使用的秘钥
admin-secret-key: yzc
# 设置jwt过期时间
admin-ttl: 7200000
# 设置前端传递过来的令牌名称
admin-token-name: token
knife4j: # knife4j的增强配置，不需要增强可以不配
enable: true # 开启knife4j,无需添加@EnableKnife4j注解
setting:
language: zh_cn #中文
swagger-model-name: 实体列表 #默认为: Swagger Models
springdoc:
api-docs:
path: /v3/api-docs
packages-to-scan:
group-configs:
- group: '权限管理'
paths-to-match:
- '/**'
packages-to-scan:
- com.atric.blog.controller.security
- group: '系统管理'
paths-to-match:
- '/**'
packages-to-scan:
- com.atric.blog.controller.system
六、初始后端搭建成功的验证
1、运行创建项目时生成的main方法
package com;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class SkyServerApplication {
public static void main(String[] args) {
SpringApplication.run(SkyServerApplication.class, args);
}
}
没有报错信息说明项目搭建成功，如图。
2、修改EmployeeMapper.java文件
package com.sky.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.sky.entity.Employee;
import org.apache.ibatis.annotations.Mapper;
@Mapper
public interface EmployeeMapper extends BaseMapper<Employee> {
}
EmployeeMapper.xml可以先删除，想留下也没影响
3、在test下测试
package com.sky.test;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.sky.entity.Employee;
import com.sky.mapper.EmployeeMapper;
import org.junit.jupiter.api.Test;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
@SpringBootTest
@MapperScan("com.sky.mapper")
public class EmployeeTest {
@Autowired
private EmployeeMapper employeeMapper;
@Test
public void testLogin(){
LambdaQueryWrapper<Employee> queryWrapper = new LambdaQueryWrapper<>();
queryWrapper.eq(Employee::getPassword,"123456");
queryWrapper.eq(Employee::getUsername,"admin");
employeeMapper.selectList(queryWrapper).forEach(System.out::println);
}
}
@MapperScan("com.sky.mapper")用于扫描mapper包下的类，否则容易No qualifying bean of type 'com.sky.mapper.EmployeeMapper' available: expected at least 1 bean which qualifies as autowire candidate

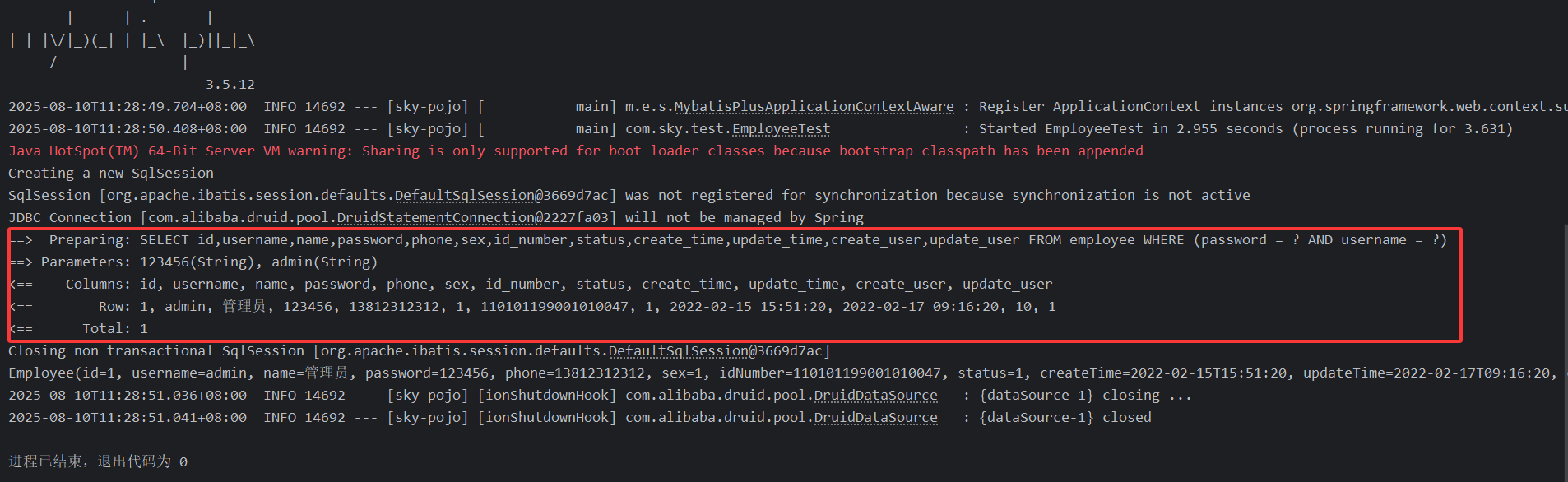

出现如图中的内容，则说明项目于MySQL数据库的连接没有问题，可以直接对数据库增删改查。
七、员工登录功能实现
0、JwtUtil修改
因为我用的jtw版本是0.12.6，里面的方法与旧版本差距很大，所以旧的初始文件中需要对JwtUtil稍作修改。
package com.sky.utils;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.JwtBuilder;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.security.Keys;
import io.jsonwebtoken.security.SecureDigestAlgorithm;
import javax.crypto.SecretKey;
import java.nio.charset.StandardCharsets;
import java.util.Date;
import java.util.Map;
public class JwtUtil {
private final static SecureDigestAlgorithm<SecretKey, SecretKey> ALGORITHM = Jwts.SIG.HS256;
/**
* 生成jwt
* 使用Hs256算法, 私匙使用固定秘钥
*
* @param secretKey jwt秘钥
* @param ttlMillis jwt过期时间(毫秒)
* @param claims 设置的信息
* @return
*/
public static String createJWT(String secretKey, long ttlMillis, Map<String, Object> claims) {
/**
* 加密算法
*/
// 指定签名的时候使用的签名算法，也就是header那部分
// 生成 HMAC 密钥，根据提供的字节数组长度选择适当的 HMAC 算法，并返回相应的 SecretKey 对象。
SecretKey key = Keys.hmacShaKeyFor(secretKey.getBytes(StandardCharsets.UTF_8));
// 生成JWT的时间
long expMillis = System.currentTimeMillis() + ttlMillis;
Date exp = new Date(expMillis);
// 设置jwt的body
JwtBuilder builder = Jwts.builder()
.claims(claims)
// 设置签名使用的签名算法和签名使用的秘钥
.signWith(key, ALGORITHM)
// 设置过期时间
.expiration(exp);
return builder.compact();
}
/**
* Token解密
*
* @param secretKey jwt秘钥 此秘钥一定要保留好在服务端, 不能暴露出去, 否则sign就可以被伪造, 如果对接多个客户端建议改造成多个
* @param token 加密后的token
* @return
*/
public static Claims parseJWT(String secretKey, String token) {
// 得到DefaultJwtParser
Claims claims = Jwts.parser().verifyWith(Keys.hmacShaKeyFor(secretKey.getBytes(StandardCharsets.UTF_8))).build()
// 设置签名的秘钥
//.setSigningKey(secretKey.getBytes(StandardCharsets.UTF_8))
// 设置需要解析的jwt
.parseClaimsJws(token).getPayload();
return claims;
}
}
1、mapper类的修改
实现根据用户名查询数据库中相应的员工信息，然后返回这个员工实体。
package com.sky.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.sky.entity.Employee;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;
@Mapper
public interface EmployeeMapper extends BaseMapper<Employee> {
/**
* 员工登录功能
* @param username 前端输入的员工用户名
* @return 数据库查询的Employee实体类
*/
@Select("select * from employee where username = #{username}")
Employee login(String username);
}
2、service的编写
编写service接口和实现类，实现登录功能的逻辑操作（用户是否存在，密码是否正确，员工状态）。其中登录功能中，密码使用了MD5加密。
package com.sky.service;
import com.sky.dto.EmployeeLoginDTO;
import com.sky.entity.Employee;
public interface EmployeeService {
/**
* 查询登录员工是否存在
*
* @param employeeDTO 数据传输对象，通常用于程序中各层之间传递数据
* @return 员工实体
*/
Employee login(EmployeeLoginDTO employeeDTO);
}
package com.sky.service.impl;
import com.sky.constant.MessageConstant;
import com.sky.constant.StatusConstant;
import com.sky.dto.EmployeeLoginDTO;
import com.sky.entity.Employee;
import com.sky.exception.AccountLockedException;
import com.sky.exception.AccountNotFoundException;
import com.sky.exception.PasswordErrorException;
import com.sky.mapper.EmployeeMapper;
import com.sky.service.EmployeeService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.util.DigestUtils;
@Service
public class EmployeeServiceImpl implements EmployeeService {
@Autowired
private EmployeeMapper employeeMapper;
@Override
public Employee login(EmployeeLoginDTO employeeDTO) {
String username = employeeDTO.getUsername();
String password = employeeDTO.getPassword();
Employee employee = employeeMapper.login(username);
// 员工不存在
if (employee == null) {
throw new AccountNotFoundException(MessageConstant.ACCOUNT_NOT_FOUND);
}
// 前台传来的密码进行md5加密后与数据库中的密码对比
password = DigestUtils.md5DigestAsHex(password.getBytes());
if (!password.equals(employee.getPassword())) {
throw new PasswordErrorException(MessageConstant.PASSWORD_ERROR);
}
// 员工已离职
if (employee.getStatus() == StatusConstant.DISABLE) {
throw new AccountLockedException(MessageConstant.ACCOUNT_LOCKED);
}
// 返回员工实体类
return employee;
}
}
3、实现controller类
package com.sky.controller.admin;
import com.sky.constant.JwtClaimsConstant;
import com.sky.dto.EmployeeLoginDTO;
import com.sky.entity.Employee;
import com.sky.properties.JwtProperties;
import com.sky.result.Result;
import com.sky.service.EmployeeService;
import com.sky.utils.JwtUtil;
import com.sky.vo.EmployeeLoginVO;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;
import java.util.Map;
@RestController
@RequestMapping("/admin/employee")
@Slf4j
public class EmployeeController {
@Autowired
private EmployeeService employeeService;
@Autowired
private JwtProperties jwtProperties;
@PostMapping("/login")
public Result<EmployeeLoginVO> login(@RequestBody EmployeeLoginDTO employeeLoginDTO) {
log.info("员工登录:{}", employeeLoginDTO);
Employee employee = employeeService.login(employeeLoginDTO);
//登录成功后，生成jwt令牌
Map<String, Object> claims = new HashMap<>();
claims.put(JwtClaimsConstant.EMP_ID, employee.getId());
String token = JwtUtil.createJWT(jwtProperties.getAdminSecretKey(), jwtProperties.getAdminTtl(), claims);
// 链式编程，代替过去的setter操作
EmployeeLoginVO employeeLoginVO = EmployeeLoginVO.builder()
.id(employee.getId())
.userName(employee.getUsername())
.name(employee.getName())
.token(token)
.build();
return Result.success(employeeLoginVO);
}
/**
* 退出
*
* @return
*/
@PostMapping("/logout")
public Result<String> logout() {
return Result.success();
}
}遗留问题：

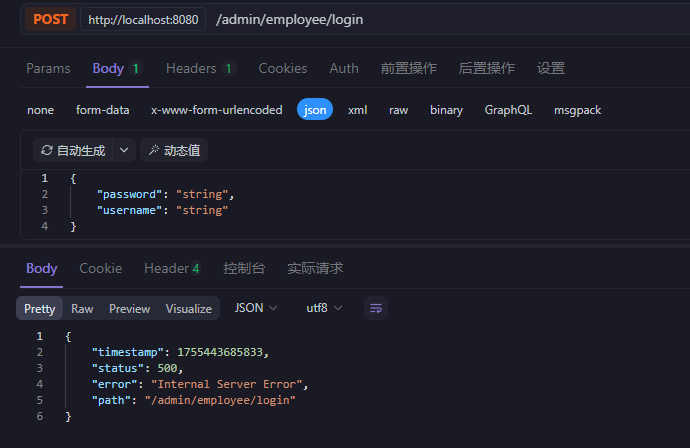

1、目前故意输错用户名或密码，报错是500，而不是我实现写好的Result中的mes信息，过段时间看看能不能改一下。（当晚已修改，代码在标题八）
八、用户名密码输错或用户不存在apifox中的提示
package com.sky.controller.admin;
import com.sky.constant.MessageConstant;
import com.sky.exception.AccountLockedException;
import com.sky.exception.AccountNotFoundException;
import com.sky.exception.PasswordErrorException;
import com.sky.result.Result;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;
/**
* 当系统出错时，在api调试软件中提示的错误信息，如用户不存在，密码输入错误等
*/
@RestControllerAdvice
public class EmployeeAdvice {
@ExceptionHandler(AccountNotFoundException.class)
public Result systemException(AccountNotFoundException ex) {
return Result.error(MessageConstant.ACCOUNT_NOT_FOUND);
}
@ExceptionHandler(PasswordErrorException.class)
public Result systemException(PasswordErrorException ex) {
return Result.error(MessageConstant.PASSWORD_ERROR);
}
@ExceptionHandler(AccountLockedException.class)
public Result systemException(AccountLockedException ex) {
return Result.error(MessageConstant.ACCOUNT_LOCKED);
}
@ExceptionHandler(Exception.class)
public Result systemException(Exception ex) {
return Result.error("系统有异常");
}
}

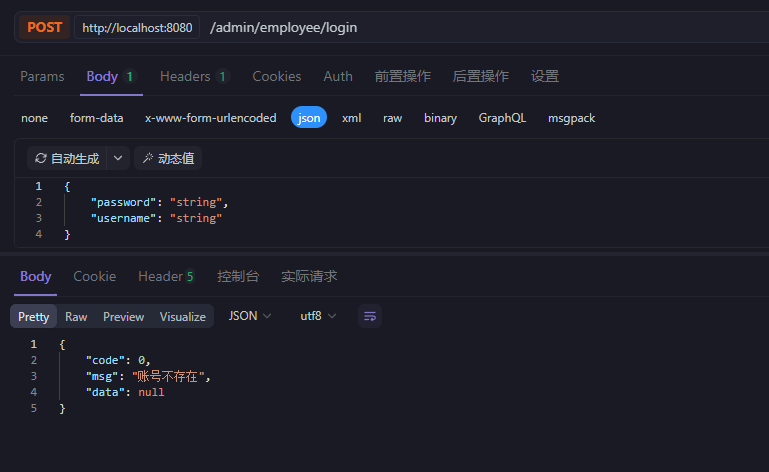

加入这段代码后，在apifox中测试用户输入时，可以提示对应的错误信息，而不是报错500
火山引擎开发者社区是火山引擎打造的AI技术生态平台，聚焦Agent与大模型开发，提供豆包系列模型（图像/视频/视觉）、智能分析与会话工具，并配套评测集、动手实验室及行业案例库。社区通过技术沙龙、挑战赛等活动促进开发者成长，新用户可领50万Tokens权益，助力构建智能应用。
更多推荐
5
0- 0
已为社区贡献2条内容
所有评论(0)
