出发点

本来想延续之前的博客风格（从输入到输出），但是这里Deepseek-V3属实太大了，我在服务器上跑不起来了，所以这里挑出一些和之前的代码不同的进行解析，本篇从核心之一MLA出发解析

论文

缓存与效果的极限拉扯：从MHA、MQA、GQA到MLA
YaRN: Efficient Context Window Extension of Large Language Models
手撕DeepSeek-MLA-多头潜在注意力机制

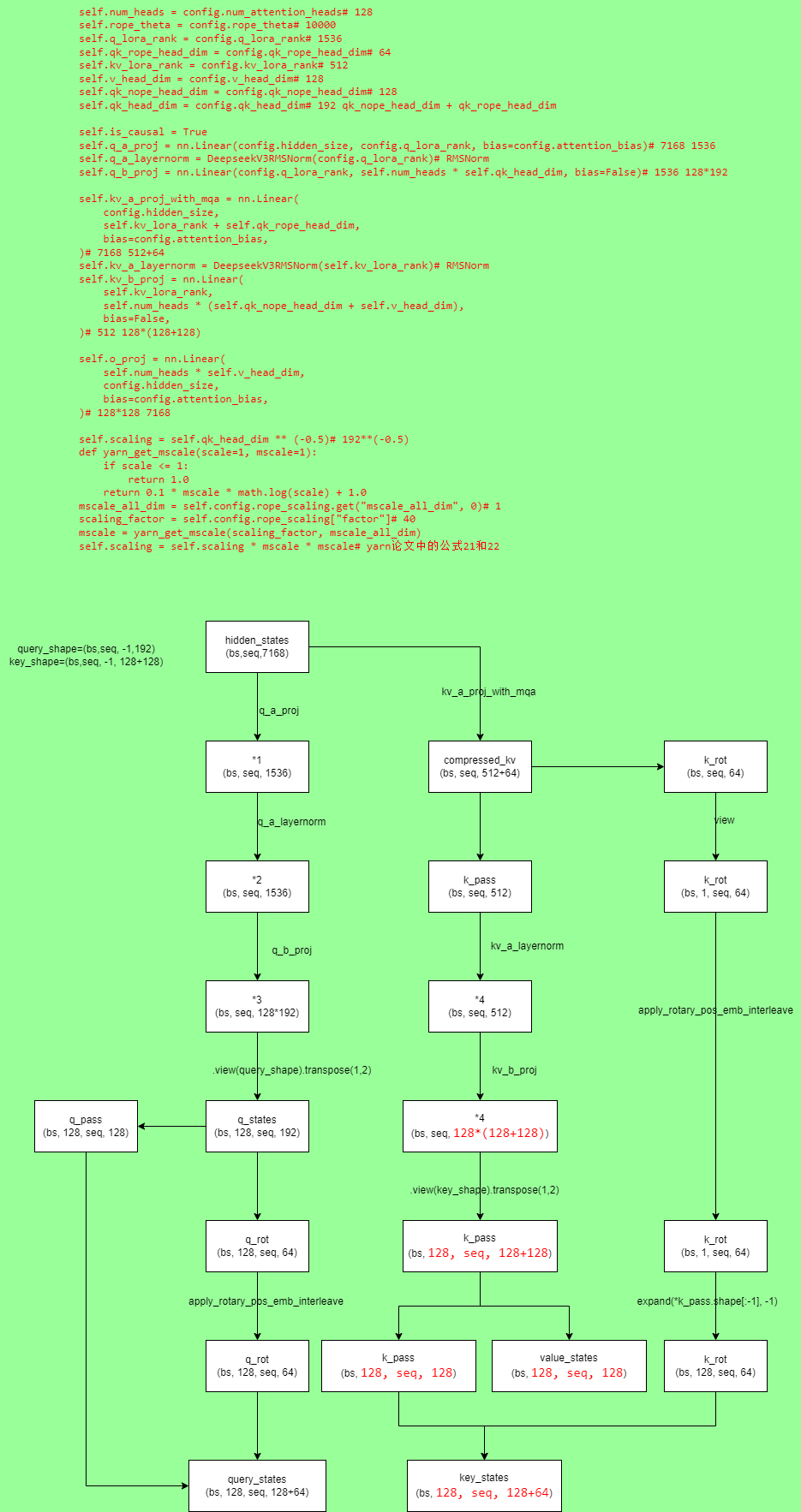

代码+流程图

class DeepseekV3Attention(nn.Module):
    """Multi-headed attention from 'Attention Is All You Need' paper"""

    def __init__(self, config: DeepseekV3Config, layer_idx: int):
        super().__init__()
        self.config = config
        self.layer_idx = layer_idx
        self.num_key_value_groups = config.num_attention_heads // config.num_key_value_heads
        self.attention_dropout = config.attention_dropout
        self.num_heads = config.num_attention_heads
        self.rope_theta = config.rope_theta
        self.q_lora_rank = config.q_lora_rank
        self.qk_rope_head_dim = config.qk_rope_head_dim
        self.kv_lora_rank = config.kv_lora_rank
        self.v_head_dim = config.v_head_dim
        self.qk_nope_head_dim = config.qk_nope_head_dim
        self.qk_head_dim = config.qk_head_dim

        self.is_causal = True
        self.q_a_proj = nn.Linear(config.hidden_size, config.q_lora_rank, bias=config.attention_bias)
        self.q_a_layernorm = DeepseekV3RMSNorm(config.q_lora_rank)
        self.q_b_proj = nn.Linear(config.q_lora_rank, self.num_heads * self.qk_head_dim, bias=False)

        self.kv_a_proj_with_mqa = nn.Linear(
            config.hidden_size,
            self.kv_lora_rank + self.qk_rope_head_dim,
            bias=config.attention_bias,
        )
        self.kv_a_layernorm = DeepseekV3RMSNorm(self.kv_lora_rank)
        self.kv_b_proj = nn.Linear(
            self.kv_lora_rank,
            self.num_heads * (self.qk_nope_head_dim + self.v_head_dim),
            bias=False,
        )

        self.o_proj = nn.Linear(
            self.num_heads * self.v_head_dim,
            config.hidden_size,
            bias=config.attention_bias,
        )

        self.scaling = self.qk_head_dim ** (-0.5)
        if self.config.rope_scaling is not None:
            mscale_all_dim = self.config.rope_scaling.get("mscale_all_dim", 0)
            scaling_factor = self.config.rope_scaling["factor"]
            if mscale_all_dim:
                mscale = yarn_get_mscale(scaling_factor, mscale_all_dim)

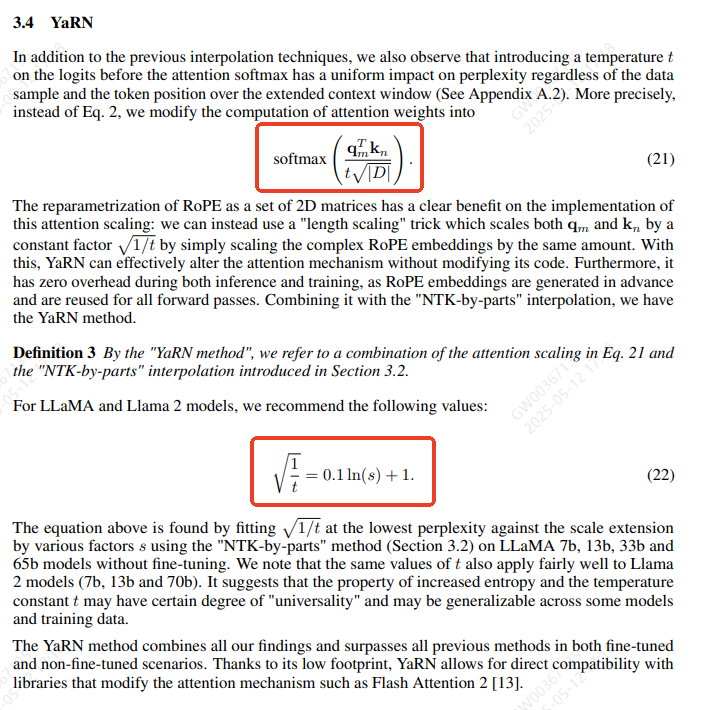

                self.scaling = self.scaling * mscale * mscale# yarn论文中的公式21和22

    def forward(
        self,
        hidden_states: torch.Tensor,
        position_embeddings: Tuple[torch.Tensor, torch.Tensor],
        attention_mask: Optional[torch.Tensor],
        past_key_value: Optional[Cache] = None,
        cache_position: Optional[torch.LongTensor] = None,
        **kwargs: Unpack[FlashAttentionKwargs],
    ) -> Tuple[torch.Tensor, Optional[torch.Tensor], Optional[Tuple[torch.Tensor]]]:
        batch_size, seq_length = hidden_states.shape[:-1]
        query_shape = (batch_size, seq_length, -1, self.qk_head_dim)
        key_shape = (batch_size, seq_length, -1, self.qk_nope_head_dim + self.v_head_dim)

        q_states = self.q_b_proj(self.q_a_layernorm(self.q_a_proj(hidden_states))).view(query_shape).transpose(1, 2)
        q_pass, q_rot = torch.split(q_states, [self.qk_nope_head_dim, self.qk_rope_head_dim], dim=-1)

        compressed_kv = self.kv_a_proj_with_mqa(hidden_states)
        k_pass, k_rot = torch.split(compressed_kv, [self.kv_lora_rank, self.qk_rope_head_dim], dim=-1)

        k_pass = self.kv_b_proj(self.kv_a_layernorm(k_pass)).view(key_shape).transpose(1, 2)
        k_pass, value_states = torch.split(k_pass, [self.qk_nope_head_dim, self.v_head_dim], dim=-1)

        k_rot = k_rot.view(batch_size, 1, seq_length, self.qk_rope_head_dim)

        cos, sin = position_embeddings
        if self.config.rope_interleave:  # support using interleaved weights for efficiency True
            q_rot, k_rot = apply_rotary_pos_emb_interleave(q_rot, k_rot, cos, sin)
        else:
            q_rot, k_rot = apply_rotary_pos_emb(q_rot, k_rot, cos, sin)
        k_rot = k_rot.expand(*k_pass.shape[:-1], -1)

        query_states = torch.cat((q_pass, q_rot), dim=-1)
        key_states = torch.cat((k_pass, k_rot), dim=-1)

        if past_key_value is not None:
            # sin and cos are specific to RoPE models; cache_position needed for the static cache
            cache_kwargs = {"sin": sin, "cos": cos, "cache_position": cache_position}
            key_states, value_states = past_key_value.update(key_states, value_states, self.layer_idx, cache_kwargs)

        if self.config._attn_implementation == "flash_attention_2" and self.qk_head_dim != self.v_head_dim:
            value_states = F.pad(value_states, [0, self.qk_head_dim - self.v_head_dim])

        attention_interface: Callable = eager_attention_forward
        if self.config._attn_implementation != "eager":
            if self.config._attn_implementation == "sdpa" and kwargs.get("output_attentions", False):
                logger.warning_once(
                    "`torch.nn.functional.scaled_dot_product_attention` does not support `output_attentions=True`. Falling back to "
                    'eager attention. This warning can be removed using the argument `attn_implementation="eager"` when loading the model.'
                )
            else:
                attention_interface = ALL_ATTENTION_FUNCTIONS[self.config._attn_implementation]

        attn_output, attn_weights = attention_interface(
            self,
            query_states,
            key_states,
            value_states,
            attention_mask,
            dropout=0.0 if not self.training else self.attention_dropout,
            scaling=self.scaling,
            **kwargs,
        )

        if self.config._attn_implementation == "flash_attention_2" and self.qk_head_dim != self.v_head_dim:
            attn_output = attn_output[:, :, :, : self.v_head_dim]

        attn_output = attn_output.reshape(batch_size, seq_length, -1).contiguous()
        attn_output = self.o_proj(attn_output)
        return attn_output, attn_weights
