websocket连接测试工具网页版
【代码】websocket连接测试工具网页版。
·
复制粘贴即可使用

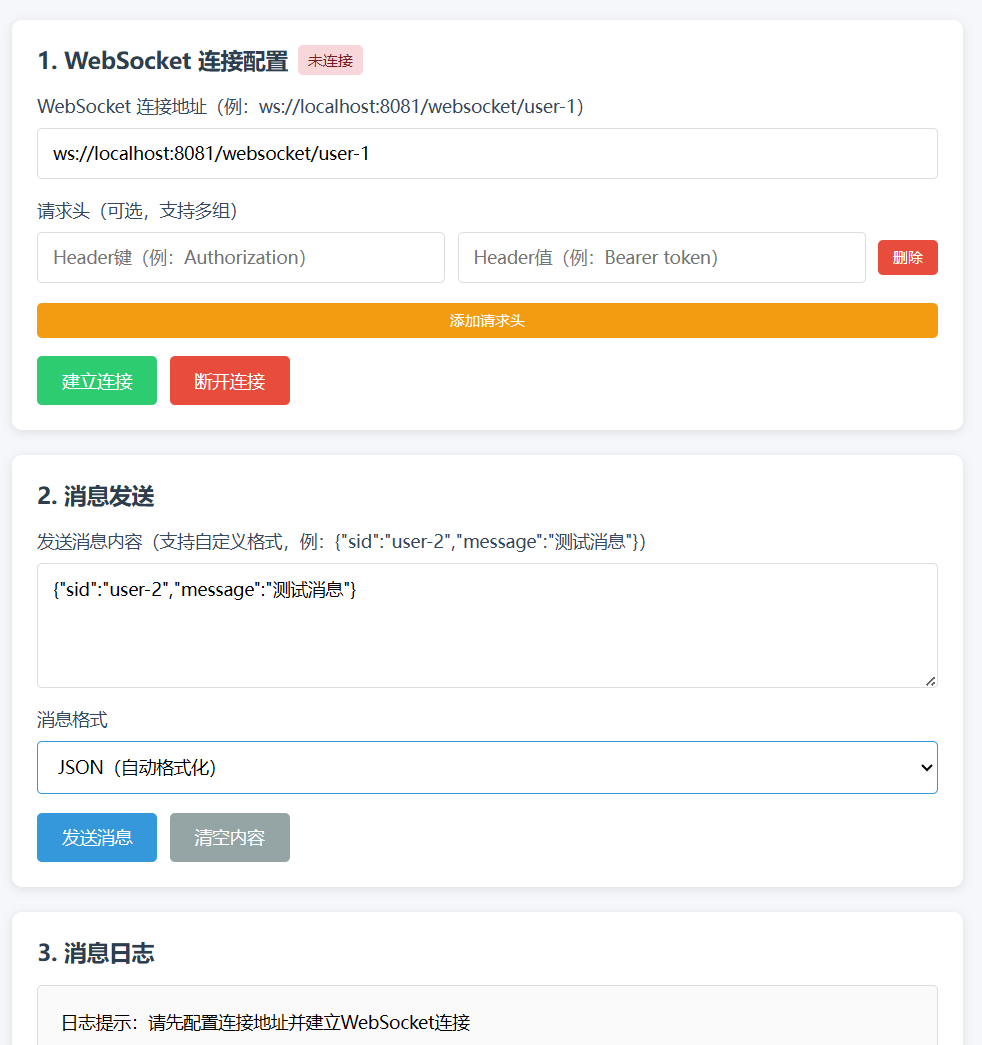

网页预览图
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>WebSocket 自定义测试工具</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: "Microsoft YaHei", sans-serif;
}
body {
padding: 20px;
background-color: #f5f7fa;
}
.container {
max-width: 1200px;
margin: 0 auto;
gap: 20px;
display: flex;
flex-direction: column;
}
.card {
background: white;
padding: 20px;
border-radius: 8px;
box-shadow: 0 2px 8px rgba(0,0,0,0.1);
}
.card-title {
font-size: 18px;
font-weight: 600;
margin-bottom: 15px;
color: #2c3e50;
display: flex;
align-items: center;
gap: 8px;
}
.form-group {
margin-bottom: 15px;
display: flex;
flex-direction: column;
gap: 8px;
}
.form-group label {
font-size: 14px;
color: #34495e;
font-weight: 500;
}
.form-group input, .form-group textarea, .form-group select {
padding: 10px 12px;
border: 1px solid #ddd;
border-radius: 4px;
font-size: 14px;
transition: border 0.3s;
}
.form-group input:focus, .form-group textarea:focus, .form-group select:focus {
outline: none;
border-color: #3498db;
}
.form-group textarea {
min-height: 100px;
resize: vertical;
}
.btn-group {
display: flex;
gap: 10px;
margin-top: 10px;
}
.btn {
padding: 10px 20px;
border: none;
border-radius: 4px;
font-size: 14px;
font-weight: 500;
cursor: pointer;
transition: background 0.3s;
}
.btn-connect {
background-color: #2ecc71;
color: white;
}
.btn-connect:disabled {
background-color: #bdc3c7;
cursor: not-allowed;
}
.btn-disconnect {
background-color: #e74c3c;
color: white;
}
.btn-send {
background-color: #3498db;
color: white;
}
.btn-clear {
background-color: #95a5a6;
color: white;
}
.status {
display: inline-block;
padding: 4px 8px;
border-radius: 4px;
font-size: 12px;
font-weight: 500;
}
.status-disconnected {
background-color: #f8d7da;
color: #721c24;
}
.status-connected {
background-color: #d4edda;
color: #155724;
}
.message-log {
width: 100%;
height: 300px;
border: 1px solid #ddd;
border-radius: 4px;
padding: 10px;
overflow-y: auto;
background-color: #fafafa;
font-size: 14px;
line-height: 1.5;
}
.message {
margin-bottom: 10px;
padding: 8px;
border-radius: 4px;
}
.message-receive {
background-color: #e3f2fd;
border-left: 3px solid #2196f3;
}
.message-send {
background-color: #e8f5e9;
border-right: 3px solid #4caf50;
text-align: right;
}
.message-time {
font-size: 12px;
color: #7f8c8d;
margin-bottom: 4px;
}
.header-item {
display: flex;
gap: 10px;
align-items: center;
margin-bottom: 8px;
}
.header-item input {
flex: 1;
}
.btn-add-header {
background-color: #f39c12;
color: white;
padding: 6px 12px;
font-size: 12px;
}
.btn-remove-header {
background-color: #e74c3c;
color: white;
padding: 6px 12px;
font-size: 12px;
}
</style>
</head>
<body>
<div class="container">
<!-- 连接配置区 -->
<div class="card">
<div class="card-title">
1. WebSocket 连接配置
<span id="connectionStatus" class="status status-disconnected">未连接</span>
</div>
<div class="form-group">
<label for="wsUrl">WebSocket 连接地址（例：ws://localhost:8081/websocket/user-1）</label>
<input type="text" id="wsUrl" placeholder="请输入WebSocket连接地址" value="ws://localhost:8081/websocket/user-1">
</div>
<div class="form-group">
<label>请求头（可选，支持多组）</label>
<div id="headerList">
<div class="header-item">
<input type="text" placeholder="Header键（例：Authorization）" class="header-key">
<input type="text" placeholder="Header值（例：Bearer token）" class="header-value">
<button class="btn btn-remove-header" onclick="removeHeader(this)">删除</button>
</div>
</div>
<button class="btn btn-add-header" onclick="addHeader()">添加请求头</button>
</div>
<div class="btn-group">
<button class="btn btn-connect" id="connectBtn" onclick="connectWebSocket()">建立连接</button>
<button class="btn btn-disconnect" id="disconnectBtn" onclick="disconnectWebSocket()" disabled>断开连接</button>
</div>
</div>
<!-- 消息发送区 -->
<div class="card">
<div class="card-title">2. 消息发送</div>
<div class="form-group">
<label for="sendMessage">发送消息内容（支持自定义格式，例：{"sid":"user-2","message":"测试消息"}）</label>
<textarea id="sendMessage" placeholder="请输入要发送的消息" value='{"sid":"user-2","message":"测试消息"}'>{"sid":"user-2","message":"测试消息"}</textarea>
</div>
<div class="form-group">
<label for="messageType">消息格式</label>
<select id="messageType" onchange="formatMessage()">
<option value="json">JSON（自动格式化）</option>
<option value="text">纯文本</option>
</select>
</div>
<div class="btn-group">
<button class="btn btn-send" id="sendBtn" onclick="sendMessage()" disabled>发送消息</button>
<button class="btn btn-clear" onclick="clearSendMessage()">清空内容</button>
</div>
</div>
<!-- 消息日志区 -->
<div class="card">
<div class="card-title">3. 消息日志</div>
<div class="message-log" id="messageLog">
<div class="message">日志提示：请先配置连接地址并建立WebSocket连接</div>
</div>
<div class="btn-group" style="margin-top: 10px;">
<button class="btn btn-clear" onclick="clearMessageLog()">清空日志</button>
</div>
</div>
</div>
<script>
let websocket = null;
const wsUrlInput = document.getElementById('wsUrl');
const connectBtn = document.getElementById('connectBtn');
const disconnectBtn = document.getElementById('disconnectBtn');
const sendBtn = document.getElementById('sendBtn');
const connectionStatus = document.getElementById('connectionStatus');
const messageLog = document.getElementById('messageLog');
const sendMessageInput = document.getElementById('sendMessage');
const messageTypeSelect = document.getElementById('messageType');
// 添加请求头
function addHeader() {
const headerList = document.getElementById('headerList');
const headerItem = document.createElement('div');
headerItem.className = 'header-item';
headerItem.innerHTML = `
<input type="text" placeholder="Header键（例：Authorization）" class="header-key">
<input type="text" placeholder="Header值（例：Bearer token）" class="header-value">
<button class="btn btn-remove-header" onclick="removeHeader(this)">删除</button>
`;
headerList.appendChild(headerItem);
}
// 删除请求头
function removeHeader(btn) {
const headerItem = btn.parentElement;
if (document.querySelectorAll('.header-item').length > 1) {
headerItem.parentElement.removeChild(headerItem);
} else {
showLog('至少保留一组请求头（可留空）', 'system');
}
}
// 格式化消息（JSON格式时自动美化）
function formatMessage() {
const message = sendMessageInput.value.trim();
const type = messageTypeSelect.value;
if (type === 'json') {
try {
const jsonObj = JSON.parse(message || '{}');
sendMessageInput.value = JSON.stringify(jsonObj, null, 2);
} catch (e) {
showLog('JSON格式错误，无法自动格式化', 'system');
}
}
}
// 建立WebSocket连接
function connectWebSocket() {
const wsUrl = wsUrlInput.value.trim();
if (!wsUrl) {
showLog('请先输入WebSocket连接地址', 'system');
return;
}
// 关闭已有连接
if (websocket) {
websocket.close();
}
try {
// 构建带请求头的WebSocket连接
const headers = {};
document.querySelectorAll('.header-item').forEach(item => {
const key = item.querySelector('.header-key').value.trim();
const value = item.querySelector('.header-value').value.trim();
if (key) {
headers[key] = value;
}
});
// 处理请求头（WebSocket标准不直接支持，此处用自定义方式传递，实际需服务端配合）
let finalUrl = wsUrl;
if (Object.keys(headers).length > 0) {
// 方式1：通过URL参数传递（简单场景）
const urlParams = new URLSearchParams();
Object.entries(headers).forEach(([key, value]) => {
urlParams.append(`header_${key}`, value);
});
finalUrl += (wsUrl.includes('?') ? '&' : '?') + urlParams.toString();
// 方式2：若服务端支持，可通过WebSocket的protocols参数传递（需服务端解析）
// const protocols = Object.entries(headers).map(([k, v]) => `${k}=${v}`);
// websocket = new WebSocket(finalUrl, protocols);
}
// 创建WebSocket实例
websocket = new WebSocket(finalUrl);
// 连接成功回调
websocket.onopen = function() {
connectionStatus.className = 'status status-connected';
connectionStatus.textContent = '已连接';
connectBtn.disabled = true;
disconnectBtn.disabled = false;
sendBtn.disabled = false;
showLog(`成功连接到：${wsUrl}`, 'system');
};
// 接收消息回调
websocket.onmessage = function(event) {
showLog(`收到消息：${event.data}`, 'receive');
};
// 连接关闭回调
websocket.onclose = function(event) {
connectionStatus.className = 'status status-disconnected';
connectionStatus.textContent = '未连接';
connectBtn.disabled = false;
disconnectBtn.disabled = true;
sendBtn.disabled = true;
showLog(`连接已断开，代码：${event.code}，原因：${event.reason}`, 'system');
};
// 连接错误回调
websocket.onerror = function(error) {
showLog(`连接错误：${error.message || '未知错误'}`, 'system');
};
} catch (error) {
showLog(`创建连接失败：${error.message}`, 'system');
}
}
// 断开WebSocket连接
function disconnectWebSocket() {
if (websocket) {
websocket.close();
websocket = null;
}
}
// 发送消息
function sendMessage() {
const message = sendMessageInput.value.trim();
if (!message) {
showLog('请先输入要发送的消息', 'system');
return;
}
if (!websocket || websocket.readyState !== WebSocket.OPEN) {
showLog('WebSocket未连接，无法发送消息', 'system');
return;
}
try {
// 按选择的格式处理消息
let sendData = message;
if (messageTypeSelect.value === 'json') {
JSON.parse(message); // 验证JSON格式
}
websocket.send(sendData);
showLog(`发送消息：${sendData}`, 'send');
} catch (error) {
showLog(`发送失败：${error.message}（若为JSON格式，请检查语法）`, 'system');
}
}
// 显示日志
function showLog(content, type = 'system') {
const now = new Date();
const timeStr = `${now.getHours().toString().padStart(2, '0')}:${now.getMinutes().toString().padStart(2, '0')}:${now.getSeconds().toString().padStart(2, '0')}`;
const messageItem = document.createElement('div');
messageItem.className = `message message-${type}`;
messageItem.innerHTML = `<div class="message-time">${timeStr}</div><div class="message-content">${content}</div>`;
messageLog.appendChild(messageItem);
// 滚动到最新日志
messageLog.scrollTop = messageLog.scrollHeight;
}
// 清空发送内容
function clearSendMessage() {
sendMessageInput.value = '';
}
// 清空日志
function clearMessageLog() {
messageLog.innerHTML = '<div class="message">日志已清空</div>';
}
// 页面关闭前断开连接
window.onbeforeunload = function() {
if (websocket && websocket.readyState === WebSocket.OPEN) {
websocket.close();
}
};
</script>
</body>
</html>
