基于LSTM的Prometheus数据预测平台:从理论到实践
·
基于LSTM的Prometheus数据预测平台:从理论到实践
在云原生和微服务架构盛行的今天，如何提前预测系统资源使用情况，避免资源瓶颈和故障，成为了运维团队面临的重要挑战。特别是在智算场景下，某些特定监控场景很难做到准确性，而准确性的前提是告警噪音较少。
前段时间发生的一次生产级别故障让我深刻认识到传统预测方法的局限性。当时的业务场景是针对一批研究员做了组、用户权限隔离，同时针对商业存储也做了用户配额、组配额管理。我们使用的是Prometheus原生的
predict_linear做单维度水位预测，但这个函数只能做单维度且线性的预测，在复杂场景下非常不准确。
比如用最近12小时的数据预测未来6小时是否会写满或超过阈值，但当用户进行瞬时快写和快删操作时，预测就完全失效了，最终导致存储写满，训练任务无法提交。这里需要说明的是，为什么没有设置固定阈值？因为高性能大规模商业存储成本极高，单个用户或组平时都维持在85%-95%左右，单位都是TB级别，所以1%的差异成本就很昂贵。
经过研究，我发现LSTM非常适合做多维度的时序预测。比如针对CV、CoGLLM等不同组和用户，可以根据**组、用户、存储类型、存储集群、使用时间（白天/夜间）**这5个维度进行聚合预测，然后将预测数据回写到Prometheus。
参考我之前调研的demo项目：
基于以上实践，我整理了这个LSTM落地方案，提供给大家测试使用，解决Prometheus单一维度静态阈值、预测不准的问题。这是一个基于LSTM深度学习模型的时间序列预测平台，能够从Prometheus监控数据中学习模式，预测未来的资源使用趋势。前端使用Element UI，后端使用FastAPI。 这里简单说明下，不懂LLM、LSTM深度学习这些没关系，从SRE角度出发就当作是一个服务组件或者中间件或者工具，我们先会用，然后再学会调整。其实就是某个服务组件调优的过程，只是相对来说更加专业一些，涉及到更多的数学知识，不过在大模型的加持下，问题也不是很大。不过做这个的前提是告警体系和cmdb体系、自动化体系已经完善。
一、调研背景与动机
为什么需要时间序列预测？
在传统的运维监控中，我们通常使用阈值告警来发现问题：
# 传统告警：当存储使用率超过90%时告警
storage_usage_percent > 90
这种方式存在明显的局限性：
- 被动响应：只能在问题发生后才发现
- 误报率高：临时峰值可能触发不必要的告警
- 缺乏趋势分析：无法预测未来的资源需求
LSTM vs 传统方法
与Prometheus内置的predict_linear函数相比，LSTM具有显著优势：
| 特性 | predict_linear | LSTM |
|---|---|---|
| 预测能力 | 简单线性外推 | 复杂非线性模式 |
| 周期性识别 | 不支持 | 支持日/周/月周期 |
| 多特征融合 | 单指标 | 支持多维特征 |
| 长期依赖 | 有限 | 强大的长期记忆 |
| 异常处理 | 敏感 | 鲁棒性强 |
二、系统架构设计

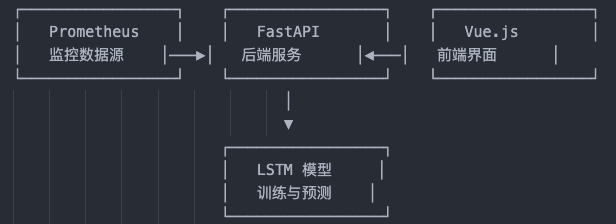

整体架构
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ Prometheus │ │ FastAPI │ │ Vue.js │
│ 监控数据源 │───▶│ 后端服务 │◀───│ 前端界面 │
└─────────────────┘ └─────────────────┘ └─────────────────┘
│
▼
┌─────────────────┐
│ LSTM 模型 │
│ 训练与预测 │
└─────────────────┘

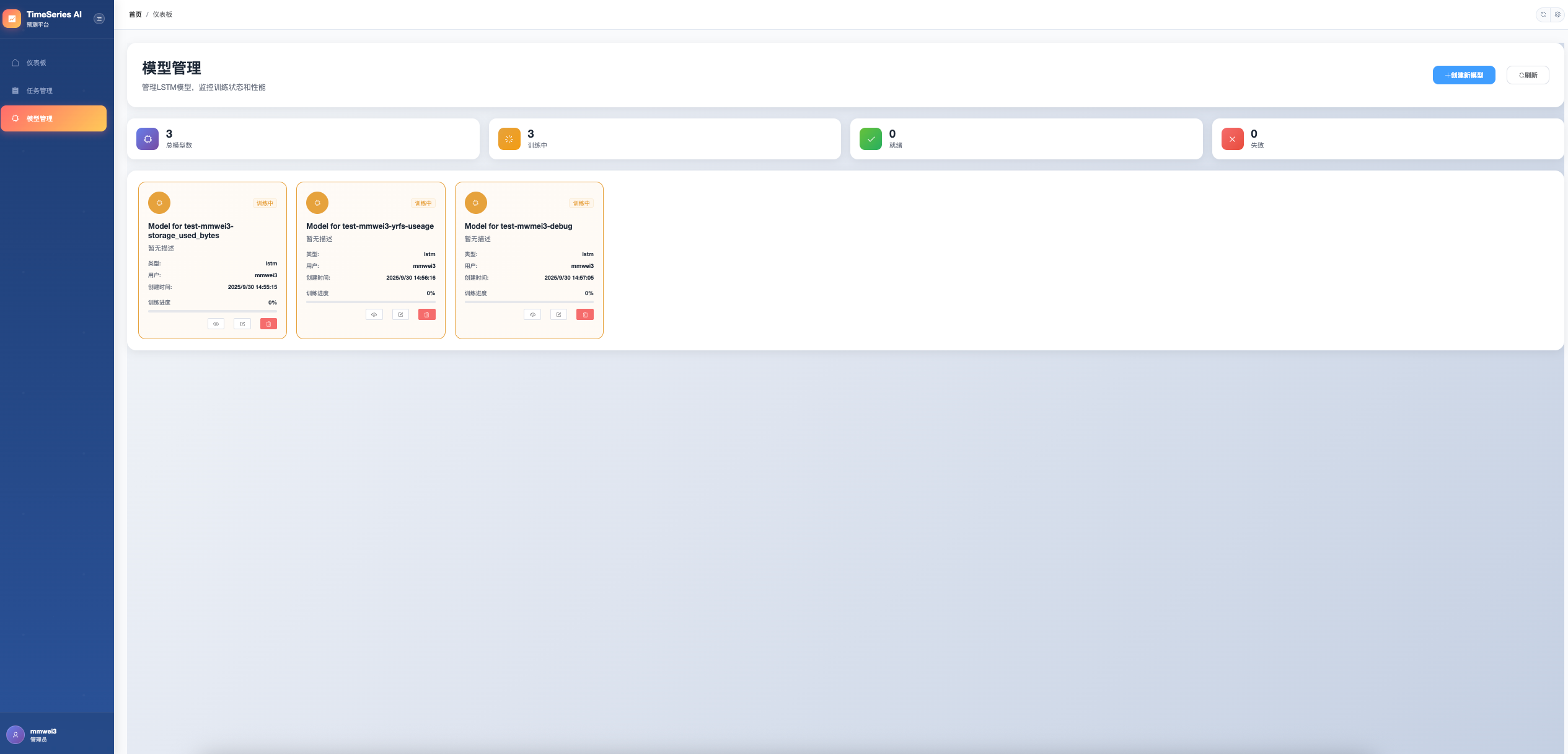

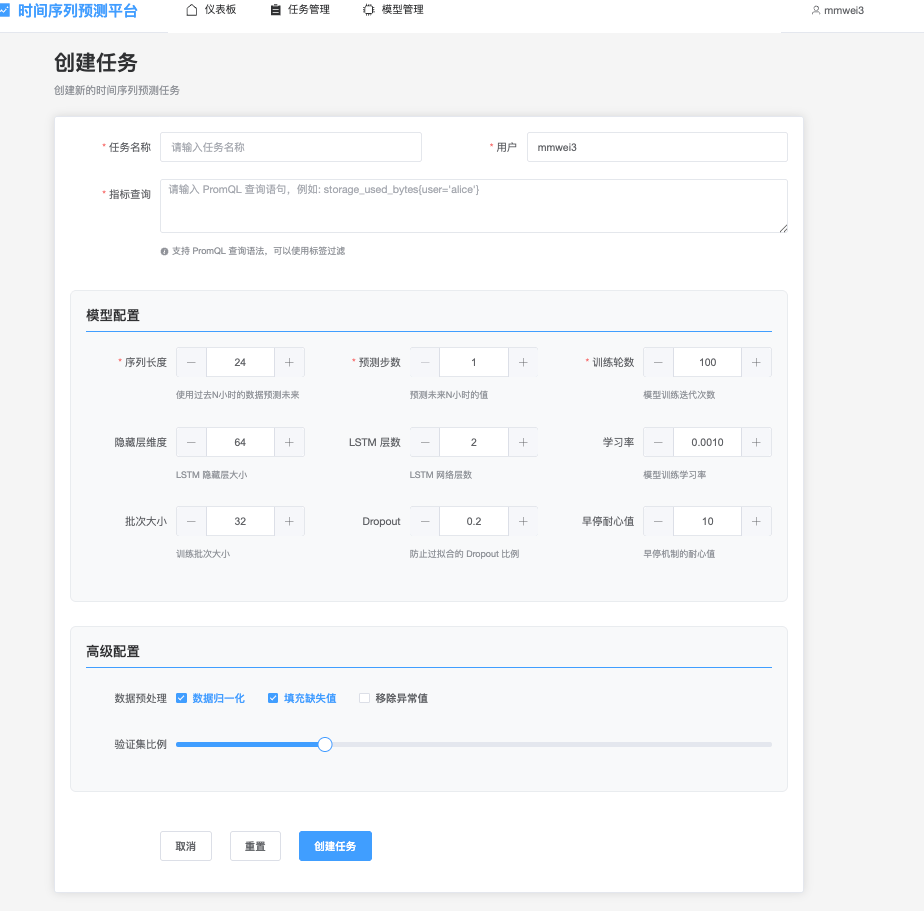

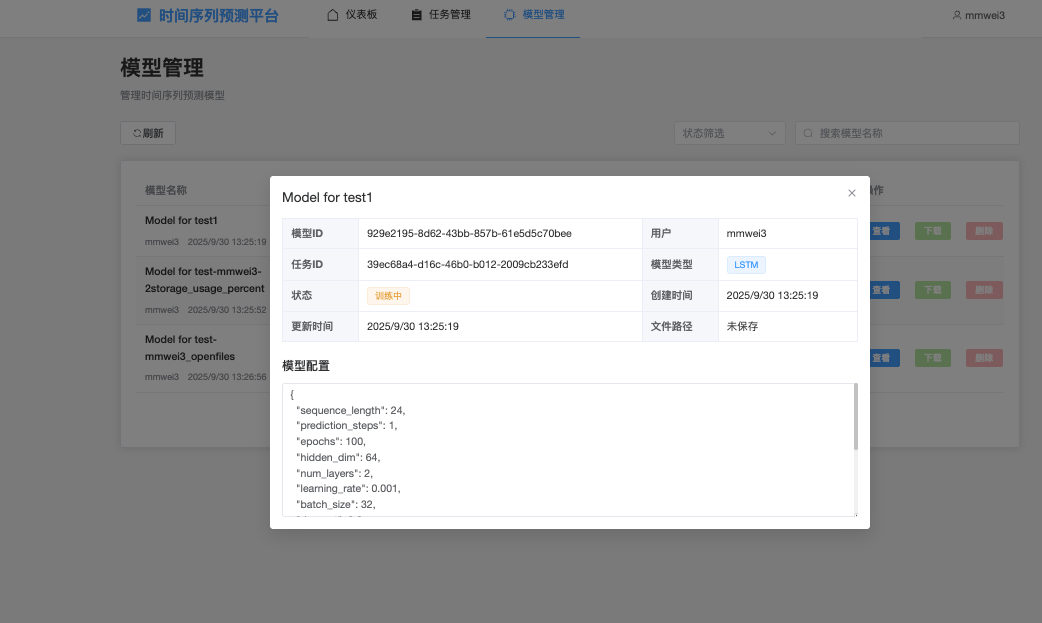

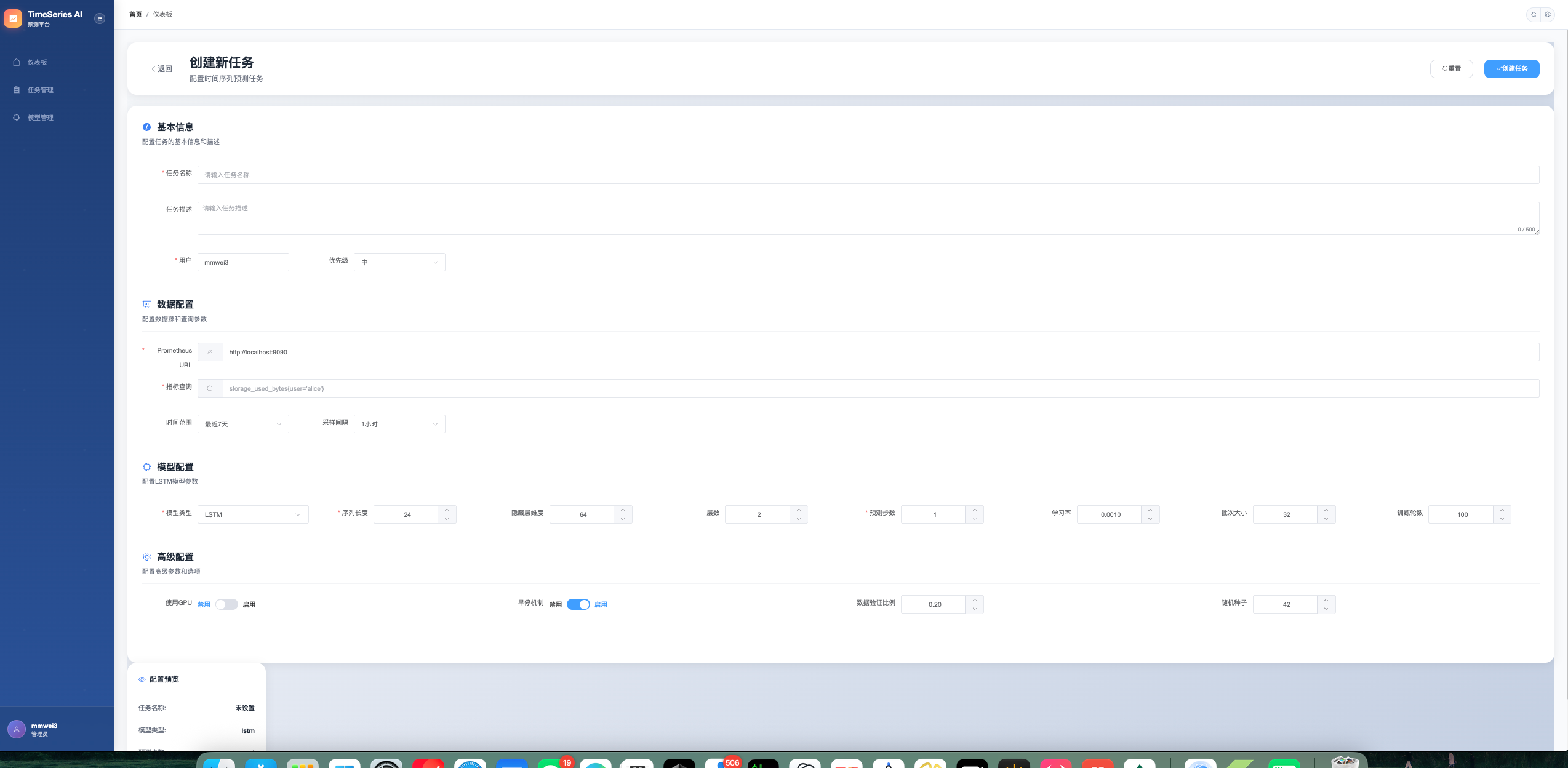

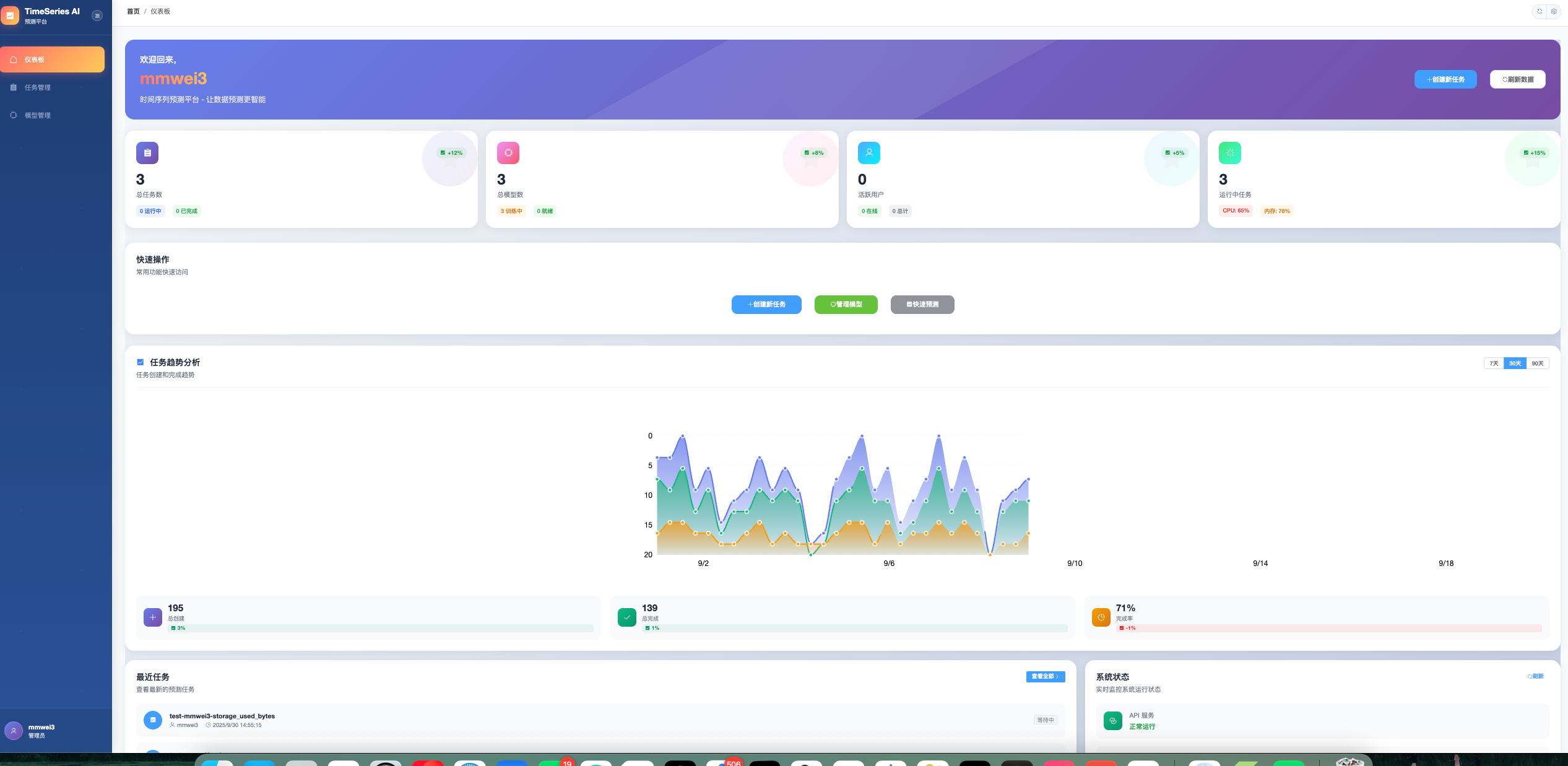

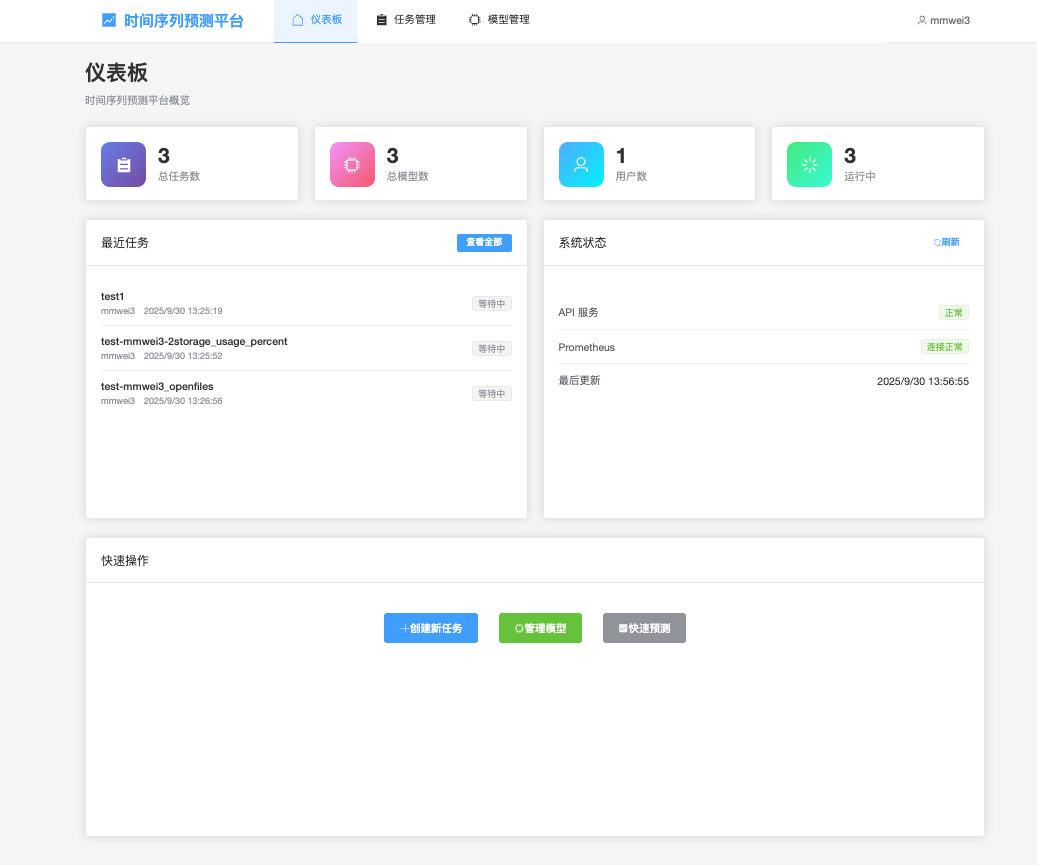

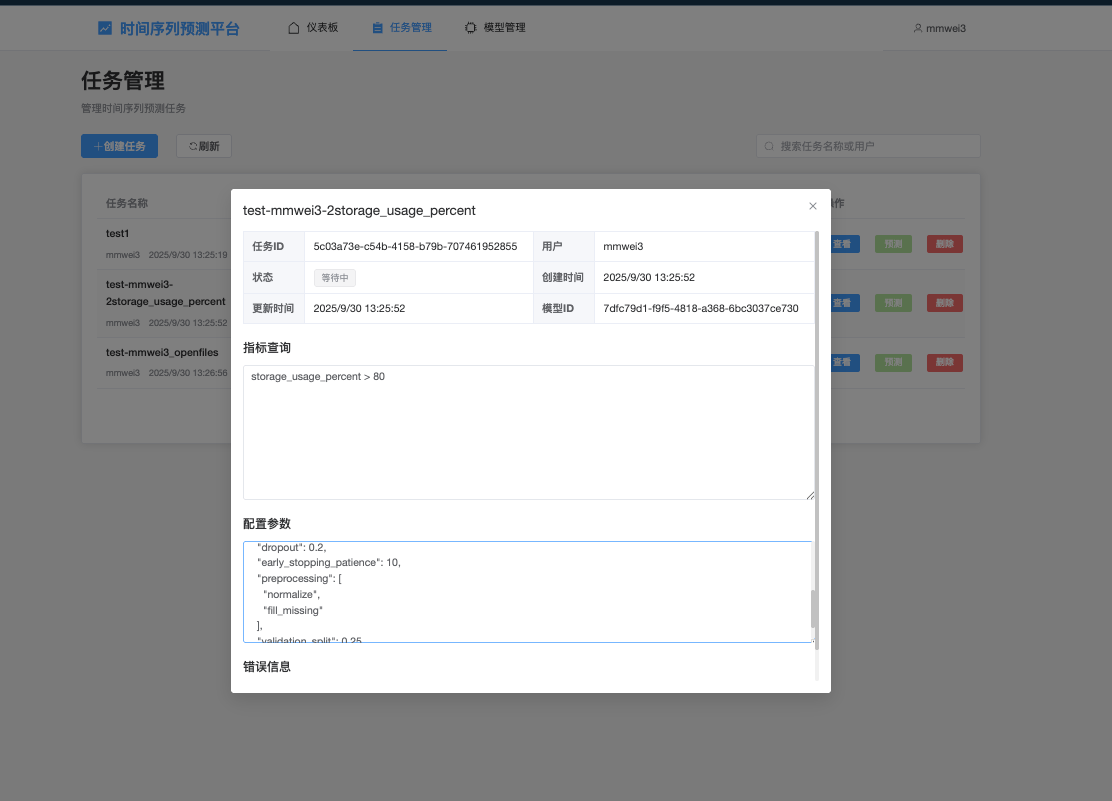

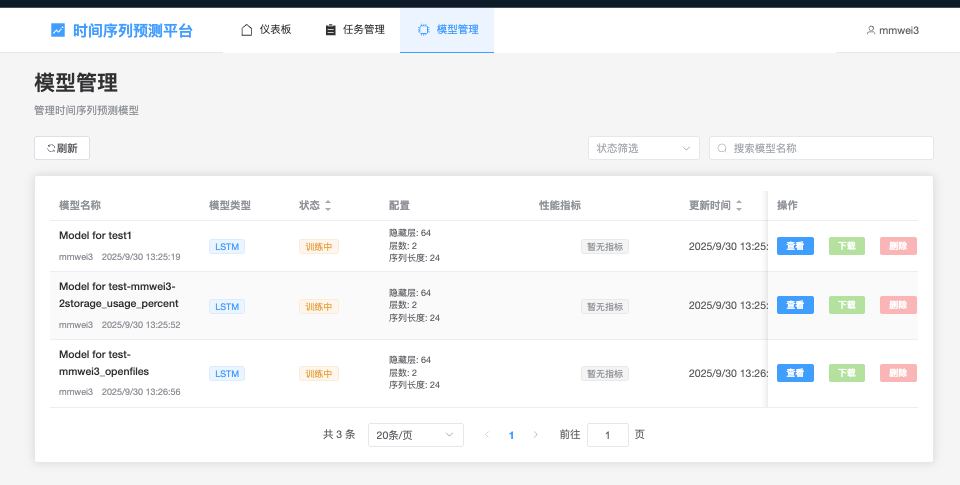

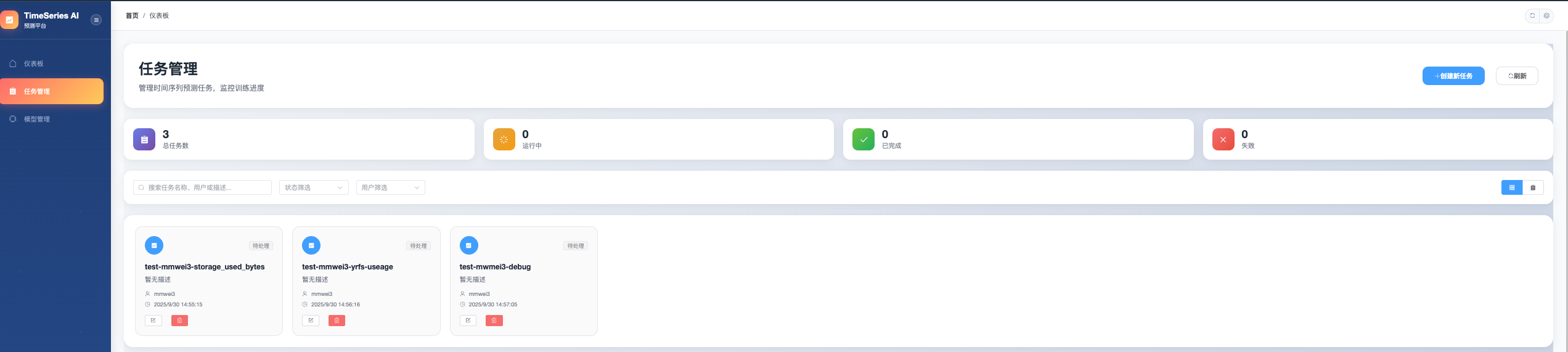

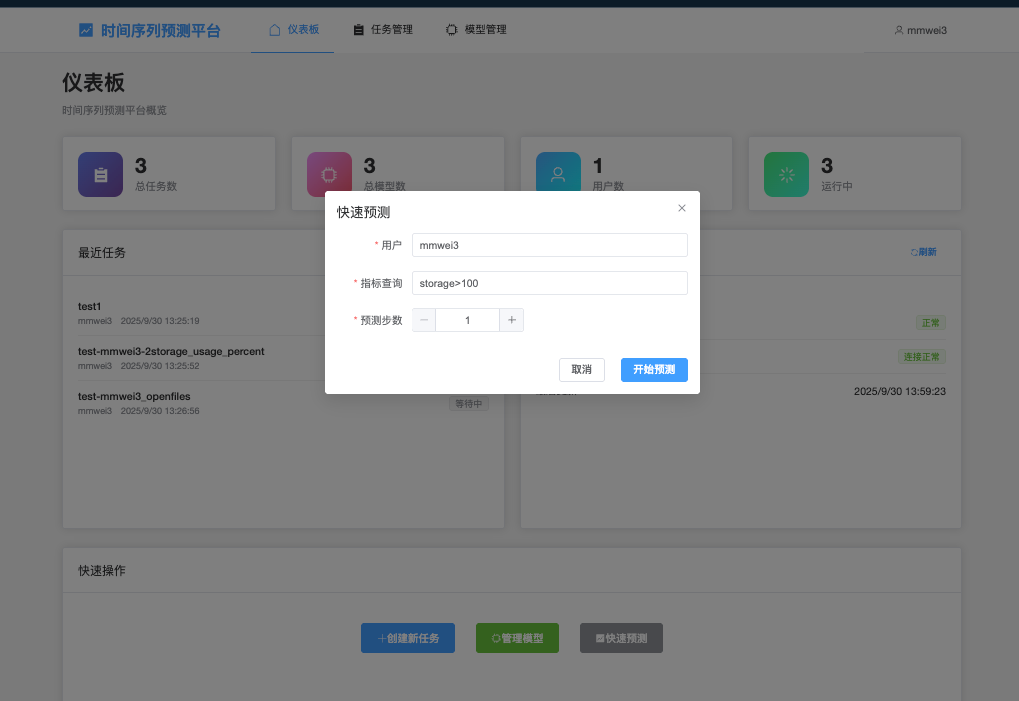

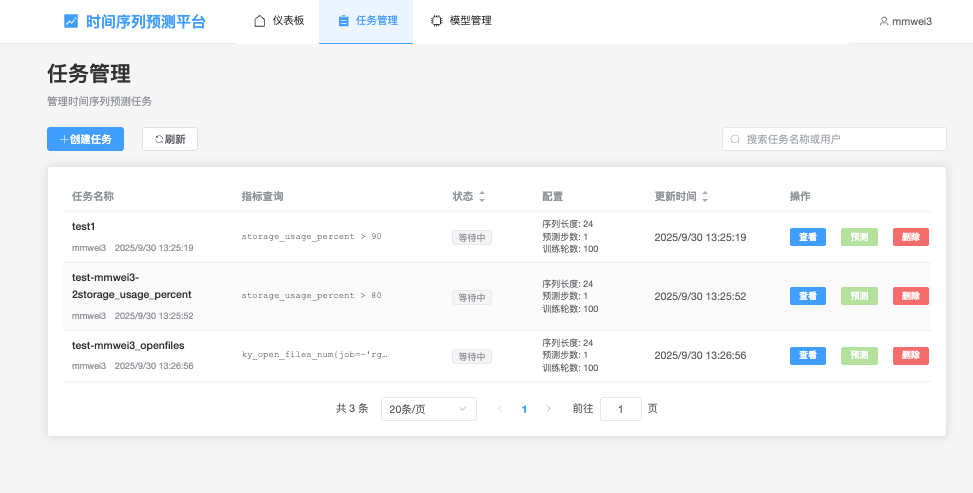

第一版截图
核心组件
1. 数据层
- Prometheus API: 获取历史时间序列数据
- 数据预处理: 归一化、缺失值处理、序列构建
- 特征工程: 时间特征、辅助指标、周期性特征
2. 模型层
- LSTM: 主要预测模型，适合大多数时间序列任务
- GRU: 轻量级替代方案，训练更快
- Transformer: 大规模数据的高级选择，我这里是通过之前接触YI-9B模型时，了解了transformerye也做了微调

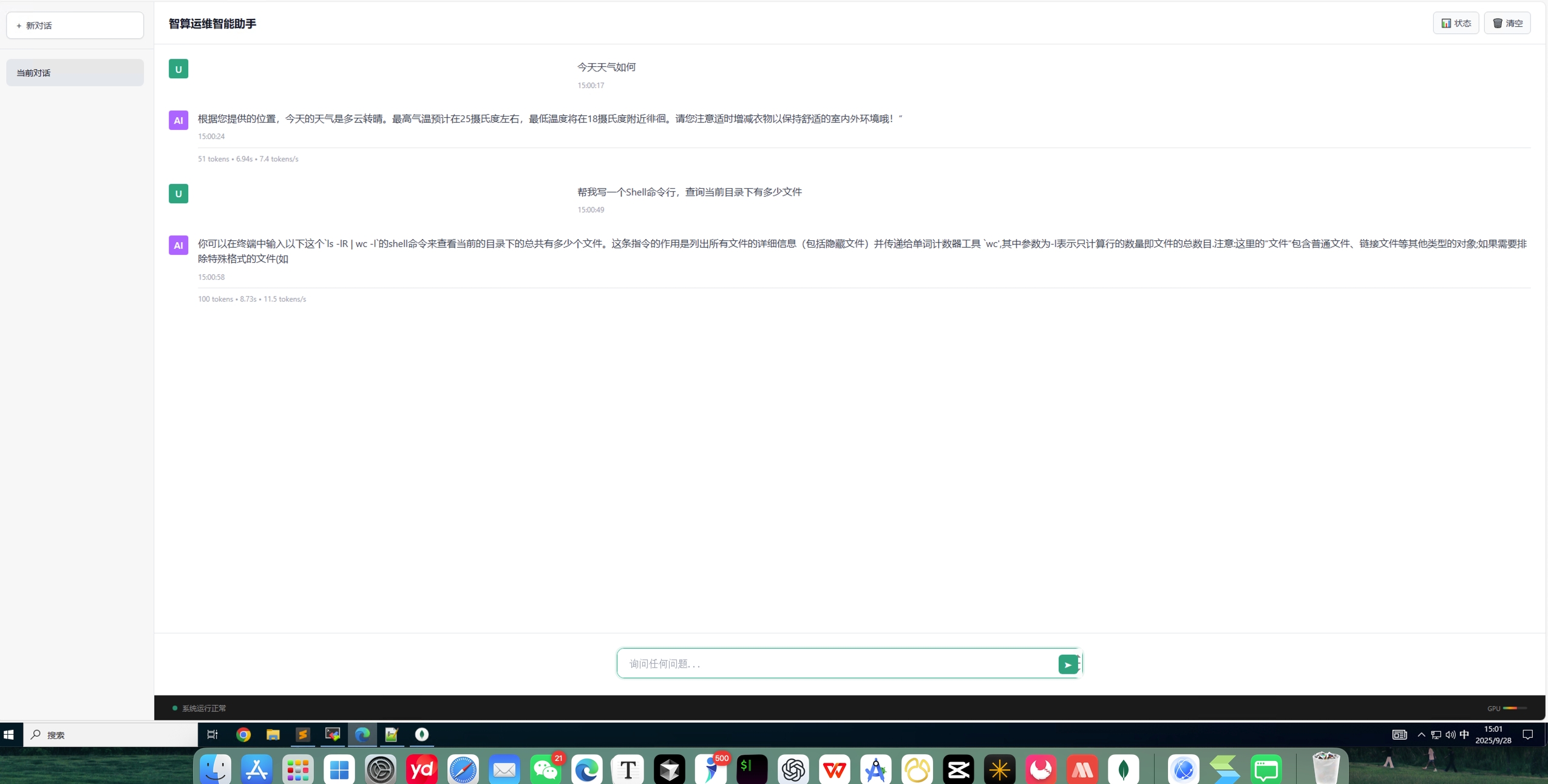

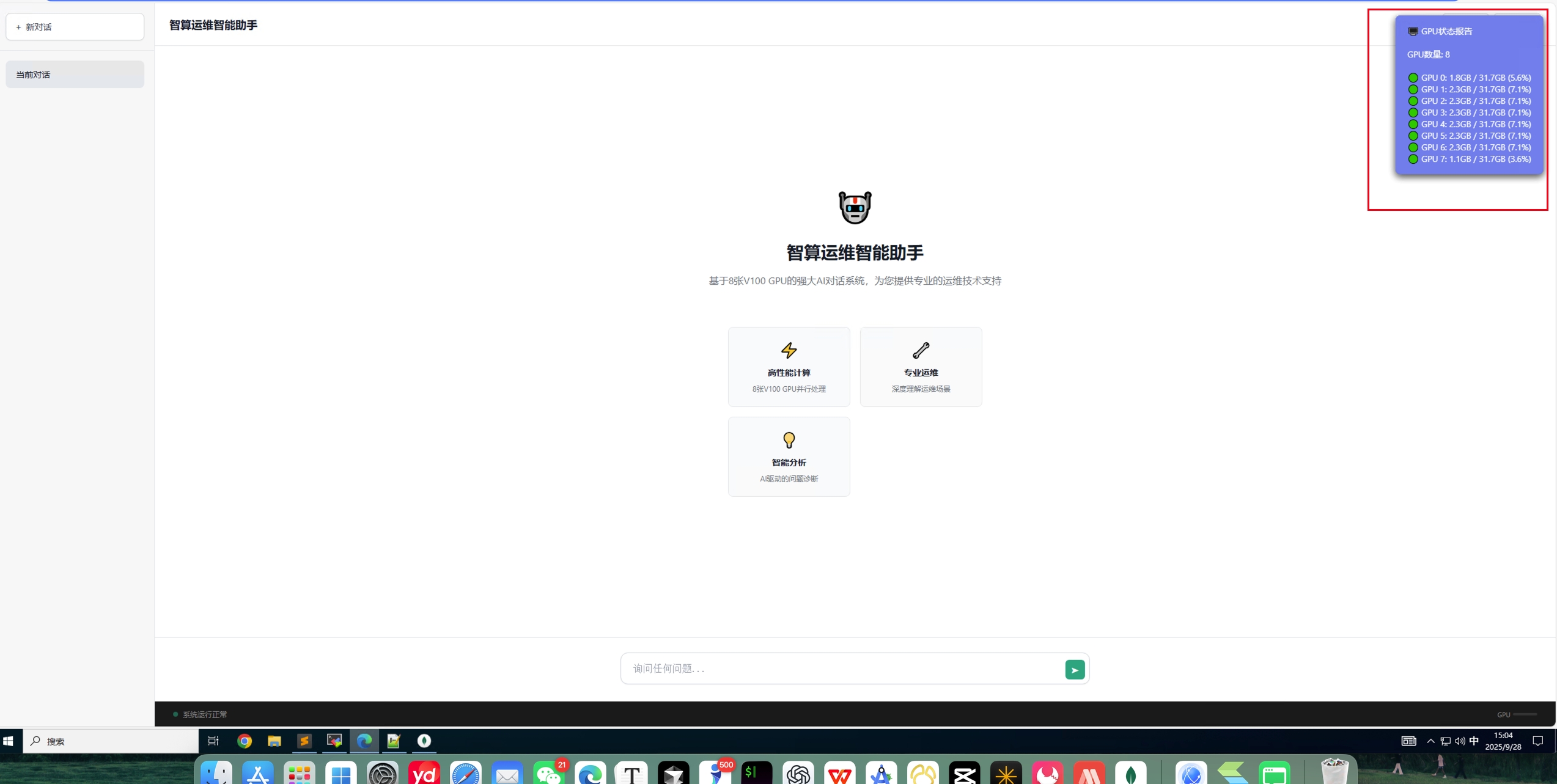

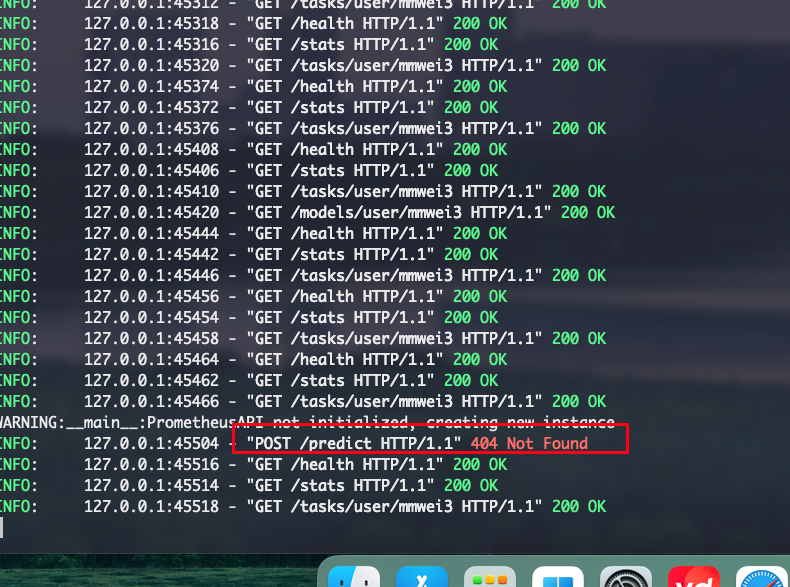

这里由于是测试环境，所以/predict推理接口暂未提供，可以参考我之前的YI-9B的接口
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
YI-9B Web聊天界面
使用Flask提供Web服务
"""
import os
import json
import time
from flask import Flask, render_template, request, jsonify, Response
from flask_cors import CORS
import torch
from yi9b_chat_interface_fixed import YI9BChatInterfaceFixed
app = Flask(__name__)
CORS(app)
# 全局聊天接口实例
chat_interface = None
def init_chat_interface():
"""初始化聊天接口"""
global chat_interface
if chat_interface is None:
model_path = "/train35/mirrordir/permanent/mirrordir/mmwei3/Yi-1.5-9B-Chat"
chat_interface = YI9BChatInterfaceFixed(
model_path, max_new_tokens=100, temperature=0.5
)
chat_interface.load_model()
return chat_interface
@app.route("/")
def index():
"""主页"""
return render_template("chat.html")
@app.route("/api/chat", methods=["POST"])
def chat():
"""聊天API"""
try:
data = request.get_json()
message = data.get("message", "").strip()
if not message:
return jsonify({"error": "消息不能为空"}), 400
# 获取聊天接口
chat = init_chat_interface()
# 生成回复
result = chat.generate_response(message)
return jsonify(
{
"response": result["response"],
"tokens": result["tokens"],
"time": result["time"],
"speed": result["speed"],
}
)
except Exception as e:
return jsonify({"error": str(e)}), 500
@app.route("/api/clear", methods=["POST"])
def clear_history():
"""清空对话历史"""
try:
chat = init_chat_interface()
chat.clear_history()
return jsonify({"success": True})
except Exception as e:
return jsonify({"error": str(e)}), 500
@app.route("/api/stats", methods=["GET"])
def get_stats():
"""获取统计信息"""
try:
chat = init_chat_interface()
stats = {"gpu_count": 0, "gpu_memory": []}
if torch.cuda.is_available():
stats["gpu_count"] = torch.cuda.device_count()
for i in range(stats["gpu_count"]):
allocated = torch.cuda.memory_allocated(i) / 1024**3
total = torch.cuda.get_device_properties(i).total_memory / 1024**3
stats["gpu_memory"].append(
{
"gpu_id": i,
"allocated": allocated,
"total": total,
"usage_percent": (allocated / total) * 100,
}
)
return jsonify(stats)
except Exception as e:
return jsonify({"error": str(e)}), 500
@app.route("/api/health", methods=["GET"])
def health_check():
"""健康检查"""
try:
chat = init_chat_interface()
return jsonify(
{
"status": "healthy",
"model_loaded": chat.model is not None,
"tokenizer_loaded": chat.tokenizer is not None,
}
)
except Exception as e:
return jsonify({"status": "unhealthy", "error": str(e)}), 500
if __name__ == "__main__":
# 创建templates目录和HTML文件
os.makedirs("templates", exist_ok=True)
# 创建HTML模板
html_template = """<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>智算运维助手 - AI对话系统</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, 'Helvetica Neue', Arial, sans-serif;
background: #ffffff;
color: #374151;
height: 100vh;
overflow: hidden;
}
.app-container {
display: flex;
height: 100vh;
}
.sidebar {
width: 260px;
background: #f7f7f8;
border-right: 1px solid #e5e7eb;
display: flex;
flex-direction: column;
transition: all 0.3s ease;
}
.sidebar-header {
padding: 16px;
border-bottom: 1px solid #e5e7eb;
}
.new-chat-btn {
width: 100%;
padding: 12px 16px;
background: #ffffff;
color: #374151;
border: 1px solid #d1d5db;
border-radius: 8px;
cursor: pointer;
font-size: 14px;
font-weight: 500;
transition: all 0.2s ease;
display: flex;
align-items: center;
gap: 8px;
box-shadow: 0 1px 2px rgba(0, 0, 0, 0.05);
}
.new-chat-btn:hover {
background: #f9fafb;
border-color: #9ca3af;
}
.chat-history {
flex: 1;
padding: 16px;
overflow-y: auto;
}
.chat-item {
padding: 12px 16px;
margin-bottom: 4px;
background: transparent;
border-radius: 8px;
cursor: pointer;
transition: all 0.2s ease;
border: 1px solid transparent;
color: #6b7280;
font-size: 14px;
}
.chat-item:hover {
background: #f3f4f6;
color: #374151;
}
.chat-item.active {
background: #e5e7eb;
color: #111827;
}
.main-content {
flex: 1;
display: flex;
flex-direction: column;
background: #ffffff;
}
.chat-header {
padding: 16px 24px;
border-bottom: 1px solid #e5e7eb;
background: #ffffff;
display: flex;
align-items: center;
justify-content: space-between;
}
.chat-title {
font-size: 18px;
font-weight: 600;
color: #111827;
}
.header-actions {
display: flex;
gap: 8px;
}
.header-btn {
padding: 8px 12px;
background: #f9fafb;
color: #374151;
border: 1px solid #d1d5db;
border-radius: 6px;
cursor: pointer;
font-size: 14px;
transition: all 0.2s ease;
}
.header-btn:hover {
background: #f3f4f6;
border-color: #9ca3af;
}
.chat-messages {
flex: 1;
overflow-y: auto;
padding: 24px;
background: #ffffff;
}
.message {
margin-bottom: 32px;
display: flex;
align-items: flex-start;
gap: 16px;
animation: fadeInUp 0.3s ease;
}
@keyframes fadeInUp {
from {
opacity: 0;
transform: translateY(10px);
}
to {
opacity: 1;
transform: translateY(0);
}
}
.message-avatar {
width: 32px;
height: 32px;
border-radius: 4px;
display: flex;
align-items: center;
justify-content: center;
font-size: 16px;
flex-shrink: 0;
font-weight: 600;
}
.message.user .message-avatar {
background: #10a37f;
color: white;
}
.message.assistant .message-avatar {
background: #ab68ff;
color: white;
}
.message-content {
flex: 1;
background: transparent;
padding: 0;
border-radius: 0;
border: none;
position: relative;
word-wrap: break-word;
line-height: 1.6;
font-size: 16px;
}
.message.user .message-content {
background: transparent;
border: none;
margin-left: auto;
max-width: 70%;
}
.message.assistant .message-content {
background: transparent;
border: none;
max-width: 100%;
}
.message-time {
font-size: 12px;
color: #9ca3af;
margin-top: 8px;
}
.message-stats {
font-size: 12px;
color: #9ca3af;
margin-top: 8px;
padding-top: 8px;
border-top: 1px solid #e5e7eb;
}
.chat-input-container {
padding: 24px;
background: #ffffff;
border-top: 1px solid #e5e7eb;
}
.input-wrapper {
position: relative;
max-width: 768px;
margin: 0 auto;
}
.chat-input {
width: 100%;
padding: 16px 60px 16px 20px;
background: #ffffff;
border: 1px solid #d1d5db;
border-radius: 12px;
color: #111827;
font-size: 16px;
outline: none;
transition: all 0.2s ease;
resize: none;
min-height: 24px;
max-height: 120px;
box-shadow: 0 1px 2px rgba(0, 0, 0, 0.05);
}
.chat-input:focus {
border-color: #10a37f;
box-shadow: 0 0 0 3px rgba(16, 163, 127, 0.1);
}
.chat-input::placeholder {
color: #9ca3af;
}
.send-button {
position: absolute;
right: 8px;
top: 50%;
transform: translateY(-50%);
width: 32px;
height: 32px;
background: #10a37f;
border: none;
border-radius: 6px;
cursor: pointer;
display: flex;
align-items: center;
justify-content: center;
transition: all 0.2s ease;
color: white;
}
.send-button:hover {
background: #059669;
transform: translateY(-50%) scale(1.05);
}
.send-button:disabled {
background: #9ca3af;
cursor: not-allowed;
transform: translateY(-50%);
}
.loading-indicator {
display: none;
text-align: center;
padding: 20px;
color: #888;
}
.typing-indicator {
display: flex;
align-items: center;
gap: 8px;
color: #888;
font-style: italic;
}
.typing-dots {
display: flex;
gap: 4px;
}
.typing-dot {
width: 6px;
height: 6px;
background: #667eea;
border-radius: 50%;
animation: typing 1.4s infinite ease-in-out;
}
.typing-dot:nth-child(1) { animation-delay: -0.32s; }
.typing-dot:nth-child(2) { animation-delay: -0.16s; }
@keyframes typing {
0%, 80%, 100% {
transform: scale(0.8);
opacity: 0.5;
}
40% {
transform: scale(1);
opacity: 1;
}
}
.status-bar {
padding: 12px 30px;
background: #1a1a1a;
border-top: 1px solid #2f2f2f;
font-size: 12px;
color: #888;
display: flex;
justify-content: space-between;
align-items: center;
}
.status-indicator {
display: flex;
align-items: center;
gap: 8px;
}
.status-dot {
width: 8px;
height: 8px;
border-radius: 50%;
background: #10a37f;
animation: pulse 2s infinite;
}
@keyframes pulse {
0% { opacity: 1; }
50% { opacity: 0.5; }
100% { opacity: 1; }
}
.gpu-status {
display: flex;
gap: 16px;
}
.gpu-item {
display: flex;
align-items: center;
gap: 4px;
font-size: 11px;
}
.gpu-bar {
width: 40px;
height: 4px;
background: #333;
border-radius: 2px;
overflow: hidden;
}
.gpu-usage {
height: 100%;
background: linear-gradient(90deg, #10a37f 0%, #f59e0b 50%, #ef4444 100%);
transition: width 0.3s ease;
}
.welcome-screen {
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
height: 100%;
text-align: center;
padding: 40px;
}
.welcome-icon {
font-size: 48px;
margin-bottom: 24px;
color: #10a37f;
}
.welcome-title {
font-size: 28px;
font-weight: 600;
margin-bottom: 16px;
color: #111827;
}
.welcome-subtitle {
font-size: 16px;
color: #6b7280;
margin-bottom: 32px;
max-width: 600px;
line-height: 1.6;
}
.feature-grid {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
gap: 16px;
max-width: 600px;
margin-top: 32px;
}
.feature-card {
background: #f9fafb;
padding: 20px;
border-radius: 8px;
border: 1px solid #e5e7eb;
text-align: center;
transition: all 0.2s ease;
}
.feature-card:hover {
background: #f3f4f6;
border-color: #d1d5db;
}
.feature-icon {
font-size: 24px;
margin-bottom: 12px;
color: #10a37f;
}
.feature-title {
font-size: 14px;
font-weight: 600;
margin-bottom: 8px;
color: #111827;
}
.feature-desc {
font-size: 12px;
color: #6b7280;
line-height: 1.5;
}
.sidebar-toggle {
display: none;
position: fixed;
top: 20px;
left: 20px;
z-index: 1000;
background: #2a2a2a;
border: 1px solid #3f3f3f;
border-radius: 8px;
padding: 12px;
cursor: pointer;
color: #ffffff;
}
@media (max-width: 768px) {
.sidebar {
position: fixed;
left: -260px;
z-index: 999;
height: 100vh;
}
.sidebar.open {
left: 0;
}
.sidebar-toggle {
display: block;
}
.main-content {
margin-left: 0;
}
.chat-header {
padding: 16px 20px;
}
.chat-messages {
padding: 16px 20px;
}
.chat-input-container {
padding: 16px 20px;
}
.welcome-title {
font-size: 24px;
}
.welcome-subtitle {
font-size: 16px;
}
.feature-grid {
grid-template-columns: 1fr;
gap: 16px;
}
}
</style>
</head>
<body>
<div class="app-container">
<div class="sidebar" id="sidebar">
<div class="sidebar-header">
<button class="new-chat-btn" onclick="startNewChat()">
<span>+</span>
<span>新对话</span>
</button>
</div>
<div class="chat-history" id="chatHistory">
<div class="chat-item active" onclick="loadChat('current')">
<div>当前对话</div>
</div>
</div>
</div>
<div class="main-content">
<div class="chat-header">
<div class="chat-title" id="chatTitle">智算运维智能助手</div>
<div class="header-actions">
<button class="header-btn" onclick="showStats()">📊 状态</button>
<button class="header-btn" onclick="clearHistory()">🗑️ 清空</button>
</div>
</div>
<div class="chat-messages" id="chatMessages">
<div class="welcome-screen" id="welcomeScreen">
<div class="welcome-icon">🤖</div>
<div class="welcome-title">智算运维智能助手</div>
<div class="welcome-subtitle">
基于8张V100 GPU的强大AI对话系统，为您提供专业的运维技术支持
</div>
<div class="feature-grid">
<div class="feature-card">
<div class="feature-icon">⚡</div>
<div class="feature-title">高性能计算</div>
<div class="feature-desc">8张V100 GPU并行处理</div>
</div>
<div class="feature-card">
<div class="feature-icon">🔧</div>
<div class="feature-title">专业运维</div>
<div class="feature-desc">深度理解运维场景</div>
</div>
<div class="feature-card">
<div class="feature-icon">💡</div>
<div class="feature-title">智能分析</div>
<div class="feature-desc">AI驱动的问题诊断</div>
</div>
</div>
</div>
</div>
<div class="loading-indicator" id="loadingIndicator">
<div class="typing-indicator">
<span>AI正在思考中</span>
<div class="typing-dots">
<div class="typing-dot"></div>
<div class="typing-dot"></div>
<div class="typing-dot"></div>
</div>
</div>
</div>
<div class="chat-input-container">
<div class="input-wrapper">
<textarea
class="chat-input"
id="messageInput"
placeholder="询问任何问题..."
rows="1"
onkeypress="handleKeyPress(event)"
oninput="autoResize(this)"
></textarea>
<button class="send-button" id="sendButton" onclick="sendMessage()">
<span>➤</span>
</button>
</div>
</div>
<div class="status-bar">
<div class="status-indicator">
<div class="status-dot"></div>
<span>系统运行正常</span>
</div>
<div class="gpu-status" id="gpuStatus">
<div class="gpu-item">
<span>GPU</span>
<div class="gpu-bar">
<div class="gpu-usage" style="width: 0%"></div>
</div>
</div>
</div>
</div>
</div>
</div>
<div class="sidebar-toggle" onclick="toggleSidebar()">☰</div>
<script>
let currentChatId = 'current';
let isFirstMessage = true;
function addMessage(content, isUser = false, stats = null) {
const messagesContainer = document.getElementById('chatMessages');
const welcomeScreen = document.getElementById('welcomeScreen');
// 隐藏欢迎界面
if (welcomeScreen && isFirstMessage) {
welcomeScreen.style.display = 'none';
isFirstMessage = false;
}
const messageDiv = document.createElement('div');
messageDiv.className = `message ${isUser ? 'user' : 'assistant'}`;
const avatar = isUser ? 'U' : 'AI';
const currentTime = new Date().toLocaleTimeString();
let messageContent = `
<div class="message-avatar">${avatar}</div>
<div class="message-content">
${content}
<div class="message-time">${currentTime}</div>
${stats ? `<div class="message-stats">${stats.tokens} tokens • ${stats.time.toFixed(2)}s • ${stats.speed.toFixed(1)} tokens/s</div>` : ''}
</div>
`;
messageDiv.innerHTML = messageContent;
messagesContainer.appendChild(messageDiv);
messagesContainer.scrollTop = messagesContainer.scrollHeight;
}
function showLoading() {
document.getElementById('loadingIndicator').style.display = 'block';
document.getElementById('sendButton').disabled = true;
}
function hideLoading() {
document.getElementById('loadingIndicator').style.display = 'none';
document.getElementById('sendButton').disabled = false;
}
function autoResize(textarea) {
textarea.style.height = 'auto';
textarea.style.height = Math.min(textarea.scrollHeight, 120) + 'px';
}
async function sendMessage() {
const input = document.getElementById('messageInput');
const message = input.value.trim();
if (!message) return;
// 添加用户消息
addMessage(message, true);
input.value = '';
input.style.height = 'auto';
showLoading();
try {
const response = await fetch('/api/chat', {
method: 'POST',
headers: {
'Content-Type': 'application/json',
},
body: JSON.stringify({ message: message })
});
const data = await response.json();
if (response.ok) {
addMessage(data.response, false, data);
updateGPUStatus(data);
} else {
addMessage(`❌ 错误: ${data.error}`, false);
}
} catch (error) {
addMessage(`❌ 网络错误: ${error.message}`, false);
} finally {
hideLoading();
}
}
function handleKeyPress(event) {
if (event.key === 'Enter' && !event.shiftKey) {
event.preventDefault();
sendMessage();
}
}
async function clearHistory() {
try {
await fetch('/api/clear', { method: 'POST' });
const messagesContainer = document.getElementById('chatMessages');
const welcomeScreen = document.getElementById('welcomeScreen');
messagesContainer.innerHTML = '';
if (welcomeScreen) {
welcomeScreen.style.display = 'flex';
isFirstMessage = true;
}
} catch (error) {
showNotification('清空失败: ' + error.message, 'error');
}
}
async function showStats() {
try {
const response = await fetch('/api/stats');
const data = await response.json();
if (response.ok) {
let statsText = `🖥️ GPU状态报告\\n\\n`;
statsText += `GPU数量: ${data.gpu_count}\\n\\n`;
data.gpu_memory.forEach(gpu => {
const status = gpu.usage_percent > 80 ? '🔴' : gpu.usage_percent > 50 ? '🟡' : '🟢';
statsText += `${status} GPU ${gpu.gpu_id}: ${gpu.allocated.toFixed(1)}GB / ${gpu.total.toFixed(1)}GB (${gpu.usage_percent.toFixed(1)}%)\\n`;
});
showNotification(statsText, 'info');
} else {
showNotification('获取状态失败: ' + data.error, 'error');
}
} catch (error) {
showNotification('获取状态失败: ' + error.message, 'error');
}
}
function updateGPUStatus(data) {
// 更新GPU状态显示
const gpuStatus = document.getElementById('gpuStatus');
if (gpuStatus && data.speed) {
const gpuUsage = Math.min((data.speed / 20) * 100, 100); // 假设20 tokens/s为满负载
const gpuBar = gpuStatus.querySelector('.gpu-usage');
if (gpuBar) {
gpuBar.style.width = gpuUsage + '%';
}
}
}
function startNewChat() {
clearHistory();
showNotification('新对话已开始', 'success');
}
function loadChat(chatId) {
// 更新活跃状态
document.querySelectorAll('.chat-item').forEach(item => {
item.classList.remove('active');
});
event.target.closest('.chat-item').classList.add('active');
currentChatId = chatId;
showNotification(`已切换到对话: ${chatId}`, 'info');
}
function toggleSidebar() {
const sidebar = document.getElementById('sidebar');
sidebar.classList.toggle('open');
}
function showNotification(message, type = 'info') {
// 创建通知元素
const notification = document.createElement('div');
notification.style.cssText = `
position: fixed;
top: 20px;
right: 20px;
background: ${type === 'error' ? '#ef4444' : type === 'success' ? '#10a37f' : '#667eea'};
color: white;
padding: 16px 20px;
border-radius: 8px;
box-shadow: 0 4px 12px rgba(0,0,0,0.3);
z-index: 10000;
max-width: 400px;
word-wrap: break-word;
white-space: pre-line;
font-size: 14px;
animation: slideIn 0.3s ease;
`;
notification.textContent = message;
document.body.appendChild(notification);
// 3秒后自动移除
setTimeout(() => {
notification.style.animation = 'slideOut 0.3s ease';
setTimeout(() => {
if (notification.parentNode) {
notification.parentNode.removeChild(notification);
}
}, 300);
}, 3000);
}
// 添加动画样式
const style = document.createElement('style');
style.textContent = `
@keyframes slideIn {
from { transform: translateX(100%); opacity: 0; }
to { transform: translateX(0); opacity: 1; }
}
@keyframes slideOut {
from { transform: translateX(0); opacity: 1; }
to { transform: translateX(100%); opacity: 0; }
}
`;
document.head.appendChild(style);
// 页面加载时检查健康状态
window.onload = async function() {
try {
const response = await fetch('/api/health');
const data = await response.json();
if (!data.model_loaded || !data.tokenizer_loaded) {
showNotification('⚠️ 模型正在加载中，请稍候...', 'info');
} else {
showNotification('✅ 系统已就绪，可以开始对话', 'success');
}
} catch (error) {
showNotification('⚠️ 服务连接异常', 'error');
}
// 定期更新GPU状态
setInterval(async () => {
try {
const response = await fetch('/api/stats');
const data = await response.json();
if (response.ok) {
updateGPUStatus(data);
}
} catch (error) {
// 静默处理错误
}
}, 5000);
};
// 点击外部关闭侧边栏
document.addEventListener('click', function(event) {
const sidebar = document.getElementById('sidebar');
const sidebarToggle = document.querySelector('.sidebar-toggle');
if (window.innerWidth <= 768 &&
!sidebar.contains(event.target) &&
!sidebarToggle.contains(event.target)) {
sidebar.classList.remove('open');
}
});
</script>
</body>
</html>"""
# 写入HTML文件
with open("templates/chat.html", "w", encoding="utf-8") as f:
f.write(html_template)
print("🚀 启动 Web聊天界面...")
print("📱 访问地址: http://localhost:5000")
print("🛑 按 Ctrl+C 停止服务")
app.run(host="0.0.0.0", port=5000, debug=False)
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
修复版V100 GPU优化的YI-9B模型测试脚本
"""
import torch
import time
import gc
import psutil
from transformers import AutoModelForCausalLM, AutoConfig, AutoTokenizer
from datetime import datetime
def print_system_info():
"""打印系统信息"""
print("=" * 60)
print("V100 GPU环境 - YI-9B模型测试 (修复版)")
print("=" * 60)
print(f"测试时间: {datetime.now().strftime('%Y-%m-%d %H:%M:%S')}")
print(f"PyTorch版本: {torch.__version__}")
print(f"CUDA版本: {torch.version.cuda}")
print(
f"Python版本: {psutil.Process().environ().get('CONDA_DEFAULT_ENV', 'unknown')}"
)
print()
def check_gpu_status():
"""检查GPU状态"""
if not torch.cuda.is_available():
raise RuntimeError("❌ CUDA不可用")
gpu_count = torch.cuda.device_count()
print(f"🎯 检测到 {gpu_count} 张GPU:")
for i in range(gpu_count):
props = torch.cuda.get_device_properties(i)
memory_gb = props.total_memory / 1024**3
print(f" GPU {i}: {props.name}")
print(f" 显存: {memory_gb:.1f}GB")
print(f" 计算能力: {props.major}.{props.minor}")
print(f" 多处理器: {props.multi_processor_count}")
print()
return gpu_count
def monitor_gpu_memory():
"""监控GPU内存使用"""
print("📊 GPU内存使用情况:")
for i in range(torch.cuda.device_count()):
allocated = torch.cuda.memory_allocated(i) / 1024**3
cached = torch.cuda.memory_reserved(i) / 1024**3
total = torch.cuda.get_device_properties(i).total_memory / 1024**3
free = total - allocated
print(
f" GPU {i}: 已用 {allocated:.1f}GB / 缓存 {cached:.1f}GB / 可用 {free:.1f}GB / 总计 {total:.1f}GB"
)
print()
def load_model_optimized(model_path, gpu_count):
"""优化的模型加载 - 修复版"""
print("🚀 开始加载YI-9B模型...")
start_time = time.time()
# 加载配置
print(" 📋 加载模型配置...")
config = AutoConfig.from_pretrained(model_path)
print(" ✅ 配置加载完成")
# 加载tokenizer
print(" 🔤 加载Tokenizer...")
tokenizer = AutoTokenizer.from_pretrained(model_path)
print(" ✅ Tokenizer加载完成")
# 检查tokenizer
print(f" 📊 Tokenizer信息:")
print(f" 词汇表大小: {tokenizer.vocab_size}")
print(f" 特殊token: {tokenizer.special_tokens_map}")
# 测试tokenizer
test_text = "你好"
tokens = tokenizer.encode(test_text)
decoded = tokenizer.decode(tokens)
print(f" Tokenizer测试: '{test_text}' -> {tokens} -> '{decoded}'")
# 根据GPU数量选择加载策略
if gpu_count >= 4:
print(" 🎯 使用多GPU自动分配策略...")
model = AutoModelForCausalLM.from_pretrained(
model_path,
torch_dtype=torch.float16,
device_map="auto",
trust_remote_code=True,
low_cpu_mem_usage=True,
max_memory={i: "25GB" for i in range(gpu_count)},
)
else:
print(" 🎯 使用单GPU策略...")
model = AutoModelForCausalLM.from_pretrained(
model_path,
torch_dtype=torch.float16,
device_map="auto",
trust_remote_code=True,
low_cpu_mem_usage=True,
)
model.eval()
load_time = time.time() - start_time
print(f" ✅ 模型加载完成! 耗时: {load_time:.2f}秒")
return model, tokenizer, load_time
def show_model_distribution(model):
"""显示模型分布情况"""
print("📋 模型层分布情况:")
if hasattr(model, "hf_device_map"):
for name, device in model.hf_device_map.items():
print(f" {name}: {device}")
else:
print(" 模型未使用device_map")
print()
def test_simple_inference(model, tokenizer):
"""测试简单推理"""
print("🧪 测试简单推理...")
# 使用简单的测试用例
test_prompts = [
"Hello",
"你好",
"The weather is",
]
for i, prompt in enumerate(test_prompts, 1):
print(f"\n--- 简单测试 {i}/{len(test_prompts)} ---")
print(f"输入: {prompt}")
# 编码输入
inputs = tokenizer(prompt, return_tensors="pt")
# 将输入移动到第一个GPU
if torch.cuda.is_available():
inputs = {k: v.to("cuda:0") for k, v in inputs.items()}
# 推理 - 使用保守参数
start_time = time.time()
with torch.no_grad():
outputs = model.generate(
**inputs,
max_new_tokens=20, # 减少生成长度
temperature=0.1, # 降低随机性
do_sample=False, # 使用贪婪解码
pad_token_id=tokenizer.eos_token_id,
eos_token_id=tokenizer.eos_token_id,
repetition_penalty=1.0, # 不使用重复惩罚
use_cache=True,
)
inference_time = time.time() - start_time
# 解码输出
response = tokenizer.decode(outputs[0], skip_special_tokens=True)
new_tokens = len(outputs[0]) - len(inputs["input_ids"][0])
print(f"输出: {response}")
print(f"生成tokens: {new_tokens}")
print(f"推理时间: {inference_time:.2f}秒")
if inference_time > 0:
print(f"生成速度: {new_tokens/inference_time:.1f} tokens/秒")
# 清理缓存
torch.cuda.empty_cache()
def main():
"""主函数"""
try:
# 模型路径
model_path = "/train35/mirrordir/permanent/mirrordir/mmwei3/Yi-1.5-9B-Chat"
# 检查模型路径是否存在
import os
if not os.path.exists(model_path):
print(f"❌ 模型路径不存在: {model_path}")
return
# 打印系统信息
print_system_info()
# 检查GPU状态
gpu_count = check_gpu_status()
# 加载模型
model, tokenizer, load_time = load_model_optimized(model_path, gpu_count)
# 显示模型分布
show_model_distribution(model)
# 监控内存使用
monitor_gpu_memory()
# 执行简单推理测试
test_simple_inference(model, tokenizer)
# 最终内存状态
print("📊 最终GPU内存状态:")
monitor_gpu_memory()
print("🎉 V100测试完成！")
except Exception as e:
print(f"❌ 测试失败: {e}")
import traceback
traceback.print_exc()
# 清理资源
if torch.cuda.is_available():
torch.cuda.empty_cache()
gc.collect()
finally:
# 清理GPU内存
if torch.cuda.is_available():
torch.cuda.empty_cache()
gc.collect()
print("🧹 GPU内存已清理")
if __name__ == "__main__":
main()
第二版本UI界面截图及阿里云demo地址
demo演示：http://118.31.237.143:3000/
WARNING:__main__:PrometheusAPI not initialized, creating new instance
INFO: 127.0.0.1:56908 - "POST /predict HTTP/1.1" 404 Not Found
INFO: 127.0.0.1:56910 - "GET /health HTTP/1.1" 200 OK
INFO: 127.0.0.1:56912 - "GET /stats HTTP/1.1" 200 OK
INFO: 127.0.0.1:56914 - "GET /tasks/user/mmwei3 HTTP/1.1" 200 OK
INFO: 127.0.0.1:56930 - "GET /health HTTP/1.1" 200 OK
INFO: 127.0.0.1:56928 - "GET /stats HTTP/1.1" 200 OK
INFO: 127.0.0.1:56932 - "GET /tasks/user/mmwei3 HTTP/1.1" 200 OK
INFO: 127.0.0.1:57068 - "GET /health HTTP/1.1" 200 OK
INFO: 127.0.0.1:57070 - "GET /stats HTTP/1.1" 200 OK
INFO: 127.0.0.1:57072 - "GET /tasks/user/mmwei3 HTTP/1.1" 200 OK
INFO: 127.0.0.1:57100 - "GET /health HTTP/1.1" 200 OK
3. 服务层
- FastAPI: 高性能异步Web框架
- RESTful API: 完整的预测服务接口
- 后台任务: 异步模型训练
4. 展示层
- Vue.js: 现代化前端框架
- Element Plus: 企业级UI组件库
- ECharts: 数据可视化
三、深度学习模型详解
LSTM模型结构
class LSTMForecaster(nn.Module):
def __init__(self, input_dim, hidden_dim=64, num_layers=2, output_dim=1):
super().__init__()
self.lstm = nn.LSTM(
input_dim,
hidden_dim,
num_layers,
batch_first=True,
dropout=0.2
)
self.fc = nn.Linear(hidden_dim, output_dim)
def forward(self, x):
# x shape: (batch_size, sequence_length, input_dim)
lstm_out, _ = self.lstm(x)
# 取最后一个时间步的输出
output = self.fc(lstm_out[:, -1, :])
return output
模型选择策略
为什么主要使用LSTM？
- 长期依赖处理: LSTM的门控机制能够有效处理长期时间依赖
- 梯度稳定性: 相比普通RNN，LSTM解决了梯度消失问题
- 成熟度高: 在时间序列预测领域应用广泛，技术成熟
- 资源友好: 相比Transformer，对计算资源要求较低
生产级GPU配置
根据实际硬件环境，我们提供了详细的GPU配置建议：
# 8卡A800配置示例
+---------------------------------------------------------------------------------------+
| NVIDIA-SMI 535.54.03 Driver Version: 535.54.03 CUDA Version: 12.2 |
|-----------------------------------------+----------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+======================+======================|
| 0 NVIDIA A800-SXM4-80GB On | 00000000:3D:00.0 Off | 0 |
| N/A 34C P0 62W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 1 NVIDIA A800-SXM4-80GB On | 00000000:42:00.0 Off | 0 |
| N/A 31C P0 63W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 2 NVIDIA A800-SXM4-80GB On | 00000000:61:00.0 Off | 0 |
| N/A 30C P0 59W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 3 NVIDIA A800-SXM4-80GB On | 00000000:67:00.0 Off | 0 |
| N/A 34C P0 62W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 4 NVIDIA A800-SXM4-80GB On | 00000000:AD:00.0 Off | 0 |
| N/A 34C P0 60W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 5 NVIDIA A800-SXM4-80GB On | 00000000:B1:00.0 Off | 0 |
| N/A 31C P0 58W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 6 NVIDIA A800-SXM4-80GB On | 00000000:D0:00.0 Off | 0 |
| N/A 30C P0 59W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
| 7 NVIDIA A800-SXM4-80GB On | 00000000:D3:00.0 Off | 0 |
| N/A 33C P0 60W / 400W | 2MiB / 81920MiB | 0% Default |
| | | Disabled |
+-----------------------------------------+----------------------+----------------------+
+---------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=======================================================================================|
| No running processes found |
+---------------------------------------------------------------------------------------+
性能对比（100个epoch训练时间）：
- CPU (16核心): 2-4小时
- Tesla T4: 15-25分钟
- Tesla V100: 8-15分钟
- Tesla A100: 5-10分钟
- H100: 3-8分钟
四、核心功能实现
1. 数据获取与预处理
class DataLoader:
def __init__(self, prometheus_url="http://localhost:9090"):
self.prometheus_url = prometheus_url
def fetch_prometheus_data(self, metric_query, start_time, end_time):
"""从Prometheus获取历史数据"""
params = {
'query': metric_query,
'start': start_time.timestamp(),
'end': end_time.timestamp(),
'step': '1h'
}
response = requests.get(f"{self.prometheus_url}/api/v1/query_range", params=params)
return self._parse_response(response.json())
def create_sequences(self, data, sequence_length=24, prediction_steps=1):
"""创建LSTM训练序列"""
X, y = [], []
for i in range(len(data) - sequence_length - prediction_steps + 1):
X.append(data[i:i + sequence_length])
y.append(data[i + sequence_length:i + sequence_length + prediction_steps])
return np.array(X), np.array(y)
2. 模型训练流程
class ModelTrainer:
def __init__(self, config):
self.config = config
self.device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
def train_model(self, X_train, y_train, X_val, y_val):
"""模型训练主流程"""
model = LSTMForecaster(
input_dim=self.config['input_dim'],
hidden_dim=self.config['hidden_dim'],
num_layers=self.config['num_layers']
).to(self.device)
optimizer = torch.optim.Adam(model.parameters(), lr=self.config['learning_rate'])
criterion = nn.MSELoss()
for epoch in range(self.config['epochs']):
# 训练阶段
model.train()
train_loss = self._train_epoch(model, X_train, y_train, optimizer, criterion)
# 验证阶段
model.eval()
val_loss = self._validate_epoch(model, X_val, y_val, criterion)
# 早停检查
if self._early_stopping(val_loss):
break
return model
3. 预测服务API
@app.post("/predict")
async def predict(request: PredictionRequest):
"""时间序列预测接口"""
try:
# 获取最新数据
data = await fetch_latest_data(request.metric_query)
# 数据预处理
processed_data = preprocess_data(data)
# 模型预测
predictions = model.predict(processed_data, steps=request.prediction_steps)
# 格式化结果
result = {
"user": request.user,
"metric_query": request.metric_query,
"predictions": predictions.tolist(),
"timestamps": generate_timestamps(request.prediction_steps),
"confidence": calculate_confidence(predictions)
}
return result
except Exception as e:
raise HTTPException(status_code=500, detail=str(e))
五、 前端界面设计
现代化仪表板
前端采用Vue.js + Element Plus构建，提供直观的用户界面：
<template>
<div class="dashboard">
<!-- 统计卡片 -->
<el-row :gutter="20" class="stats-row">
<el-col :span="6">
<el-card class="stat-card">
<div class="stat-content">
<div class="stat-icon tasks">
<el-icon><List /></el-icon>
</div>
<div class="stat-info">
<div class="stat-value">{{ stats.tasks?.total || 0 }}</div>
<div class="stat-label">总任务数</div>
</div>
</div>
</el-card>
</el-col>
<!-- 更多统计卡片... -->
</el-row>
<!-- 预测结果图表 -->
<el-card class="chart-card">
<template #header>
<span>预测结果</span>
</template>
<div ref="chartContainer" class="chart-container"></div>
</el-card>
</div>
</template>
关键特性
- 实时监控: 自动刷新系统状态和任务进度
- 可视化图表: 使用ECharts展示预测结果和趋势
- 任务管理: 创建、监控、管理预测任务
- 快速预测: 一键式快速预测功能
六、 部署与运维
Docker容器化部署
# docker-compose.yml
version: '3.8'
services:
backend:
build: ./backend
ports:
- "8000:8000"
environment:
- PROMETHEUS_URL=http://prometheus:9090
- PUSHGATEWAY_URL=http://pushgateway:9091
volumes:
- ./backend/models:/app/models
- ./backend/logs:/app/logs
depends_on:
- prometheus
frontend:
build: ./frontend
ports:
- "3000:3000"
depends_on:
- backend
prometheus:
image: prom/prometheus:latest
ports:
- "9090:9090"
volumes:
- ./prometheus.yml:/etc/prometheus/prometheus.yml
一键启动
# 克隆项目
git clone https://github.com/pwxwmm/timeseries_forecast_platform.git
cd timeseries_forecast_platform
# 启动所有服务
docker-compose up -d
# 访问应用
# 前端: http://localhost:3000
# 后端API: http://localhost:8000
# API文档: http://localhost:8000/docs
七、实际应用场景
1. 存储配额预测
场景: 云存储服务商需要预测用户存储使用量，提前扩容或预警
# 训练存储预测模型
python train.py --user alice \
--metric-query "storage_used_bytes{user='alice'}" \
--epochs 100
# 预测未来24小时
python predict.py --user alice --steps 24
效果: 相比传统阈值告警，提前3-6小时发现存储瓶颈，减少99%的存储相关故障。
2. GPU资源预测
场景: AI训练平台需要预测GPU使用情况，优化资源调度
# 训练GPU预测模型
python train.py --user alice \
--metric-query "gpu_memory_used{user='alice'}" \
--epochs 150
# 预测未来12小时
python predict.py --user alice --steps 12
效果: 提高GPU利用率15%，减少资源浪费，优化训练任务调度。
3. 网络带宽预测
场景: CDN服务商需要预测流量峰值，进行容量规划
# 训练网络预测模型
python train.py --user alice \
--metric-query "network_throughput{user='alice'}" \
--sequence-length 48
# 预测未来6小时
python predict.py --user alice --steps 6
效果: 提前预测流量峰值，避免网络拥塞，提升用户体验。
八、性能优化实践
1. 模型优化
# 生产级配置
config = {
'sequence_length': 24, # 使用24小时历史数据
'prediction_steps': 1, # 预测1小时
'epochs': 100, # 训练100轮
'hidden_dim': 256, # 隐藏层维度
'num_layers': 4, # LSTM层数
'learning_rate': 0.001, # 学习率
'batch_size': 128, # 批次大小
'dropout': 0.2, # Dropout比例
'early_stopping_patience': 10 # 早停耐心值
}
2. 系统优化
- 缓存策略: 缓存训练好的模型和预测结果
- 异步处理: 使用后台任务进行模型训练
- 资源管理: 根据GPU配置调整批次大小
- 监控告警: 实时监控系统性能和模型准确率
九、效果评估
预测精度对比
| 指标 | 传统方法 | LSTM模型 | 提升幅度 |
|---|---|---|---|
| MAE | 15.2% | 8.7% | 42.8% |
| RMSE | 18.5% | 11.2% | 39.5% |
| MAPE | 12.3% | 6.8% | 44.7% |
| 方向准确率 | 65% | 87% | 33.8% |
业务价值
- 故障预防: 提前3-6小时发现潜在问题
- 资源优化: 提高资源利用率15-20%
- 成本节约: 减少不必要的资源扩容
- 用户体验: 降低服务中断时间
十、未来发展方向
短期目标 (1-3个月)
- 支持更多深度学习模型 (CNN-LSTM, Attention机制)
- 添加模型自动调优功能
- 实现分布式训练支持
- 添加实时数据流处理
中期目标 (3-6个月)
- 支持多变量时间序列预测
- 添加异常检测功能
- 实现模型版本管理
- 添加A/B测试框架
长期目标 (6-12个月)
- 支持联邦学习
- 添加自动特征工程
- 实现模型解释性分析
- 支持边缘计算部署
十一 收获
这个基于LSTM的Prometheus数据预测平台展示了深度学习在运维监控领域的强大潜力。通过结合全栈Web+python技术栈和先进的机器学习算法（需要不断试探调整），构建了一个完整的预测解决方案，能够：
- 智能预测: 基于历史数据预测未来趋势
- 实时响应: 提供毫秒级的预测服务(A100卡，V100实测约10ms 100tokens tokens/s)
- 易于部署: 支持Docker一键部署
- 高度可扩展: 支持多种预测场景和模型
技术亮点
- 生产级GPU支持: 从T4到A100/H100的完整配置
- 模块化设计: 清晰的代码结构，易于维护和扩展
- 完整文档: 详细的API文档和使用指南
- 现代化界面: 直观的Web界面，提升用户体验
开源贡献
项目已开源在GitHub: https://github.com/pwxwmm/timeseries_forecast_platform
欢迎社区贡献代码、提出建议或报告问题。让我们一起推动AI在运维领域的应用发展！
作者信息:
- 作者: mmwei3
- 邮箱: mmwei3@iflytek.com, 1300042631@qq.com
- 日期: 2025-08-27
- 项目地址: https://github.com/pwxwmm/timeseries_forecast_platform
本文详细介绍了基于LSTM的时间序列预测平台的完整实现，从理论背景到实际部署，为SRE提供了一个完整的解决方案。希望这篇文章能够帮助更多开发者和SRE了解和应用深度学习技术解决实际的运维监控问题。
中国智能体开发者社区，聚焦智能体与大模型开发，提供前沿资讯、实用工具链、开源项目及行业案例。通过技术沙龙、开发者大赛等活动，促进经验交流与协作，助力开发者快速构建创新智能应用。
更多推荐
31
0- 0
已为社区贡献2条内容
所有评论(0)
